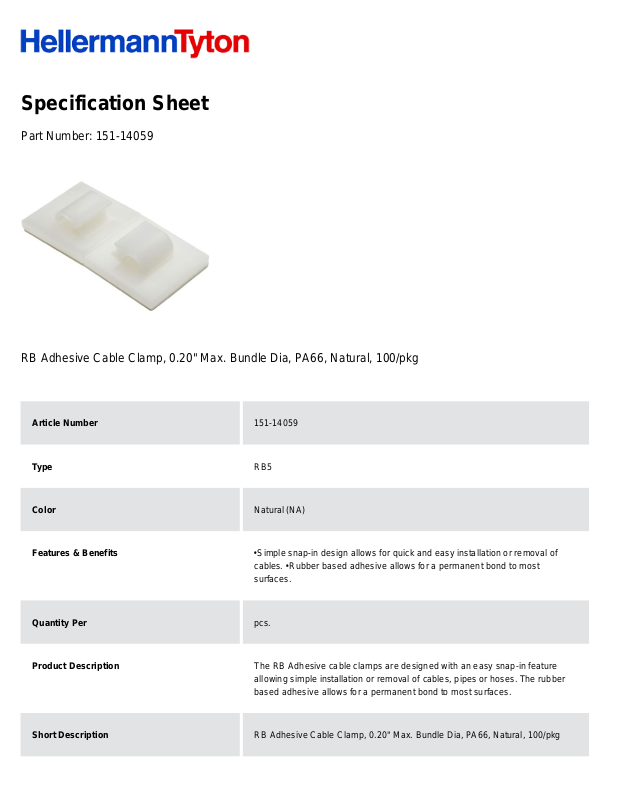

Page 1
Specification Sheet
Part Number:
151-14059
RB Adhesive Cable Clamp, 0.20" Max. Bundle Dia, PA66, Natural, 100/pkg
Article Number
151-14059
Type
RB5
Color
Natural (NA)
Features & Benefits
•
Simple snap-in design allows for quick and easy installation or removal of
cables. •
Rubber based adhesive allows for a permanent bond to most
surfaces.
Quantity Per
pcs.
Product Description
The RB Adhesive cable clamps are designed with an easy snap-in feature
allowing simple installation or removal of cables, pipes or hoses. The rubber
based adhesive allows for a permanent bond to most surfaces.
Short Description
RB Adhesive Cable Clamp, 0.20" Max. Bundle Dia, PA66, Natural, 100/pkg
Page 2
Global Part Name
RB5-PA66-NA
Length L (Imperial)
0.75
Length L (Metric)
19.0
Fixation Method
Pasting / Stick
Variant
Closed
Width W (Imperial)
0.75
Width W (Metric)
19.0
Bundle Diameter Max (Imperial)
0.20
Bundle Diameter Max (Metric)
5.0
Height H (Imperial)
0.24
Height H (Metric)
6.0
Nominal Diameter (Imperial)
3/16
Nominal Diameter (Metric)
5.0
Material
Polyamide 6.6 (PA66)
Material Shortcut
PA66
Page 3
Adhesive
Synthetic rubber with base of polyethylene foam
Flammability
UL 94 V2 (excluding adhesive)
UV Resistant (Yes/No)
No
Adhesive Operating Temperature
-40°F to +140°F (-40°C to +60°C)
Operating Temperature (Metric)
-40°F to +185°F (-40°C to +85°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Package Quantity(Imperial)
100
Package Quantity (Metric)
100
Customs Number
3926909987
Content Unit(BMEcat)
pcs.
Weight (Metric)
3
