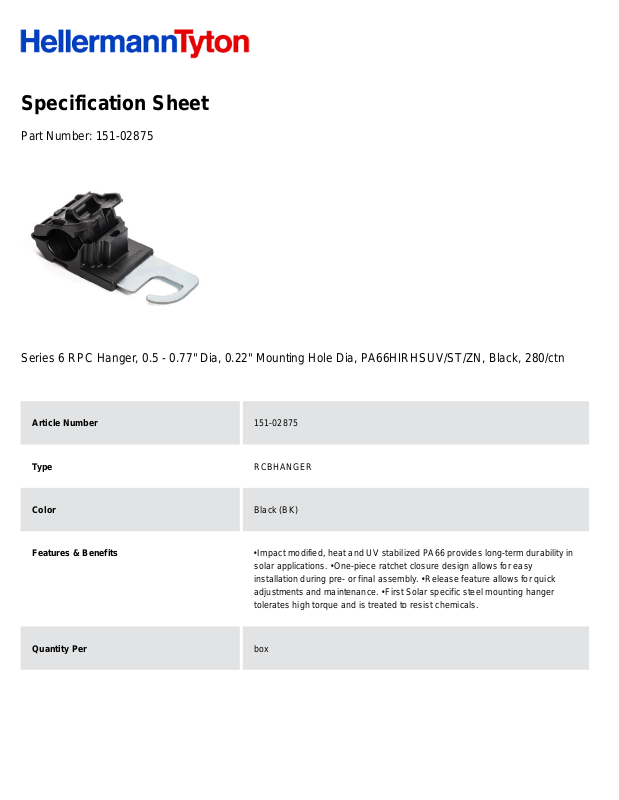

Specification Sheet
Part Number:
151-02875
Series 6 RPC Hanger, 0.5 - 0.77" Dia, 0.22" Mounting Hole Dia, PA66HIRHSUV/ST/ZN, Black, 280/ctn
Article Number
151-02875
Type
RCBHANGER
Color
Black (BK)
Features & Benefits
•
Impact modified, heat and UV stabilized PA66 provides long-term durability in
solar applications. •
One-piece ratchet closure design allows for easy
installation during pre- or final assembly. •
Release feature allows for quick
adjustments and maintenance. •
First Solar specific steel mounting hanger
tolerates high torque and is treated to resist chemicals.
Quantity Per
box
Product Description
The Series 6 Ratchet P-Clamp Solar Hanger offers one-handed, toolless
simplicity and size versatility for managing wires and cables on First Solar
modules. The robust design and solar-optimized materials make it ideal for
heavy duty, outdoor applications. The one-piece adjustable clamp can be
closed by hand to the desired diameter, replacing multiple sizes of fixed
diameter fasteners. The integrated release feature enables easy and
nondestructive removal of cables by inserting a flat-head screwdriver. This
allows the clamp to be reused without removing it.
Short Description
Series 6 RPC Hanger, 0.5 - 0.77" Dia, 0.22" Mounting Hole Dia,
PA66HIRHSUV/ST/ZN, Black, 280/ctn
Global Part Name
RCBHANGER-PA66HIRHSUV/ZN-BK
Minimum Tensile Strength (Imperial)
100.0
Minimum Tensile Strength (Metric)
445.0
Length L (Imperial)
4.54
Length L (Metric)
115.4
Fixation Method
Screw Mounting
Variant
Fixing clamp
Width W (Imperial)
1.37
Width W (Metric)
34.9
Bundle Diameter Min (Imperial)
0.5
Bundle Diameter Min (Metric)
12.7
Bundle Diameter Max (Imperial)
0.77
Bundle Diameter Max (Metric)
19.5
Height H (Imperial)
1.37
Height H (Metric)
34.9
Mounting Hole Diameter D (Imperial)
0.22
Mounting Hole Diameter D (Metric)
5.6 mm
Material
Zinc plated (ZN) Polyamide 6.6 high impact modified, heat and UV stabilized
(PA66HIRHSUV)
Material Shortcut
ZN PA66HIRHSUV
UV Resistant (Yes/No)
Yes
Operating Temperature (Metric)
-40°F to +230°F (-40°C to +110°C)
ROHS Complaint
Yes
UL Listed (US and Canada)
Yes
UL Listed (US
Yes
Package Quantity(Imperial)
280
Package Quantity (Metric)
280
Customs Number
3926909988
