Specification Sheet
Part Number:
151-02552
LOC Locking Clamp, 10-14 mm, with 4 x Oval Fir Tree, PA66HIRHSUV, Black, 1000/ctn
Article Number
151-02552
Type
LOC10-14FTOVAL
Color
Black (BK)
Features & Benefits
• The 360 degree locking enclosure dynamically fits a range of bundle sizes. •
Clamp can be opened for bundle maintenance. • Low-profile release tab won't
interfere with bundle or nearby routing. • Non-rotating fir tree demonstrates
easy insertion with high extraction resistance.
Quantity Per
carton
Product Description

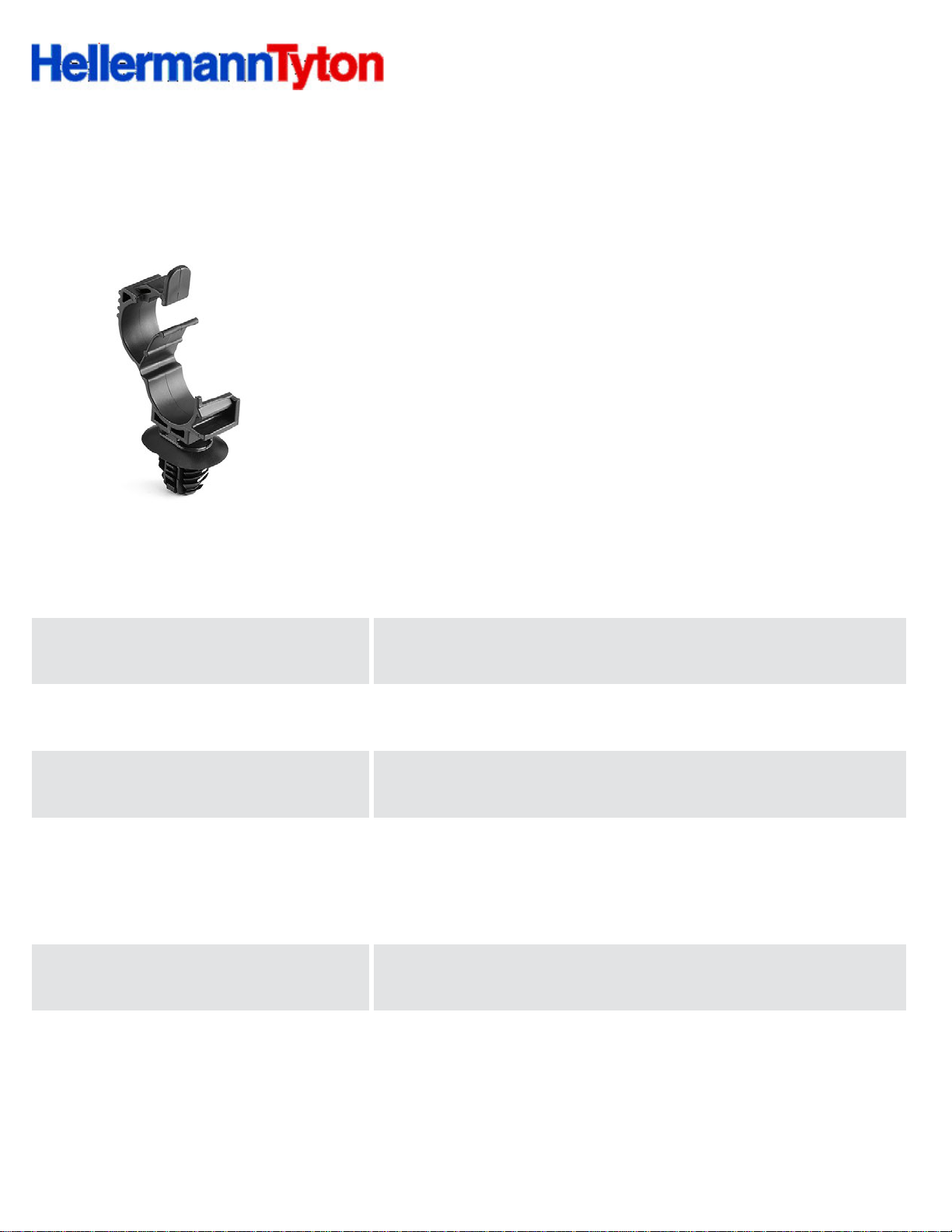

The LOC with Oval Fir Tree features HellermannTyton's unique retention clamp
attached to a 4x oval fir tree that will not rotate in the mounting hole. The
mount delivers a low insertion force while exhibiting high extraction resistance
for a secure mounting point against a panel. This one design exceeds
automotive requirements for the four most common oval sizes: 6.2x12.2 mm,
6.5x12.5 mm, 6.5x13 mm and 7x12 mm.
Short Description
LOC Locking Clamp, 10-14 mm, with 4 x Oval Fir Tree, PA66HIRHSUV, Black,
1000/ctn
Global Part Name
LOC10-14FTOVAL-PA66HIRHSUV-BK
Length L (Imperial)
1.09
Length L (Metric)
27.6
Fixation Method
Fir Tree
Bundle Diameter Min (Imperial)
0.39
Bundle Diameter Min (Metric)
10.0
Bundle Diameter Max (Imperial)
0.55
Bundle Diameter Max (Metric)
14.0
Height H (Imperial)
1.71
Height H (Metric)
43.5
Depth D (imperial)
0.47
Depth D (metric)
12.0
Panel Thickness Min(Imperial)
0.02
Panel Thickness Max(Imperial)
0.27
Panel Thickness Min (Metric)
0.60
Panel Thickness Max (Metric)
6.75
Mounting Hole Diameter D (Imperial)
0.24 x 0.48"; 0.26 x 0.49"; 0.26 x 0.51"; 0.28 x 0.47
Mounting Hole Diameter D (Metric)
6.5 x 13.0 mm 7.0 x 12.0 mm 6.2 x 12.2 mm 6.5 x 12.5 mm
Material
Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Material Shortcut
PA66HIRHSUV
Flammability
UL 94 HB
Halogen free
Yes
Operating Temperature (Metric)
-40°F to +230°F (-40°C to +110°C)
ROHS Complaint
Yes
Package Quantity(Imperial)
1000
Package Quantity (Metric)
1000
Customs Number
3926909988
Weight (Metric)
2.58
Weight (Imperial)
0.09
