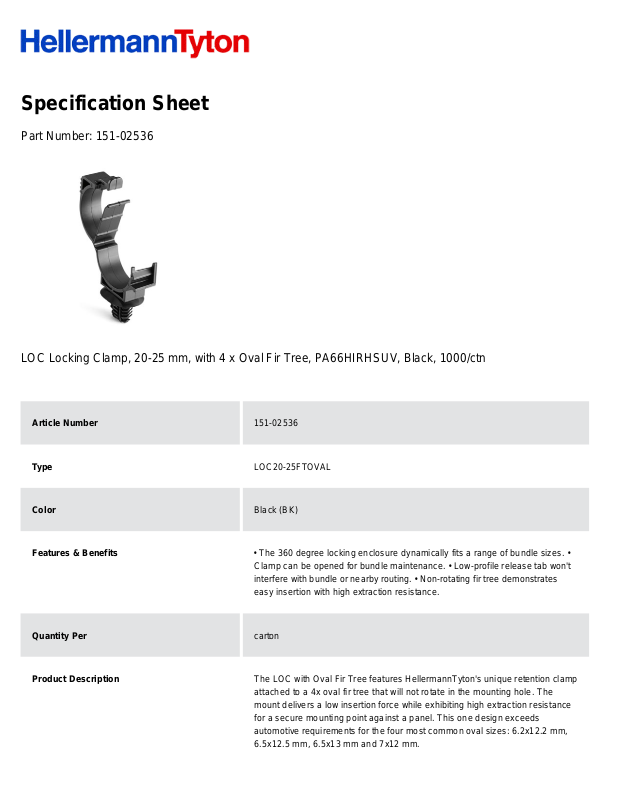

Specification Sheet
Part Number:
151-02536
LOC Locking Clamp, 20-25 mm, with 4 x Oval Fir Tree, PA66HIRHSUV, Black, 1000/ctn
Article Number
151-02536
Type
LOC20-25FTOVAL
Color
Black (BK)
Features & Benefits
• The 360 degree locking enclosure dynamically fits a range of bundle sizes. •
Clamp can be opened for bundle maintenance. • Low-profile release tab won't
interfere with bundle or nearby routing. • Non-rotating fir tree demonstrates
easy insertion with high extraction resistance.
Quantity Per
carton
Product Description
The LOC with Oval Fir Tree features HellermannTyton's unique retention clamp
attached to a 4x oval fir tree that will not rotate in the mounting hole. The
mount delivers a low insertion force while exhibiting high extraction resistance
for a secure mounting point against a panel. This one design exceeds
automotive requirements for the four most common oval sizes: 6.2x12.2 mm,
6.5x12.5 mm, 6.5x13 mm and 7x12 mm.
Short Description
LOC Locking Clamp, 20-25 mm, with 4 x Oval Fir Tree, PA66HIRHSUV, Black,
1000/ctn
Global Part Name
LOC20-25FTOVAL-PA66HIRHSUV-BK
Length L (Imperial)
1.46
Length L (Metric)
37.2
Fixation Method
Fir Tree
Bundle Diameter Min (Imperial)
0.79
Bundle Diameter Min (Metric)
20.0
Bundle Diameter Max (Imperial)
0.98
Bundle Diameter Max (Metric)
25.0
Height H (Imperial)
2.20
Height H (Metric)
55.5
Depth D (imperial)
0.47
Depth D (metric)
12.0
Panel Thickness Min(Imperial)
0.02
Panel Thickness Max(Imperial)
0.27
Panel Thickness Min (Metric)
0.60
