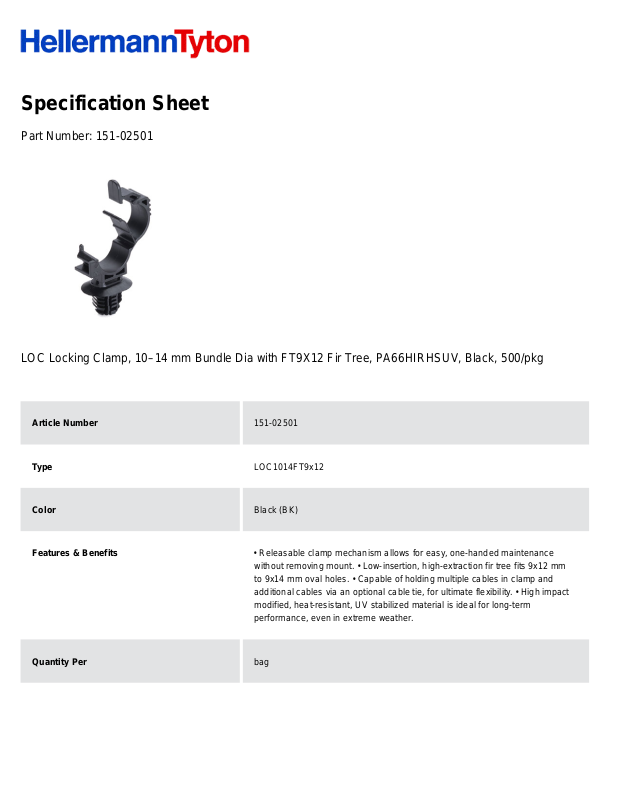

Specification Sheet
Part Number:
151-02501
LOC Locking Clamp, 10–14 mm Bundle Dia with FT9X12 Fir Tree, PA66HIRHSUV, Black, 500/pkg
Article Number
151-02501
Type
LOC1014FT9x12
Color
Black (BK)
Features & Benefits
• Releasable clamp mechanism allows for easy, one-handed maintenance
without removing mount. • Low-insertion, high-extraction fir tree fits 9x12 mm
to 9x14 mm oval holes. • Capable of holding multiple cables in clamp and
additional cables via an optional cable tie, for ultimate flexibility. • High impact
modified, heat-resistant, UV stabilized material is ideal for long-term
performance, even in extreme weather.
Quantity Per
bag
Product Description
The Locking Clamp is ideal for fastening wire and cable bundles to panels. Its
uniquely engineered fir tree holds tightly in pre-stamped hole sizes from 9x12
mm to 9x14 mm. The locking clamp mechanism dynamically fits various
bundle sizes, while an integrated cable tie saddle allows installers to add
additional cable runs. The clamp is manufactured of an impact-modified
Polyamide 6.6 material for increased flexibility, heat resistance and UV
stabilization to deliver years of dependable performance. It is easy to install
and operate with a single hand and does not require tools, saving time and
labor costs.
Short Description
LOC Locking Clamp, 10–14 mm Bundle Dia with FT9X12 Fir Tree,
PA66HIRHSUV, Black, 500/pkg
Global Part Name
LOC1014FT9x12-PA66HIRHSUV-BK
Minimum Tensile Strength (Imperial)
50.0
Minimum Tensile Strength (Metric)
225.0
Length L (Imperial)
1.37
Length L (Metric)
35.0
Fixation Method
Fir Tree
Width W (Imperial)
0.47
Width W (Metric)
12.0
Bundle Diameter Min (Imperial)
0.39
Bundle Diameter Min (Metric)
10.0
Bundle Diameter Max (Imperial)
0.55
Bundle Diameter Max (Metric)
14.0
