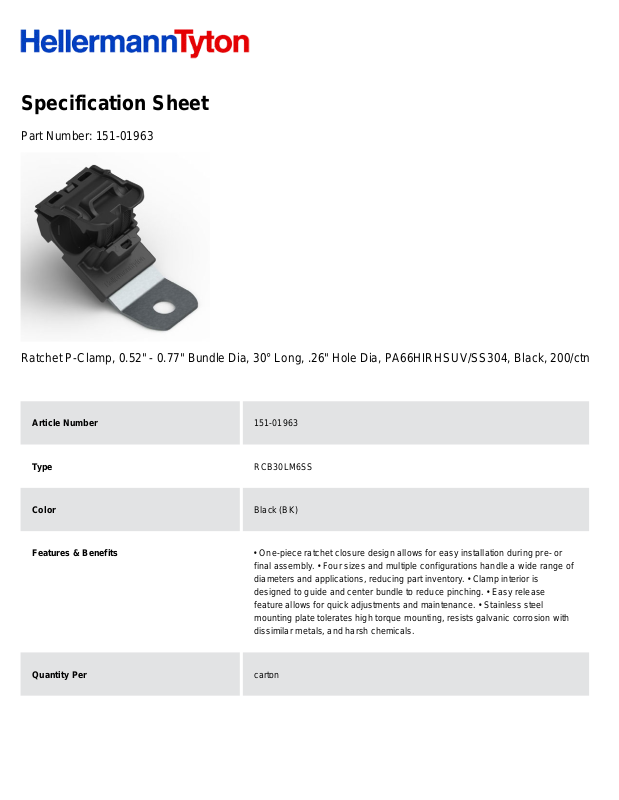

Specification Sheet
Part Number:
151-01963
Ratchet P-Clamp, 0.52" - 0.77" Bundle Dia, 30° Long, .26" Hole Dia, PA66HIRHSUV/SS304, Black, 200/ctn
Article Number
151-01963
Type
RCB30LM6SS
Color
Black (BK)
Features & Benefits
• One-piece ratchet closure design allows for easy installation during pre- or
final assembly. • Four sizes and multiple configurations handle a wide range of
diameters and applications, reducing part inventory. • Clamp interior is
designed to guide and center bundle to reduce pinching. • Easy release
feature allows for quick adjustments and maintenance. • Stainless steel
mounting plate tolerates high torque mounting, resists galvanic corrosion with
dissimilar metals, and harsh chemicals.
Quantity Per
carton
Product Description
The Ratchet P-Clamp family offers versatility when managing wires, cables
and hoses. The robust design and durable materials make it ideal for heavy
duty applications, both indoors and out. The one-piece adjustable clamp can
be closed by hand to the desired diameter. The release feature provides easy
and nondestructive removal of cables simply by using a flat-head screwdriver.
This nondestructive release allows the clamp to be reused without removing or
replacing any bolts or screws. The Ratchet P-Clamp is offered in four sizes
and multiple mounting configurations.
Short Description
Ratchet P-Clamp, 0.52" - 0.77" Bundle Dia, 30° Long, .26" Hole Dia,
PA66HIRHSUV/SS304, Black, 200/ctn
Global Part Name
RCB30LM6SS-PA66HIRHSUV/SS304-BK
Minimum Tensile Strength (Imperial)
100.0
Minimum Tensile Strength (Metric)
445.0
Length L (Imperial)
5.93
Length L (Metric)
150.5
Fixation Method
Screw Mounting
Variant
Long
Width W (Imperial)
1.37
Width W (Metric)
34.9
Bundle Diameter Min (Imperial)
0.5
Bundle Diameter Min (Metric)
12.7
Bundle Diameter Max (Imperial)
0.77
Bundle Diameter Max (Metric)
19.5
Cable Tie Width Max (Imperial)
0.52
Cable Tie Width Max (Metric)
13.2
Mounting Hole Diameter D (Imperial)
0.256
Mounting Hole Diameter D (Metric)
6.5 mm
Mounting Hole Diameter D Max (Metric)
6.5
Stud Diameter (Metric)
M6
Mounting Hole Centers (Imperial)
2.89
Material
Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Stainless Steel (SS304)
Material Shortcut
PA66HIRHSUV SS304
Flammability
UL 94 HB
UV Resistant (Yes/No)
Yes
Operating Temperature (Metric)
-40°F to +257°F (-40°C to +125°C)
ROHS Complaint
Yes
UL Listed (US and Canada)
Yes
UL Listed (US
Yes
Package Quantity(Imperial)
200
Package Quantity (Metric)
200
Customs Number
3926909988
