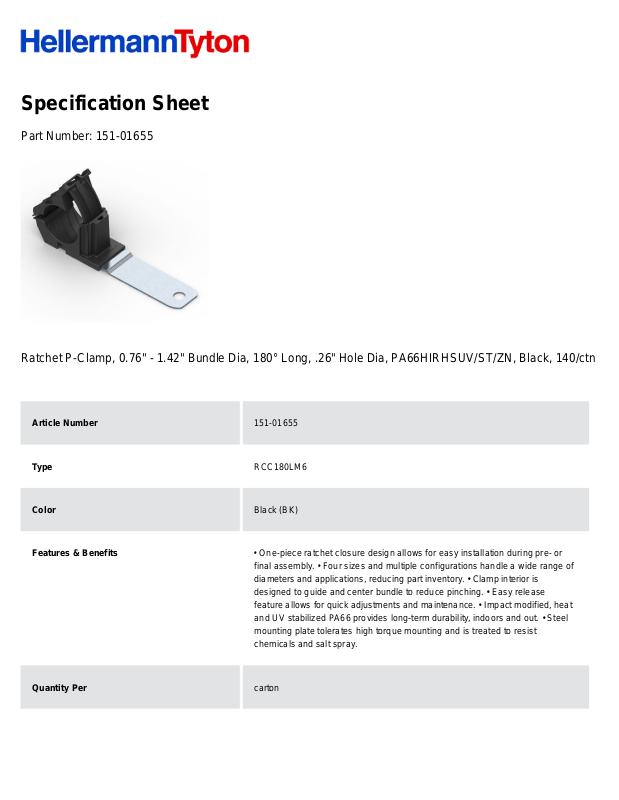

Specification Sheet
Part Number:
151-01655
Ratchet P-Clamp, 0.76" - 1.42" Bundle Dia, 180° Long, .26" Hole Dia, PA66HIRHSUV/ST/ZN, Black, 140/ctn
Article Number
151-01655
Type
RCC180LM6
Color
Black (BK)
Features & Benefits
• One-piece ratchet closure design allows for easy installation during pre- or
final assembly. • Four sizes and multiple configurations handle a wide range of
diameters and applications, reducing part inventory. • Clamp interior is
designed to guide and center bundle to reduce pinching. • Easy release
feature allows for quick adjustments and maintenance. • Impact modified, heat
and UV stabilized PA66 provides long-term durability, indoors and out. • Steel
mounting plate tolerates high torque mounting and is treated to resist
chemicals and salt spray.
Quantity Per
carton
Product Description
The Ratchet P-Clamp family offers versatility when managing wires, cables
and hoses. The robust design and durable materials make it ideal for heavy
duty applications, both indoors and out. The one-piece adjustable clamp can
be closed by hand to the desired diameter. The release feature provides easy
and nondestructive removal of cables simply by using a flat-head screwdriver.
This nondestructive release allows the clamp to be reused without removing or
replacing any bolts or screws. The Ratchet P-Clamp is offered in four sizes
and multiple mounting configurations.
Short Description
Ratchet P-Clamp, 0.76" - 1.42" Bundle Dia, 180° Long, .26" Hole Dia,
PA66HIRHSUV/ST/ZN, Black, 140/ctn
Global Part Name
RCC180LM6-PA66HIRHSUV/ST/ZN-BK
Minimum Tensile Strength (Imperial)
100.0
Minimum Tensile Strength (Metric)
445.0
Length L (Imperial)
8.15
Length L (Metric)
207.1
Fixation Method
Screw Mounting
Variant
Long
Width W (Imperial)
1.37
Width W (Metric)
34.9
Bundle Diameter Min (Imperial)
0.76
Bundle Diameter Min (Metric)
19.4
Bundle Diameter Max (Imperial)
1.42
