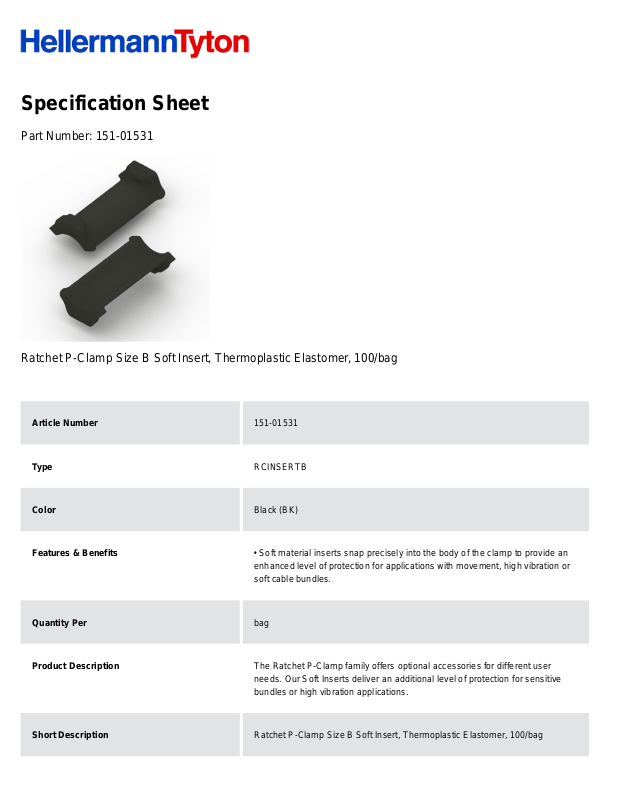

Specification Sheet
Part Number:
151-01531
Ratchet P-Clamp Size B Soft Insert, Thermoplastic Elastomer, 100/bag
Article Number
151-01531
Type
RCINSERTB
Color
Black (BK)
Features & Benefits
• Soft material inserts snap precisely into the body of the clamp to provide an
enhanced level of protection for applications with movement, high vibration or
soft cable bundles.
Quantity Per
bag
Product Description
The Ratchet P-Clamp family offers optional accessories for different user
needs. Our Soft Inserts deliver an additional level of protection for sensitive
bundles or high vibration applications.
Short Description
Ratchet P-Clamp Size B Soft Insert, Thermoplastic Elastomer, 100/bag
Global Part Name
RCINSERTB-TPE-BK
Fixation Method
Others
Variant
Rubber profile
Bundle Diameter Min (Imperial)
0.34
Bundle Diameter Min (Metric)
8.7
Bundle Diameter Max (Imperial)
0.61
Bundle Diameter Max (Metric)
15.5
Material
Thermoplastic Elastomer (TPE)
Material Shortcut
TPE
Flammability
UL 94 HB
UV Resistant (Yes/No)
Yes
Operating Temperature (Metric)
-40°F to +194°F (-40°C to +90°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
UL Listed (US and Canada)
Yes
