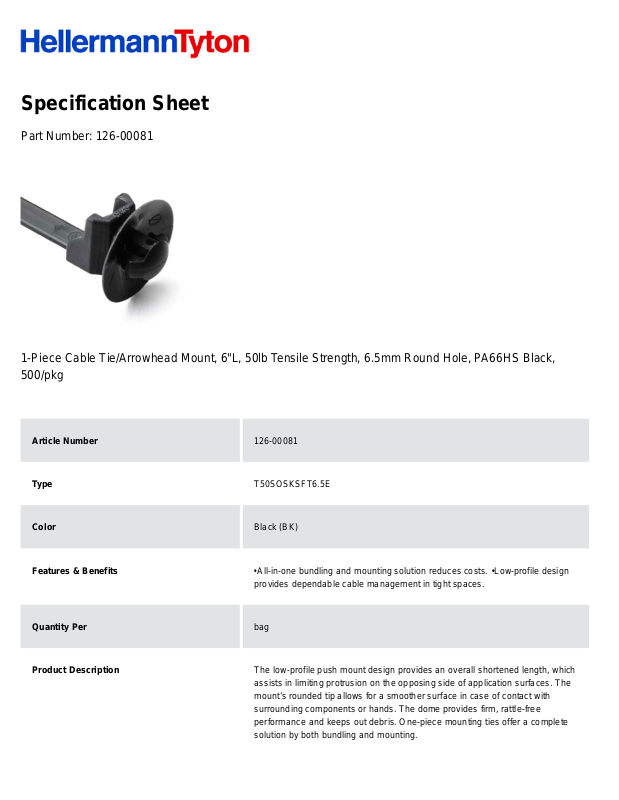

Specification Sheet
Part Number:
126-00081
1-Piece Cable Tie/Arrowhead Mount, 6"L, 50lb Tensile Strength, 6.5mm Round Hole, PA66HS Black,
500/pkg
Article Number
126-00081
Type
T50SOSKSFT6.5E
Color
Black (BK)
Features & Benefits
•
All-in-one bundling and mounting solution reduces costs. •
Low-profile design
provides dependable cable management in tight spaces.
Quantity Per
bag
Product Description
The low-profile push mount design provides an overall shortened length, which
assists in limiting protrusion on the opposing side of application surfaces. The
mount’s rounded tip allows for a smoother surface in case of contact with
surrounding components or hands. The dome provides firm, rattle-free
performance and keeps out debris. One-piece mounting ties offer a complete
solution by both bundling and mounting.
Short Description
1-Piece Cable Tie/Arrowhead Mount, 6"L, 50lb Tensile Strength, 6.5mm Round
Hole, PA66HS Black, 500/pkg
Global Part Name
T50SOSKSFT6.5E-PA66HS-BK
Minimum Tensile Strength (Imperial)
40.0
Minimum Tensile Strength (Metric)
180.0
Length L (Imperial)
6.0
Length L (Metric)
156.0
Fixation Method
Arrowhead (Small Mount)
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Outside Serrated
Width W (Imperial)
0.18
Width W (Metric)
4.6
Bundle Diameter Min (Imperial)
0.04
Bundle Diameter Min (Metric)
1.0
Bundle Diameter Max (Imperial)
1.4
Bundle Diameter Max (Metric)
35.0
Panel Thickness Min(Imperial)
0.03
Panel Thickness Max(Imperial)
0.05
Panel Thickness Min (Metric)
0.7
Panel Thickness Max (Metric)
1.3
Mounting Hole Diameter D (Imperial)
0.25 - 0.26
Mounting Hole Diameter D (Metric)
6.3 - 6.7 mm
Mounting Hole Diameter D Min (Imperial)
0.25
Mounting Hole Diameter D Max (Imperial)
0.26
Mounting Hole Diameter D Max (Metric)
6.7
Disc Diameter(Metric)
16.0
Disc Diameter (Imperial)
0.63
Material
Polyamide 6.6 heat stabilized (PA66HS)
Material Shortcut
PA66HS
Flammability
UL 94 V2
Operating Temperature (Metric)
-40°F to +221°F (-40°C to +105°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Package Quantity(Imperial)
500
Package Quantity (Metric)
500
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
Weight (Metric)
1.3
