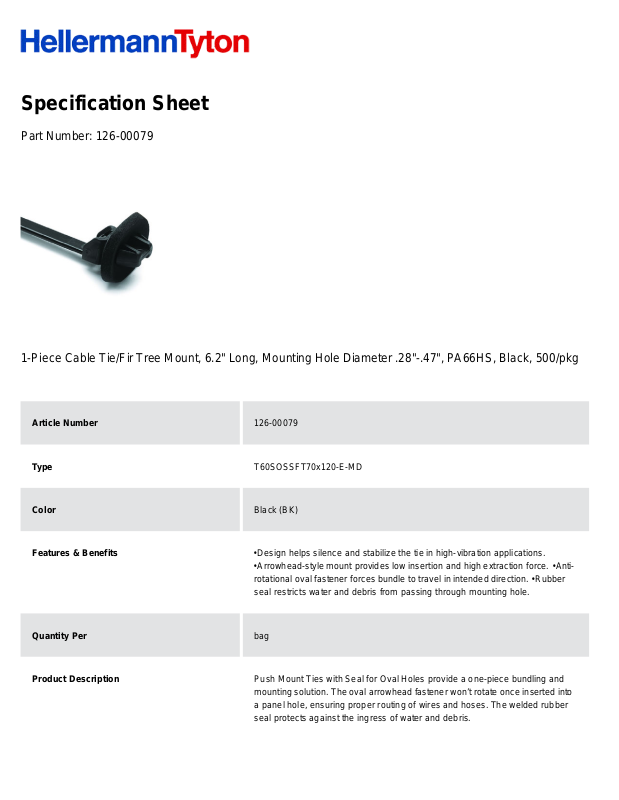

Specification Sheet
Part Number:
126-00079
1-Piece Cable Tie/Fir Tree Mount, 6.2" Long, Mounting Hole Diameter .28"-.47", PA66HS, Black, 500/pkg
Article Number
126-00079
Type
T60SOSSFT70x120-E-MD
Color
Black (BK)
Features & Benefits
•
Design helps silence and stabilize the tie in high-vibration applications.
•
Arrowhead-style mount provides low insertion and high extraction force. •
Anti-
rotational oval fastener forces bundle to travel in intended direction. •
Rubber
seal restricts water and debris from passing through mounting hole.
Quantity Per
bag
Product Description
Push Mount Ties with Seal for Oval Holes provide a one-piece bundling and
mounting solution. The oval arrowhead fastener won’t rotate once inserted into
a panel hole, ensuring proper routing of wires and hoses. The welded rubber
seal protects against the ingress of water and debris.
Short Description
1-Piece Cable Tie/Fir Tree Mount, 6.2" Long, Mounting Hole Diameter
.28"-.47", PA66HS, Black, 500/pkg
Global Part Name
T60SOSSFT70x120-E-MD-PA66HS-BK
Minimum Tensile Strength (Imperial)
67.0
Minimum Tensile Strength (Metric)
300
Length L (Imperial)
6.2
Length L (Metric)
157.7
Fixation Method
Arrowhead for oval holes
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Outside Serrated
Width W (Imperial)
0.22
Width W (Metric)
5.5
Bundle Diameter Min (Imperial)
0.06
Bundle Diameter Min (Metric)
1.6
Bundle Diameter Max (Imperial)
1.18
Bundle Diameter Max (Metric)
30.0
Thickness T (Metric)
1.35
Panel Thickness Min(Imperial)
0.028
Panel Thickness Max(Imperial)
0.079
Panel Thickness Min (Metric)
0.6
Panel Thickness Max (Metric)
2.0
Mounting Hole Diameter D (Imperial)
0.28 - 0.47
Mounting Hole Diameter D (Metric)
7.0 x 12.0 mm
Mounting Hole Diameter D Min (Imperial)
0.28
Mounting Hole Diameter D Max (Imperial)
0.47
Mounting Hole Diameter D Max (Metric)
12.0
Disc Diameter(Metric)
16.0 x 22.0
Disc Diameter (Imperial)
0.63
Material
Polyamide 6.6 heat stabilized (PA66HS)
Material Shortcut
PA66HS
Flammability
UL 94 V2
Operating Temperature (Metric)
-40°F to +221°F (-40°C to +105°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Package Quantity(Imperial)
500
Package Quantity (Metric)
500
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
Weight (Metric)
2.05
