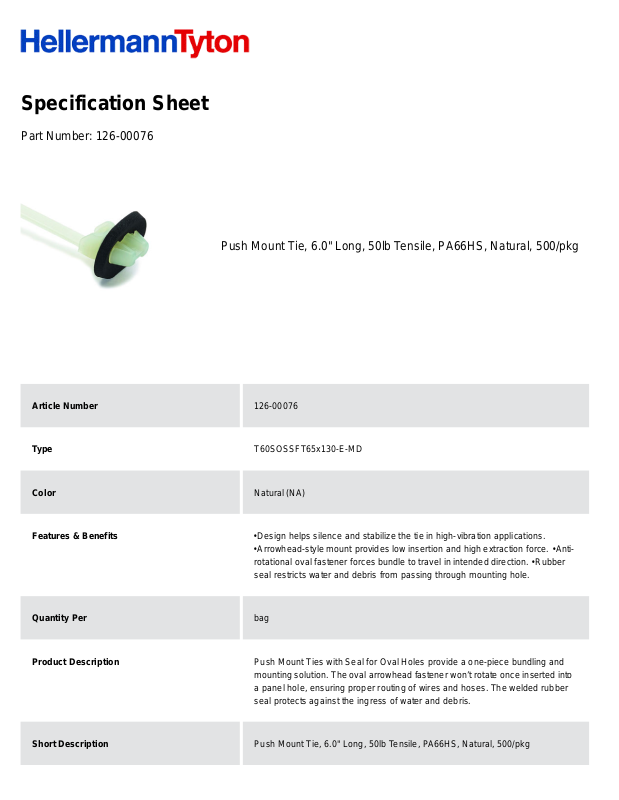

Specification Sheet
Part Number:
126-00076
Push Mount Tie, 6.0" Long, 50lb Tensile, PA66HS, Natural, 500/pkg
Article Number
126-00076
Type
T60SOSSFT65x130-E-MD
Color
Natural (NA)
Features & Benefits
•
Design helps silence and stabilize the tie in high-vibration applications.
•
Arrowhead-style mount provides low insertion and high extraction force. •
Anti-
rotational oval fastener forces bundle to travel in intended direction. •
Rubber
seal restricts water and debris from passing through mounting hole.
Quantity Per
bag
Product Description
Push Mount Ties with Seal for Oval Holes provide a one-piece bundling and
mounting solution. The oval arrowhead fastener won’t rotate once inserted into
a panel hole, ensuring proper routing of wires and hoses. The welded rubber
seal protects against the ingress of water and debris.
Short Description
Push Mount Tie, 6.0" Long, 50lb Tensile, PA66HS, Natural, 500/pkg
Global Part Name
T60SOSSFT65x130-E-MD-PA66HS-NA
Minimum Tensile Strength (Imperial)
67.0
Minimum Tensile Strength (Metric)
300
Length L (Imperial)
6.0
Length L (Metric)
157.6
Fixation Method
Arrowhead for oval holes
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Outside Serrated
Width W (Imperial)
0.22
Width W (Metric)
5.5
Bundle Diameter Min (Imperial)
0.06
Bundle Diameter Min (Metric)
1.6
Bundle Diameter Max (Imperial)
1.18
Bundle Diameter Max (Metric)
30.0
Thickness T (Metric)
1.35
Panel Thickness Min(Imperial)
0.023
Panel Thickness Max(Imperial)
0.079
Panel Thickness Min (Metric)
0.6
Panel Thickness Max (Metric)
2.0
Mounting Hole Diameter D (Imperial)
0.25 - 0.51
Mounting Hole Diameter D (Metric)
6.5 x 13.0 mm
Mounting Hole Diameter D Min (Imperial)
0.26
Mounting Hole Diameter D Max (Imperial)
0.51
Mounting Hole Diameter D Max (Metric)
13.0
Disc Diameter(Metric)
16.0 x 22.0
Disc Diameter (Imperial)
0.63 x 0.87
Material
Polyamide 6.6 heat stabilized (PA66HS)
Material Shortcut
PA66HS
Flammability
UL 94 V2
Operating Temperature (Metric)
-40°F to +221°F (-40°C to +105°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Package Quantity(Imperial)
500
Package Quantity (Metric)
500
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
Weight (Metric)
2.05
