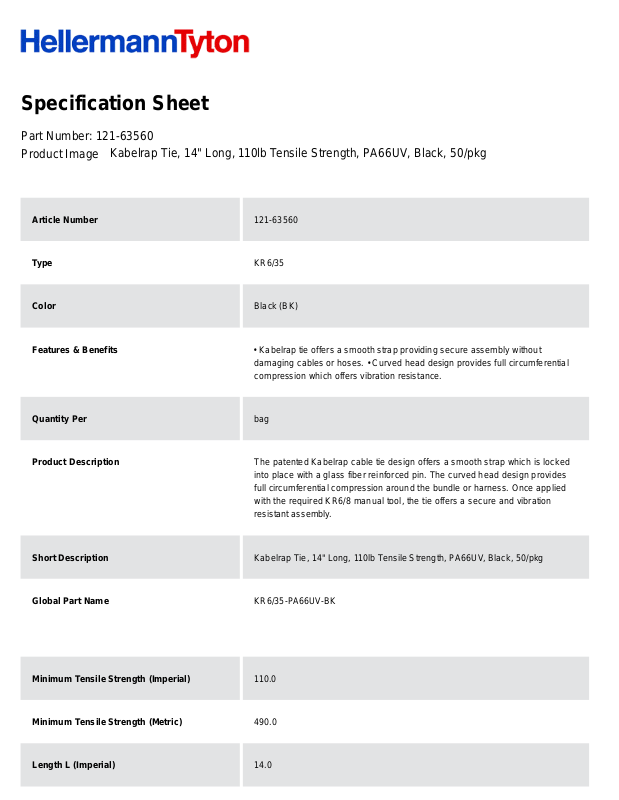

Specification Sheet
Part Number:
121-63560
Product Image
Kabelrap Tie, 14" Long, 110lb Tensile Strength, PA66UV, Black, 50/pkg
Article Number
121-63560
Type
KR6/35
Color
Black (BK)
Features & Benefits
• Kabelrap tie offers a smooth strap providing secure assembly without
damaging cables or hoses. • Curved head design provides full circumferential
compression which offers vibration resistance.
Quantity Per
bag
Product Description
The patented Kabelrap cable tie design offers a smooth strap which is locked
into place with a glass fiber reinforced pin. The curved head design provides
full circumferential compression around the bundle or harness. Once applied
with the required KR6/8 manual tool, the tie offers a secure and vibration
resistant assembly.
Short Description
Kabelrap Tie, 14" Long, 110lb Tensile Strength, PA66UV, Black, 50/pkg
Global Part Name
KR6/35-PA66UV-BK
Minimum Tensile Strength (Imperial)
110.0
Minimum Tensile Strength (Metric)
490.0
Length L (Imperial)
14.0
Length L (Metric)
360
Fixation Method
Cable Tie
Identification Plate Position
none
Releasable Closure
No
Tie Closure
fibreglass pin
Variant
No Serration
Width W (Imperial)
0.24
Width W (Metric)
6.1
Bundle Diameter Min (Imperial)
0.19
Bundle Diameter Min (Metric)
4.7
Bundle Diameter Max (Imperial)
3.7
Bundle Diameter Max (Metric)
93.0
Thickness T (Imperial)
0.06
Thickness T (Metric)
1.6
Cable Tie Head Width (Imperial)
0.37
Cable Tie Width Max (Imperial)
0.25
Cable Tie Width Max (Metric)
6.4
Material
Polyamide 6.6 UV-resistant (PA66UV)
Material Shortcut
PA66UV
Flammability
UL 94 V2
Operating Temperature (Metric)
-40°F to +185°F (-40°C to +85°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Certification/Specification WEB
DNV GL | IEC 62275:2006
Package Quantity(Imperial)
50
Package Quantity (Metric)
50
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
Weight (Metric)
3.17
