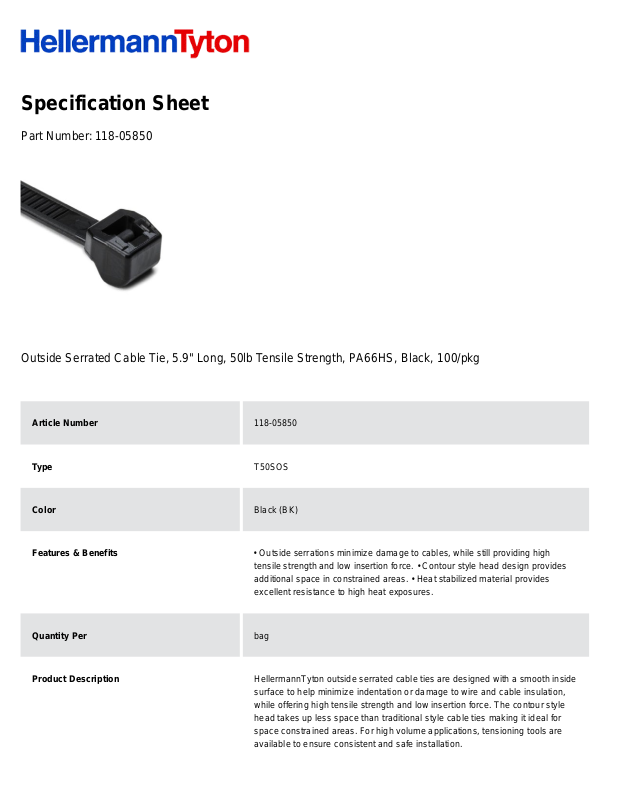

Specification Sheet
Part Number:
118-05850
Outside Serrated Cable Tie, 5.9" Long, 50lb Tensile Strength, PA66HS, Black, 100/pkg
Article Number
118-05850
Type
T50SOS
Color
Black (BK)
Features & Benefits
• Outside serrations minimize damage to cables, while still providing high
tensile strength and low insertion force. • Contour style head design provides
additional space in constrained areas. • Heat stabilized material provides
excellent resistance to high heat exposures.
Quantity Per
bag
Product Description
HellermannTyton outside serrated cable ties are designed with a smooth inside
surface to help minimize indentation or damage to wire and cable insulation,
while offering high tensile strength and low insertion force. The contour style
head takes up less space than traditional style cable ties making it ideal for
space constrained areas. For high volume applications, tensioning tools are
available to ensure consistent and safe installation.
Short Description
Outside Serrated Cable Tie, 5.9" Long, 50lb Tensile Strength, PA66HS, Black,
100/pkg
Global Part Name
T50SOS-PA66HS-BK
Minimum Tensile Strength (Imperial)
50.0
Minimum Tensile Strength (Metric)
225.0
Length L (Imperial)
5.9
Length L (Metric)
150.0
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Outside Serrated
Width W (Imperial)
0.18
Width W (Metric)
4.6
Bundle Diameter Min (Imperial)
0.06
Bundle Diameter Min (Metric)
1.6
Bundle Diameter Max (Imperial)
1.4
Bundle Diameter Max (Metric)
35.0
Thickness T (Imperial)
0.05
Thickness T (Metric)
1.3
Height H (Imperial)
0.05
Height H (Metric)
1.3
Material
Polyamide 6.6 heat stabilized (PA66HS)
Material Shortcut
PA66HS
Flammability
UL 94 V2
Halogen free
Yes
Operating Temperature (Metric)
-40°F to +221°F (-40°C to +105°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Package Quantity(Imperial)
100
Package Quantity (Metric)
100
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
Weight (Metric)
1.2
