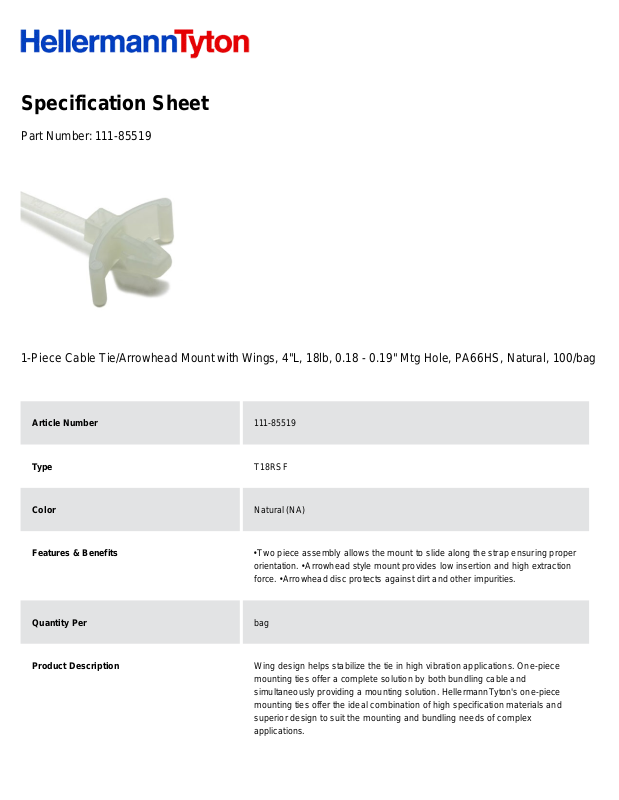

Specification Sheet
Part Number:
111-85519
1-Piece Cable Tie/Arrowhead Mount with Wings, 4"L, 18lb, 0.18 - 0.19" Mtg Hole, PA66HS, Natural, 100/bag
Article Number
111-85519
Type
T18RSF
Color
Natural (NA)
Features & Benefits
•
Two piece assembly allows the mount to slide along the strap ensuring proper
orientation. •
Arrowhead style mount provides low insertion and high extraction
force. •
Arrowhead disc protects against dirt and other impurities.
Quantity Per
bag
Product Description
Wing design helps stabilize the tie in high vibration applications. One-piece
mounting ties offer a complete solution by both bundling cable and
simultaneously providing a mounting solution. HellermannTyton's one-piece
mounting ties offer the ideal combination of high specification materials and
superior design to suit the mounting and bundling needs of complex
applications.
Short Description
1-Piece Cable Tie/Arrowhead Mount with Wings, 4"L, 18lb, 0.18 - 0.19" Mtg
Hole, PA66HS, Natural, 100/bag
Global Part Name
T18RSF-PA66HS-NA
Minimum Tensile Strength (Imperial)
18.0
Minimum Tensile Strength (Metric)
80
Length L (Imperial)
4.0
Length L (Metric)
100
Fixation Method
Arrowhead
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.1
Width W (Metric)
2.5
Bundle Diameter Min (Imperial)
0.06
Bundle Diameter Min (Metric)
1.5
Bundle Diameter Max (Imperial)
0.6
Bundle Diameter Max (Metric)
16.0
Thickness T (Imperial)
0.039
Thickness T (Metric)
1.0
Panel Thickness Min(Imperial)
0.031
Panel Thickness Max(Imperial)
0.12
Panel Thickness Min (Metric)
0.8
Panel Thickness Max (Metric)
3.0
Mounting Hole Diameter D (Imperial)
0.18 - 0.19
Mounting Hole Diameter D (Metric)
4.6 - 4.8 mm
Mounting Hole Diameter D Min (Imperial)
0.177
Mounting Hole Diameter D Max (Imperial)
0.19
Mounting Hole Diameter D Max (Metric)
4.85
Material
Polyamide 6.6 heat stabilized (PA66HS)
Material Shortcut
PA66HS
Material Cable Tie
Polyamide 6, heat stabilized (PA6HS)
Operating Temperature (Metric)
-40°F to +221°F (-40°C to +105°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Package Quantity(Imperial)
100
Package Quantity (Metric)
100
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
Weight (Metric)
0.3
