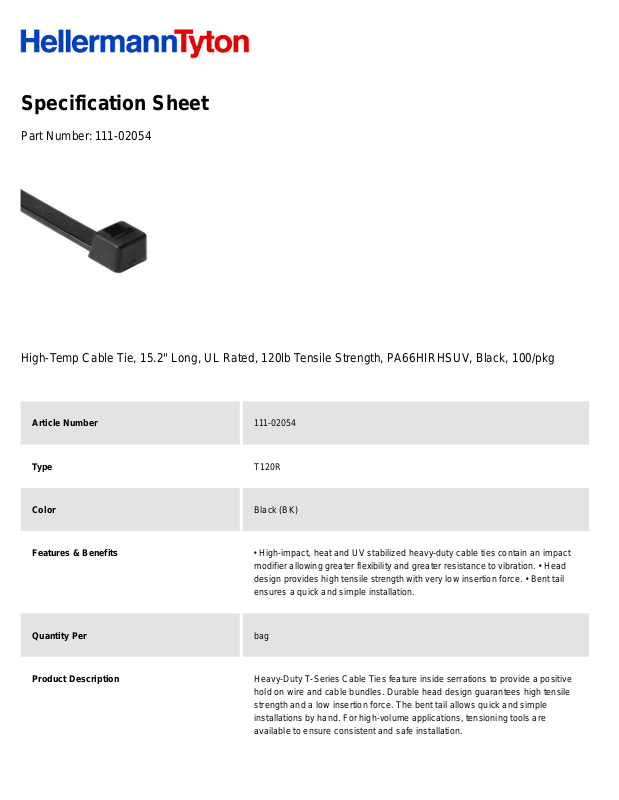

Specification Sheet
Part Number:
111-02054
High-Temp Cable Tie, 15.2" Long, UL Rated, 120lb Tensile Strength, PA66HIRHSUV, Black, 100/pkg
Article Number
111-02054
Type
T120R
Color
Black (BK)
Features & Benefits
• High-impact, heat and UV stabilized heavy-duty cable ties contain an impact
modifier allowing greater flexibility and greater resistance to vibration. • Head
design provides high tensile strength with very low insertion force. • Bent tail
ensures a quick and simple installation.
Quantity Per
bag
Product Description
Heavy-Duty T-Series Cable Ties feature inside serrations to provide a positive
hold on wire and cable bundles. Durable head design guarantees high tensile
strength and a low insertion force. The bent tail allows quick and simple
installations by hand. For high-volume applications, tensioning tools are
available to ensure consistent and safe installation.
Short Description
High-Temp Cable Tie, 15.2" Long, UL Rated, 120lb Tensile Strength,
PA66HIRHSUV, Black, 100/pkg
Global Part Name
T120R-PA66HIRHSUV-BK
Minimum Tensile Strength (Imperial)
120.0
Minimum Tensile Strength (Metric)
535.0
Length L (Imperial)
15.2
Length L (Metric)
387.0
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.30
Width W (Metric)
7.6
Bundle Diameter Min (Imperial)
0.20
Bundle Diameter Min (Metric)
5.0
Bundle Diameter Max (Imperial)
4.1
Bundle Diameter Max (Metric)
104.1
Thickness T (Imperial)
0.073
Thickness T (Metric)
1.9
Material
Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Material Shortcut
PA66HIRHSUV
Flammability
UL 94 HB
Operating Temperature (Metric)
-40°F to +230°F (-40°C to +110°C)
ROHS Complaint
Yes
UL Recognized (US)
Yes
UL Recognized (US and Canada)
Yes
Package Quantity(Imperial)
100
Package Quantity (Metric)
100
Customs Number
3926909988
