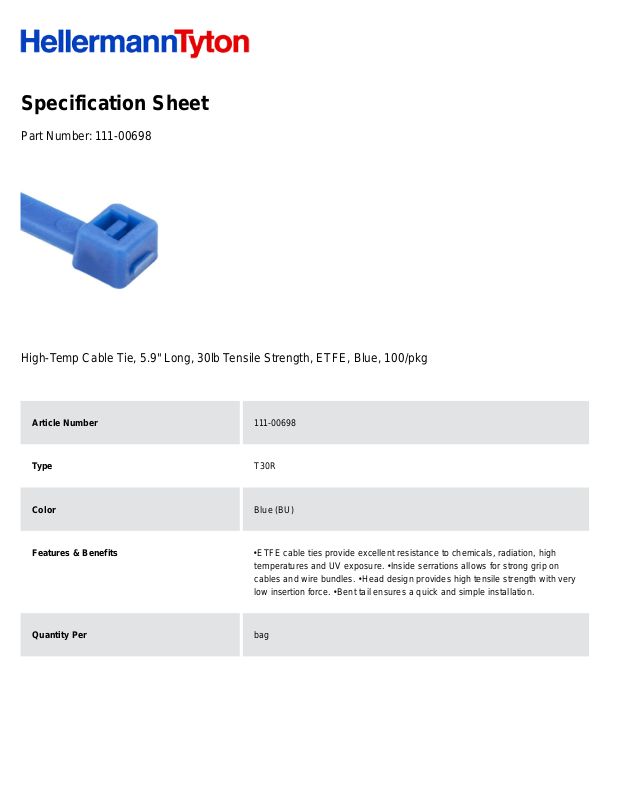

HellermannTyton 111-00698 Specification Sheet

Specification Sheet
Part Number:
111-00698
High-Temp Cable Tie, 5.9" Long, 30lb Tensile Strength, ETFE, Blue, 100/pkg
111-00698
Type
T30R
Color
Blue (BU)
Features & Benefits
ETFE cable ties provide excellent resistance to chemicals, radiation, high
temperatures and UV exposure. •
Inside serrations allows for strong grip on
cables and wire bundles. •
Head design provides high tensile strength with very
low insertion force. •
Bent tail ensures a quick and simple installation.
Quantity Per
bag
Product Description
ETFE ties provide excellent protection against radiation, ultraviolet light, and a
wide range of chemicals. They are also rated for low outgassing applications.
HellermannTyton's ETFE ties come in a standard color of blue for easy
identification. T-Series Cable Ties feature inside serrations to provide a positive
hold on wire and cable bundles. The head design guarantees high tensile
strength and a low insertion force. The bent tail design allows quick and simple
installations by hand. For high-volume applications, tensioning tools are
available to ensure consistent and safe installation.
Short Description
High-Temp Cable Tie, 5.9" Long, 30lb Tensile Strength, ETFE, Blue, 100/pkg
Global Part Name
T30R-E/TFE-BU
Minimum Tensile Strength (Imperial)
30.0
Minimum Tensile Strength (Metric)
133.3
Length L (Imperial)
6.0
Length L (Metric)
150.0
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.14
Width W (Metric)
3.5
Bundle Diameter Min (Imperial)
0.12
Bundle Diameter Min (Metric)
3.0
Bundle Diameter Max (Imperial)
1.4
Bundle Diameter Max (Metric)
36.0
Thickness T (Imperial)
0.05
Thickness T (Metric)
1.2
Material
Ethylenterafluoroethylene (E/TFE)
Material Shortcut
E/TFE
Flammability
UL 94 V0
Operating Temperature (Metric)
-112°F to +338°F (-80°C to +170°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Certification/Specification WEB
UL | ANSI/UL 1565 UL | ANSI/UL 62275
UL Recognized (US)
Yes
UL Recognized (US and Canada)
Yes
Package Quantity(Imperial)
100
Package Quantity (Metric)
100
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
3.67
