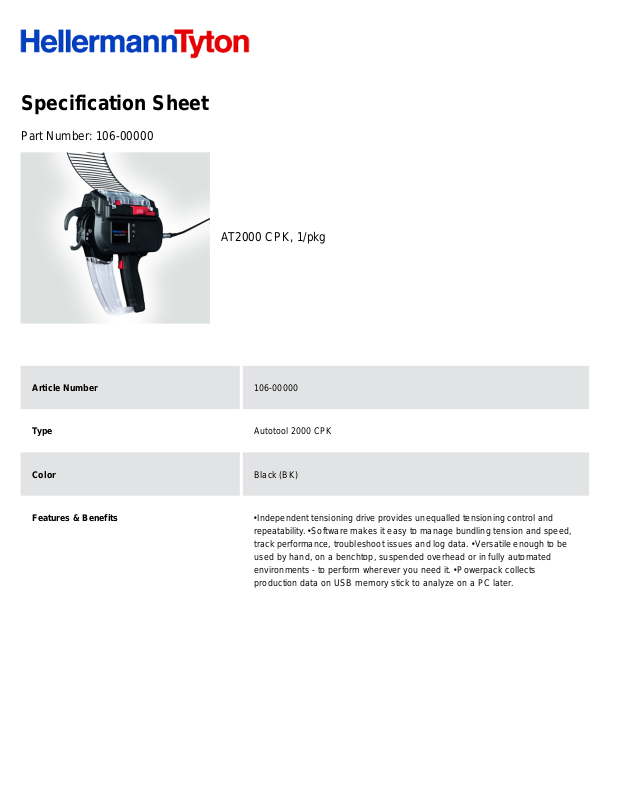

Specification Sheet
Part Number:
106-00000
AT2000 CPK, 1/pkg
Article Number
106-00000
Type
Autotool 2000 CPK
Color
Black (BK)
Features & Benefits
•
Independent tensioning drive provides unequalled tensioning control and
repeatability. •
Software makes it easy to manage bundling tension and speed,
track performance, troubleshoot issues and log data. •
Versatile enough to be
used by hand, on a benchtop, suspended overhead or in fully automated
environments - to perform wherever you need it. •
Powerpack collects
production data on USB memory stick to analyze on a PC later.
Product Description
The AT2000 CPK automatic cable tying system adapts to any industrial
workflow. It excels in high-volume automatic bundling applications – especially
where precision and repeatability are critical. The tool is electronically
operated. Cycle rate is adjustable between 0.8 and 1.4 seconds, depending on
what’s best for the application. With a pull of the trigger, the tool applies an 18
lb. cable tie around a wire or tube bundle and is instantly ready to apply the
next. Cable ties are available on 50-piece bandoliers and 5,000-piece reels.
The AT2000 CPK uses two discreet drive motors. One motor delivers the tie,
the other controls tension. Tension consistency is monitored in the software –
especially useful when verification is required. Configurable blade enables the
AT2000 CPK to cut cable ties flush or with a tail, depending on application
requirements. An onboard TFT display shows production data, fault diagnostics
and device control in 19 languages. Accessories are available to enhance the
tool's efficiency in various workflows from hand operated to fully automated.
Short Description
AT2000 CPK, 1/pkg
Global Part Name
Autotool 2000 CPK-BK
Minimum Tensile Strength (Imperial)
18.0
Minimum Tensile Strength (Metric)
80
Length L (Imperial)
11.22
Length L (Metric)
285.0
Width W (Imperial)
2.56
Width W (Metric)
65.0
Bundle Diameter Min (Imperial)
0.003
Bundle Diameter Min (Metric)
0.7
Bundle Diameter Max (Imperial)
0.75
Bundle Diameter Max (Metric)
20
