Instruction Manual
40cm
Pedestal Fan
Model: PF40
READ AND SAVE THESE INSTRUCTIONS
Page 2
Please read and follow the instructions in this user manual even if you feel you are familiar with the
product, and find a place to keep it handy for future reference.
For your convenience record the complete model number (located on the product identification
plate) and the date you received the product, together with your purchase receipt and attach to the
warranty and service information. Retain in the event that warranty service is required.
NOTE: The rating of this product (as marked on the product identification plate) is based on specific
loading tests. Normal use or the use of other recommended attachments may draw significantly
less power.
IMPORTANT SAFEGUARDS
When using any electrically powered product, basic safety precautions should always be followed,
including the following:
PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT
WARNING!: - to reduce the risk of fire, electrical shock or injury to persons or property:
Always operate the product from a power source of the same voltage, frequency and rating as
indicated on the product identification plate.
Remove the unit from its packaging and check to make sure it is in good condition before using.
Do not let children play with parts of the packaging (such as plastic bags).
Close supervision is necessary when the product is used by or near children or infirm persons. Do
not allow children to use it as a toy.
Do not operate any product with a damaged cord or plug, or after the product malfunctions, or is
dropped or appears damaged in any way. Return the complete product to the place of purchase
for inspection, repair or replacement.
Before unplugging the power cord, be sure to turn the power off. When touching the unit, be
sure your hands are dry to prevent electrical shock.
Never install the unit where it is exposed to direct sunlight, excessive moisture/rain, dust and lack
of ventilation near any heat sources.
Avoid making contact with moving parts. Never insert fingers, pencils or any other objects
through the guards whenever the power plug is connected, especially while the unit is working.
Always place the fan on a stable, level surface when operating to prevent the fan from
overturning. Do not run the power cord under carpet. Do not cover the power cord with throw
rugs or runners. Route the power cord away from walking paths so that nobody can trip over it.
The cable should be kept away from heat, sharp edges and oil.
To reduce the risk of electric shock, do not immerse or expose the product or flexible cord to
rain, moisture or any liquid other than those necessary for correct operation of the product.
This product should not be used in the immediate vicinity of water, such as bathtub, washbowls,
bathroom swimming pool etc. Where the likelihood of immersion or splashing could occur.
Switch off and unplug from outlet when not in use, before assembling or disassembling parts and
before cleaning. Remove by grasping the plug - do not pull on the cord.
Be sure that no other high current appliances are plugged into the same circuit as your fan, as an
overload can occur.
Avoid the use of an extension cord as the extension cord may overheat and cause a risk of fire.
Do not use the appliance for other than its intended use.
Do not use outdoors. FOR INDOOR USE ONLY.
Do not leave the appliance unattended when switched on.
Page 3
Do not cover the grill, or operate in close proximity to curtains etc.
The use of attachments or accessories not recommended or sold by the product distributor may
cause personal or property hazards or injuries.
This product is intended for normal domestic/household use only.
Never leave a working appliance unattended, even for a short period of time – always switch it
off. Please unplug the appliance from the power supply when not in use.
Use this fan as described in this manual. Any other uses, not recommended by the manufacturer,
may cause fire, electric shock, or injury to persons and may void the warranty.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning the use of the appliance by a person responsible for their
safety.
The installation of a residual current device (safety switch) is recommended to provide
additional safety protection when using electrical appliances. It is advisable that a safety switch
with a rated residual operating current not exceeding 30mA be installed in the electrical circuit
supplying the appliance. See your electrician for professional advice.
WARNING: If the supply power cord is damaged, the power cord must be replaced by the
manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
This product has not been designed for any uses other than those specified in this booklet.
CAUTION: Never insert your fingers or any other objects (hair,
drivers etc.) into the openings of
connected
CAUTION: DO NOT COVER the appliance in any way in order to
CAUTION - RISK OF ELECTRIC SHOCK: To reduce the risk of electric shock do not open this
device,
qualified
to the power
there are not serviceable parts for customers. Please
personnel.
supply.
the
guard or close to the blade when the appliance is
SAVE THESE INSTRUCTIONS
clothes,
avoid
refer
any maintenance or repair to
utensils, knives, screw
overheating and
fire.
Page 4

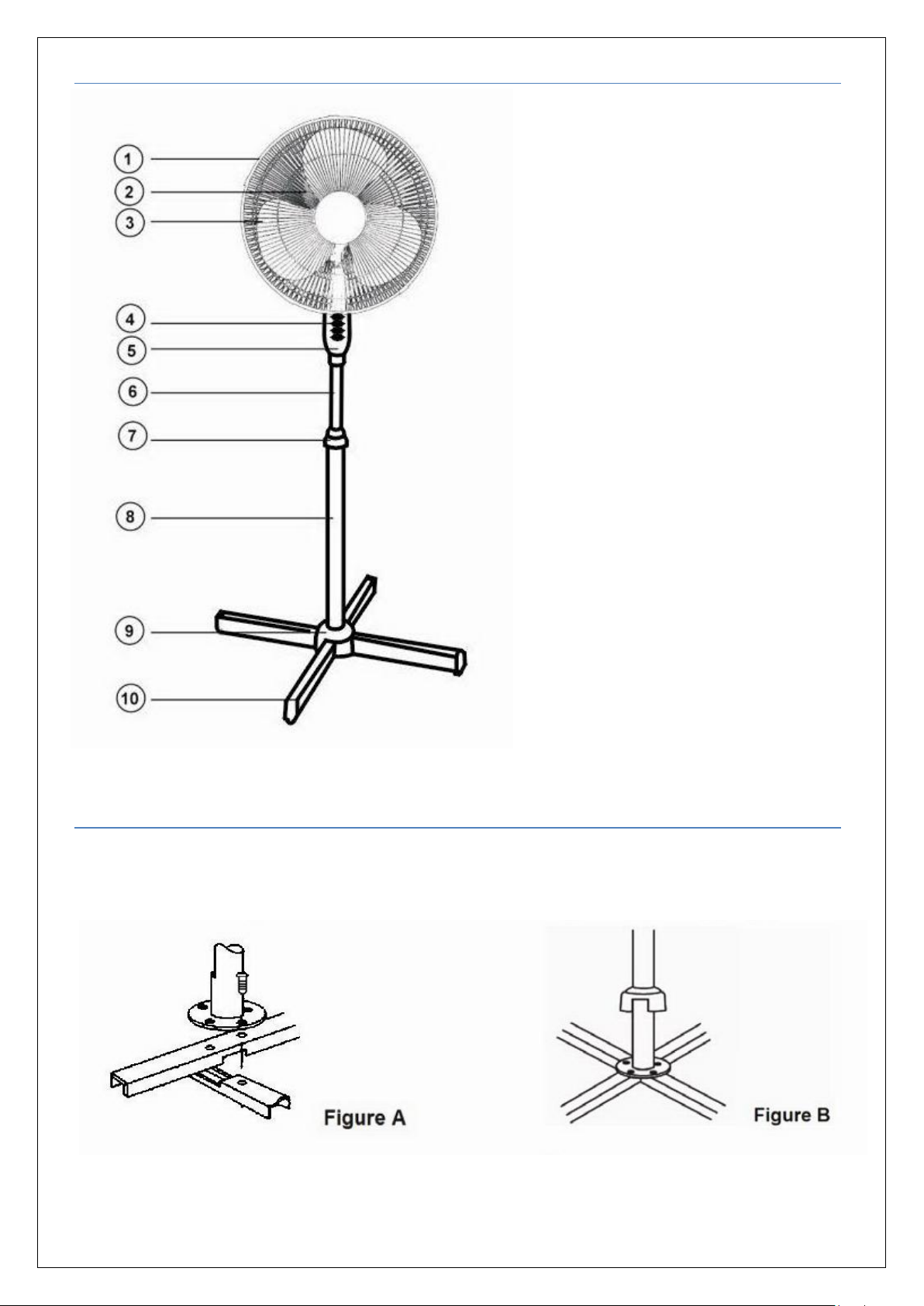

PARTS & FEATURES
ASSEMBLY INSTRUCTIONS
1. Grille
2. Oscillating Knob
3. Fan Blade
4. Speed switches
5. Control Panel
6. Support Pole
7. Height Adjustment Ring
8. Support Pole
9. Base Cover
10. Cross Base
Ensure your fan is unplugged from the power supply before assembling.
1. Take all parts out of the box and remove any protective wrapping.
Page 5
CAUTION:
Select a suitable location for the unit. Always choose a safe location in accordance to the
safely recommendations outlined.
The fan should always be switched off when making any adjustments to the fan head angle.
Always keep the unit upright.
NOTE: Before inserting the plug into a power outlet, make sure that the correct voltage being used
corresponds to what is indicated on the rating label, and that the socket has an earth facility.
2. Assemble the base to the support pole using the fasteners provided (see Figure A).
3. Loosen the height adjustment ring and extend the support pole to your desired height. Put the
base cover over the cross base (see Figure B).
4. Tighten the height adjustment ring to prevent slipping, then put the fan assembly onto the
support pole and tighten the support pole screw manually.

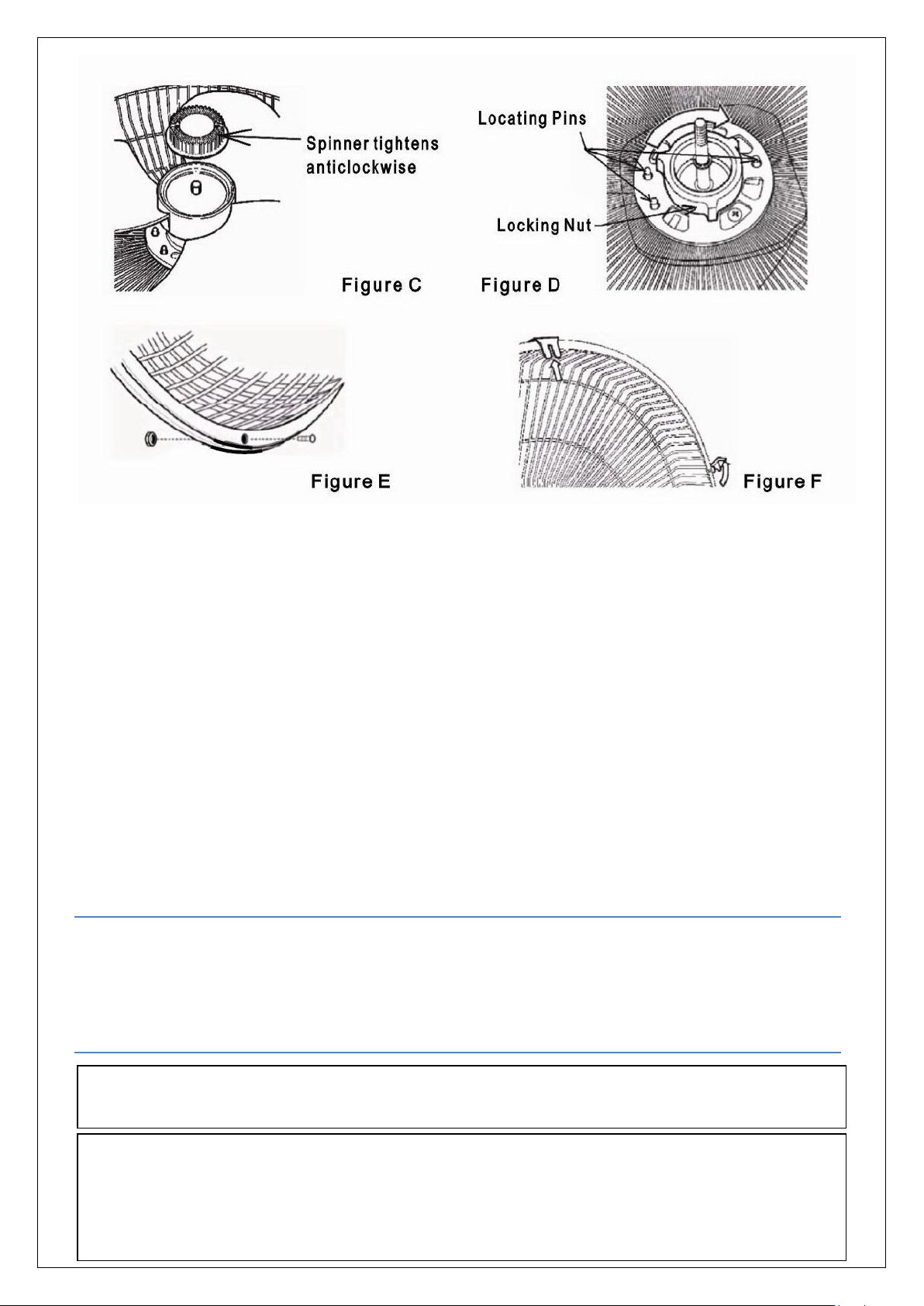

5. To assemble the grille and blade, remove the spinner by turning it clockwise (see Figure C),
remove the fan blade and then remove the locking nut by turning it clockwise (see Figure D)
from the motor shaft.
6. Put the rear grille into position. Ensure the rear grille fits onto the locating pins (see Figure D). If
the grille is installed correctly, the rear grilles support handle should be on top (see Figure F).
Then fix the rear grille using the locking nut.
7. Put the fan blade on the motor shaft and tighten the spinner anticlockwise.
8. Put the front grille onto the rear grille, fix with the locking clips then fasten the grille screw (see
Figure E).
BEFORE FIRST USE
Before use, remove all packaging and inspect the appliance for any damage. If there appears to be any
damage, please take the unit back to place of purchase for a replacement.
OPERATING INSTRUCTIONS
Page 6
CAUTION: To avoid of electric shock, you must always switch off and unplug the unit before cleaning.
NOTE: If the power cord set of this appliance becomes damaged, discontinue use. Repairs should be
undertaken only by a qualified technician.
1. Place the fan on a stable, level surface.
2. Press the speed button to select the speed of the fan from LOW, MEDIUM and HIGH, in order to
turn the fan ON.

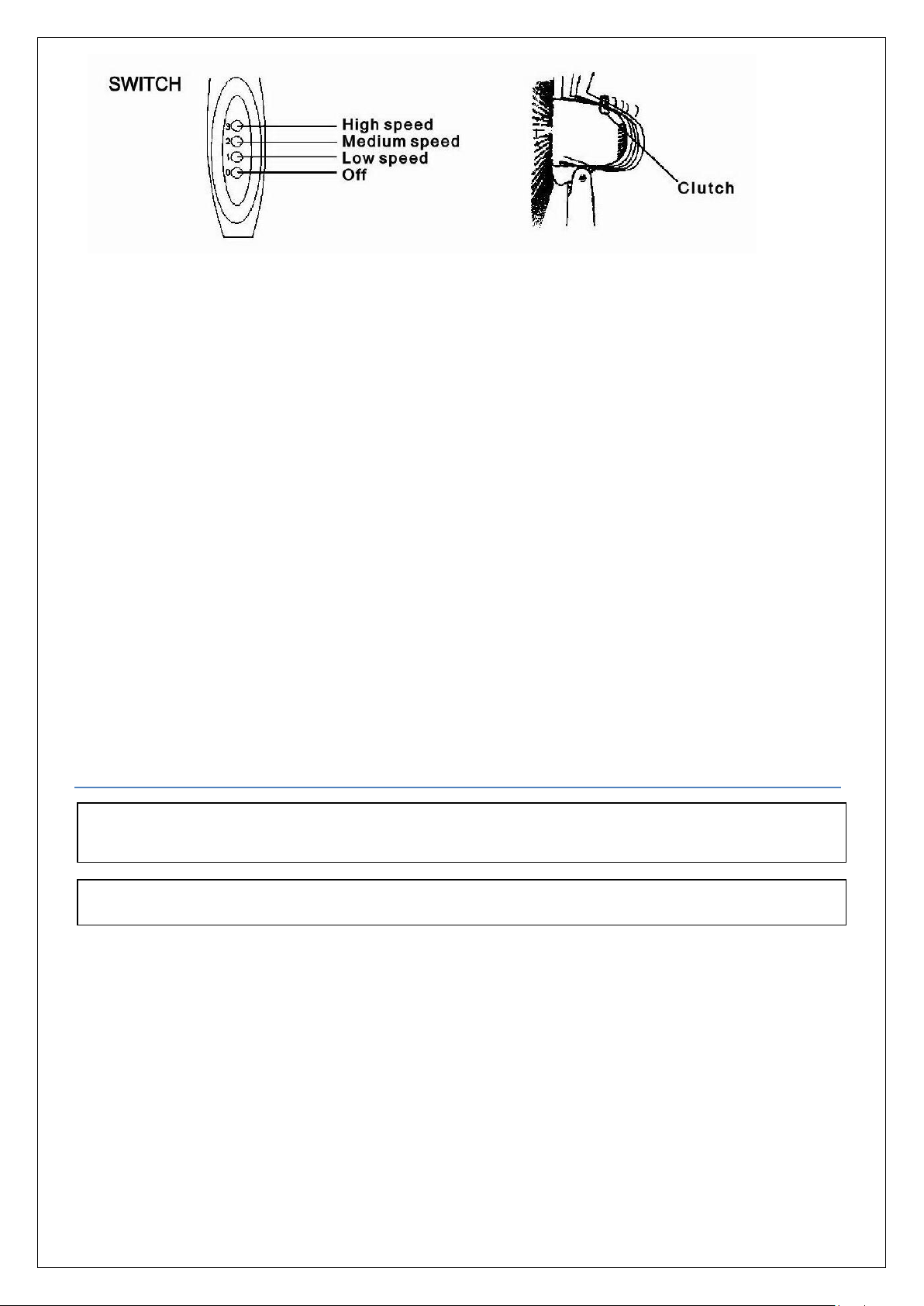

The fan speed is controlled by pressing the switch:
0 – OFF
1 – LOW
2 - MEDIUM
3 – HIGH
3. To start the oscillating function, push down the oscillating knob located on the top of the motor
housing. To stop the fan from oscillating, pull the oscillating knob up.
4. The fan and motor assembly are attached to a 4-position ratchet. Tilt up or down until the
assembly clicks into the desired position.
5. To adjust the height of the fan head, loosen the height adjustment locking nut, then adjust to the
desired height and then tighten the nut.
6. Press “0” button to switch the fan OFF.
CARE & CLEANING
Your appliance must be switched OFF via the main power supply and unplugged before
proceeding with any cleaning.
Clean the housing with a damp cloth, a vacuum cleaner or a dusting brush.
We recommend lightly running a vacuum cleaner brush nozzle over the fan grill to remove any
dust or dirt that may have accumulated.
Never use flammable or abrasive cleaning agents such as benzene or spirits to clean the
appliance.
Never immerse the appliance in water!
Avoid all other types of detergents, cleaners, solvents that may contain chemicals, which could
damage parts of the unit.
If the unit will not be used for a long period of time, store in a dry place.
Page 7
SPECIFICATIONS
Model
Description
Voltage
Frequency
Wattage
PF40
40cm Pedestal Fan
220-240V~
50/60Hz
60W
CUSTOMER SERVICE
Australian Customer Service
GAF Control (Sales) Pty Ltd
P.O Box 19
Altona North Victoria 3025
Phone: 1300 659 489
Hours: 9am-5pm (EST) Mon-Fri
www.gafcontrol.com.au
