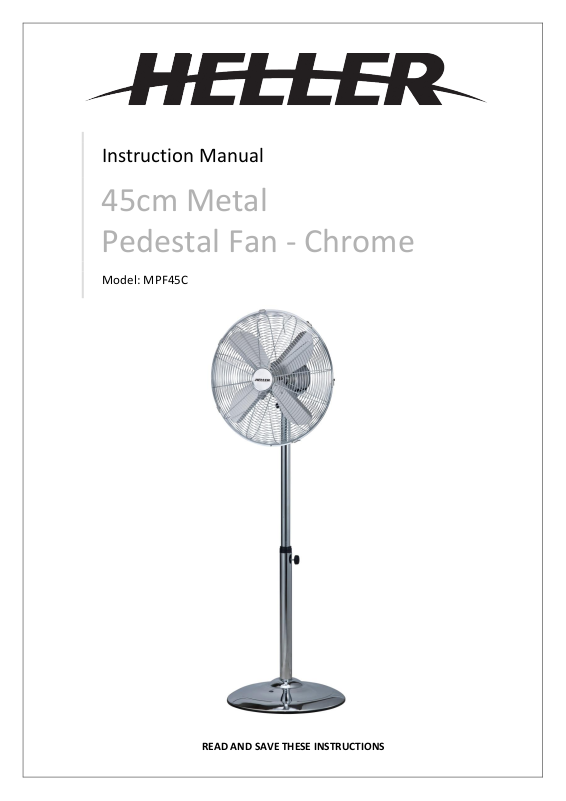

READ AND SAVE THESE INSTRUCTIONS
Instruction Manual
45cm Metal
Pedestal Fan - Chrome
Model: MPF45C
Please read and follow the instructions in this user manual even if you feel you are familiar with the
product, and find a place to keep it handy for future reference.
For your convenience record the complete model number (located on the product identification
plate) and the date you received the product, together with your purchase receipt and attach to the
warranty and service information. Retain in the event that warranty service is required.
NOTE: The rating of this product (as marked on the product identification plate) is based on specific
loading tests. Normal use or the use of other recommended attachments may draw significantly
less power.
IMPORTANT SAFEGUARDS
When using any electrically powered product, basic safety precautions should always be followed,
including the following:
PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT
WARNING!: - to reduce the risk of fire, electrical shock or injury to persons or property:
• Always operate the product from a power source of the same voltage, frequency and rating as
indicated on the product identification plate.
• To reduce the risk of electric shock, do not use this fan with any solid state speed control device.
• Remove the unit from its packaging and check to make sure it is in good condition before using.
• Do not let children play with parts of the packing (such as plastic bags).
• Close supervision is necessary when the product is used by or near children or infirm persons. Do
not allow children to use it as a toy.
• Do not operate any product with a damaged cord or plug, or after the product malfunctions, or is
dropped or appears damaged in any way. Return the complete product to the place of purchase
for inspection, repair or replacement.
• Before unplugging the power cord, be sure to turn the power off. When touching the unit, be
sure your hands are dry to prevent electrical shock.
• Fully remove the power cord from the power cord tidy before use. Always uncoil the power cord
before applying power.
• Ensure the fan is mounted on a stable, even wall, which is strong enough to hold it.
• Never install the unit where it is exposed to direct sunlight, excessive moisture/rain, dust and lack
of ventilation near any heat sources.
• Avoid making contact with moving parts. Never insert fingers, pencils or any other objects
through the guards whenever the power plug is connected, especially while the unit is working.
• To reduce the risk of electric shock, do not immerse or expose the product or flexible cord to
rain, moisture or any liquid other than those necessary for correct operation of the product.
• This product should not be used in the immediate vicinity of water, such as bathtub, washbowls,
bathroom swimming pool etc. Where the likelihood of immersion or splashing could occur.
• Switch off and unplug from outlet when not in use, before assembling or disassembling parts and
before cleaning. Remove by grasping the plug - do not pull on the cord.
• Be sure that no other high current appliances are plugged into the same circuit with your fan as
an overload can occur.
• Do not use this unit with a programmer timer or any other device that switches the unit ‘On’
automatically, since a fire risk exist the unit is covered or positioned incorrectly.
• Avoid the use of an extension cord as the extension cord may overheat and cause a risk of fire.
• Do not plug this unit into an extension lead, double adaptor or power board.
• Do not use the appliance for other than its intended use.
• Do not use outdoors. FOR INDOOR USE ONLY.
• This unit is not intended for use in bathrooms, laundry areas or similar moist indoor locations.
Never locate the unit where it may fall into a bathtub, sink or any other water container.
• Do not run the power cord under carpeting or cover the power cord with throw rugs, runners or
the like. Arrange the power cord away from traffic areas and where it will not be a hazard to
persons.
• Do not place the power cord over any part of the unit.
• Do not leave the appliance unattended when switched on.
• Do not cover the grill, or operate in close proximity to curtains etc.
• Do not block air circulation.
• Do not move the machine when it is switched ‘On’ and in use.
• Place the appliance on a flat, even level surface.
• To disconnect the unit, set the main switch to ‘OFF’ then remove the plug from the outlet.
• This unit has hot electrical parts inside. DO NOT use it in areas where gasoline, paint or
flammable liquids are used or stored.
• Unplug the appliance during filling and cleaning.
• This product must always be used and stored in the upright position.
• The use of attachments or accessories not recommended or sold by the product distributor may
cause personal or property hazards or injuries.
• This product is intended for normal domestic/household use only.
• Use this fan as described in this manual. Any other uses, not recommended by the manufacturer,
may cause fire, electric shock, or injury to persons and may void the warranty.
• This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning the use of the appliance by a person responsible for their
safety.
• The installation of a residual current device (safety switch) is recommended to provide
additional safety protection when using electrical appliances. It is advisable that a safety switch
with a rated residual operating current not exceeding 30mA be installed in the electrical circuit
supplying the appliance. See your electrician for professional advice.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not leave the fan running unattended.
• WARNING: If the supply power cord is damaged, the power cord must be replaced by the
manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This product has not been designed for any uses other than those specified in this booklet.
SAVE THESE INSTRUCTIONS
PARTS & FEATURES
BEFORE FIRST USE
Before use, remove all packaging and inspect the appliance for any damage. If there appears to be any
damage, please take the unit back to place of purchase for a replacement.
ASSEMBLY INSTRUCTIONS
Your pedestal fan has been boxed unassembled to minimise packaging waste. Each part is designed to fit together
and be disassembled easily for cleaning and storage.
• Remove all packaging materials from the Pedestal Fan
• Remove the cable tie and unravel the power cord.
FAN HEAD ASSEMBLY
1. Remove the Neck Fixing Bolt and Nut from the top of the Inner Pole.
2. Remove the Tilt Adjustment Screw from the neck of the Motor Unit; place the neck over the
Inner Pole with locating screw aligning with the slot on the side of the Inner Pole (Figure 1).
3. Run the Neck Fixing Bolt through the neck of the Motor Unit and the Inner Pole. Tighten the
locating screw leaving approximately 3mm gap under the screw head (Figure 2).
4. Fix the Neck Fixing Nut to the Neck Fixing Bolt and fix the Tilt Adjustment Screw to the neck of
the Motor Unit. Now you can adjust the tilt of the Motor Unit and secure it in position by
tightening the Tilt Adjustment Screw (Figure 3).
FAN GRILL ASSEMBLY
1. Align the Rear Grill on to the Motor Unit (with Carry Handle upwards) and screw in the 4 x Rear
Grill Screws to fix it in place.
2. Place the Fan Blade on to the Motor Shaft and secure it using the Blade Screw.
3. Hold the Front Grill against the Rear Grill, making sure that the Front Name Plate is horizontal.
Secure it together by snapping the Grill Clips into place.
4. To finish assembly, tighten the Grill Locking Screw at the bottom of the Rear Grill.
CAUTION: To avoid of electric shock, you must always switch off and unplug the fan before cleaning.
ROUND BASE ASSEMBLY
1. Unscrew the Fastener Ring
and Base Locking Nut from
the Stand Assembly.
2. Insert the Stand Assembly
through the hole in the centre
of the Base and twist into
position.
3. Turn the Round Base upside
down with the Stand
Assembly, facing the floor and
place the Base Weight
Support to the bottom of the
Base. Tighten the Base Weight
Support to the Stand Base by
screwing the Fastener Ring
and clips into place. Lastly, tighten the grill locking screw at the bottom of the Rear Grill.
4. Place the Control box on the holes of the Telescopic Inner, then fix it with the Control box by the
holder screw.
OPERATING INSTRUCTIONS
1. Place the fan on a dry, flat, level and sturdy surface.
2. Plug the power cord into the wall power socket.
3. Select your desired speed setting, switch to 1 for Low speed, 2 for Medium speed & 3 for High
speed.
4. Press down on the oscillation knob (located on the motor) to activate oscillation function. Lift the
oscillation knob upwards to fix the fan in one direction.
5. You can turn the height adjustment knob to adjust the height of the Pedestal Fan.
6. To turn off the Pedestal Fan, Switch to the 0 button on speed setting.
CARE & CLEANING
• Your appliance must be switched OFF via the main power supply and unplugged before
proceeding with any cleaning.
• Switch the speed setting to the 0 position and unplug the fan from the power outlet.
• Use only a soft, damp cloth to gently wipe the fan and dry well.
NOTE: If the power cord set of this appliance becomes damaged, discontinue use. Repairs should be
undertaken only by a qualified technician.
NOTES:
• Before inserting the plug into a power outlet, make sure that the correct voltage being used
corresponds to what is indicated on the rating label, and that the socket has an earth facility.
• Remove the cable tie and unravel the cord set before operation. Connect the plug into an
electrical socket and switch on at the wall.
• Gently handle the motor house, tilt up or down until the assembly locate into the desired
position.
• To clean the blade and grille assembly, first remove the safety grille, unscrew the locknut and
remove the blade from the fan. Wipe them clean with a slightly damp sponge.
• Never use flammable or abrasive cleaning agents such as benzene or spirits to clean appliance.
• Never spray the fan with liquids or submerge it in water or any other liquid.
• Never immerse the appliance in water.
• Do not use this appliance with a programmer, timer, separate remote control system or any other
device that switches the appliance on automatically.
• When you have finished using the fan at the end of the season, wipe off any dust to maintain it in
good working order for the next season. Disassemble the front grille and remove the fan blade.
Clean and store the fan in its original box in a safe, dry location, protected from dust.
• The appliance requires little maintenance and contains no user-serviceable parts inside. Do not
attempt to take it apart, repair or modify it. Do not operate the fan if its power cord or plug is
damaged, or when it is working abnormally. In case of damage malfunction, or if the cord is
damaged, have the unit repaired by trained personnel only, or contact the after sales support
line for advice on repair or replacement.
SPECIFICATIONS
Model
Description
Voltage
Frequency
Wattage
MPF45C
45cm Metal Pedestal Fan -
Chrome
220-240V~
50Hz
60W
CUSTOMER SERVICE
Australian Customer Service
GAF Control (Sales) Pty Ltd
P.O Box 19
Altona North Victoria 3025
Phone: 1300 659 489
Hours: 9am-5pm (EST) Mon-Fri
www.gafcontrol.com.au
*This product may vary slightly to the product illustrated due to ongoing product development.
