HELLER AWM500, AWM600 Instruction Manual

Electronic Washing Machine

Instruction Manual

MODEL: AWM500-AWM600

CONTENTS

IMPORTANT SAFEGUARDS....................................................... 2

PARTS AND FEATURES..............................................................3

INSTALLATION INSTRUCTIONS.................................................4

USING YOUR WASHER……........................................................6

PROGRAM SELECTION…...........................................................10

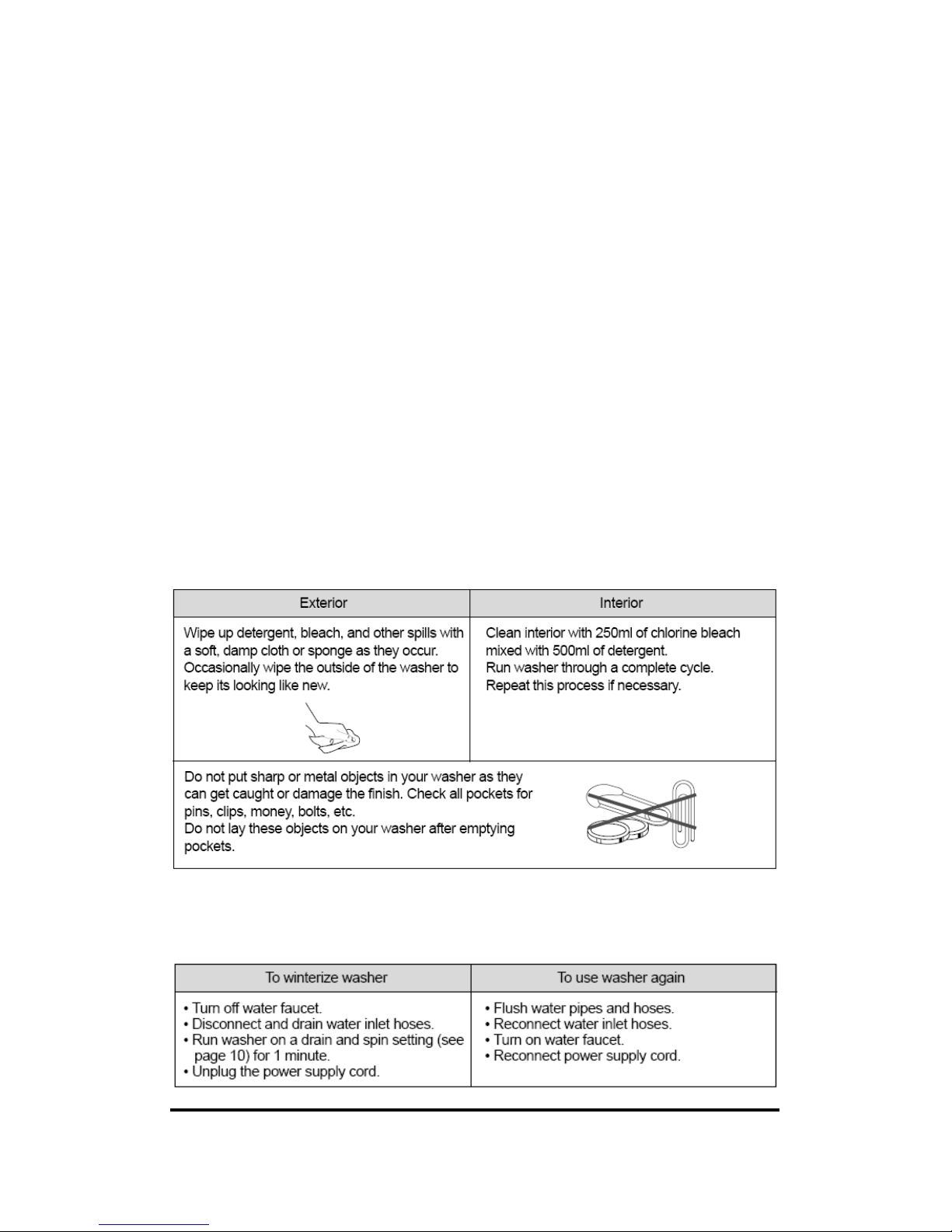

CARE OF YOUR WASHER………………………..........................12

TROUBLE SHOOTING .................................................................14

BEFORE OPERATING THIS PRODUCT,
READ, UNDERSTAND, AND FOLLOW
THESE INSTRUCTIONS.

IMPORTANT SAFEGUARDS

Save these instructions

Your safety is important to us.
To reduce the risk of fire, electrical shock, or injury when using your washer adhere to the
following basic precautions.

Read all instructions before using your washer.

• Flammable liquids such as dry cleaning solvents, kerosene , petrol, etc., should not be
used or stored in or near the washer.

• Do not add flammable liquids to your wash water. These substances give off vapours that
can create a fire hazard or explosion.

• After a cycle has commenced, do not reach into the washer until all motion stops.

• Do not tamper with the controls.

• If the supply cord is damaged, it must be replaced by the manufacturer, or its service

agent or a similarly qualified person in order to avoid a hazard.

• Do not use chlorine bleach and ammonia or acid (such as vinegar or rust remover) in the
same wash. Hazardous fumes can resu lt .

• Unplug power supply cord before attempting to service your washer.

• Do not wash fibreglass material.

Small particles can stick to fabrics washed in following loads and cause skin irritation.

• Do not spray water on the control panel of the washer.

• This appliance is not intended for use by young children or infirm persons unless they

have been adequately supervised by a responsible person to ensure that they can use
the appliance safely.
Young children should be supervised to ensure that they do not play with the appliance.

• The cabinet and top of the washer can become hot when operating a high temperature
wash.

• CAUTION: If this appliance is supplied from a cord extension set or electrical portable
outlet device, the cord extension set or electrical portable outlet device must be positioned
so that it is not subject to splashing or ingress of moisture.

• The ventilation openings in the base of the washing machine must not be obstructed by
carpet or loose floor coverings.

Please…

• Have only qualified persons install, repair or replace parts of the washer.

• Properly maintain the washer.

• Protect the washer from weather and keep it where the temperature will not fall below

freezing.

• Do not install the washer at a place of high humidity.

• Connect the washer to the correct power outlet, water supply and drainage source as

detailed in this booklet.

• Ensure water will be able to drain away if the washer hoses should puncture, or the
washer malfunctions. Recommend area washer is located has a drain in floor.

2

PARTS AND FEATURES

The parts and features of your washer are illustrated on this page.
Become familiar with all parts and features before using your washer.

NOTE:

The illustrations in this book may vary from your washer model. Model: AWM600 shown
Your model may not include all features.

1. Top Lid

2. Inner Tub

3. Top Frame

4. Bleach Dispenser

5. Lint Filter

6. Base Cover

7. Adjustable leg

8. Control Panel

9. Drain Hose

10. Impeller /pulsator

11. Handle

12. Washing Powder Draw

13. Fabric Softener Dispenser

Features

• Digital display, with program indication.

• Quiet operation, stable balance system.

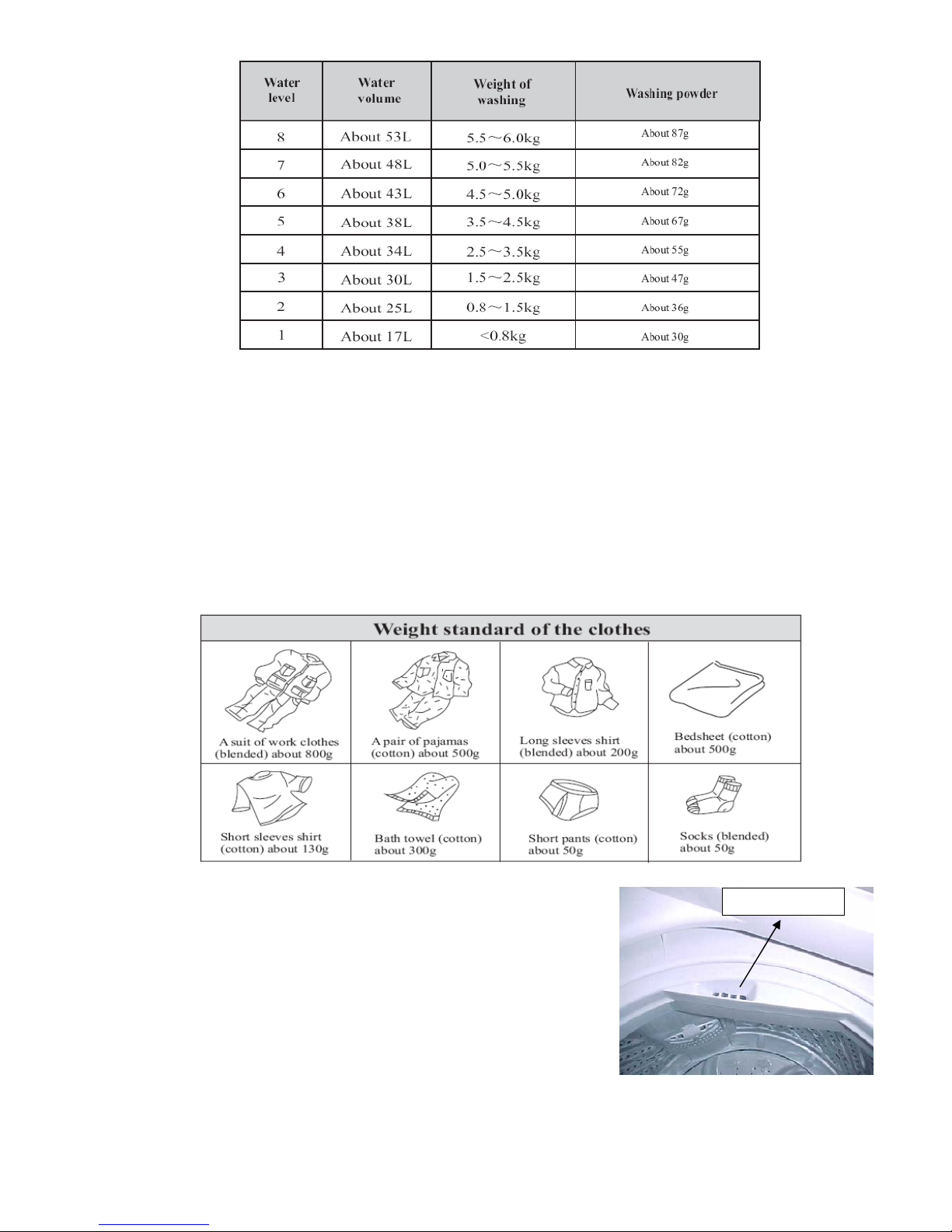

• Variable water level selection.

• Heavy wash program.

• Auto program senses wash load and programs wash parameters.

• 6 kg dry weight wash capacity (5 kg dry weight Model: AWM500)

3

INSTALLATION

Location of washer

• The washer must be placed in a well ventilated area with the back of the washer not less
than 10cm (4 inches) from the wall, 4.5cm (1¾ inches) from the left and 2cm (¾ inch)
clear from the right side.

• Check location where the washer is intended to be installed. Make sure you have
everything necessary for correct installation.

• All foam packing including the fixing frame on the base should be removed, otherwise the
washing machine will not work.

• Do not place or store washer below 0

o

C (32 F) to avoid any damage from freezing.

• Install washer on an even, horizontal and firm floor. If the washer is installed on an
unsuitable floor, it could make considerable noise, vibrate severely and cause a
malfunction. If the washer is not level, the adjustable foot can be rotated up or down to
obtain level installation. (The adjustable fool is on the left front of the cabinet).

• To make sure the washer is level (refer illustration below), use a thread tied with a bulky
object and hang to the side face of the machine. Rotate the adjustable foot until A=A',
B=B' (as the illustration).

• After the adjustment the fixing pole should be tightened.

Note:

There should be no swaying of washer and all the legs should stick to the floor closely.

• Ventilation openings must not be obstructed by carpeting when the washer is installed on
a carpeted floor.

Installation of water inlet hoses

Important: For satisfactory operation, water supply pressure must be between 0.1 MPa and

0.6 Mpa.

WARNING: The washing machine is to be connected to the water supply using new hose­sets and that old hose-sets should not be reused.

1. Attach the straight end of the water inlet hose to the thread of the Cold water tap. The

Skirtlike nut should be hand tightened plus one half turn with pliers.

2. Attach the other end of the hose to the corresponding inlet thread of the washing machine

and tighten (as 1 above).

3. Attach the other hose to the Hot water tap and the corresponding inlet thread of the

washing machine and tighten (as 1 above).

4

Important:

• After installing the inlet hoses, do not immediately switch on the power. Open the tap,
check both ends of the hose for water leakage.

• If the inlet hose is difficult to install or screw to the tap etc., we recommend you can call
experienced person to help.

• Both hoses must be connected, otherwise water may discharge from the unconnected
inlet.

WARNING:

PLEASE ENSURE THAT THE HOT WATER TAP IS CONNECTED TO THE HOT WATER
INLET AND THE COLD WATER TAP IS CONNECTED TO THE COLD WATER INLET OF
THE WASHING MACHINE.

Installation of drain hose

Squeeze the fixing ring with your fingers (or pliers) to
open over the flexible drain hose, place the flexible
drain hose over the inner hose located in the bottom
left side of the washing machine.
Note: If the flexible drain hose is tight and difficult to fit
to the inner hose, soak the head of the drain hose in
warm water prior to fitting to the inner hose.
Pass the fitting ring over the hose and fasten over the
connection by squeezing the ring with your fingers or
pliers.

Recommend the outlet of the drain hose be
permanently connected to a drainage connection or
securely fitted to a suitable sink or trough with overflow
outlet.

CAUTION: Do not place the washer outside, or in an open to the moisture area (rain, hosing,
pool, etc.), close to curtains, blinds, etc., or near gas supply or appliances, or in a flammable
area.

Important: Always operate the washer from a power source of the same Voltage, Frequency
and Rating, as indicated on the washing machine identification plate. Operate the Washing
Machine from an Earthed (Grounded) 3 pin power outlet fully accessible when the washing
machine is in its normal operating position.
WARNING: Avoid the use of extension cords and portable outlet devices. If it is necessary to
use an extension cord, or portable outlet device, prior to its use, make sure the extension cord

5
