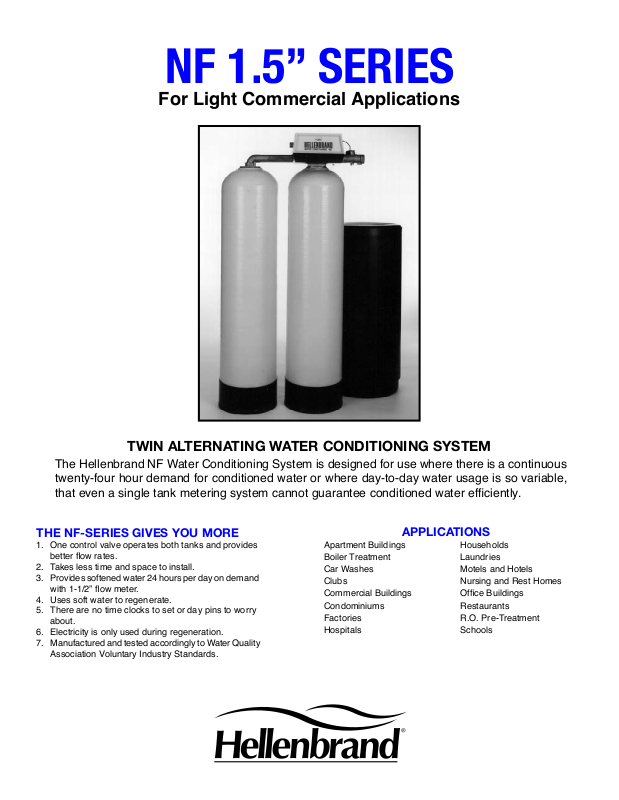

Hellenbrand NF 1.5 User Manual

NF 1.5” SERIES
For Light Commercial Applications
TWIN ALTERNATING WATER CONDITIONING SYSTEM
The Hellenbrand NF Water Conditioning System is designed for use where there is a continuous twenty-four hour demand for conditioned water or where day-to-day water usage is so variable,
that even a single tank metering system cannot guarantee conditioned water efciently.
THE NF-SERIES GIVES YOU MORE
1. One control valve operates both tanks and provides better ow rates.
2. Takes less time and space to install.
3. Provides softened water 24 hours per day on demand with 1-1/2” ow meter.
4. Uses soft water to regenerate.
5. There are no time clocks to set or day pins to worry about.
6. Electricity is only used during regeneration.
7. Manufactured and tested accordingly to Water Quality Association Voluntary Industry Standards.
Apartment Buildings Households Boiler Treatment Laundries Car Washes Motels and Hotels
Clubs Nursing and Rest Homes
Commercial Buildings Ofce Buildings
Condominiums Restaurants
Factories R.O. Pre-Treatment Hospitals Schools
AppLICATIONS
1) The control valve and second tank adapter are solid brass assuring you durability and long life.
2) Two self cleaning teon coated pistons control the regenera­tion and alternating from unit to unit with conditioned water. They are hydraulically balanced to equalize pressure on both sides of the piston, allowing it to shift smoothly and quietly regardless of water pressure. Large plastic spacers and rubber seals protect the pistons from sediment in water and improve service ow rates.
3) The 1.5” meter allows for capacities from 625 to 53,125 gallons between regenerations and will measure ow rates accurately between 1.5 and 75 gpm. The 1.5” low ow meter allows for capacities from 310 to 26,350 gallons between re­generations and will measure ow rates accurately between
0.7 and 40 gpm.
4) The NF-SERIES timer doesn’t require a time of day setting since it adjusts automatically to meet your needs. Regenera­tion can take place as often as every 90 minutes if needed.
5) The NF-SERIES has an adjustable cycle programmer. This allows you to efciently monitor all regeneration cycles in­cluding backwash, brine and slow rinse, rapid rinse and brine tank rell.
6) In addition to regenerating with soft water, the NF-SERIES uses electricity only during regeneration, therefore power outages do not affect metering. A convenient cycle position
readout dial indicates which unit is in service and the status
of the other unit. It has no complicated interlock wiring and costs less to install.
A
B
E
C
F
G
D
A) Fiberglass and polyglass mineral tanks provide rust and cor-
rosion free service for years. National Sanitation Foundation approved.
B) 1.5” high ow hub & lateral distribution system for minimal
pressure loss.
C) Hi-Capacity Cation resin has uniform and stable resin beads
assuring long life and maximum soft water.
D) Gravel underbedding assures full usage of mineral beds and
allows for a smooth and constant water ow for service and regeneration.
E) Safety brine valve acts as a secondary shut-off in case of a
power failure during regeneration.
F) High density polyethylene brine tank has exceptional envi-
ronmental stress crack properties, eliminating cracking and minimizing bulging.
G) Polypropylene salt grid allows insoluble materials to settle out.
NF-SERIES Specications
CAPACITY SERVICE FLOW RATE BACKWASH MINERAL BRINE SALT SHIPPING MODEL RESIN LOW SALT MED. SALT HIGH SALT FLOW RATE PEAK RATE TANKS TANK SIZE STORAGE WEIGHT HEIGHT NAME CU. FT. GRAINS/LBS GRAINS/LBS GRAINS/LBS CONT. 15 PSI 25 PSI GPM (INCHES) (INCHES) (POUNDS) (POUNDS) (INCHES)
NF-60 2.0 38,000/12 56,000/20 64,000/30 23.0 32.0 3.5 13 x 54 18 x 40 375 404 57.5 NF-90 3.0 57,000/18 84,000/30 96,000/45 22.0 30.0 4.0 14 x 65 18 x 40 375 539 68.5 NF-120 4.0 76,000/24 112,000/40 128,000/60 25.0 34.0 5.0 16 x 65 24 x 41 525 677 68.5 NF-150-18 5.0 95,000/30 140,000/50 160,000/75 27.0 37.0 7.0 18 x 65 24 x 50 510 832 70.5 NF-150-21 5.0 95,000/30 140,000/50 160,000/75 31.0 41.0 9.0 21 x 62 24 x 50 510 946 70.5 NF-180-18 6.0 114,000/36 168,000/60 192,000/90 26.0 35.0 7.0 18 x 65 24 x 50 510 938 70.5 NF-180-21 6.0 114,000/36 168,000/60 192,000/90 30.0 40.0 9.0 21 x 62 24 x 50 510 1052 70.5 NF-210 7.0 133,000/42 196,000/70 224,000/105 29.0 39.0 9.0 21 x 62 24 x 50 510 1158 70.5 NF-240 8.0 152,000/48 224,000/80 256,000/120 32.0 42.0 12.0 24 x 72 24 x 50 340 1332 78.0 NF-270 9.0 171,000/54 252,000/90 288,000/135 31.0 41.0 12.0 24 x 72 24 x 50 340 1438 78.0 NF-300 10.0 190,000/60 280,000/100 320,000/150 30.0 40.0 12.0 24 x 72 24 x 50 340 1544 78.0
• Cubic feet of mineral and capacities as seen above are per mineral tank. • Product improvements and design changes subject to change without notice.
• Service ow ratings are with the 1.5” meter. • Water Pressure 30 - 100 psi.
• Limit of 2 ppm of ferrous iron. Add 3 grains of hardness per ppm of iron when sizing. • Water temperature is not to exceed 110ºF and cannot be subject to freezing
• See owners manual for specic operating details conditions.
• These conditioners will not purify or make your water safe to drink.
• Inlet/outlet heights are approximate only.
Meter Information:
Meter Accuracy Range 1-1/2” (Standard) 1.5 - 75 gpm ± 5% 1-1/2” (Low Flow) 0.7- 40 gpm ± 5% Meter Capacity Range 1-1/2” (Standard) Standard: 625-10,625 gals. Extended: 3,125 - 53,125 gals. 1-1/2” (Low Flow) Standard: 310 - 5,270 gals. Extended: 1,550 - 26,350 gals.
Manufactured by:
Refer to Hellenbrand Bulletin 2050 “Flow Rates and Soft Water Quality (Hardness
Leakage) if your application requires that levels of hardness leakage do not exceed “x”.
DEALER NAME:
HELLENBRAND, INC.
(800) 626-1417
www.hellenbrand.com
INLET/OUTLET
106610
1/05-500
1/21/09-LBRY
