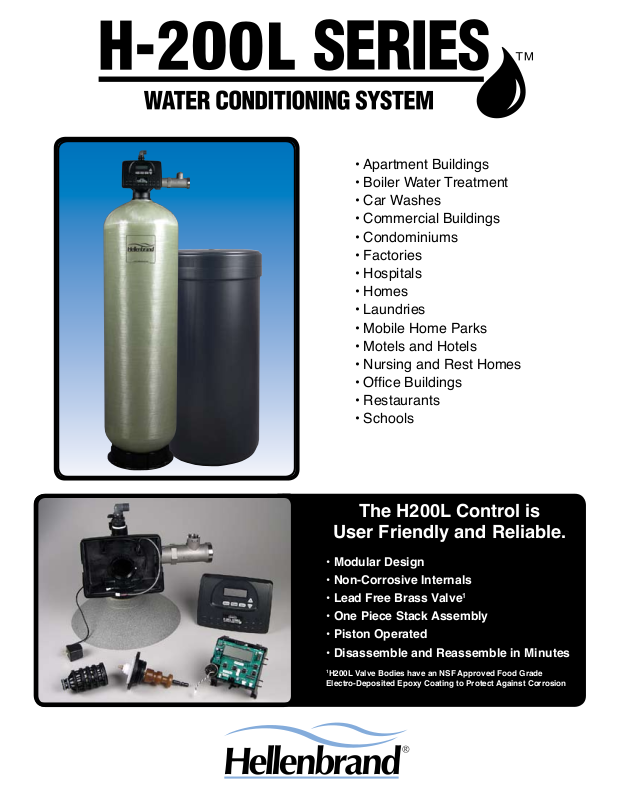

Hellenbrand H-200L User Manual
• Apartment Buildings
• Boiler Water Treatment
• Car Washes
• Commercial Buildings
• Condominiums
• Factories
• Hospitals
• Homes
• Laundries
• Mobile Home Parks
• Motels and Hotels
• Nursing and Rest Homes
• Ofce Buildings
• Restaurants
• Schools
The H200L Control is
User Friendly and Reliable.
• Modular Design
• Non-Corrosive Internals
• Lead Free Brass Valve
• One Piece Stack Assembly
• Piston Operated
• Disassemble and Reassemble in Minutes
1
H200L Valve Bodies have an NSF Approved Food Grade
Electro-Deposited Epoxy Coating to Protect Against Corrosion
1
H200L Standard Valve/Tank Thread Connection
H200L Features and Benets
• 2.0" Inlet & Outlet provides higher service ows with
less pressure drop
• 1.5" Distributor Pilot
• 12-Volt Operation
• Electronic Meter Demand with Calendar Day Override
• Scrolling User Screen shows capacity remaining, time
of day and ow rate
• 12-Volt Relay Driver allows dry contact signal
• Service Interval Screen reminds you to call for
preventative maintenance service
• Differential Pressure Switch Capability
• Fully Programmable Cycle Position and Times
• Nine Cycle Control
• Soft Water Brine Tank Re-Fill
• Multiple Backwash and Rinse Capabilities
• Quiet Operation
• Variable Reserve automatically adjusts to changing
water usage patterns.
• Several programming options including: variable re
serve, xed reserve, calendar day override, delayed or
immediate regeneration.
• Diagnostics
–Days since last regeneration
–Gallons since last regeneration
–Gallon reserve capacity last 7 days
–63 Days history of daily totals usage
–Maximum ow rate for the last seven days
–Total number of regenerations
–Total days in service
–Total gallons processed
• Permanent memory backup of all programming
• 10 Year Battery Life - 2-1/2 years Time of Day Backup
• Uses less than $2 of electricity per year
-
System Designs Options
Single
Twin Parallel
Twin Alternating
Meter Accuracy
Model: H200L
Flow Ranges 1.5-75 GPM
Accuracy: ±5%
HELLENBRAND WARRANTY
Go to www.hellenbrand.com for full details.
Specications
FLOW PEAK FLOW BACK BRINE TANK1
DEMAND CAPACITY RATE RATE WASH MINERAL TANK SALT
MODEL MINERAL LOW SALT MED. SALT HIGH SALT @ @ RATE TANK SIZE STORAGE
NAME CU. FT. GRAINS/LBS. GRAINS/LBS. GRAINS/LBS. 15 PSI 25 PSI GPM (INCHES) (INCHES) (POUNDS)
H200L-60 2 38,000/12 56,000/20 64,000/30 34 44 4.2 1354 18x40 330
H200L-90 3 57,000/18 84,000/30 96,000/45 34 44 4.2 1465 18x40 300
H200L-120 4 76,000/24 112,000/40 128,000/60 41 53 5.3 1665 24x41 640
H200L-150 5 95,000/30 140,000/50 160,000/75 46 59 7.5 1865 24x50 750
H200L-150-21 5 95,000/30 140,000/50 160,000/75 54 68 9.0 2162 24x50 750
H200L-180 6 114,000/36 168,000/60 192,000/90 44 56 7.5 1865 24x50 750
H200L-180-21 6 114,000/36 168,000/60 192,000/90 53 67 9.0 2162 24x50 750
H200L-210 7 133,000/42 196,000/70 224,000/105 51 66 9.0 2162 24x50 710
H200L-240 8 152,000/48 224,000/80 256,000/120 58 74 12.0 2472 24x50 680
H200L-270 9 171,000/54 252,000/90 288,000/135 55 72 12.0 2472 30x50 1110
H200L-300 10 190,000/60 280,000/100 320,000/150 54 70 12.0 2472 30x50 1110
1
Suggested brine tank size with grid plate option.
Hellenbrand, Inc.
404 Moravian Valley Rd
Waunakee, WI 53597
www.hellenbrand.com
DEALER NAME:
73-047L
1/08-LBRY
