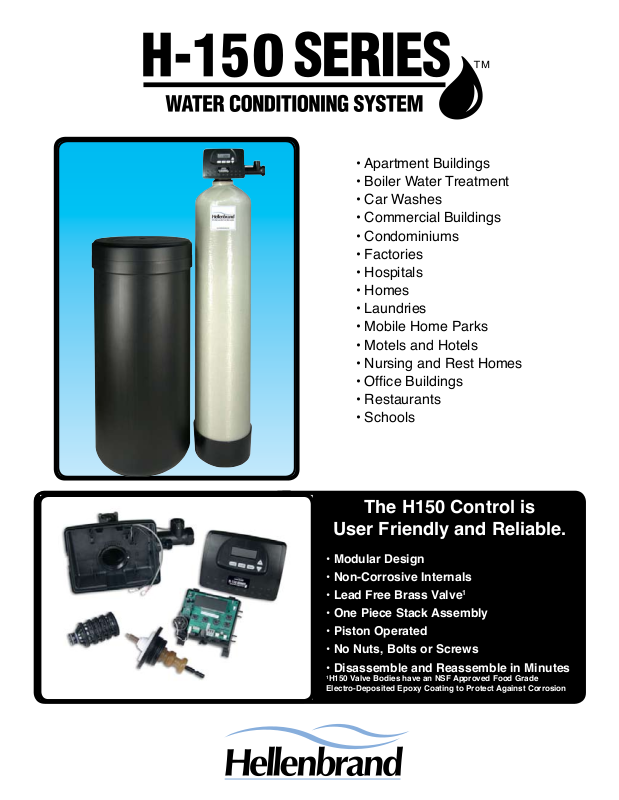

Hellenbrand H-150 User Manual
• Apartment Buildings
• Boiler Water Treatment
• Car Washes
• Commercial Buildings
• Condominiums
• Factories
• Hospitals
• Homes
• Laundries
• Mobile Home Parks
• Motels and Hotels
• Nursing and Rest Homes
• Ofce Buildings
• Restaurants
• Schools
The H150 Control is
User Friendly and Reliable.
• Modular Design
• Non-Corrosive Internals
• Lead Free Brass Valve
• One Piece Stack Assembly
• Piston Operated
• No Nuts, Bolts or Screws
• Disassemble and Reassemble in Minutes
1
H150 Valve Bodies have an NSF Approved Food Grade
Electro-Deposited Epoxy Coating to Protect Against Corrosion
1
H150 Features and Benets
• 1.50" Inlet & Outlet provide higher service ows with
less pressure drop
• 1.50" Distributor Pilot
• 12-Volt Operation
• Electronic Meter Demand with Calendar Day Override
• Scrolling User Screen shows capacity remaining, time
of day and ow rate
• 12-Volt Relay Driver allows dry contact signal
• Service Interval Screen reminds you to call for
preventative maintenance service
• Differential Pressure Switch
• Fully Programmable
• Nine Cycle Control
• Soft Water Brine Tank Re-Fill
• Double Backwash
• Quiet Operation
• Variable Reserve automatically adjusts to changing
water usage patterns.
• Several programming options including: variable
reserve, xed reserve, calendar day override, delayed
or immediate regeneration.
–Days since last regeneration
–Gallons since last regeneration
–Gallon reserve capacity
–Maximum ow rate for the last seven days
–Current ow rate
–Total number of regenerations
• Permanent memory backup of all programming
• Real Time Clock, no battery back-up required
• Uses less than $2 of electricity per year
System Designs Options
Single
Twin Parallel
Twin Alternating
Meter Accuracy
Model: H150
Flow Ranges 0.50-60 GPM
Accuracy: ±5%
HELLENBRAND WARRANTY
Go to www.hellenbrand.com for full details.
Specications
FLOW PEAK FLOW BACK BRINE TANK1
DEMAND CAPACITY RATE RATE WASH MINERAL TANK SALT
MODEL MINERAL LOW SALT MED. SALT HIGH SALT @ @ RATE TANK SIZE STORAGE
NAME CU. FT. GRAINS/LBS. GRAINS/LBS. GRAINS/LBS. 15 PSI 25 PSI GPM (INCHES) (INCHES) (POUNDS)
H150-60ED 2 38,000/12 56,000/20 64,000/30 33 42 4.2 1354 18x40 330
H150-90ED 3 57,000/18 84,000/30 96,000/45 33 44 4.2 1465 18x40 300
H150-120ED 4 76,000/24 112,000/40 128,000/60 36 50 5.3 1665 24x41 640
H150-150ED 5 95,000/30 140,000/50 160,000/75 40 54 7.5 1865 24x50 750
H150-150-21 5 95,000/30 140,000/50 160,000/75 45 61 9.0 2162 24x50 750
H150-180ED 6 114,000/36 168,000/60 192,000/90 37 52 7.5 1865 24x50 750
H150-180-21 6 114,000/36 168,000/60 192,000/90 44 60 9.0 2162 24x50 750
H150-210ED 7 133,000/42 196,000/70 224,000/105 43 58 9.0 2162 24x50 710
1
Suggested brine tank size with grid plate option.
DEALER NAME:
Hellenbrand, Inc.
404 Moravian Valley Road
Waunakee, WI 53597
www.hellenbrand.com
73-046
5/05-5000
Updated 1/4/08-LBRY
