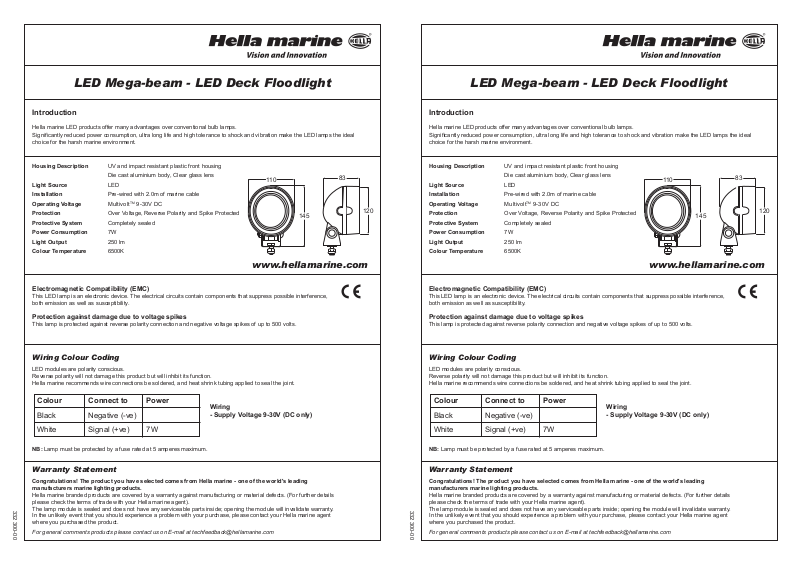

LED Mega-beam - LED Deck Floodlight
145
110
83
120
145
110
83
120
LED Mega-beam - LED Deck Floodlight
Introduction
Hella marine LED products offer many advantages over conventional bulb lamps.
Signicantly reduced power consumption, ultra long life and high tolerance to shock and vibration make the LED lamps the ideal
choice for the harsh marine environment.
Housing Description UV and impact resistant plastic front housing
Die cast aluminium body, Clear glass lens
Light Source LED
Installation Pre-wired with 2.0m of marine cable
Operating Voltage MultivoltTM 9- 30V DC
Protection Over Voltage, Reverse Polarity and Spike Protected
Protective System Completely sealed
Power Consumption 7W
Light Output 250 lm
Colour Temperature 6500K
www.hellamarine.com
Electromagnetic Compatibility (EMC)
This LED lamp is an electronic device. The electrical circuits contain components that suppress possible interference,
both emission as well as susceptibility.
Protection against damage due to voltage spikes
This lamp is protected against reverse polarity connection and negative voltage spikes of up to 500 volts.
Wiring Colour Coding
LED modules are polarity conscious.
Reverse polarity will not damage this product but will inhibit its function.
Hella marine recommends wire connections be soldered, and heat shrink tubing applied to seal the joint.
Introduction
Hella marine LED products offer many advantages over conventional bulb lamps.
Signicantly reduced power consumption, ultra long life and high tolerance to shock and vibration make the LED lamps the ideal
choice for the harsh marine environment.
Housing Description UV and impact resistant plastic front housing
Die cast aluminium body, Clear glass lens
Light Source LED
Installation Pre-wired with 2.0m of marine cable
Operating Voltage MultivoltTM 9- 30V DC
Protection Over Voltage, Reverse Polarity and Spike Protected
Protective System Completely sealed
Power Consumption 7W
Light Output 250 lm
Colour Temperature 6500K
www.hellamarine.com
Electromagnetic Compatibility (EMC)
This LED lamp is an electronic device. The electrical circuits contain components that suppress possible interference,
both emission as well as susceptibility.
Protection against damage due to voltage spikes
This lamp is protected against reverse polarity connection and negative voltage spikes of up to 500 volts.
Wiring Colour Coding
LED modules are polarity conscious.
Reverse polarity will not damage this product but will inhibit its function.
Hella marine recommends wire connections be soldered, and heat shrink tubing applied to seal the joint.
Colour Connect to Power
Black Negative (-ve)
Wiring
- Supply Voltage 9-30V (DC only)
White Signal (+ve) 7W
NB: Lamp must be protected by a fuse rated at 5 amperes maximum.
Warranty Statement
Congratulations! The product you have selected comes from Hella marine - one of the world's leading
manufacturers marine lighting products.
Hella marine branded products are covered by a warranty against manufacturing or material defects. (For further details
please check the terms of trade with your Hella marine agent).
The lamp module is sealed and does not have any serviceable parts inside; opening the module will invalidate warranty.
332 300-00
In the unlikely event that you should experience a problem with your purchase, please contact your Hella marine agent
where you purchased the product.
For general comments products please contact us on E-mail at [email protected]
Colour Connect to Power
Black Negative (-ve)
Wiring
- Supply Voltage 9-30V (DC only)
White Signal (+ve) 7W
NB: Lamp must be protected by a fuse rated at 5 amperes maximum.
Warranty Statement
Congratulations! The product you have selected comes from Hella marine - one of the world's leading
manufacturers marine lighting products.
Hella marine branded products are covered by a warranty against manufacturing or material defects. (For further details
please check the terms of trade with your Hella marine agent).
The lamp module is sealed and does not have any serviceable parts inside; opening the module will invalidate warranty.
332 300-00
In the unlikely event that you should experience a problem with your purchase, please contact your Hella marine agent
where you purchased the product.
For general comments products please contact us on E-mail at [email protected]
