Helix DSP Pro MK2 operation manual

deutsch / english
DSP PRO
MK2
Digitaler High-Res 10-Kanal Signalprozessor mit
96 kHz / 32 Bit Signalweg
Digital High-Res 10-channel signal processor
with 96 kHz / 32 Bit signal path
Herzlichen Glückwunsch!
Sehr geehrter Kunde,
Audiotec Fischer setzt mit dem HELIX DSP PRO MK2 neue Maßstäbe im Bereich der
Signalprozessortechnik. Dabei protieren Sie als
Kunde direkt von unserer nahezu 30-jährigen Erfahrung in der Forschung und Entwicklung von Audiokomponenten.
Allgemeine Hinweise
Allgemeines zum Einbau von HELIX-Kompo­nenten
Um alle Möglichkeiten des Produktes optimal aus­schöpfen zu können, lesen Sie bitte sorgfältig die nachfolgenden Installationshinweise. Wir garantie­ren, dass jedes Gerät vor Versand auf seinen ein­wandfreien Zustand überprüft wurde.
Vor Beginn der Installation unterbrechen Sie den Minusanschluss der Autobatterie.
Wir empfehlen Ihnen, die Installation von einem Einbauspezialisten vornehmen zu lassen, da der Nachweis eines fachgerechten Einbaus und An­schlusses des Gerätes Voraussetzung für die Ga­rantieleistungen sind.
Dieser Prozessor wurde von uns nach neuesten technischen Erkenntnissen entwickelt und zeichnet sich durch hervorragende Verarbeitung und eine überzeugende Anwendung ausgereifter Technologien aus.
Viel Freude an diesem Produkt wünscht Ihnen das Team von
AUDIOTEC FISCHER
sind. Diese könnten sonst beschädigt werden. Ach­ten Sie bitte darauf, dass sich solche Teile auch in der doppelten Wandverkleidung verbergen können.
Allgemeines zum Anschluss des HELIX DSP PRO MK2 Signalprozessors
Der Signalprozessor darf nur in Kraftfahrzeuge ein­gebaut werden, die den 12 V-Minuspol an Masse haben. Bei anderen Systemen können der HELIX Signalprozessor und die elektrische Anlage des Kfz beschädigt werden. Die Plusleitung für die gesamte Anlage sollte in einem Abstand von max. 30 cm von der Batterie mit einer Hauptsicherung abgesichert werden. Der Wert der Sicherung errechnet sich aus
der maximalen Stromaufnahme der Car-Hi Anlage.
Installieren Sie Ihren HELIX DSP PRO MK2 an einer trockenen Stelle im Auto und vergewissern Sie sich, dass der Signalprozessor am Montageort genügend Kühlung erhält. Montieren Sie das Gerät nicht in zu kleine, abgeschlossene Gehäuse ohne Luftzirkulation oder in der Nähe von wärmeabstrah­lenden Teilen oder elektronischen Steuerungen des Fahrzeuges. Im Sinne der Unfallsicherheit muss der Signalprozessor professionell befestigt werden. Dieses geschieht über Schrauben, die in eine Mon-
tageäche eingeschraubt werden, die wiederum
genügend Halt bieten muss.
Bevor Sie die Schrauben im Montagefeld befesti­gen, vergewissern Sie sich, dass keine elektrischen Kabel und Komponenten, hydraulische Bremslei­tungen, der Benzintank etc. dahinter verborgen
2
Verwenden Sie zum Anschluss des Signalpro­zessors an die Stromversorgung des Fahrzeugs ausschließlich den beiliegenden Anschluss­stecker oder das optional erhältliche Easy Plug Kabel! Die Verwendung eines anderen Kabels kann zu Schäden an Ihrer Anlage und dem Sig­nalprozessor führen!
Die Kabelverbindungen müssen so verlegt sein, dass keine Klemm-, Quetsch- oder Bruchgefahr be­steht. Bei scharfen Kanten (Blechdurchführungen) müssen alle Kabel gegen Durchscheuern gepols­tert sein. Ferner darf das Versorgungskabel niemals mit Zuleitungen zu Vorrichtungen des Kfz (Lüfter­motoren, Brandkontrollmodulen, Benzinleitungen etc.) verlegt werden.
Anschluss- und Bedienelemente
1 32 4 5 6
Line Input
1
Cinch-Eingänge zum Anschluss eines
Vorverstärkersignals.
Coax Input
2
Elektrischer Eingang im SPDIF-Format für
digitale Stereosignale.
.
Optical Input
3
Optischer Eingang im SPDIF-Format für
digitale Stereosignale.
Clipping LED
4
Diese LED leuchtet rot, wenn einer der
Analogeingänge übersteuert wird.
11 12
7
Masseschalter
7
Deniert die Verbindung der Masse zwischen
Signaleingang und Signalausgang.
Control Taster
8
Dient zum Umschalten der Sound Setups
oder zum Resetten des Gerätes.
Status LED
9
Die Status LED zeigt den Betriebszustand
und den ausgewählten Speicherbereich an.
10
8
9
Highlevel Input
5
Hochpegel-Lautsprechereingang zum Anschluss von Werksradios oder Radios ohne Vorverstärkerausgänge.
Power Input
6
Zum Anschluss an die Bordnetzspannung
mit einem zusätzlichen Remote-Ein- und Ausgang. Der Remote-Ausgang muss in jedem Fall zur Einschaltung weiterer Verstärker genutzt werden.
Control Input
11
Multifunktionsanschluss - dient zum
Anschluss einer Fernbedienung und weiterem HELIX Zubehör.
Line Output
12
Vorverstärkerausgänge zum Anschluss des /
der Verstärker/s. Zur Einschaltung eines angeschlossenen Verstärkers muss der Remote-Ausgang verwendet werden.
USB Eingang
10
Dient zum Anschluss an den Computer.
3
Inbetriebnahme und Funktionen
Line Input
1
8-Kanal Vorverstärkereingang zum Anschluss von Signalquellen, z.B. Radios. Die Eingangsempnd­lichkeit ist für alle Kanäle ab Werk auf 4 Volt ein-
gestellt. Es ist jedoch möglich, die Empndlichkeit
jedes Kanals im Geräteinneren zwischen 2 Volt und 4 Volt zu variieren.
Coax Input
2
Koaxialer Digitaleingang im SPDIF-Format für den Anschluss von Signalquellen mit digitalem Aus­gang. Die „Sampling Rate“ dieses Eingangs muss zwischen 12 - 192 kHz liegen. Das Eingangssignal wird automatisch an die interne Abtastrate ange­passt. Um diesen Eingang zu aktivieren und in der Lautstärke regeln zu können, wird eine optional er­hältliche Fernbedienung empfohlen. Hinweis: Es können ausschließlich Stereosignale und keine Dolby-codierten Daten verarbeitet wer­den! Hinweis: Vor der ersten Verwendung des koaxi­alen Digitaleingangs muss dieser zuerst in der DSP PC-Tool Software oder mit einer optional erhält­lichen Fernbedienung aktiviert werden. Werkseitig ist der Optical Input aktiviert.
Optical Input
3
Optischer Eingang im SPDIF-Format für den An­schluss an Signalquellen mit digitalem Ausgang. Die „Sampling Rate“ dieses Eingangs muss zwi­schen 12 - 96 kHz liegen. Das Eingangssignal wird automatisch an die interne Abtastrate angepasst. Um diesen Eingang zu aktivieren und in der Laut­stärke regeln zu können, wird eine optional erhält­liche Fernbedienung empfohlen. Hinweis: Es können ausschließlich Stereosignale und keine Dolby-codierten Daten verarbeitet wer­den! Hinweis: Der HELIX DSP PRO MK2 ist werk­seitig so konguriert, dass automatisch auf die­sen Eingang umgeschaltet wird, sobald dort ein Audiosignal anliegt.
Clipping LED
4
Diese LED leuchtet rot, wenn einer der acht Line Inputs oder Highlevel Inputs übersteuert wird. Die LED hat keine Funktion bei Ansteuerung über die
Digitaleingänge. Sofern diese LED aueuchtet, sollte die Eingangsempndlichkeit über die internen
4
Trimmer (siehe Seite 7; Einstellung der Eingangs-
empndlichkeit) abgesenkt werden, bis die LED
erlischt.
Highlevel Input
5
8-Kanal Hochpegel-Lautsprechereingang. Mit Hilfe dieses Eingangs kann der Prozessor direkt an die Lautsprecherausgänge eines Werks- / Nachrüst­radios oder eines Werksverstärkers angeschlos­sen werden, sofern dieses / dieser nicht über Vorverstärkerausgänge verfügt.
Die Eingangsempndlichkeit ist für alle Kanäle ab
Werk auf 10 Volt eingestellt. Es ist jedoch möglich,
die Empndlichkeit jedes Kanals im Geräteinneren
zwischen 5 - 10 Volt bzw. 10 - 20 Volt zu variieren (Punkt 3 Seite 7; Einstellung der Eingangsemp-
ndlichkeit). Zudem wird bei der Umschaltung der
Wertebereiche durch die interne Steckbrücke (Jum­per) auch die Eingangsimpedanz umgeschaltet, um einen optimalen Betrieb in Verbindung mit Werks­radios oder leistungsfähigen Werksverstärkern zu gewährleisten. Achtung: Verwenden Sie zum Anschluss aus­schließlich die mitgelieferten Stecker mit integrier­ten Schraubklemmen oder einen passenden Kabel­baum aus dem HELIX Zubehörprogramm. Achtung: Eine gleichzeitige Verwendung der Hochpegel- und Vorverstärkersignaleingänge ist nicht möglich und kann zu Schäden an Ihrem Au­toradio führen.
Power Input
6
Diese Buchse dient zum Anschluss des Signalpro­zessors an die Stromversorgung des Fahrzeuges sowie für die Remote-Ein- und Ausgänge. Sofern die Hochpegel-Lautsprechereingänge ver­wendet werden, muss der Remote-Eingang (Remo­te in) nicht belegt werden. Der Remote-Ausgang (Remote out) dient zum pro­zessorgesteuerten Einschalten der am Line Output angeschlossenen Verstärker. Schließen Sie den Remote-Ausgang an die Remote-Eingänge Ihrer Verstärker an. Um Störgeräusche beim Ein- und Ausschalten zu vermeiden, sollte der Remote-Aus­gang in jedem Fall belegt werden. Dieser Ausgang aktiviert sich automatisch, sobald der Bootvorgang des DSP abgeschlossen ist. Zudem wird dieser Ausgang bei aktiviertem „Power Save Mode“ und bei Betriebssoftware-Updates abgeschaltet.
Achtung: Verwenden Sie ausschließlich den mitge­lieferten Stecker mit integrierten Schraubklemmen.
Wichtig: Verwenden Sie niemals ein anderes Signal als den Remote-Ausgang, um ange­schlossene Verstärker einzuschalten!
Masseschalter
7
Beim HELIX DSP PRO MK2 ist die Masse der Signaleingänge galvanisch von der Masse der Signalausgänge getrennt. Dies ist in den meisten Fahrzeugen die beste Option, um Störgeräusche wie z.B. von der Lichtmaschine zu unterbinden. Allerdings gibt es auch Fälle, wo die Massen der Eingänge mit den Ausgängen direkt „hart“ oder über einen 200 Ohm Widerstand „weich“ verbun­den werden müssen. Der Masseschalter hat drei Positionen:
- Mittelstellung: Massen galvanisch getrennt.
- Linksanschlag: Massen „hart“ zusammenge­schaltet.
- Rechtsanschlag: Massen „weich“ gekoppelt.
abgeschaltet. Sollte die Temperatur weiter steigen, so schaltet sich der Signalprozessor ab, bis ein sicherer Betrieb wieder gewährleistet werden kann.
10
USB Eingang
Mit Hilfe dieses Eingangs wird der HELIX DSP PRO MK2 über das beiliegende Kabel mit dem Computer verbunden und kann anschließend
über das DSP PC-Tool konguriert werden.
Hinweis: Es können keine USB Speichermedien an den Signalprozessor angeschlossen werden.
11
Control Input
Dieser Multifunktionseingang dient zum Anschluss von HELIX Zubehörprodukten, wie beispielsweise einer Fernbedienung, mit deren Hilfe diverse Funk­tionen des Signalprozessors gesteuert werden kön­nen. Die Funktionalität muss je nach Typ der Fern-
bedienung zuerst im „Device Conguration Menu“
der DSP PC-Tool Software oder an der Fernbedie-
nung selbst konguriert werden.
Control Taster
8
Mit Hilfe des Control Tasters lässt sich zwischen den Speicherbereichen eins und zwei umschalten. Zum manuellen Umschalten der zwei Setups muss der Control Taster eine Sekunde lang gedrückt wer- den. Der Umschaltvorgang wird durch einmaliges rotes Blinken der Status LED angezeigt. Wird der Taster länger als fünf Sekunden gedrückt, so wird das Gerät resettet und der gesamte interne Spei­cher gelöscht! Anschließend wird dies durch ein rotes Dauerblinken der Status LED angezeigt. Achtung: Nach dem Resetten des Gerätes kann der HELIX DSP PRO MK2 keine Audiosignale mehr wiedergeben, bis ein neues Sound Setup einge­spielt wurde.
Status LED
9
Die Status LED zeigt das aktuell ausgewählte Setup des HELIX DSP PRO MK2 an. Leuchtet die LED grün, ist Setup 1 geladen. Bei Setup 2 leuch­tet die LED orange. Sollte sich kein Setup im inter-
nen Speicher benden, blinkt die LED rot. Sofern
letzteres der Fall ist, muss über die DSP PC-Tool Software ein neues DSP Setup eingespielt werden. Sollte die LED orange blinken, so ist die Sicher­heitsschaltung der Temperaturüberwachung aktiv. Im ersten Schritt wird nun der Remote-Ausgang
12
Line Output
10-Kanal Vorverstärkerausgang zum Anschluss von Verstärkern. Die maximale Ausgangsspannung be­trägt 8 Volt. Wenn Sie diesen Ausgang verwenden, ist es zwingend erforderlich den Remote-Ausgang des Power Inputs zum Einschalten des/der an den Line Output angeschlossenen Verstärker zu benut­zen, da ansonsten Störsignale auftreten können. Der Remote-Ausgang schaltet sich automatisch während des „Power Save Mode“ sowie bei einem Software-Update ab. Die Ausgänge können in der DSP PC-Tool Software den Eingängen beliebig zu­geordnet werden.
5
Einbau und Installation

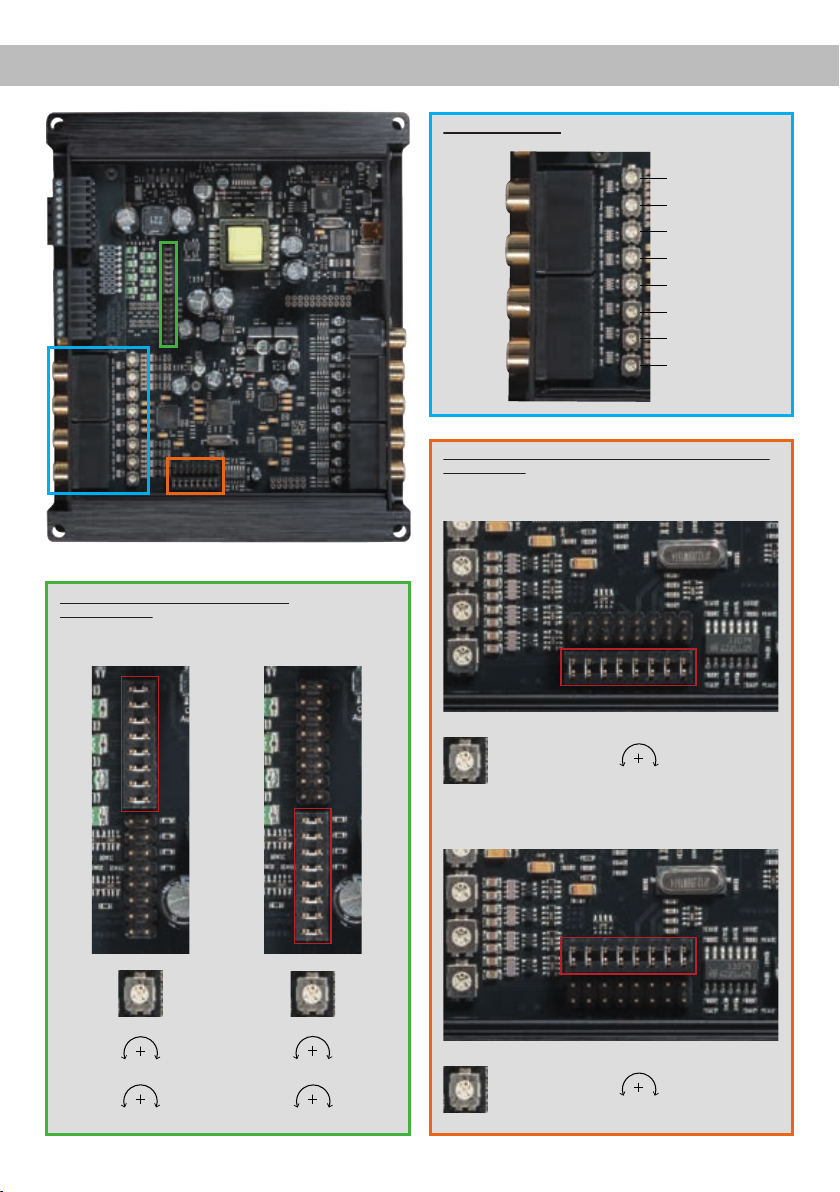

Einstellen der Eingangsempfindlichkeit der Highlevel-Eingänge:
Jumper oben* Jumper unten
Kanalzuordnung:
Kanal A
Kanal B
Kanal C
Kanal D
Kanal E
Kanal F
Kanal G
Kanal H
Abb. 1
Justierung der Eingangsempfindlichkeit für die Nutzung der Kanäle G & H als AUX-Eingang:
Jumper unten*
Kanal G & H:
Jumper oben
5 V 10 V*
2 V 4 V*
6
* Auslieferungszustand des HELIX DSP PRO MK2
Hochpegel
Cinch
10 V 20 V
2 V 4 V
Kanal G & H:
Abb. 2 Abb. 3
2 V 4 V*
250 mV 500 mV
Der HELIX DSP PRO MK2 wird wie nachfolgend beschrieben an das Autoradio angeschlossen.
Achtung: Für die Durchführung der nachfolgenden
Schritte werden Spezialwerkzeuge und Fachwissen benötigt. Um Anschlussfehler und Beschädigungen zu vermeiden, fragen Sie im Zweifelsfall Ihren Ein­bauspezialisten und beachten Sie zwingend die allgemeinen Anschluss- und Einbauhinweise (siehe Seite 2).
1. Anschluss der Vorverstärkereingänge
Diese Eingänge (Line Input) können mit ent­sprechenden Kabeln (RCA / Cinch-Kabel) an die Vorverstärker- / Lowlevel- / Cinch-Aus­gänge des Radios angeschlossen werden. Im Signalprozessor lassen sich die Signaleingän­ge über die DSP PC-Tool Software frei den Vor­verstärkerausgängen (Line Output) zuweisen. Die Einschaltautomatik des Signalprozessors funktioniert bei den Vorverstärkereingängen nicht, so dass der Remote-Eingang zwingend belegt werden muss. Achtung: Eine gleichzeitige Verwendung der Hochpegel- und Vorverstärkersignaleingänge ist nicht möglich und kann zu Schäden an Ihrem Autoradio führen.
2. Anschluss der Highlevel-Lautsprecherein­gänge
Die Hochpegel-Lautsprechereingänge kön­nen direkt mit den Lautsprecherausgängen des Werks- bzw. Nachrüstradios mit Hilfe ent­sprechender Kabel (Lautsprecherkabel mit max. 1 mm² Querschnitt) verbunden werden. Sollten Sie ein normales Werksradio anschlie­ßen, empfehlen wir folgende Kanalbelegung:
Kanal A = Vorne links Kanal B = Vorne rechts Kanal C = Hinten links Kanal D = Hinten rechts
Dabei müssen nicht zwingend alle Eingän­ge belegt werden. Werden nur zwei Kanäle belegt, empfehlen wir die Kanäle A und B zu verwenden. Achten Sie bitte auf eine korrekte Polung! Wenn Sie einen oder mehrere An­schlüsse verpolen, kann dadurch die Funktion des Signalprozessors beeinträchtigt werden. Bei Verwendung dieses Eingangs muss der
Remote-Eingang nicht belegt werden, da sich der Signalprozessor automatisch einschaltet, sobald ein Lautsprechersignal anliegt.
3. Einstellung der Eingangsempndlichkeit
Achtung: Es ist zwingend notwendig die
Eingangsempndlichkeit des DSP PRO MK2
an die Signalquelle anzupassen, um Schä­den am Signalprozessor zu vermeiden.
Um die Eingangsempndlichkeit ändern zu
können, muss das Gerät geöffnet werden. Dazu entfernen Sie bitte das Seitenblech der Geräteseite mit dem USB Eingang indem Sie die fünf Kreuzschlitzschrauben lösen. Nun kön­nen Sie das Bodenblech aus dem Kühlkörper zur Seite hinausziehen und erhalten so Zugriff auf die acht Trimmer, mit denen jeder Kanal ein­zeln justiert werden kann. Die Zuordnung der Trimmer zu den jeweiligen Kanälen entnehmen Sie bitte der Abbildung 1 auf Seite 6. Hinweis: Die Einstellung der Trimmer beein­usst sowohl die jeweiligen Vorverstärkerein­gänge als auch die Highlevel-Eingänge! Durch das Umstecken einer Steckbrücke (Jum­per) kann der Stellbereich der Eingangsemp­ndlichkeit der Highlevel-Eingänge variiert wer­den (siehe Abbildung 2 Seite 6).
Der Stellbereich der Eingangsempndlichkeit
der Vorverstärkereingänge G und H lässt sich durch Umstecken eines weiteren Jumpers so verändern, dass auch mobile Geräte wie z.B. Smartphones mit deutlich geringerer Aus­gangsspannung problemlos angeschlossen werden können (siehe Abbildung 3 Seite 6). Hinweis: Um die Position eines Jumpers zu ändern, ziehen Sie diesen einfach nach oben hin ab und stecken ihn auf die gewünschte Position. Achten Sie darauf, dass der Jumper vollständig und nicht versetzt eingesteckt ist. Beide Jumper können unabhängig voneinander umgesteckt werden.
Um die Eingangsempndlichkeit mit Hilfe der
internen Trimmer optimal an ihre Signalquel­le anzupassen, führen Sie bitte die folgenden Schritte durch:
1. Schließen Sie während dieser Prozedur keinen Verstärker an die Ausgänge des Signalprozessors.
7
Einbau und Installation
2. Schalten Sie den Signalprozessor ein.
3. Drehen Sie die Lautstärke Ihres Radios auf 90 % der Gesamtlautstärke und spielen Sie über das CD-Laufwerk ein 1 kHz Testsignal (Vollaussteuerung 0 dB) ab.
4. Die Einstellung geht leichter vonstatten, wenn Sie die Eingangskanäle nacheinan­der anschließen und einstellen.
5. Sollte die Clipping LED bereits leuchten, verringern Sie mit Hilfe des Trimmers die Eingangsempndlichkeit des jeweiligen Ka­nals, bis die Clipping LED erlischt.
Sollte der Trimmer bereits auf Rechtsan-
schlag stehen, muss der Wertebereich der
Eingangsempndlichkeit über die internen
Jumper verändert werden (siehe Abb. 2 Seite 6). Dies hat allerdings nur einen Ein-
uss auf die Highlevel-Eingänge!
6. Erhöhen Sie die Eingangsempndlichkeit
durch Linksdrehung des jeweiligen Trim­mers bis die Clipping LED aueuchtet. Dre- hen Sie nun den Trimmer im Uhrzeigersinn, bis die Clipping LED wieder erlischt.
7. Wiederholen Sie diesen Vorgang für jeden genutzten Signaleingang.
4. Anschluss einer digitalen Signalquelle
Sofern Sie über eine Signalquelle mit koaxialem
oder optischem Digitalausgang verfügen, kann diese an den Signalprozessor angeschlos­sen werden. Der HELIX DSP PRO MK2 ist so
konguriert, dass automatisch auf den in der
Software aktivierten Digitaleingang umgeschal­tet wird, sobald dort ein Audiosignal anliegt. Werkseitig ist der Optical Input aktiviert. Diese Funktion kann über die DSP PC-Tool Software deaktiviert bzw. auf einen manuellen Modus (in Verbindung mit einer optional erhältlichen Fern­bedienung) geändert werden.
Die Einschaltautomatik des Signalprozessors
funktioniert bei Verwendung des Digitalein­gangs nicht, so dass der Remote-Eingang des Power Inputs zwingend belegt werden muss. Eine gleichzeitige Nutzung der Digitaleingänge sowie der Hochpegel- oder der Vorverstärker­signaleingänge ist möglich.
Wichtig: Das digitale Audiosignal einer Quelle
ist üblicherweise nicht lautstärkegeregelt. Das bedeutet, dass an den Signalausgängen des
8
HELIX DSP PRO MK2 der volle Pegel anliegt und die angeschlossenen Verstärker voll aus­gesteuert werden. Dies kann im Extremfall die Lautsprecher zerstören.
Wir raten deshalb dringend dazu, eine optionale
Fernbedienung zur Einstellung der Lautstärke der digitalen Signaleingänge zu verwenden!
Hinweis: Der HELIX DSP PRO MK2 kann nur
unkomprimierte, digitale Stereo PCM-Signale mit einer Abtastrate zwischen 12 kHz und 96 kHz / 192 kHz verarbeiten. Es können keine Dolby-codierten Daten verarbeitet werden, son­dern ausschließlich Stereosignale.
5. Anschluss der Stromversorgung
Vor dem Anschluss des +12 V Versorgungs-
kabels an das Bordnetz muss die Autobatte­rie abgeklemmt werden.
Schließen Sie die Stromversorgung aus-
schließlich über den mitgelieferten Stecker mit Schraubklemmen an. Achten Sie unbedingt auf eine korrekte Polarität. Die Masseleitung muss an einer nicht isolierten Stelle mit dem Kfz-Chassis verbunden werden. Ein nicht ausreichender Massekontakt führt zu unerwünschten Störgeräuschen und Fehlfunk­tionen. Die Plusleitung wird entweder direkt an den Pluspol der Batterie oder an einen Stromver­teiler angeschlossen, der mit dem Pluspol der Batterie verbunden ist. Die Stromaufnahme des HELIX DSP PRO MK2 ist mit ca. 510 mA zwar sehr gering, trotzdem sollten Kabel mit mind. 1 mm² Querschnitt für die Spannungsversor­gung verwendet werden.
6. Anschluss des Remote-Eingangs
Der Remote-Eingang des Power Inputs muss
mit dem Remote-Ausgang des Radios verbun­den sein, sofern die Vorverstärkereingänge oder ausschließlich die Digitaleingänge des Signalprozessors als Signaleingänge genutzt werden. Es wird dringend davon abgeraten, den Remote-Eingang des Signalprozessors über das Zündungsplus des Fahrzeugs zu steuern, um Störgeräusche beim Ein- und Aus­schalten zu vermeiden. Bei Verwendung des Hochpegel-Lautsprecher­eingangs ( Highlevel Input) muss der Remote-
Eingang nicht belegt werden, sofern das ange­schlossene Radio über BTL-Ausgangsstufen verfügt.
7. Konguration des Remote-Eingangs
Die Einschaltung des HELIX DSP PRO MK2
erfolgt automatisch bei Ansteuerung über die Hochpegel-Lautsprechereingänge (High level Input) oder sobald ein Remote-Signal am Remote-Eingang anliegt. Mit Hilfe des „Auto Remote“ Schalters kann die automatische Ein­schaltung deaktiviert werden. Dies sollte vorge­nommen werden, wenn es beispielsweise zu Störgeräuschen beim Ein- und Ausschalten des Signalprozessors kommt. Hinweis: Wird die automatische Einschaltung des Signalprozessors deaktiviert, muss der Remote-Eingang belegt werden. Eine auto­matische Einschaltung über den Hochpegel­Lautsprecher eingang ist dann nicht mehr mög­lich. Hinweis: Werkseitig ist die automatische Ein­schaltung über den Hochpegel-Lautsprecher­eingang des DSP PRO MK2 aktiviert. Um die automatische Einschaltung zu deaktivieren, muss das Gerät geöffnet und die Schalterpositi­on des „Auto Remote“ Schalters geändert wer­den. Dazu entfernen Sie bitte das Seitenblech der Geräteseite mit dem USB Eingang indem Sie die fünf Kreuzschlitzschrauben lösen. Nun können Sie das Bodenblech aus dem Kühl­körper zur Seite hinausziehen und erhalten so
Zugriff auf den Schalter. Dieser bendet sich in
der Nähe des Jumpers zur Änderung der Ein-
gangsempndlichkeit der Highlevel-Eingänge
(siehe Markierung im nachfolgenden Bild).
On: Einschaltung über Hochpegel-Lautspre-
chereingang aktiviert (Werkseinstellung).
Off: Einschaltung über Hochpegel-Lautspre-
chereingang deaktiviert.
8. Konguration des DSPs
Es wird dringend empfohlen, vor der ersten Inbetriebnahme die grundlegenden Einstel­lungen im DSP mit Hilfe der DSP PC-Tool Software vorzunehmen.
Eine Missachtung kann zur Zerstörung der angeschlossenen Verstärker / der Lautspre­cher führen. Informationen zum Anschluss des
Signalprozessors an einen PC nden Sie auf
Seite 11.
9. Anschluss des Remote-Ausgangs
Dieser Ausgang dient dazu, einen am Line Out-
put angeschlossenen Verstärker mit einem Re-
mote-Signal zu versorgen. Bitte verwenden Sie ausschließlich dieses Signal zur Einschaltung externer Verstärker, um Ein- und Ausschaltge­räusche zu vermeiden.
9
Anschluss mit Hilfe des „Easy Plug Cables“
Um die Installation des DSP PRO MK2 an ein Werks- oder Nachrüstradio deutlich zu vereinfa­chen, kann der Signalprozessor auch mit Hilfe des optional erhältlichen Easy Plug Kabels (EPC 5) an­geschlossen werden. Über dieses Kabel wird der Signalprozessor sowohl mit Strom als auch mit den Lautsprecher signalen des Radios versorgt. Zudem muss bei dieser Installation kein Kabel des Werks­soundsystems durchtrennt werden. Das Easy Plug Kabel nutzt die Hochpegel-Lautsprechereingänge A - D. Im Folgenden wird der Anschluss an das Werksra­dio beschrieben:
1. Nachdem das Radio mit Hilfe der entspre­chenden Werkzeuge ausgebaut ist, trennen Sie den Fahrzeugkabelbaum vom Autoradio. Ver­binden Sie den Fahrzeugkabelbaum anschlie­ßend mit der Kupplung des Easy Plug Kabels. Je nach Fahrzeugtyp benötigen Sie hierfür
gegebenenfalls einen fahrzeugspezischen
ISO-Adapter. Eine Liste aller Fahrzeuge und
der eventuell benötigten Adapter nden Sie auf
www.audiotec-scher.com.
2. Verbinden Sie die Stecker des Easy Plug Ka­bels mit dem Autoradio.
3. Verbinden Sie den Highlevel-Stecker (8-poliger Stecker) und den Stromversorgungsstecker (4-poliger Stecker) des Easy Plug Kabels mit den jeweiligen Eingängen (Highlevel Input A bis D bzw. Power Input) des DSPs.
Der DSP sollte die Stromversorgung jedoch nicht über die Zündleitung beziehen, da es sonst zu Störgeräuschen kommen kann. Aus diesem Grund muss vor der endgültigen Inbe­triebnahme die Zuordnung von Zündplus und Dauerplus an der roten und der blauen Leitung vom ISO-Stecker kommend, mit einem Voltme­ter überprüft werden. Dauerplus ist die Leitung, an der auch bei ausgeschalteter Zündung eine Spannung von 12 V messbar ist. Verbinden Sie nach erfolgter Messung das rote Kabel, zum HELIX DSP PRO MK2 führend, mit dem Dauerplus-Kabel (entweder das blaue Kabel mit Stecker oder das rote Kabel mit Ste­cker). Die Plusleitung des Kabelbaums ist in der Re­gel mit max. 20 A abgesichert. Hinweis: Im Auslieferungszustand ist das rote Kabel vom ISO-Stecker bis zum DSP PRO MK2 schon verbunden, da diese Variante in den mei­sten Fällen zutrifft. Sollten Sie sich bezüglich der Zuordnung nicht sicher sein, fragen Sie Ih­ren Fachhändler.
Hinweis: MOST-Bus
Bei einigen Fahrzeugen kann es notwendig sein, die Lichtleiterverbindung aus dem Original-Radio­anschlussstecker auszulösen und stattdessen in den Radio-Stecker eines ISO-Adapters einzuste­cken. Hierfür ist extra eine Aussparung im ISO­Adapter vorhanden. Dies ist zwingend bei allen Fahrzeugen notwendig, die einen Lichtleiteran­schluss im Originalradiokabelbaum haben.
4. Beim Anschluss der Stromversorgung muss fol­gendes noch beachtet werden: Je nach Fahrzeugtyp können die Anschlüsse für Zündplus und Dauerplus vertauscht sein.
10
Anschluss an den Computer
Der HELIX DSP PRO MK2 kann mit Hilfe der
DSP PC-Tool Software frei konguriert werden. Die
Software stellt alle Funktionen übersichtlich und bedienerfreundlich zur Verfügung, so dass Sie die­se individuell einstellen können. Dabei können alle zehn DSP Kanäle separat eingestellt werden. Bevor Sie den HELIX DSP PRO MK2 das erste Mal an einen Computer anschließen, gehen Sie auf unsere Homepage und laden die aktuellste Software Version des DSP PC-Tools herunter. Es ist ratsam, regelmäßig nach Updates der Software zu schauen, damit das Gerät immer auf dem aktu­ellsten Stand ist.
Die Software sowie die dazugehörige Bedienungsan­leitung nden Sie auf www.audiotec-scher.com. Es wird dringend empfohlen, die Bedienungsanlei­tung der Software (Sound Tuning Magazin) vor der ersten Benutzung durchzulesen, um Komplikati­onen und Fehler zu vermeiden.
Wichtig: Stellen Sie sicher, dass der HELIX DSP PRO MK2 bei der ersten Installation der Soft­ware noch nicht an den PC angeschlossen ist. Ver­binden Sie diesen erst, wenn die Software samt der USB-Treiber vollständig installiert ist!
Im folgenden Abschnitt lesen Sie die wichtigsten Schritte zum Anschluss und der ersten Inbetrieb­nahme:
1. Laden Sie die DSP PC-Tool Software unter www.audiotec-scher.com herunter und in­stallieren diese auf ihrem Computer.
2. Schließen Sie danach den DSP PRO MK2 mit dem beiliegenden USB-Kabel an den Compu­ter an. Wenn Sie längere Distanzen zu über­brücken haben, verwenden Sie bitte eine aktive USB-Verlängerung mit integriertem Repeater und kein passives USB-Kabel.
3. Schalten Sie erst den Signalprozessor ein und starten Sie anschließend die Software. Sofern die Betriebssoftware des DSPs nicht mehr ak­tuell ist, wird diese automatisch aktualisiert.
4. Nun können Sie den HELIX DSP PRO MK2 mithilfe der DSP PC-Tool Software frei kon­gurieren. Nützliche Hinweise zur korrekten Ein­stellung entnehmen Sie z.B. unserem „Sound Tuning Magazin“, welches auf unserer Websei­te zum Download bereit steht.
Achtung: Es wird dringend empfohlen, vor der ersten Inbetriebnahme die Lautstärke am Radio auf Minimum zu drehen und an die Vorverstärker­ausgänge des DSP PRO MK2 noch nichts anzu­schließen, bis die grundlegenden Einstellungen im Signalprozessor vorgenommen wurden. Speziell bei Verwendung in vollaktiven Systemen besteht sonst Zerstörungsgefahr für die Lautsprecher.
1
4
3
5
8
10 11
2
6
7
9
1
Laden und Speichern
2
Hauptmenü
3
Kanalkonfiguration
4
Hochpassfilter
5
Tiefpassfilter
6
Laufzeitkorrektur
7
Ausgangspegel
8
Frequenzgraph
9
Auswahl Frequenzgraphen
10
Equalizer
11
EQ Feineinstellung
11
Einbau einer HELIX Extension Card
Der HELIX DSP PRO MK2 kann durch die Mon­tage einer HELIX Extension Card (HEC) um wei­tere Funktionen erweitert werden - beispielsweise um eine Bluetooth
®
Audio Streaming Funktion, einem weiteren optischen Digitaleingang, einen AUX-Eingang oder einen USB Audio-Eingang. Zur Montage einer HEC muss das Seitenblech des DSP PRO MK2 demontiert und gegen das der HEC beiliegende Seitenblech ausgetauscht werden.
Achtung: Installieren Sie ausschließlich für den DSP PRO MK2 vorgesehene HEC Module an der dafür vorgesehenen Position. Die Benutzung eines nicht für das Gerät spezizierten HEC Mo­duls oder eine Installation an einer nicht dafür vorgesehenen Position im Gerät kann zu Schä­den am HEC Modul, dem Signalprozessor, des Radios oder anderen angeschlossenen Geräten führen.
Im folgenden Abschnitt nun die wichtigsten Schritte zum Einbau und der ersten Inbetriebnahme eines HEC Moduls:
1. Ziehen Sie zunächst alle Steckverbindungen
vom Gerät ab.
2. Lösen Sie die fünf Kreuzschlitzschrauben des
Seitenblechs der Geräteseite mit dem USB Ein­gang und entfernen dieses.
3. Ziehen Sie nun das Bodenblech zur Seite he-
raus.
4. Bereiten Sie das Modul für den Einbau in das
Gerät vor. Informationen dazu entnehmen Sie bitte der Bedienungsanleitung des jeweiligen HEC Moduls.
5. Stecken Sie das HEC Modul in den im Gerät
vorgesehenen Sockel (siehe Markierung im nachfolgenden Bild).
6. Achten Sie auf den richtigen Sitz des HEC Mo­duls und darauf, dass alle Kontaktstifte vollstän­dig im Sockel stecken.
7. Schieben Sie das Bodenblech wieder seitlich in das Gehäuse des Signalprozessors. Anschlie­ßend befestigen Sie das neue, dem HEC Modul beiliegende Seitenblech mit den Kreuzschlitz­schrauben.
8. Verschrauben Sie das HEC Modul mit dem Seitenblech. Genaue Informationen zur Befes­tigung entnehmen Sie bitte der Bedienungsan­leitung des jeweiligen Moduls.
9. Schließen Sie alle Steckverbindungen wieder an das Gerät an.
10. Schalten Sie den Signalprozessor ein. Das in­stallierte HEC Modul wird nun automatisch vom Gerät erkannt und die Status LED des HEC Mo­duls leuchtet grün.
11. Das Modul kann nun in der DSP PC-Tool Soft-
ware konguriert werden.
12
Spezielle Features des HELIX DSP PRO MK2
96 kHz Abtastrate
Der HELIX DSP PRO MK2 bietet eine Signalverar­beitung mit einer doppelten Abtastrate von 96 kHz. Dadurch ist die Audiobandbreite nicht wie üblich auf 22 kHz begrenzt, sondern erlaubt einen aus­gedehnten Frequenzgang bis über 40 kHz. Die höhere Abtastrate stellt aber deutlich höhere Anfor­derungen an den DSP selbst, denn die Anzahl der möglichen Rechenoperationen wird bei einer Ver­doppelung der Abtastrate auf die Hälfte reduziert. Erst der Einsatz der allerneuesten Chipgeneration ermöglicht es, trotz weiter gesteigertem Funktions­umfang und Kanalanzahl die Abtastrate auf 96 kHz anzuheben.
Signalwandler mit nativer 32 Bit Auösung
Der HELIX DSP PRO MK2 verwendet hochwer­tigste AD- und DA-Wandler der neuesten Genera-
tion mit einer nativen Auösung von 32 Bit anstelle
der üblichen 24 Bit. Daraus ergibt sich eine nie da­gewesene Präzision bei der Signalwandlung, was speziell den Klang bei kleineren Signalpegeln wei­ter optimiert.
Intelligenter Highlevel-Eingang
Moderne, ab Werk verbaute Autoradios werden bezüglich der Diagnose der angeschlossenen Laut­sprecher immer intelligenter. Wird ein Signalpro­zessor stattdessen an das Radio angeschlossen, kommt es meist zu Fehlermeldungen bis hin zum Wegfall einzelner Funktionen (wie z.B. Fader). Der neue ADEP-Schaltkreis (Advanced Diagnostics Error Protection) verhindert all diese Probleme ohne die Lautsprecherausgänge des Radios bei hohen Pegeln unnötig zu belasten.
Power Save Modus
Der Power Save Modus ist in den Grundeinstel­lungen der DSP PC-Tool Software aktiviert. Er er­laubt, die Leistungsaufnahme der an den Signal­prozessor angeschlossenen Verstärker drastisch zu reduzieren, wenn für länger als 60 Sek. kein Ein­gangssignal anliegt. Es ist zu berücksichtigen, dass heutzutage viele Fahrzeuge mit „CAN“ oder ähn­lichen internen Bussystemen ausgestattet sind, die das Radio für den Anwender „unsichtbar“ noch bis zu 45 Min. eingeschaltet lassen, selbst wenn man zwischenzeitlich das Fahrzeug verlässt und abge­schlossen hat. Sobald der „Power Save Mode“ aktiv ist, wird der Remote-Ausgang und damit die ange­schlossenen Verstärker abgeschaltet. Der HELIX DSP PRO MK2 reaktiviert den Remote-Ausgang innerhalb einer Sekunde, sobald wieder ein Musik­signal an einem seiner Eingänge anliegt. Es ist zu­dem möglich, über die DSP PC-Tool Software die Abschaltverzögerung zu variieren bzw. den „ Power Save Mode“ komplett zu deaktivieren.
Automatic Digital Signal Detection
Die Umschaltung zwischen den analogen und einem der beiden Digitaleingänge erfolgt signal­gesteuert. Sobald ein Audiosignal am Optical Input oder dem Coax Input detektiert wird, schaltet der Signalprozessor auf diesen Eingang um. In der DSP PC-Tool Software kann diese Funktion deakti­viert oder alternativ eine manuelle Steuerung über eine optional erhältliche Fernbedienung gewählt werden.
Start-Stopfähigkeit
Das Netzteil im HELIX DSP PRO MK2 stellt die in­terne Spannungsversorgung auch bei kurzfristigen Einbrüchen bis hinab zu 6 Volt sicher. Damit ist gewährleistet, dass der HELIX DSP PRO MK2 auch beim Motorstart voll funkti­onsfähig bleibt.
13
Technische Daten
Eingänge .........................................................................8 x Cinch
8 x Hochpegel-Lautsprechereingang 1 x Optisch SPDIF-Format (12 - 96 kHz) 1 x Koaxial SPDIF-Format (12-192 kHz) 1 x Remote In
Eingangsempndlichkeit ..................................................Cinch 2 - 4 Volt
Hochpegel 5 - 10 Volt oder 10 - 20 Volt
Ausgänge ........................................................................10 x Cinch
1 x Remote Out
Ausgangsspannung .........................................................8 Volt
Frequenzbereich..............................................................10 Hz - 44.000 Hz
DSP Auösung ................................................................64 Bit
DSP Rechenleistung .......................................................295 MHz (1.2 Mrd. MAC Operationen/Sekunde)
Abtastrate ........................................................................96 kHz
DSP Typ ..........................................................................Audio Signalprozessor
Signalwandler ..................................................................A/D: Asahi Kasei 32 Bit
D/A: Asahi Kasei 32 Bit
Signal- / Rauschabstand Digitaleingang..........................116 dB (A-bewertet)
Signal- / Rauschabstand Analogeingang.........................110 dB (A-bewertet)
Klirrfaktor (THD+N) Digitaleingang ..................................< 0,0005 %
Klirrfaktor (THD+N) Analogeingang ................................. < 0,001 %
Intermodulationsverzerrungen Digitaleingang .................< 0,002 %
Intermodulationsverzerrungen Analogeingang ................< 0,004 %
Übersprechen ..................................................................> 90 dB
Betriebsspannung............................................................9,6 - 18 Volt (max. 5 Sek. bis hinab zu 6 Volt)
Stromaufnahme ...............................................................510 mA
Max. Remote-Ausgangsstrom .........................................500 mA
Zusätzliche Features .......................................................HEC Slot, Masseschalter, Control Input,
ADEP-Schaltkreis, Auto Remote Schalter
Abmessungen (H x B x T) ...............................................40 x 177 x 150 mm
Garantiehinweis
Die Garantieleistung entspricht der gesetzlichen Regelung. Von der Garantieleistung ausgeschlos­sen sind Defekte und Schäden, die durch Überla­stung oder unsachgemäße Behandlung entstanden sind. Eine Rücksendung kann nur nach vorheriger Absprache in der Originalverpackung, einer de­taillierten Fehlerbeschreibung und einem gültigen Kaufbeleg erfolgen.
Hinweis:
„Die Bluetooth® Wortmarke und die Logos sind eingetragene Warenzeichen der Bluetooth SIG, Inc. und jegliche Nutzung dieser Marken durch die Audiotec Fischer GmbH geschieht unter Lizenz. Andere Handelsmarken und Handelsnamen gehören den jeweiligen Inhabern.“
14
Technische Änderungen und Irrtümer vorbehalten! Für Schäden am Fahrzeug oder Gerätedefekte, her­vorgerufen durch Bedienungsfehler des Gerätes, können wir keine Haftung übernehmen. Dieses Produkt ist mit einer CE-Kennzeichnung versehen. Damit ist das Gerät für den Betrieb in Fahrzeugen
innerhalb der Europäischen Union (EU) zertiziert.
Congratulations!
Dear Customer,
Congratulations on your purchase of this innovative and high-qual ity HELIX product.
With the HELIX DSP PRO MK2, Audiotec Fischer is setting new standards in the range of digital signal processors.
General instructions
General installation instructions for HELIX components
To prevent damage to the unit and possible injury, read this manual carefully and follow all installation instructions. This product has been checked for proper function prior to shipping and is guaranteed against manufacturing defects.
Before starting your installation, disconnect the battery’s negative terminal to prevent
damage to the unit, re and / or risk of injury. For a proper performance and to ensure full warranty coverage, we strongly recommend to get this prod­uct installed by an authorized HELIX dealer.
Install your HELIX DSP PRO MK2 in a dry location
with sufcient air circulation for proper cooling of the
equipment. The signal processor should be secured to a solid mounting surface using proper mounting hardware. Before mounting, carefully examine the area around and behind the proposed installa­tion location to insure that there are no electrical cables or components, hydraulic brake lines or any part of the fuel tank located behind the mounting surface. Failure to do so may result in unpredictable damage to these components and possible costly repairs to the vehicle.
We wish you many hours of enjoyment with your new HELIX DSP PRO MK2.
Yours, AUDIOTEC FISCHER
General instruction for connecting the HELIX DSP PRO MK2 signal processor
The HELIX DSP PRO MK2 signal processor may only be installed in vehicles which have a 12 Volts negative terminal connected to the chassis ground. Any other system could cause damage to the signal processor and the electrical system of the vehicle. The positive cable from the battery for the entire sound system should be provided with a main fuse at a distance of max. 30 cm from the battery. The value of the fuse is calculated from the maximum total current draw of the car audio system.
Use only the provided connectors or the option­ally available Easy Plug Cable for connection of the HELIX DSP PRO MK2. The use of other cables can result in damage of the signal pro­cessor, the head unit / radio or the connected
ampliers / loudspeakers!
Prior to installation, plan the wire routing to avoid any possible damage to the wire harness. All cabling should be protected against possible crushing or pinching hazards. Also avoid routing cables close to potential noise sources such as electric motors, high power accessories and other vehicle harnesses.
15
Connectors and control units
1 32 4 5 6
Line Input
1
RCA inputs for connecting pre-amplier
signals.
Coax Input
2
Electrical input for digital stereo signals
(SPDIF format).
.
Optical Input
3
Optical input for digital stereo signals (SPDIF
format).
Clipping LED
4
This LED lights up red if one of the analog
inputs is overdriven.
11 12
7
Ground lift switch
7
Can be used to dene the connection
between the grounding of the inputs and outputs.
Control pushbutton
8
Use this button to either switch between the
setups or initiate a reset of the device.
Status LED
9
This LED indicates the operating mode of the
DSP and which setup has been chosen.
10
8
9
Highlevel Input
5
Highlevel speaker inputs for connecting a
factory radio or an aftermarket radio without pre-amp / line outputs.
Power Input
6
Connector for the DC power supply with an
additional remote in- and output. The remote output has to be used to switch on external
ampliers.
USB input
10
Connects the HELIX DSP PRO MK2 to your
PC.
Control Input
11
Multifunction interface for e.g. an optional
remote control or other HELIX accessory.
Line Output
12
Line outputs for connecting ampliers. Make
sure that the remote output is used to turn on these devices.
16
Initial start-up and functions
Line Input
1
8-channel pre-amplier input to connect signal
sourc es such as radios. Input sensitivity is factory-set set to 4 Volts. It is possible to vary the sensitivity of each channel between 2 and 4 Volts. inside the device.
Coax Input
2
Coaxial input in SPDIF format for connecting sour­c es with a digital audio output. The sampling rate of this input has to be in the range of 12 and 192 kHz. The input signal is automatically adapted to the in­ternal sample rate. In order to activate this input and to control its vol­ume, we recommend to use an optional remote control. Notice: This signal processor can only handle ste­reo input signals and no Dolby-coded digital audio stream. Important: Before rst use, the Coax Input has to be activated in the DSP PC-Tool software or with an optional remote control. The Optical Input is activated ex works.
Optical Input
3
Optical input in SPDIF format for connecting signal sources with a digital audio output. The sampling rate of this input must be between 12 and 96 kHz. The input signal is automatically adapted to the internal sample rate. In order to activate this input and to control its volume, we recommend to use an optional remote control. Notice: This signal processor can only handle ste­reo input signals and no Dolby-coded digital audio stream.
Notice: In standard conguration the HELIX
DSP PRO MK2 automatically activates this input if a digital audio signal is detected.
Clipping LED
4
This LED lights up red if one of the eight Line Inputs or Highlevel Inputs is overdriven. The LED has no function if the device is fed with digital input signals. If this LED lights up reduce the input sensitivity by using the internal trim potentiometers until the LED goes out (item 3 page 20; “Adjustment of the input sensitivity”).
Highlevel Input
5
8-channel highlevel loudspeaker input to connect the signal processor directly to loudspeaker outputs
of OEM / aftermarket radios or OEM ampliers that do not have any pre-amplier outputs. Input sensi-
tivity is factory-set to 10 Volts for all channels. It is possible to vary the sensitivity of each channel between 5 - 10 Volts and 10 - 20 Volts inside the device (item 3 page 20; “Adjustment of the input sensitivity”). By changing the sensitivity range, the input imped­ance of the highlevel inputs is shifted as well in or­der to guarantee a perfect operation in combination
with OE radios and high-power OE ampliers.
Attention: Solely use the pluggable screw-terminal for the highlevel connector which is included in de­livery or an optional available cable harness from the HELIX accessory assortment!
Important: It is strictly forbidden to use the High­level Input and pre-amplier inputs (Line Input) at
the same time. This may cause severe damage to
the pre-amplier outputs of your car radio.
Power Input
6
This input is used for connecting the signal pro­cessor to the power supply of the vehicle and for remote in / out. If the highlevel loudspeaker inputs are used the remote input can be left unconnected. The remote output is used for turning on/off ampli­ers that are connected to the Line Outputs of the HELIX DSP PRO MK2. Connect this remote out-
put to the remote inputs of your amplier/s. This
is essential to avoid any interfering signals. The remote output is activated automatically as soon as the booting process of the DSP is completed. Additionally this output will be turned off during the “Power Save Mode” or a software update process. Attention: Solely use the pluggable screw-terminal which is included in delivery!
Important: Never use a different signal than the remote output of the DSP to activate connected
ampliers!
Ground lift switch
7
The ground of the HELIX DSP PRO MK2 signal in­puts is galvanically decoupled from the ground of the signal outputs. In many cars this setup is the best way to avoid alternator noise. Nevertheless, there are use cases where it will
17
Initial start-up and functions
be necessary to directly connect input and output ground or to tie both grounds together via a resistor. Therefore the Ground lift switch has three positions:
- center position: input and output ground separated.
- left position: input and output ground tied together.
- right position: input and output ground connected via 200 Ohms resistor.
Control pushbutton
8
The Control pushbutton allows the user to switch between the two setup memory positions. To switch between the setups the button has to be pressed and held for one second. Switching is indicated by
a single red ash of the Status LED. Pressing the button for ve seconds completely eras es the inter­nal memory. This is indicated by a constant ashing
of the Status LED. Attention: After erasing the setups from memory the HELIX DSP PRO MK2 will not reproduce any audio output.
Status LED
9
The Status LED indicates the current active DSP setup. Green means that setup 1 is load ed, orange means that setup 2 is loaded. A ashing red light in­dicates that no setup is loaded. In that case please load a new setup via the DSP PC-Tool software. If the LED starts blinking orange, the internal tem­perature protection is active. At rst the remote out­put will be turned off. If the temperature still rises the signal processor will shut down until it has reached a safe temperature level again.
functionality has to be dened in the “ Device Con­guration Menu” of the DSP PC-Tool software.
12
Line Output
10-channel pre-amplier output for connecting po wer ampliers. The output voltage is 8 Volts max.
Please make sure that you always turn on/off exter-
nal ampliers using the remote output of the signal
processors Power Input. Never directly control the external amps by a signal from the ignition switch of your car! Additionally this output will be turned off when the “Power Save Mode” of the signal pro­cessor is active. The outputs can be assigned to any of the inputs as desired using the DSP PC-Tool software.
10
USB input
Connect your personal computer to the DSP PRO MK2 using the provided USB cable.
The required PC software to congure this signal
processor can be downloaded from the Audiotec Fischer website www.audiotec-scher.com. Please note: It is not possible to connect any USB storage devices.
11
Control Input
This multi-functional input is designed for HELIX ac­cessory products like a remote control which allows to adjust several features of the signal processor.
Depending on the type of remote control, at rst its
18
Installation
Adjustment of the input sensitivity of the highlevel inputs:
Jumper upper position* Jumper lower position
Channel assignment:
Channel A
Channel B
Channel C
Channel D
Channel E
Channel F
Channel G
Channel H
Fig. 1
Adjustment of the input sensitivity for using channel G & H as AUX inputs:
Jumper lower position*
5 V 10 V*
2 V 4 V*
* Ex factory adjustment of HELIX DSP PRO MK2
Highlevel
RCA / Cinch
10 V 20 V
2 V 4 V
Channel G & H:
Jumper upper position
Channel G & H:
2 V 4 V*
250 mV 500 mV
Fig. 3Fig. 2
19
Installation
Connection of HELIX DSP PRO MK2 to the head unit / car radio:
Caution: Carrying out the following steps will re-
quire special tools and technical knowledge. In or­der to avoid connection mistakes and / or damage, ask your dealer for assistance if you have any ques­tions and follow all instructions in this manual (see page 15). It is recommended that the device will be installed by an authorized HELIX dealer.
1. Connecting the pre-amplier inputs
Use the correct cable (RCA / cinch cable)
to connect these inputs to the pre-ampli­er / lowlev el / cinch outputs of your car radio. Each input can be assigned to any output us­ing the DSP PC-Tool software. The automatic turn-on circuit does not work when using the pre-amplier inputs. In this case the remote in­put has to be connected to activate the HELIX DSP PRO MK2.
Important: It is strictly forbidden to use the
Highlevel Input and pre-amplier inputs (Line Input) at the same time. This may cause severe
damage to the pre-amplier outputs of your car
radio.
2. Connecting the highlevel speaker inputs
The highlevel loudspeaker inputs can be con-
nected directly to the loudspeaker outputs of an OEM or aftermarket radio using appropriate ca­bles (loudspeaker cables with 1 mm² / AWG 18 max.). We recommend the following channel assignment if a common car radio will be con­nected to the signal processor: Channel A = Front left Channel B = Front right Channel C = Rear left Channel D = Rear right Actually it is not mandatory to use all high level speaker inputs. If only two channels will be con­nected we recommend to use the channels A and B. Make sure that the polarity is correct. If one or more connections have reversed polar­ity it may affect the performance of the signal processor. If this input is used the remote input does not need to be connected as the signal processor will automatically turn on once a loudspeaker signal is received.
20
3. Adjustment of the input sensitivity
Attention: It is mandatory to properly adapt
the input sensitivity of the DSP PRO MK2 to the signal source in order to avoid damage to the signal processor.
If you want to change the input sensitivity you
have to open the device at rst. Dismantle the
side panel where the USB input is located by
removing the ve Phillips screws and pull out
the bottom plate sideways. Now you have ac­cess to the eight trim potentiometers that allow adjusting each channel individually. The assign­ment of the trim pots to the respective channels
is shown in gure 1 on page 19.
Please note: The setting of the trim potentiom­eters affects both the lowlevel and the highlevel inputs!
If the sensitivity range of the highlevel input may
not be sufcient it is possible to change it by re­positioning a jumper (see gure 2 on page 19). The sensitivity range of the two pre-amplier in-
puts G and H can also be changed to connect
even mobile devices with signicantly lower
output voltage (like smartphones) by reposition-
ing a further jumper (see gure 3 on page 19).
Important: To change the position of a jumper it has to be removed by pulling it straight upwards and plugged into the desired position. Make sure that the jumper is reinserted properly and all pins are fully inserted. The position of each jumper can be changed independently. Follow the subsequent steps to perfectly adapt the signal processors input sensitivity to your audio source by using the internal trim poten­tiometers:
1. Don‘t connect any ampliers to the outputs
of the HELIX DSP PRO MK2 during this setup.
2. Turn on the signal processor.
3. Adjust the volume of your radio to approx. 90 % of the max. volume and playback an 1 kHz full scale test tone (0 dB) via CD drive.
4. The adjustment will be easier when you con­nect and adjust one input channel after the other.
5. If the Clipping LED already lights up, you have to reduce the input sensitivity via the respective trim potentiometer until the LED turns off.
If the potentiometer is already set to full CW position it will be necessary to change the sensitivity range by repositioning the jumper
(see gure 2 on page 19). Note that this will
only have an effect on the highlevel inputs!
6. Increase the input sensitivity by turning the respective potentiometer counterclockwise until the LED lights up. Now turn the poten­tiometer clockwise until the Clipping LED turns off again.
7. Repeat this process for each channel you are using.
4. Connecting a digital signal source
If you have a signal source with optical or coax-
ial digital output you can connect it to the signal processor using the appropriate input. In stan-
dard conguration The HELIX DSP PRO MK2 is congured to automatically activate the digital
input which is activated in the software as soon as a digital audio signal is detected. The Optical Input is activated ex works. This function can be deactivated via the DSP PC-Tool software. Al­ternatively you can manually activate the digital input if you are using an optional remote con­trol. The automatic turn-on circuit does not work when a digital input is used. Therefore it is mandatory to connect the remote input of the Power Input. Please note that it is possible to connect a source to one of the digital inputs and the Highlevel Input or the Line Input at the same time. Important: The signal of a digital audio source normally does not contain any information about the volume level. Keep in mind that this will lead to full level on the outputs of the HELIX DSP PRO MK2 and your connected
ampliers. This may cause severe damage to
your speakers. We strongly recommend to use an optional remote control for adjusting the vol­ume level of the digital signal input! Information: The HELIX DSP PRO MK2 can only handle uncompressed digital ste­reo signals in PCM format with a sample rate between 12 kHz and 96 kHz / 192 kHz and no Dolby-coded signals.
5. Connection to power supply Make sure to disconnect the battery before
installing the HELIX DSP PRO MK2!
Solely use the included screw-type terminal to connect the HELIX DSP PRO MK2 to a pow­er supply. Make sure of correct polarity. The ground wire must be connected to the vehicle chassis at a non-insulated point. Inadequate grounding causes audible interference and malfunctions. The positive wire has to be connected to the battery’s positive post or a power distribution block. Though the current draw of the HELIX DSP PRO MK2 is rather low (approx. 510 mA) we recommend a minimum wire gauge of 1 mm² / AWG18 for both power supply wires.
6. Connecting the remote input
The remote input of the Power Input has to be connected to the radio remote output if the
signal processors pre-amplier inputs or the
digital inputs are solely used as signal inputs. We do not recommend controlling the remote input via the ignition switch to avoid pop noise during turn on/off. If the Highlevel Input is used this input does not need to be connected as long as the car radio has BTL output stages.
7. Conguration of the remote input
The DSP PRO MK2 will be turned on automati­cally if the Highlevel Input is used or if a signal is applied to the remote input terminal. The “Auto Remote” switch allows to deactivate the auto­matic turn-on feature. The feature should be de­activated if there are e.g. noises while switching on/off the signal processor. Note: If the automatic turn-on function is deac­tivated it is mandatory to use the remote input terminal to power up the signal processor! The highlevel signal will be ignored in this case. Note: The activation of the signal processor via speaker input is activated ex works. To deactivate the automatic turn-on feature you have to open the device and change the position of the “Auto Remote” switch. Therefore dismantle the side panel (where the USB input
is located) by removing the ve Phillips screws.
Now you can pull out the bottom plate and get access to the switch. The switch is located near
21
Installation
by the jumper for adjusting the input sensitivity of the highlevel inputs (see marking in the fol­lowing picture).
On: Activation via highlevel speaker input is
enabled (ex works).
Off: Activation via highlevel speaker input is
disabled.
8. Conguration of the DSP
The general DSP settings should be con­ducted with the DSP PC-Tool software be-
fore using the signal processor for the rst
time.
Ignoring this advice may result in damaging the connected ampliers / the loudspeakers. Infor­mation about connecting the DSP PRO MK2 to a computer can be found on page 24.
9. Connecting the remote output
This output (Remote out) is used to supply re-
mote signals to the external amplier/s. Always
use this remote output signal to turn on the am-
plier/s in order to avoid on/off switching noises.
22
Installation with “Easy Plug Cable”
To simplify installation to an OEM or aftermarket radio the HELIX DSP PRO MK2 can also be con­nected using the optional Easy Plug Cable (EPC 5) which will supply the signal processor with both power and loudspeaker signals of the radio. No factory wires or plugs need to be cut by using this connection method. The Easy Plug Cable uses the highlevel inputs A - D. Connection to an OEM radio is detailed below:
1. Once the radio has been removed by using the right tools disconnect the OEM harness from the radio. Connect the vehicle cable jack con­nectors of the Easy Plug Cable. You may need a special ISO-adaptor depending on vehicle type. In order to verify please check the adaptor database on the Audiotec Fischer homepage www.audiotec-scher.com.
2. Connect the cable plugs to the car radio.
3. Connect the highlevel plug (8-pole connector)
and the power supply plug (4-pole connector) of the Easy Plug Cable to the appropriate HELIX DSP PRO MK2 inputs (Highlevel Input A to D and Power Input).
4. Please note when connecting the power sup­ply the permanent and switched 12 Volts wires may be reversed depending on vehicle type. The HELIX DSP PRO MK2 should not be plugged into the power supply via the ignition cable as this may cause interferences. Before connecting the Easy Plug Cable to the HELIX
DSP PRO MK2, verication of the permanent
12 Volts wire must be made between the blue and red wires coming from the ISO connectors of the harness with a voltmeter. The permanent 12 Volts wire will show voltage even with the ve­hicle ignition turned off. Once the correct wire is
identied connect the red wire with jack to the
corresponding blue or red wire with plug. The positive cable of the harness usually has a fuse of max. 20 A. Attention: The ex factory condition is that the red wires are connected. If you’re uncertain of assignment ask your dealer.
Note - Cars equipped with MOST bus:
In cars equipped with MOST bus structure it is
mandatory to unplug the ber-optic cable from the
original radio connector and insert it into the ISO adaptor which has a dedicated recess for this.
23
Connection to a PC
It is possible to freely congure the HELIX
DSP PRO MK2 with our DSP PC-Tool software. The user interface is designed for easy handling of all functions and allows an individual adjustment of each of the ten DSP channels. Prior to connecting the signal processor to your PC visit our website and download the latest version of the DSP PC-Tool software. Check from time to time for software updates. You will nd the software and the respective user manu­al on www.audiotec-scher.com. We strongly recommend to carefully read the user manual (Sound Tuning Magazine) before using the software for the rst time in order to avoid any com­plications and failures. Important: Make sure that the signal processor is not connected to your computer before the software and USB driver are installed!
In the following the most important steps how to
connect and the rst start-up are described:
1. Download the latest version of the DSP PC-Tool software (available on our website www.audiotec-scher.com) and install it on your computer.
2. Connect the signal processor to your computer using the USB cable that is included in delivery. If you have to bridge longer distances please use an active USB extension cable with inte­grated repeater and no passive extension.
3. Turn on the signal processor and start the soft­ware after the Status LED lights up green. The operating software will be updated automatical­ly to the latest version if it is not up-to-date.
4. Now you are able to congure your HELIX
DSP PRO MK2 with our intuitive DSP PC-Tool software. Nevertheless, interesting and useful hints can be found e.g. in our “Sound Tuning Magazine”, which can be downloaded for free from our website.
Caution: We highly recommend to set the vol­ume of your car radio to minimum position during
rst start-up. Additionally no devices should be
connected to the signal processor until general set­tings in the DSP PC-Tool software have been made. Especially if the DSP PRO MK2 will be used in fully active applications, a wrong setup can destroy your speakers right away.
24
1
4
3
5
8
10 11
2
6
7
9
1
Load and save
2
Main menu
3
Channel configuration
4
Highpass filter
5
Lowpass filter
6
Time alignment
7
Output level
8
Frequency graph
9
Range of frequency graphs
10
Equalizer
11
EQ fine adjustment
HELIX Extension Card slot (HEC slot)
It is possible to extend the functionality of the HELIX DSP PRO MK2 by inserting an optional HELIX Extension Card (HEC) - for example a Bluetooth Audio Streaming module, an additional optical digi­tal input, an AUX input or an USB audio input. To install a HELIX Extension Card it is necessary to remove the side panel of the DSP PRO MK2 and replace it by the new side panel that comes with the HEC module.
Attention: Install the HEC module only in the
designated device and its specic slot. Using
the HEC module in other devices or slots can result in damage of the HEC module, the signal processor, the head unit / car radio or other con­nected devices!
Read in the following the steps how to install a HEC module:
1. First disconnect all cables from the device.
2. Dismantle the side panel where the USB input
is located by removing the ve Phillips screws.
3. Pull out the bottom plate sideways.
4. Prepare the module for installing it into the de-
vice. Any further mounting information will be found in the instruction manual of the respective HEC module.
5. Insert the HEC module into the specic slot
of the device which is marked in the following picture.
®
7. Reinsert the bottom plate and x the new side
panel which is delivered with the HEC module
with the ve Phillips screws.
8. Bolt the HEC module to the side panel. Precise mounting information will be found in the in­struction manual of the respective HEC module.
9. Reconnect all cables to the device.
10. Turn on the signal processor. The HEC module
is automatically detected by the device and the Status LED of the HEC module lights up green.
11. Now you are able to congure the HEC module
in the DSP PC-Tool software.
6. Make sure that the HEC module is installed properly and all pins are fully inserted into the socket.
25
Unique Features of the HELIX DSP PRO MK2
96 kHz sampling rate
The HELIX DSP PRO MK2 allows to handle all signals with the doubled sampling rate of 96 kHz. Thus the audio bandwidth is no long er limited to usual values like 22 kHz but allows an extended frequency response to more than 40 kHz. Doubling
the sampling rate requires signicantly higher DSP
power as the number of possible arithmetic opera­tions is halved. Only the implementation of the lat­est DSP chip generation allows raising the sampling rate to 96 kHz and adding new features plus addi­tional channels at the same time.
Signal converters with a native resolution of 32 Bit
The HELIX DSP PRO MK2 uses high-class AD and DA converters of the latest generation with a native resolution of 32 Bit instead of the common 24 Bit. The result is an unprecedented precision in signal conversion that especially optimizes the sound quality at lower signal levels.
Smart highlevel input
The latest generation of OE car radios incorporates sophisticated possibilities of diagnosing the con­nected speakers. If a common signal processor will
be hooked up failure messages and loss of specic
features (e.g. fader function) quite often appears ­but not with the DSP PRO MK2. The new ADEP circuit (Advanced Diagnostics Error Protection) avoids all these problems without load­ing the speaker outputs of the OE radio during high volumes unnecessarily.
Start-Stop capability
The switched power supply of the HELIX DSP PRO MK2 assures a constant internal supply voltage even if the battery’s voltage drops to 6 Volts during engine crank.
Power Save Mode
The Power Save Mode is incorporated in the basic
setup. It allows to signicantly reduce the power consumption of the ampliers that are connected
to the HELIX DSP PRO MK2 once there’s no input signal present for more than 60 seconds. Please note that in many up-to-date cars with “CAN” or any other internal bus structures it may happen that the radio remains “invisibly” turned on for up to 45 min. even after locking and leaving the car! Once the “Power Save Mode“ is active the remote output and
therefore the connected ampliers will be turned
off. The HELIX DSP PRO MK2 will reactivate the remote output within a second if a music signal is applied. It is possible to either modify the turn-off time of 60 sec. or completely deactivate the “Power Save Mode” via the DSP PC-Tool software.
Automatic Digital Signal Detection
Switching from analog input to one of the digital in­puts is done automatically as soon as a signal is detected on the Optical Input or Coax Input. This feature can be deactivated in the DSP PC-Tool soft­ware. Alternatively you can use an optional remote control for manual switching between analog and digital inputs.
26
Technical Data
Inputs ...............................................................................8 x RCA / Cinch
8 x Highlevel speaker input 1 x Optical SPDIF (12 - 96 kHz) 1 x Coax SPDIF (12 - 192 kHz) 1 x Remote In
Input sensitivity ................................................................RCA / Cinch 2 - 4 Volts
Highlevel 5 - 10 or 10 - 20 Volts
Outputs ............................................................................10 x RCA / Cinch
1 x Remote Out
Output voltage .................................................................8 Volts
Frequency response ........................................................10 Hz - 44,000 Hz
DSP resolution .................................................................64 Bit
DSP power ......................................................................295 MHz (1.2 billion MAC operations/second)
Sampling rate ..................................................................96 kHz
DSP type .........................................................................Audio signal processor
Signal converters .............................................................A/D: Asahi Kasei 32 Bit
D/A: Asahi Kasei 32 Bit
Signal-to-noise ratio digital input .....................................116 dB (A-weighted)
Signal-to-noise ratio analog input ....................................110 dB (A-weighted)
Total harmonic distortion (THD+N) digital input ...............< 0.0005 %
Total harmonic distortion (THD+N) analog input .............< 0.001 %
IM distortion (IMD) digital input ........................................< 0.002 %
IM distortion (IMD) analog input ......................................< 0.004 %
Crosstalk..........................................................................> 90 dB
Operating voltage ............................................................9.6 - 18 Volts (max. 5 sec. down to 6 Volts)
Current draw ....................................................................510 mA
Max. remote output current .............................................500 mA
Additional features ...........................................................HEC slot, Ground lift switch, Control Input,
ADEP circuit, Auto Remote switch
Dimensions (H x W x D) ..................................................40 x 177 x 150 mm / 1.58 x 6.97 x 5.91“
Warranty Disclaimer
The limited warranty comply with legal regulations. Failures or damages caused by overload or im­proper use are not covered by the warranty. Please return the defective product only with a valid proof of purchase and a detailed malfunction description.
Technical specications are subject to change!
Note:
“The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Audiotec Fischer GmbH is under license. Other trademarks and trade names are those of their respective owners.”
Errors are reserved! For damages on the vehicle and the device, caused by handling errors of the device, we can’t assume liability. This product is
tagged with a CE-Certikation mark. Thereby these devices are certied for the use in vehicles within
the European Community (EC).
27
Audiotec Fischer GmbH
Hünegräben 26 · 57392 Schmallenberg · Germany
Tel.: +49 2972 9788 0 · Fax: +49 2972 9788 88
E-mail: helix@audiotec-scher.com · Internet: www.audiotec-scher.com
Loading...
