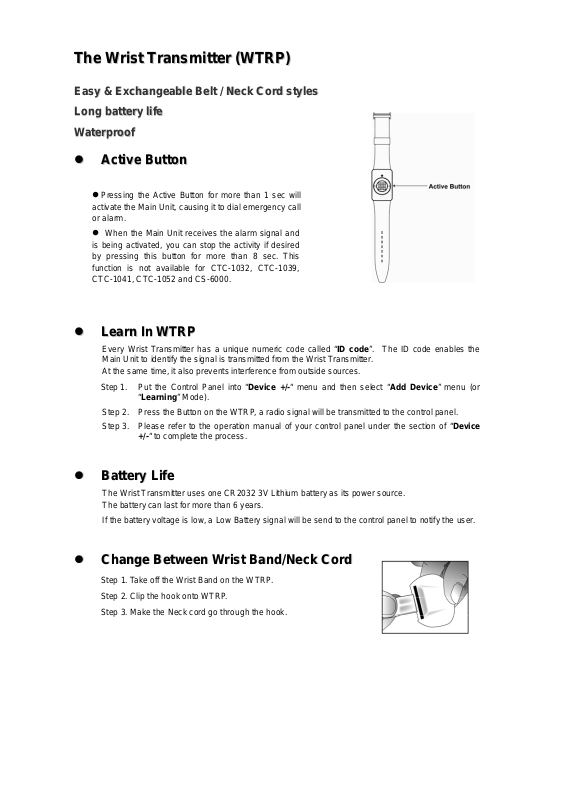

TThhee WWrriisstt TTrraannssmmiitttteerr ((WWTTRRPP))
EEaassyy && EExxcchhaannggeeaabbllee BBeelltt // NNeecckk CCoorrdd ssttyylleess
LLoonngg bbaatttteerryy lliiffee
WWaatteerrpprrooooff
z
z
AAccttiivvee BBuuttttoonn
z Pressing the Active Button for more than 1 sec will
activate the Main Unit, causing it to dial emergency call
or alarm.
z When the Main Unit receives the alarm signal and
is being activated, you can stop the activity if desired
by pressing this button for more than 8 sec. This
function is not available for CTC-1032, CTC-1039,
CTC-1041, CTC-1052 and CS-6000.
z
z
LLeeaarrnn IInn WWTTRRPP
Every Wrist Transmitter has a unique numeric code called “ID code”. The ID code enables the
Main Unit to identify the signal is transmitted from the Wrist Transmitter.
At the same time, it also prevents interference from outside sources.
Step 1. Put the Control Panel into “Device +/-“ menu and then select “Add Device” menu (or
“Learning” Mode).
Step 2. Press the Button on the WTRP, a radio signal will be transmitted to the control panel.
Step 3. Please refer to the operation manual of your control panel under the section of “Device
+/-“ to complete the process.
z
z
BBaatttteerryy LLiiffee
The Wrist Transmitter uses one CR2032 3V Lithium battery as its power source.
The battery can last for more than 6 years.
If the battery voltage is low, a Low Battery signal will be send to the control panel to notify the user.
z
z
CChhaannggee BBeettwweeeenn WWrriisstt BBaanndd//NNeecckk CCoorrdd
Step 1. Take off the Wrist Band on the WTRP.
Step 2. Clip the hook onto WTRP.
Step 3. Make the Neck cord go through the hook.
Page 2
z
z
AAuuttoo LLooww BBaatttteerryy DDeetteeccttiioonn && SSuuppeerrvviissiioonn
The Wrist Transmitter features Auto Low Battery detection and Supervision.
z Press and hold the Active Button for 15 seconds to activate this function (ignoring the 1
2nd set of LED flashes at one and eight seconds). The LED will flash three times to confirm.
z The Wrist Transmitter will automatically transmit an Lo w Battery detection & Supervisory code
to detect Low Battery every 20 hours. If the Main Unit has not received the Low Battery
detection & Supervisory code, it will then notify the user accordingly (depend on the Main Unit
setting).
<<NNOOTTEE>>
)
If Auto Low Battery detection & Supervision functions are not activated, the WTRP will not
)
automatically check battery status.
)
Auto Low Battery Detection & Supervision functions can only be activated as a pair.
)
)
Once Auto Low Battery Detection & Supervision functions are activated, they cannot be
)
deactivated later in any circumstances.
FFCCCC SSttaatteemmeenntt
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
FFCCCC CCaauuttiioonn::
To assure continued compliance, any changes or modifications not expressly approved by the party
responsible for compliance may void the user's authority to operate this equipment. (Example - use only
shielded interface cables when connecting to computer or peripheral devices).
