Helipal storm racing drone 370, V5 User Manual

1

Storm Racing Drone

with Naza GPS Flight Controller

USER MANUAL

V2

2

DISCLAIMER

Please read this disclaimer carefully before using this product. This product is a hobby with motors but not a toy which is not suitable for people under the age of

18. By using this product, you hereby agree to this disclaimer and signify that you have read them fully. You agreed that you are responsible for your own conduct and content while using this product, and for any consequences thereof.

Before you fly the drone

1) Make sure all connections are good, and keep children and animals away during flying, firmware update, system calibration and parameter setup.

2) Always fly the drone away from unsafe conditions, such as obstacles, crowds, high-voltage lines, etc.

3) Do not use in bad weathers such as rainy day, snow, windy (more than moderate breeze), hail, lighting, tornadoes, hurricanes etc.

4) Check whether the propellers and the motors are installed correctly and firmly before flight. Make sure the rotation direction of each propeller is correct.

5) Check whether all parts of the drone are in good condition before flight. Do not fly with aging or broken parts.

6) Never overcharge LiPo batteries. Do not charge above 4.2V per cell. When the battery is fully charged, disconnect it from the charger. Never leave the battery charger unattended during charging.

7) Never discharge batteries to below 3.3V per cell

8) Remove batteries when not using the drone.

3

Package includes:

1. Fully Assembled Storm SRD370 GPS w/ NAZA M Lite/V2 and FPV System

(Camera and Transmitter)

2. RadioLink AT9 Radio System

3. 14.8V 4000mah 30C Li-Po Battery

4. 6pcs Clockwise 8045C Carbon-filled Nylon Propeller (4 of them are spare parts)

5. 6pcs Counter-Clockwise 8045C Carbon-filled Nylon (4 of them are spare parts)

6. SKYRC E4 Battery Charger

7. 2.0 mm Hex Wrench

8. 2.5 mm Hex Wrench

9. 10mm Hex Nut Driver Driver (for motor cap)

10. 5.5mm Hex Nut Cross Wrench (for airframe)

4

Quick Start

5

6

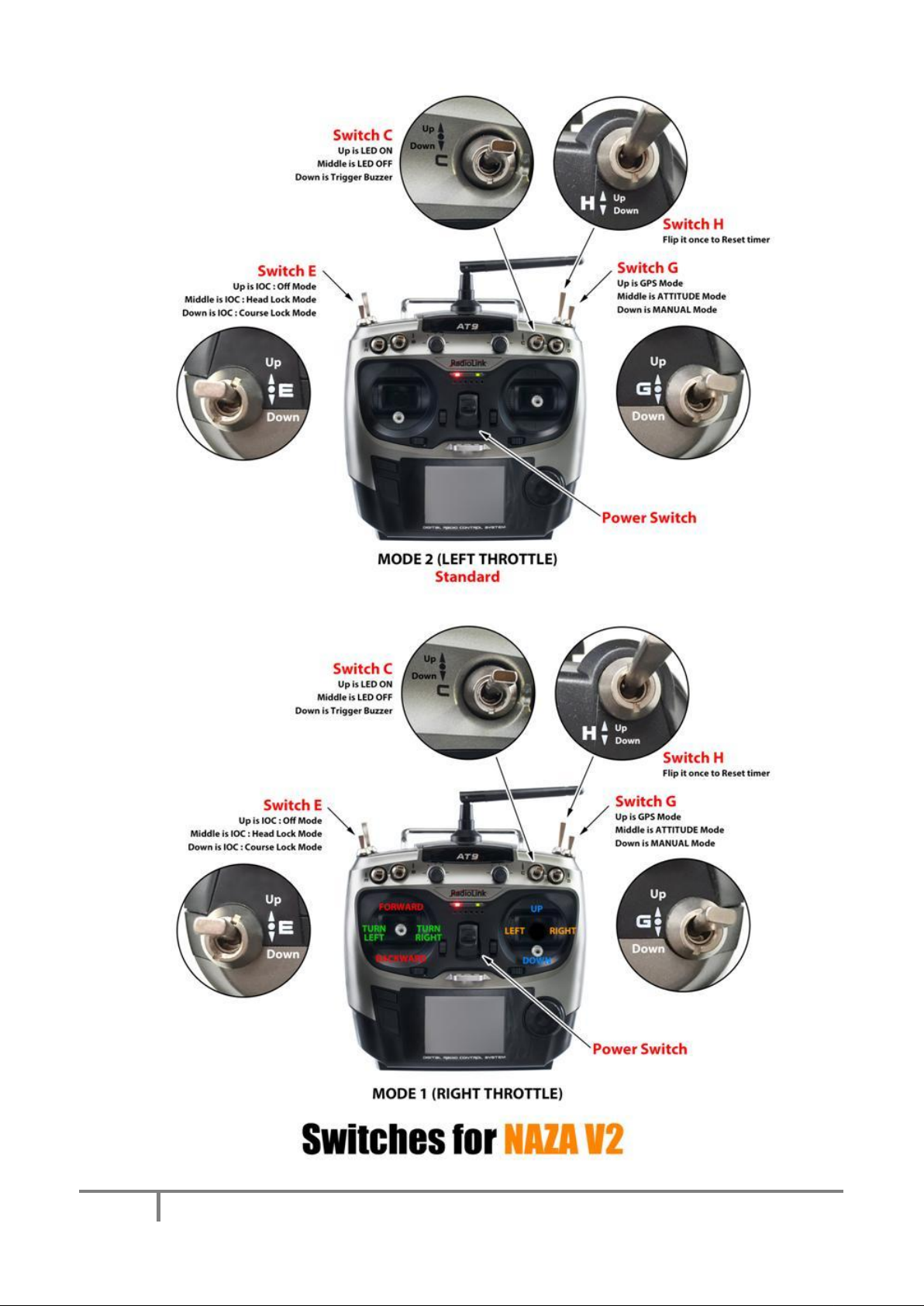

Control

7

8

Auto Go Home

If the drone has been started up correctly and the GPS signal is good (with 6 or more satellites are found), the drone can undergo Go-Home features when it lost signal with radio controller

1) If the attitude of the drone more than 20 meters, it will go home horizontally.

2) If the attitude of the drone below 20 meters, it will ascend to 20 meters and go home horizontally.

3) If the attitude of the drone is below 20 meters and behind an object, there is high risk of crash during ascends.

4) If the drone go home path is blocked by object, there is high risk of crash during “auto-go home” process.

Important - How to take over the control again during “Auto Go Home”

When the drone is undergoing auto go home feature, you can take over the control again by performing the following procedures.

If the transmitter is on, push the throttle stick to middle position and then switch the G Switch Down(towards you) and Up(away from you) and you can control the drone again.

If the transmitter is off, push throttle stick to down position, turn on the transmitter, push throttle to middle, switch the G

switch Down(towards you) and Up(away from you) to take over the control again.

9

Compass Calibration

Please follow the following procedures to calibrate the compass calibration

1) Switch the G switch up and down quickly for 6 to 10 times, The LED indicator on the drone will turn on constantly yellow.

2) (Fig.1) Hold your Multi-rotor horizontal and rotate it around the gravitational force line (about 360o) until the LED on the drone changes to constant green, and then go to the next step.

3) (Fig.2) Hold your Multi-rotor vertically and rotate it (nose down & tail up) around the gravitational force line (about 360 o) until the LED turns off, meaning the

calibration is finished

4) If the calibration was successful, calibration mode will exit automatically.

5) If the LED keeps flashing quickly Red, the calibration has failed. Switch the control mode switch one time to cancel the calibration, and then re-start from step 2.

NAZA V2 Manual

It is important to learn more about the NAZA GPS Controller. You can download the manual here:

http://download.dji-innovations.com/downloads/nazam-v2/en/NAZA-MV2_Quick_Start_Guide_en.pdf

NAZA m Lite - http://download.dji-innovations.com/downloads/naza-m%20lite/en/NAZA- M%20LITE_User_Manual_v2.00_en.pdf

10

Circuit Diagram

11

12

FPV System

Frequency

Frequency/Channel

Frequency

Frequency/Channel

5645MHz

E4

5805MHz

A4

5658MHz

B1

5806MHz

B5

5665MHz

E3 (DEFAULT SETTING)

5820MHz

F5

5685MHz

E2

5825MHz

A3

5695MHz

B2

5840MHz

F6

5705MHz

E1

5843MHz

B6

5725MHz

A8

5845MHz

A2

5732MHz

B3

5860MHz

F7

5740MHz

F1

5865MHz

A1

5745MHz

A7

5880MHz

B7

5760MHz

F2

5880MHz

F8

5765MHz

A6

5885MHz

E5

5769MHz

B4

5905MHz

E6

5780MHz

F3

5917MHz

B8

5785MHz

A5

5925MHz

E7

5800MHz

F4

5945MHz

E8

LONG Press for Changing Frequency SHORT Press for Changing Channel

Our video transmitter has up to 32 different video channels available to avoid interference with other channels.

If two or more drones are flying at the same time, try to select different video frequency to avoid video interference. The bigger different in video frequency between drones, the less interference generated.

Default Setting is channel 5665M. Always check the supported channels of you FPV

reception devices such as monitor, goggle

Frequency Table

13

FAQ Lost connection with radio controller

If you’re the drone cannot response to the radio controller stick travel, the connection between radio controller and receiver may lost and you can try to re-bind them by following the procedure below:

Press the switch inside the receiver twice with small screwdrivers to make LED indicator turns PURPLE to set the

control mode to D Bus Mode. (Skip this step if it is default in Purple light)

Use the small screwdrivers to press and hold the switch inside the receiver until it is flashing with light in Blue and

Purple, Switch on the radio controller, it will start searching for available receiver. Receiver will stop flashing while

the bind process complete and the radio controller will the signal strength on the screen

14

Radio Controller Parameters

1) Press and Hold the controller wheel (With wordings

“PUSH”) to unlock the manual. Press and Hold Mode Button to go into basic menu page

2) [STK-MODE] = 2 (Stick Mode)

[LockScreen] = 30s (Time to lock screen)

3) [TYPE] = AIRCRAFT

4) [SELECT] = 01

[NAME] = SRD-NAZA (Any name you want)

5) Go to [AUX-CH] -> ATTITUDE, apply the setting below:

[CH] = CH7 [SW3] = SwG [SW2] = NULL [GPS] = 0% [ATTI.] = 50% [ATTI.] = 100%

6) [CH5] = VrA [CH6] = SwE [CH7] = -------

[CH8] = SwC [CH9] = SwA [CH10] = SwB

If you reset your radio controller (AT9) setting, you can apply the setting below:

15

7) [CH7]->[L]= 56% (Move the toggle Switch G to lowest)

[CH7]->[H]= 56% (Move the toggle Switch G to highest)

8) [AUX2] = -13

9) [AUX1] = REV

[AUX2] = REV [AUX3] = REV

10) [1] [TIME] = 10:00

[1] [MODE] = UP [1] [ON][1] = ST-THK (Using Throttle Stick to start the timer) [1][ON] [2] = 15% ( Move the indicator over the value,

set throttle stick to around 15%, Press and hold “Push”

button to recognize the throttle value and move the wheel to change the arrow sign) [1][RESET] [1] = SwH (Using Switch H to responsible for the reset timer action)

[1][RESET] [2] = DOWN (Using Switch H’s down

action to reset the timer)

11) [F/S][THRO] = 0%
