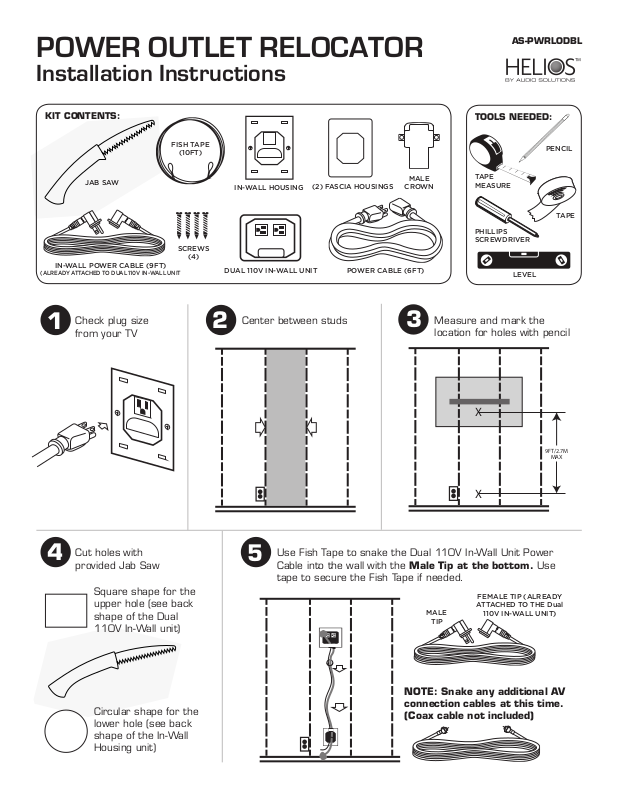

Page 1
POWER OUTLET RELOCATOR
Installation Instructions
AS-PWRLODBL

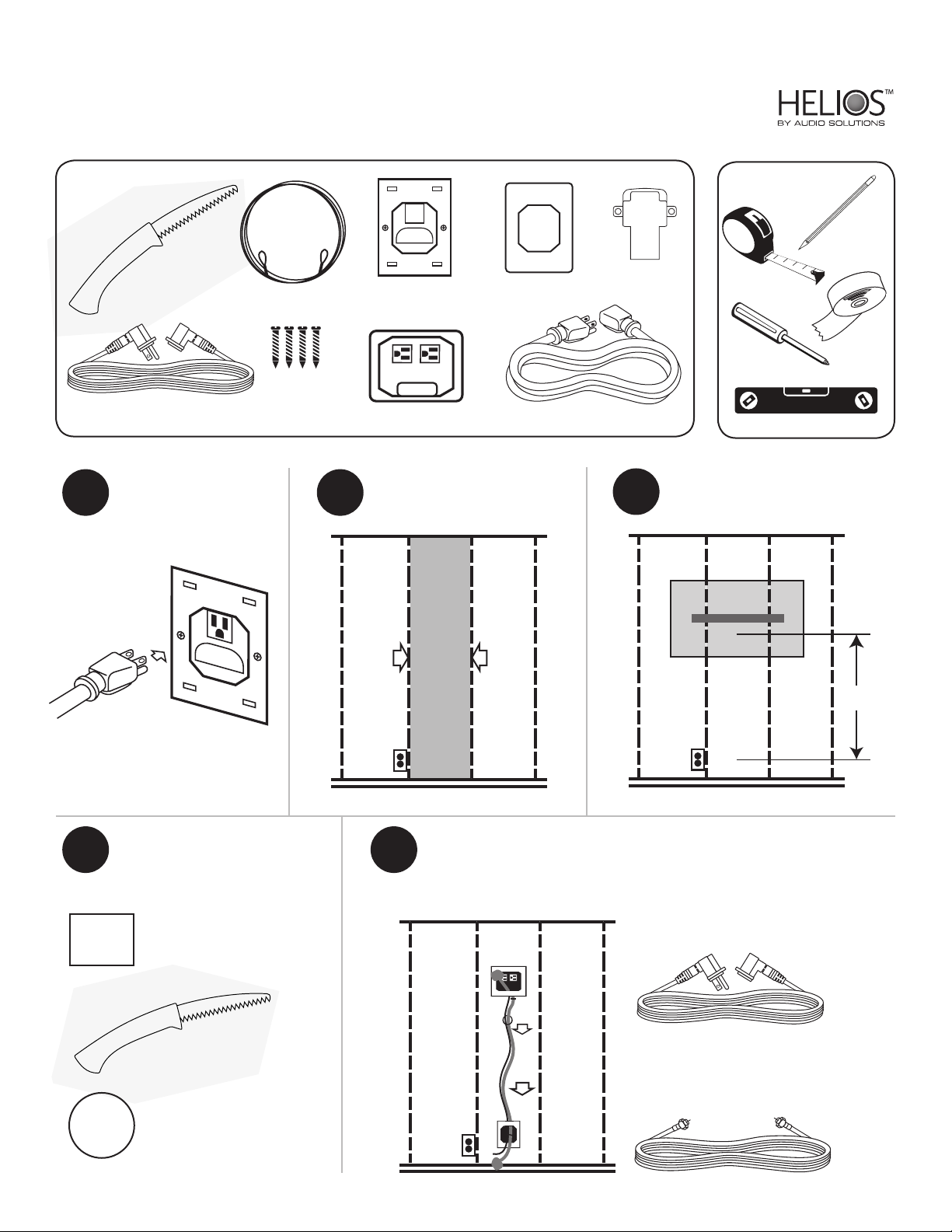

KIT CONTENTS:
FISH TAPE
JAB SAW
IN-WALL POWER CABLE (9FT)
(ALREADY ATTACHED TO DUAL 110V IN-WALL UNIT
Check plug size
1
from your TV
(10FT)
SCREWS
(4)
IN-WALL HOUSING
DUAL 110V IN-WALL UNIT
Center between studs
2
(2) FASCIA HOUSINGS
POWER CABLE (6FT)
TOOLS NEEDED:
MALE
CROWN
Measure and mark the
3
location for holes with pencil
TAPE
MEASURE
PHILLIPS
SCREWDRIVER
PENCIL
TAPE
LEVEL
Cut holes with
4
provided Jab Saw
Square shape for the
upper hole (see back
shape of the Dual
110V In-Wall unit)
Circular shape for the
lower hole (see back
shape of the In-Wall
Housing unit)
X
X
Use Fish Tape to snake the Dual 110V In-Wall Unit Power
5
Cable into the wall with the Male Tip at the bottom. Use
tape to secure the Fish Tape if needed.
FEMALE TIP (ALREADY
MALE
TIP
NOTE: Snake any additional AV
connection cables at this time.
(Coax cable not included)
ATTACHED TO THE Dual
110V IN-WALL UNIT)
9FT/2.7M
MAX

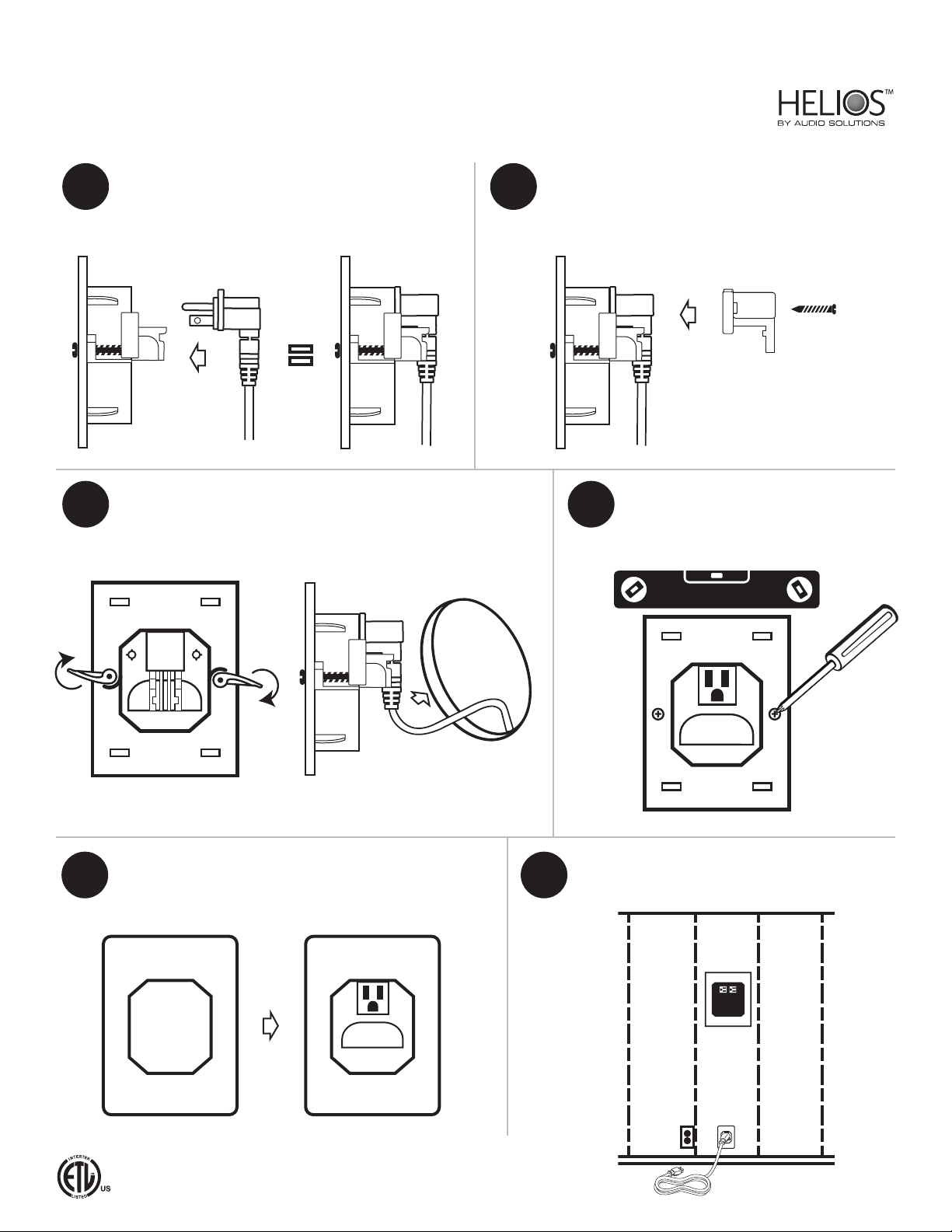

Page 2
POWER OUTLET RELOCATOR
rev. 05/21/2018
Installation Instructions continued
AS-PWRLODBL
At the bottom, insert Male Tip into the back
6
side of the In-Wall Housing unit.
=
Fold in Dog Ears and slide Housing into wall.
8
Repeat at the bottom with the Male Housing.
Snap on Male Crown over the Plug Tip and
7
secure with screws.
Level and screw Dog Ears until
9
Housing is secure. Repeat at the
bottom with the Male Housing.
10
Snap Housing Fascia onto the front of the Housing.
Repeat at the bottom with the Male Housing.
Metra Electronics Corporation, 460 Walker Street, Holly Hill, FL 32117
www.MetraOnline.com ©2016 Metra Electronics Corp.
11
Plug Extension Cord into the bottom device.
Installation is now complete.
