Helion HLNA0769 User Manual

HLNA0769 1/10 Rock Rider Brushless (US)

Legal

Before using your product, review all documentation and inspect the product carefully. If for some reason you decide it is not what you wanted, then do not continue with unpacking, setup or operation of your product. Your local hobby dealer cannot accept a product for return or exchange after partaking in actions that produce wear and tear.

Read, understand and follow all instructions and accompanying material carefully before operating or assembling your product to prevent serious damage. Failure to complete these tasks properly or intentional aversion to the content will be considered abuse and/or neglect.

Product specications are subject to change without notice. Due to ongoing

development, the actual product may vary from images shown.

This product contains chemicals known to the State of California to cause cancer, birth defects and other reproductive harm.

This product is not a toy! (14+) Recommended for ages 14 and up. Adult supervision required for ages under 18 years old. Contains small parts, keep out of reach of children 3 years of age and younger.

Important Information

Throughout this manual you will see different notes, cautions and warnings to help alert you to important information about the section you are reading. Please see below for the descriptions and what to look for to identify each type.

WARNING: THIS INFORMATION IS IMPERATIVE FOR YOU TO UNDERSTAND AND

FOLLOW AS LACK OF COMPLIANCE WITH THE CONTENTS OF THE WARNING

COULD CAUSE PERSONAL INJURY OR PROPERTY DAMAGE.

CAUTION: THIS INFORMATION IS IMPORTANT FOR YOU TO UNDERSTAND AND FOLLOW AS LACK OF COMPLIANCE WITH THE CONTENTS OF THE CAUTION COULD CAUSE DAMAGE TO YOUR PRODUCT THAT IS NOT COVERED UNDER WARRANTY.

Note/Tip: This information is important for you to keep in mind, most commonly used to recall previously given information or to direct you to, or provide you with,

additional information on a subject.

Contents

Notice .......................................................................................... 4

Precautions................................................................................. 4

Package Contents ...................................................................... 5

Needed to Complete .................................................................. 5

Introduction ................................................................................ 6

Features ...................................................................................... 6

Getting Started ........................................................................... 7

Ikonnik SR2+ Radio System ................................................... 10

Wiring Schematic .....................................................................14

ESC Programming and Calibration ..........................................14

General Care ............................................................................15

Maintenance ............................................................................16

Storage and Disposal .............................................................. 19

Troubleshooting Guide ............................................................. 20

Troubleshooting Tables ........................................................... 21

Exploded Views.........................................................................23

Spare Parts List ........................................................................ 28

Warranties ................................................................................32

Notice

Your product is calibrated and tested at the factory prior to nal packaging,

some issues may arise during shipping and handling that can be easily

resolved at home. For other adjustments it should be known that hobby

grade radio controlled products such as this differ from toy grade in that they are intended to be user-serviceable products where the user can program, disassemble and maintain their own product. We try our best to ensure the information you need to introduce you to this form of product ownership is available to you though this manual. Please see the troubleshooting guide at the back of this manual for assistance in resolving issues, either as they are experienced out of the box or as found after regular use.

Note: Assuming your product functions properly as intended out of the box, the best thing you can do is pay close attention to how it feels, sounds and functions. This will help you identify problems later since you will have a reference of how the product is supposed to perform.

If you require further information or assistance resolving a possible issue, please consult the warranty card included with your product.

Precautions

Although great for rst time users, Helion RC products are indeed advanced

radio controlled vehicles with sensitive electronics and moving parts capable

of causing injury if used improperly. Always use caution and common sense

as failure to operate your product in a safe and responsible manner can result in damage to the product or other properties. Therefore this product is not intended for use or maintenance by children without direct adult supervision. Helion RC and your hobby dealer shall not be liable for any loss or damages, whether direct, indirect, special, incidental, or consequential, arising from the use, misuse, or abuse of this product or any product required to operate or maintain it.

WARNING: ALWAYS KEEP LOOSE CLOTHING, HAIR, TOOLS OR OTHER MOVABLE

OBJECTS AWAY FROM MOVING PARTS OF YOUR VEHICLE DURING SETUP AND CONFIGURATION. SPINNING TIRES CAN EXPAND AND MAKE CONTACT WITH SMALL TOOLS, OR HARDWARE AND SEND THEM FLYING AT HIGH SPEEDS RISKING INJURY TO YOU OR OTHERS AROUND YOU.

• Your model can cause serious damage or injury so please use caution and courtesy when operating your model.

• As a safety precaution, perform all transmitter and receiver adjustments with all parts of the vehicle off the ground. This ensures the complete

control over the vehicle at all times during adjustments.

• Do not operate your model near trafc, bystanders, parking areas, or any other area that could result in injury to people or damage to property.

• If at any time during the operation of your model you observe any erratic or abnormal behavior of your model, immediately stop operation and bring the mode to a safe stop in a safe location to diagnose the problem.

• Always power on your transmitter before turning your vehicle on.

• If you have little or no experience operating R/C models, we strongly recommend you seek the assistance of your local hobby dealer.

• Do not expose the transmitter to water or excessive moisture.

• Do not operate radio controlled products in a lightning or thunder storm.

• Ensure your batteries (both Tx and vehicle) are charged before each use.

• Check all servos and electrical connections prior to each use.

• Use caution when handling your vehicle after use as electronics may get HOT and could cause a burn if handled carelessly.

• Always allow the motor in your vehicle to cool completely before using it again.

Charging

Although this information should be included with your batteries and charger, we have included it here again to ensure you have seen it and are familiar with the most common things to be aware of with regards to charging our batteries.

• Never leave the battery unattended while charging and never operate the charger without adult supervision.

• Never charge a warm battery, always allow the battery to cool to room temperature before charging.

• Never drop the charger or battery and do not attempt to charge a damaged battery.

• Inspect the battery and charger before use. Never use a battery or charger if the wire or connector has been damaged or if the battery has experienced a short.

• Incorrect use of the battery, connections, or charging equipment can

cause personal injury or property damage.

• Never allow the battery or charger to come into contact with moisture at any time.

• Stop charging immediately if the battery or charger becomes hot or changes form during use.

• The battery pack must have a compatible HCT plug, or use an adapter that includes high current connectors.

R/C models are an extremely fun hobby, but safety should never be ignored or taken lightly. Always take caution when operating your model as damage

to property and injury can result from careless operation. Please consult

your local hobby dealer with any questions or troubleshooting issues. And, of course, don’t forget to have fun, you deserve it after reading through all of these safety tips!

Package Contents

• 1 x Rock Rider 4WD rock racing truck

• 1 x IKONNIK SR2+ 2.4GHz 2-channel sport transmitter

• 1 x 1800mAh 6-cell 7.2V NiMH battery

• 1 x Mains charger for 7.2V NiMH battery

• 1 x Quick-start guide

Needed to Complete

• 8 x AA-size batteries for transmitter

Introduction

Off-road cars, buggies and monster trucks are fabulous, however there are

times when you just fancy something a little unusual, perhaps with a look

and performance that adds a new dimension to your RC driving and turns heads wherever it goes? Feeding off the massive popularity of the existing Rock Rider, Helion design engineers were tasked with making it even faster

and, to reect its new status, giving it a striking new paint job. They’ve done

well. Packing a 3300kV brushless motor, 50A all-weather ESC and the

same, proven, 4WD powertrain that gives the Rock Rider platform its beans,

the Rock Rider Brushless is a car that’s been thoroughly tested in the full

range of off-road conditions and has passed with ying colors.

Pop the clips, lift the body and beneath you’ll nd a nely-tuned blend of

high-strength composites that combine with a proven transmission and suspension system to provide traction and stability when you most need it. From the arsenal of carefully considered mechanical weaponry and there’s much to admire, not least a solid 6-link rear axle that offers almost limitless tuning options, plus corner-to-corner aluminum threaded shocks for easy

pre-load adjustment, smooth movement, and consistent handling. Topped

with an independent front suspension system and high-grip all-weather tires all the crucial boxes have been checked. With hex bolts throughout, a fully protected spur gear housing and a shock-absorbing sprung servo saver, we’ve made low maintenance a priority, too.

A take-anywhere trailblazer, mud bogger, hill climber and dust blaster, the Rock Rider Brushless is a performance-enhanced all-terrain all-rounder that’ll quickly become your grab ‘n’ go truck.

Features

• Full ball bearings throughout

• High grip, long wear tires with realistic off-road style wheels

• Metal dogbone style drive shafts

• Aluminum threaded shocks

• High Performance 21-Turn 550 size motor

• Water resistant receiver box with an all-weather servo and ESC

• 6-link rear axle

• Transmission cover for belt and braces spur gear protection

• Semi-scale Rock Racer looks

Getting Started

1. Remove the components from the box and ensure the contents are correct:

• 1 x Rock Rider vehicle

• 1 x 1800mAh 6-cell NiMH battery pack

• 1 x IKONNIK SR2+ 2.4GHz 2-channel transmitter

• 1 x 6-cell wall charger

• 1 x Quick-Start Guide

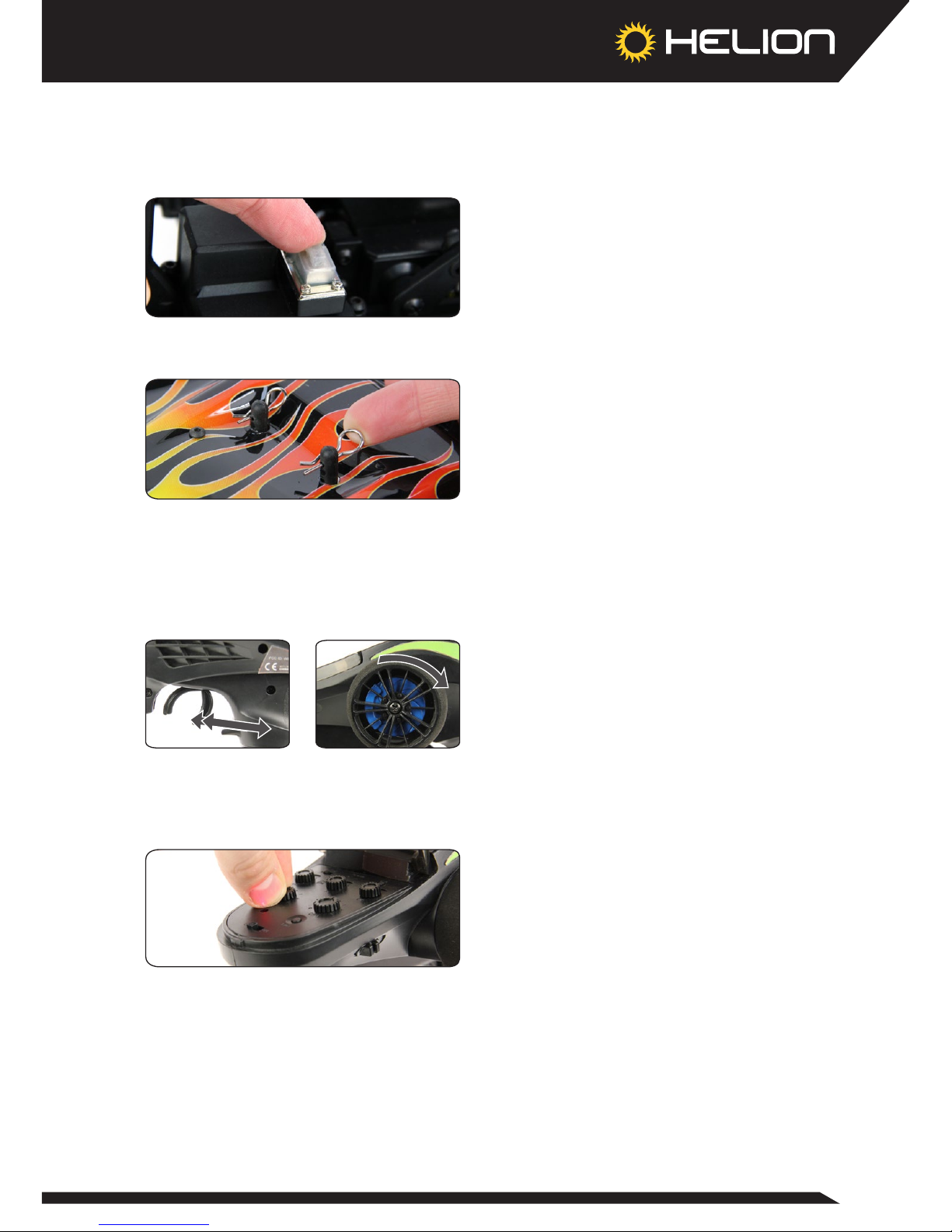

2. Remove the four body clips from the car and lift the body clear.

3. Locate the battery cradle in the center of the car, release the hook and loop tape and withdraw the battery pack.

4. Plug the charger into a wall socket, connect the battery to the charger and place

the battery on a non-ammable surface. Switch the wall socket ON noting that

a fully discharged battery will be charged in approximately 3 hours. Periodically monitor the temperature of the battery when charging and disconnect if it exceeds 120°F (49°C). Unplug the battery when charged.

5. Re-insert the fully charged battery pack into the cradle and tightly secure it with the hook and loop straps.

6. Ensure the radio switch is in the OFF position, then connect the battery to the ESC.

7. Remove the battery cover from the underside of the ET3 transmitter. Insert four AA alkaline cells - ensuring correct polarity - then replace the battery cover.

8. Switch ON your IKONNIK ET3 transmitter and ensure the LED is lit solid red and that no alarms are audible. Ensure that the CH2 EPA dials are turned fully

clockwise and that the D/R (steering rate) dial is centered. Ensure, also, that the

CH1 and CH2 (trim) dials are centered at zero.

LED

CH2 EPA

D/R

CH1 & CH 2 Trim

9. Locate the switch and turn ON your Rock Rider Brushless. In the

unlikely event that the car does not operate, see the PAIRING / BINDING

instructions detailed on page 12.

10. Replace the body and secure it with the four body clips.

11. Check the operation of the throttle and steering. Pulling the throttle trigger back will drive the car forward, pushing the trigger forward once will apply the brakes while pushing the trigger forward twice will drive the car in reverse. Turning the wheel to the right will cause the car to turn right and vice versa.

12. Use the throttle and steering trim dials to ne-tune the controls of your car. In doing so, ensure that your Rock Rider tracks in a straight line. Also that it doesn’t creep forwards or backwards at zero throttle.

13. IMPORTANT: When running your Rock Rider Brushless vehicle with the supplied NiMH battery, the run time should be in excess of 5 minutes. If

your run time is signicantly shorter than this (and no physical damage

has been incurred – say in a crash or impact – that may be causing components to bind) then it is worth checking that the ESC has the correct NiMH battery LVC setting.

Refer to the full Rock Rider Brushless manual (that is available

online) to conrm that the LVC (Low Voltage Cutoff) point has been

correctly set for NiMH and not for LiPo or other lithium chemistry battery. The procedure for checking or setting the LVC for NiMH

batteries is coverered in great detail in the full manual.

Pairing (Binding) the radio system

Having followed steps 1 to 9, in the unlikely event that your car does not operate please follow the 6 stage pairing process detailed here.

1. Remove the body, install a fully charged battery into the car, then connect it to the ESC. Ensure that the car is powered OFF.

2. Locate the receiver box and, using a 2mm hex driver, remove the protective cover.

3. Place your Rock Rider and SR2+ transmitter in close proximity but not less than 12” (300mm) apart.

300mm

4. Press and hold the PAIR / BIND button on the receiver then switch the

receiver on. The receiver’s LED will ash to indicate that it is in PAIR / BIND mode.

5. Press and hold the PAIR / BIND button on the transmitter then switch the transmitter on. Release the PAIR / BIND button only when the transmitter’s LED begins ashing.

6. Switch OFF the receiver followed by the transmitter, then remove the PAIR

/ BIND lead. Reboot the system by switching ON the transmitter then the

receiver. Your Rock Rider will now be bound and you will have full control of throttle and steering. Replace the cover on the receiver box.

The IKONNIK ET3 Radio System

Offering a class-leading feature set, the advanced IKONNIK ET3 2.4GHz 3-channel sport transmitter offers style, comfort and an interferencefree performance, courtesy of IKONNIK’s rock-solid Krypton (Kr) protocol. Functions include servo reversing on both primary channels, steering dual rate, throttle trim, steering trim and, perfect for beginners, throttle end point

adjustment. Add a low voltage warning, an ultra-bright LED status light,

optional charge socket and a switched third channel and the ET3 will quickly become your favorite grab ‘n’ go radio.

Features

• A simple to operate single model memory transmitter and receiver

• 2.4GHz operation avoids conicts with other users

• Easily pairs with vehicles pre-equipped with IKONNIK Krypton technology

• Proportional steering and throttle control

• Rotary steering and throttle trims

• End point adjust on channel 2

• Handy, switched third channel for ancilliary controls

• Adjustable steering rate - perfect for reducing the steering sensitivity for younger or new drivers

Specications

Pairs With IKONNIK Krypton Protocol

Channels 3

Memory Single model memory

Tx Batteries 4 x AA

Tx Length 165mm (5.8in)

Tx Height 215mm (11.07in)

Tx Width 90mm (5.05in)

Tx Weight 282g (0.62lb) without batteries

Helion 50A Brushless System Overview

The Helion brushless motor and ESC form a great powerplant to satisfy your need for speed and performance. Though engineered for value, performance

was denitely a factor. We’ve included some great features for you to help

keep your system running in top shape while keeping your battery upgrade path open since it is compatible with LiPo batteries.

Technical Specication

Continuous current: ..50A

Burst current: ............300A

Resistance: ................0.0010 ohm

Motor type: .................Sensorless

Motor limit: ................3650kV

Battery: ......................2 – 9 cells NiMH or 2 – 3S LiPo

BEC: ............................6V/2A

Program port: ............Use cooling fan port

Dimensions (mm): .....48.5 x 38 x 32

Weight: .......................90g

WARNING: ALWAYS ALLOW YOUR MOTOR TO COOL BETWEEN RUNS. EXCESSIVE

ACCELERATION AND AGGRESSIVE DRIVING WILL CAUSE YOUR SYSTEM TO GET HOT. EXERCISE GREAT CARE WHEN HANDLING YOUR VEHICLE AFTER RUNNING TO AVOID GETTING BURNED.

Features of your ESC

• Waterproof and dustproof. The ESC can work underwater for a short time. (Please disconnect the cooling fan when running the car in water. After running, please clean and dry the ESC to avoid oxidation of the copper connectors).

• Specially designed for RC cars and trucks, with excellent start-up, acceleration and linearity features.

• Programmable Forward and Reverse throttle with brake.

• Proportional ABS brake function with 4 step brake force adjustment and

8 step drag brake force adjustment.

• 4 start modes from ‘soft’ to ‘very aggressive’.

• Programmable Low voltage cut-off protection for LiPo or NiMH battery.

• Overheat protection.

• Throttle signal loss protection.

• Motor blocked protection.

• Easily programmed with the SET button on the ESC.

Your ESC has been pre-installed at the factory but before using your vehicle each time it is good to double check the wiring for damage or loose connections to ensure everything is in working order. Refer to the diagram below to check the connections of your system. Some brushless motors, such as the Helion 3300kV unit included with your vehicle, use only black wires, this is okay. On sensorless brushless systems the motor will change operating direction when any two of the motor wires (A, B or C) are swapped.

Understanding the LED Status Light and Alert Tones

The Helion ESC is programmed to communicate with you to let you know its status.

LED in normal use

• If the throttle trigger is in the neutral range, neither the red LED nor the green LED will light up.

• The red LED lights when the car is running forward, backward or braking.

• The green LED lights when the throttle trigger is moved to the full throttle position.

• The green LED lights when the throttle trigger is moved to the full brake position.

Alert tones

• Abnormal input voltage: The ESC will check the input voltage when powered ON. If the voltage is out of the normal range an alert tone will be emitted: beep-beep... beep-beep... beep-beep... (There will be a 1 second time interval between every beep-beep.. tone).

• Abnormal throttle signal: When the ESC can’t detect the normal throttle signal the following alert tone will be emitted: beep... beep... beep... (there will be a 2 second time interval between every beep... tone).

Protection Functions

Low Voltage Cut-off (LVC) protection: If the voltage of a LiPo battery pack is lower than the threshold for 2 seconds, the ESC will cut off the output power. Please note that the ESC cannot be restarted if the voltage of each LiPo cell is lower than 3.5V.

For NiMH battery packs, if the voltage of the whole NiMH battery pack is higher than 9.0V but lower than 12V, it will be considered as a 3S LiPo. If it is lower than

9.0V, it will be considered as a 2S LiPo. For example, if the NiMH battery pack is

8.0V, and the threshold is set to 2.6V / cell, it will be considered a 2S LiPo, and the low-voltage cut-off threshold for this NiMH battery pack is 2.6 x 2 = 5.2V.

Over-heat protection: When the temperature of the ESC is over the factory preset threshold for 5 seconds, the ESC will cut off the output power.

Throttle signal loss protection: The ESC will cut off the output power if the throttle signal is lost for 0.2 seconds.

Setting the Throttle (Throttle Range Calibration)

Your Rock Rider Brushless throttle comes pre-calibrated, however in order to make the ESC match the throttle range when you use a new ESC, a new transmitter, or after changing the settings of the neutral position of throttle channel, ATV or EPA parameters, you must calibrate it. If this is not done the ESC cannot work properly.

Three points need to be set: ‘Forward’, ‘Backward’ and ‘Neutral’. The following description and illustrations show how to set the throttle range:

1. Hold your transmitter approx 1ft away while setting then turn your

transmitter ON rst

2. Ensure your Throttle channel (Ch. 2) on your transmitter is set to Reverse (REV).

3. Adjust both Throttle and Reverse / Brake EPA settings to 100%.

4. With the ESC OFF, press and hold the SET button near the switch and turn the ESC ON to enter setup mode. Release the button as soon as the red

LED begins to ash (Note that if you don’t release the SET button as soon as the red LED begins to ash, the ESC will enter the program mode. In such

a case, switch off the ESC and begin the re-calibration process from Step 1 (above).

5. Without touching the trigger, press the SET button to establish the neutral

position. The green LED will ash 1 time.

6. Pull / hold full throttle; press the button again; release the trigger. The green

LED will ash 2 times.

7. Push / hold full brake / reverse; press the button again. The green LED will ash 3 times. Release trigger.

8. Switch the ESC OFF and back ON to complete setup.

9. Check the ESC operation to ensure forward throttle is actually forward, if not, switch any two of the motor wires and re-check. Then repeat steps 3 – 8.

Programming your ESC

Your Helion 50A brushless is a programmable ESC. Although the default settings should work well for most users, these settings exist so that you

can ne-tune the performance of your ESC. It’s various parameters can be adjusted using a series of button presses and by counting LED ashes.

There are 5 programmable items for your consideration. Descriptions of each

item follow here along with programming instructions and a programming

chart. Use these descriptions in conjunction with the chart to choose your settings noting that the default conguration is highlighted in BOLD text.

Item 1 – Running Mode

1. Forward / Brake: This setting is considered to be a ‘race’ mode where the reverse function is disabled.

2. Forward / Reverse Brake: This setting is useful for normal operation since it allows for using reverse throttle to back out when no other options exist.

Item 2 – Drag Brake Force (Automatic Brake)

1. 0%: This setting allows the vehicle to continue to roll after letting off throttle without applying automatic brake.

2. 5%: Adding some drag brake will make the vehicle a little easier to control, especially when driving on a closed circuit type course, helping you to slow down and make turns easier.

3. 10%: Add more until you nd the right balance of assistance with slowing down while still being able to maintain good corner speed without upsetting the vehicle.

4. 15%

5. 20%

6. 25%

7. 30%

8. 40%

Item 3 – Low Voltage Cut-Off (LVC) Threshold

The Reaktor ESC has 6 in-built LVC options. It is essential that you use the proper LVC setting for the type of battery that your are using to achieve the optimal performance and safest operation from your ESC / Motor / Battery. This setting should be chosen based on the number and type of cells you are using. For LiPo batteries we recommend setting the LVC to #5 (3.2V / cell). Using a setting lower than this may cause over discharge of some batteries and damage

to your battery, which could lead to a re.

1. No Protection: ONLY to be used with NiMH or NiCd type batteries. Since your vehicle comes equipped with an 6 cell NiMH battery. The ESC will run as long as possible, draining all possible energy from the batteries and eventually your vehicle will cease to function properly.

a. When you notice the operation of your vehicle change, it is time to STOP running

and re-charge your battery.

b. If you are running your vehicle and notice a sudden decrease in power, your ESC

has detected a battery voltage that is lower than should be safely run without causing damage to your battery or electronic equipment. If you are using NiMH batteries when this happens and you have only been running for a very short time, it is very likely that you are mistakenly using one of the following LVC modes:

2. 2.6V / cell: This setting will cause the ESC to enter LVC protection mode

WARNING: SWITCHING FROM REVERSE TO FORWARD THROTTLE POSITION QUICKLY WILL CAUSE EXCESS LOAD ON THE ELECTRONICS AND DRIVETRAIN OF YOUR VEHICLE. IT IS RECOMMENDED TO COME TO A STOP BEFORE CHANGING FROM REVERSE TO A FORWARD DIRECTION.

NOTE: THE MOST IMPORTANT SETTING IS THE LOW VOLTAGE CUT-OFF THRESHOLD (ITEM 3). PLEASE READ THE DESCRIPTION AND USAGE TEXT TO BETTER UNDERSTAND HOW TO USE THIS FEATURE

1. when the battery voltage is calculated at the selected voltage or less for

more than 2 seconds. Since the setting is ‘per cell’ this means that if you are running a 2 cell battery, the voltage protection will activate relative to 2 x 2.6V = 5.2V. This setting is primarily for use with LiFe type batteries

as the lower end of LVC settings. DO NOT USE THIS SETTING WITH LIPO

BATTERIES.

2. 2.8V / cell: This setting would be the starting point for using LiFe type

batteries and is not recommended for LiPo batteries.

3. 3.0V / cell: This setting is only recommended for use with extremely high

quality and highly durable LiPo batteries suitable for competition racing. Using a setting this low with a LiPo battery may cause excessive wear and tear on your batteries, shortening their lifespan.

4. 3.2V / cell: This setting is recommended as the default for running

average grade LiPo batteries. However, if your batteries are relatively old it is recommended to use setting 6 instead.

5. 3.4V / cell: This setting can be used with any LiPo battery and will provide

the safest discharge level for your batteries, however some lower quality batteries do not sustain their voltage under heavy load and will cause premature LVC activation. Starting here is a good choice if you are unsure

or just want to be extra cautious.

Item 4 – Start Mode / Punch (Higher value is more aggressive)

Your ESC has 4 ‘punch’ proles that allow you to tune the initial power output

of the ESC to suit your driving, vehicle, and the surface. You will typically want a lower punch setting when the surface has less traction. To get the optimal performance out of LiPo batteries, on high traction surfaces, setting 4 is recommended.

1. Level 1: This setting will provide the smoothest throttle feel and least

wheel spin.

2. Level 2:

3. Level 3: This is the highest setting that should be used with high

performance NiMH batteries such as those included with your vehicle.

4. Level 4: This setting is recommended for use with LiPo batteries only and

allows you to get the maximum acceleration from your power system. Choosing a setting higher than Level 3 for use with NiMH batteries will cause inconsistent operation of your ESC, including possible momentary power loss.

Item 5 – Maximum Brake Force

The Reaktor ESC has 4 maximum brake force settings allowing you to tune

your brakes for different driving surfaces. This setting works in conjunction

with the brake EPA setting on your transmitter which can still be used to

ne-tune the braking force, however this setting also affects the initial brake

force. Since your vehicle is using a high performance brushless motor which

has great braking efciency already, we have reduced the setting to #3. If

however you are unable to stop and the lack of deceleration is not due to wheel slipping, you can increase the braking force.

1. 25%: This is the lowest setting and should only be used when driving with

slow motors and on loose (low traction) surfaces.

2. 50%: It is not recommended to go below this setting on asphalt surfaces

as the stopping power may not be enough to safely slow your vehicle.

3. 75%: This is the default setting we feel will provide you the best starting

point for many different levels of traction on various surfaces. Remember it is extremely important to only drive a vehicle as fast as you can safely stop it. If the vehicle hits something or someone it can cause serious

injury.

4. 100%: This setting is only recommended if you are running a slotted type

motor.

Reset to Factory Defaults

At any time when the throttle is located in neutral zone (except in the throttle calibration or programming mode), hold the SET key for over 3 seconds;

the red LED and green LED will ash at the same time indicating that each

programmable item has been reset to its default value.

Programming Chart

Use the chart on the next page, to better understand the programming process. This should help you navigate through the programming menu.

WARNING: BE SURE TO CHECK YOUR MAXIMUM BRAKE SETTINGS BY DRIVING FROM FULL THROTTLE TO FULL HARD BRAKE IN AN OPEN AREA. IF THE REAR TIRES COME OFF THE GROUND CAUSING A FRONT FLIP, THE VEHICLE WILL TUMBLE OUT OF CONTROL AND COULD CAUSE PERSONAL OR PROPERTY DAMAGE.

Turn OFF ESC and

Transmitter

Press and hold the

SET button then

Turn ON the ESC

RED LED ﬂashes

indicating you are in

program mode

GREEN LED ﬂahes

1 time to set Item 1

Program Item 1:

Running Mode

RED LED ﬂashes to indicate set

value: 1-2, press button to cycle

through available values

GREEN LED ﬂahes

2 times to set Item 2

Program Item 2:

Drag Brake Force

Program Item 3:

LVC Threshold

Program Item N:

“Programmable Item”

RED LED ﬂashes to indicate set value 1-8, press button to cycle

through available values

RED LED ﬂashes to indicate set value 1-6, press button to cycle

through available values

RED LED ﬂashes to indicate set value 1-X, press button to cycle

through available values

GREEN LED ﬂahes

3 times to set Item 3

Continue to cycle through available Programmable Items and set values as desired. We recommend you

start with the default values and adjust only one value at a time to be sure the change has made the

desired effect.

GREEN LED ﬂahes

“N” times to set Item N

HOLD SET BUTTON

HOLD SET BUTTON (3 Seconds)

Turn OFF ESC at any time to conﬁrm setting, turn ON again to

begin using the new settings.

Programmable Items

(Blinks of GREEN LED)

Programmable Value (Blinks of RED LED), Black background indicates default settings

1 2 3 4 5 6 7 8

1. Running Mode

Forward

with Brake

Forward/

Reverse

with Brake

2. Drag Brake Force 0% 5% 10% 15% 20% 25% 30% 40%

Low Voltage Cut-Off Threshold

Protection

2.6V/ Cell

2.8V/ Cell

3.0V/ Cell

3.2V/ Cell

3.4V/ Cell

Start Mode/Punch: Higher value is more aggressive

Level 1

(70%)

Level 2

(80%)

Level 3

(90%)

Level 4 (100%)

5. Maximum Brake Force 25% 50% 75% 100%

Helion Brushless System Troubleshooting

Problem / Symptom Possible Cause Possible Solution

ESC will not set to transmitter

Receiver and transmitter not bound Try re-binding Throttle Channel not set to Reverse Unless using Futaba radio, set Th channel to Reverse Batteries dead in car or transmitter Replace batteries

Transmitter is too close to vehicle Hold transmitter farther away from vehicle After turning ON, the motor won’t work and no sound comes from motor

The connections between the battery and

the ESC are not correct

Check the power connections. Replace the connectors if they are worn or damaged

After turning ON the ESC, the motor won’t operate normally but instead gives a beep-beep, beep-beep alert tone with 1 second interval of each beepbeep

The input voltage is abnormal, too high

or low

Check the voltage of the battery pack

After turning ON the ESC the motor won’t operate normally but instead gives a beep-, beep-, beep- alert tone with each beep- having an interval of one second

The throttle signal is abnormal

Check the transmitter and receiver connections. Check the wire of throttle channel. Reset the EPA and trim on transmitter and recalibrate the ESC to the transmitter.

Car slowed down or stopped drastically druing run

Battery voltage too low, LVC active Charge or change batteries

ESC over-temp protection active

Turn off ESC and allow ESC and motor to cool before running again

Loss of throttle signal Check transmitter and receiver, check wiring Random stopping or restart, irregular operation

Strong electro-magnetic interference in

the oeprating area

Reset ESC or change operation location.

Car doesn’t accelerate Ensure the proper punch mode is used Change punch mode based on battery you are using

Reverse not working

Reverse mode has been disabled in ESC Follow setup instructions to turn back on

ESC was improperly set to transmitter

Re-set to transmitter, ensure Th channel is set to Reverse

for non Futaba transmitters EPA on transmitter has been turned down for reverse

Adjust EPA’s to 100% and recalibrate ESC to transmitter

Motor only goes in reverse or goes in reverse when I pull trigger to go forward

Throttle Channel not set to Reverse

Unless using Futaba radio, set Th channel to Reverse and

reset ESC to transmitter Motor connected to ESC improperly Switch any two motor wires EPA on transmitter has been turned down for reverse

Adjust EPAs to 100% and reset ESC to transmitter

Adjusting and Tuning Your Vehicle

The Rock Rider Brushless XLR has been engineered with some available

tuning options listed here for reference. The default conguration has been chosen to provide what we feel is the most enjoyable experience for most

operating conditions. However we do encourage experimentation and testing as that’s where the real fun begins!

Ride Height Adjustment

It is ideal to have the drive shafts above level but still allow the shocks to

extend when you lift the vehicle while the vehicle is sitting on a at surface with the body installed. Use the threaded adjustment collars to achieve the

desired ride height.

• Lowering the collar will raise the ride height of the vehicle and if done excessively may decrease stability.

• Raising the collar will lower the ride height and may cause the chassis to drag on the ground.

Upper Shock Position

There are multiple shock installation locations for the top mounting location of the shock towers. The default positions have been chosen as a good starting point. Moving the shock mounting location inward will result in a slightly less responsive feel on the front or rear of the vehicle but it will be a little more stable. Moving the shock mounting location outward will make the truck more responsive but less stable in some conditions.

Lower Shock Position

There are multiple shock installation locations for the lower mounting location of the shocks in the suspension arm. The default location is ideal for the included shock length. However you can play a little.

• Moving the shocks to the inside location will result in a slightly more responsive feel on the front or rear of the vehicle but become a little less stable. This change will also increase the vehicle’s articulation and you

will notice more body roll. Always check and adjust, if necessary, the ride

height of your vehicle after moving the shock mounting locations.

Battery Mounting

Your vehicle comes equipped with a default mount setting for a 6-Cell NiMH

battery. It is also possible to t a 3S LiPo battery (we highly recommend hard cased batteries that resist wear). Ensure the pack is rmly secured with the

hook and loop tape to keep it from changing position in the battery tray.

General Care

• Always use clean, dry cloth or soft bristle brush to clean your equipment.

• Never use chemical cleansers to avoid damage to the sensitive electronics and plastics.

Maintenance

We want you to enjoy your product to its fullest potential. For this to happen

it is important to keep your product clean and properly maintained. Lack of cleaning and maintenance can cause component failure. For best and

continued performance from your product it is recommended to briey

inspect your product for damage every few uses. Typically, a good time to do this is when changing the battery in your vehicle or while it is charging. If a problem is discovered, stop use immediately and perform repairs or seek assistance. Continued use of failed components can cause more unnecessary damage to your product.

ESC and Servo

The ESC and servo included in your vehicle are rated for all weather use. It is recommended that you avoid submersing the vehicle however running in puddles, rain and snow should not be damaging. Always remove excess water/snow from your vehicle after running to help prevent corrosion. Using an air compressor is effective but please use eye protection.

Transmitter

Although the receiver included with your radio system is rated for all weather use, the transmitter is not. The transmitter should not be used in the rain or other wet environment otherwise you risk damage to the sensitive electronics.

• Clean dirt and debris off of your transmitter regularly to avoid the consequences of these getting into the sensitive electronics where they can cause short circuits and/or restrict motion of the internal steering and throttle mechanisms.

• Ensure the antenna is kept in proper working order. The transmitter is not safe to use with a broken or missing antenna.

Receiver

Although the receiver included with your radio system is rated for all weather use, it is recommended that you avoid submersion of the receiver, however running in puddles, rain, and snow is okay.

To achieve full operating range with your radio system, it is critical that the receiver antenna be installed properly and undamaged.

• Inspect any exposed antenna for cuts or abrasions.

• Ensure there are no kinks in the antenna or antenna tube.

• Never fold the end of the antenna over the tube, this will reduce the range and damage the antenna.

• Ensure the antenna is not being pinched by the protective top cover of the receiver box

Gears

Periodically remove the gear cover to clearly inspect the gears and ensure there is no debris in the gear compartment.

Proper gear mesh setting is crucial for proper operation and life of gears in your product. It is important to have the pinion gear (attached to motor) as close to the spur gear (attached to drive shaft) as possible yet while providing a minimal amount of backlash. Backlash is the rotation one gear has to make before contacting the other. Having the gear mesh set too tight will cause excess load on the electrical components and may cause premature failure. Having gear mesh set too loose will cause excess wear and possible skipping of teeth during operation thus causing excess wear and premature failure.

Checking the gear mesh and setting proper backlash.

1. Remove the spur gear cover.

2. Check how much movement is allowed (backlash) of the spur gear before the pinion gear moves (this is mostly feel, not visual). Check this movement in multiple places by rotating the spur gear approximately 1/6 rotation and rechecking.

3. If the spur gear is allowed to move more than a very small amount, or if

there is no backlash, the gear mesh must be adjusted. If there is a lot of

movement, it is recommended to attempt to tighten the mesh. Attempted

adjustment should only improve the situation; if the mesh was correct to

begin with, you will know what that feels like, and if it wasn’t correct, it will be when you are done after following these procedures.

Setting the Gear Mesh

1. Loosen the clamping screw securing the motor plate’s rotation in the motor mount, only enough to allow the motor to rotate in the mount. Check and ensure there is no debris in the gears affecting the mesh.

2. Rotate the top of the motor away from the center of the chassis, insert a strip of notebook paper between the pinion and spur gear, then rotate the motor plate back until there is no backlash. You will have to push/twist relatively hard to ensure the paper is pressed all the way into the teeth.

3. Hold the motor snugly in position while retightening the screw. Only tighten the screw until the motor won’t move. There should be a slight gap between the coils of the spring.

4. Rotate the spur gear (turn the tires) to feed the paper out of the mesh, re-

check the gear mesh and adjust again if necessary.

5. Re-install the spur gear cover when the mesh is properly set.

WARNING: NEVER OPERATE YOUR VEHICLE WITH THE SPUR GEAR COVER

REMOVED. SEVERE INJURY, DAMAGE TO ELECTRICAL COMPONENTS, AND EXCESSIVE WEAR AND TEAR ON DRIVETRAIN MAY RESULT.

Shocks

Periodically inspect the shocks for smooth motion, leaking oil and dirt residue

build up around the shaft or caps. Do not allow dirt to build up around the

shock shaft and bottom of the shock. Doing so will reduce the life of the shock

and cause a shock to leak oil. Be sure to clean the shocks regularly with a clean and dry soft bristle brush and/or rag.

CAUTION: NEVER USE SPRAY CLEANERS TO CLEAN YOUR SHOCKS, DOING SO CAN CAUSE DAMAGE TO THE SEALS, CAUSING THEM TO LEAK MORE AND REDUCE THE LIEF AND PERFORMANCE OF YOUR SHOCKS.

Signs to look out for in determining if your shock needs to be maintained or rebuilt.

• Oil around the shaft means the oil leaked from inside and needs to be replaced.

• Persistent oil around the shock shaft or lower portion of the shock typically points to damaged O-rings which will need replacing. See your local hobby dealer for replacement parts.

Relling your shocks:

1. Remove shock from vehicle, remove spring and top cap. Remove the bleed screw from the cap.

2. With shock shaft extended, add oil to top of body (use only 100% silicone

uid) and reinstall the shock cap. Be sure the o-ring stays “seated” and

does not squeeze out.

3. Slowly compress the shock shaft 100% of travel using a towel or paper

napkin to clean up overowed oil, then reinstall the bleed screw. Do not

over-tighten.

4. Check for free motion of shock. If the shock feels like it gets stiffer at the end of compression, there is too much oil or air. Compress the shaft and remove the bleed screw slowly to allow excess air/oil to come out, then reinstall the screw.

5. It is normal for the shock to rebound (with the spring removed) after full compression and release.

Replacing the O-rings:

• Disassemble shock and remove shock end and shaft from the body.

• Carefully remove lower cap by unscrewing from the shock body.

• Remove the O-ring and spacer and replace with genuine replacement parts.

• Re-assemble the shock following the relling instructions above.

Tires and Wheels

Inspect the tires to ensure they have adequate tread and they are properly glued to the wheels. The tires on your vehicle come pre-glued from the factory; however after running your vehicle it is possible for the glue to come loose in some areas.

• To reattach the tire to the wheel, use hobby grade Cyanoacrylate (CA) glue and apply small amounts (one drop at a time) between the tire and wheel. Allow the glue to fully dry before operating your vehicle.

• When reinstalling tires, use caution when tightening the nuts that secure the wheels to the vehicle. Ensure the wheels rotate freely but don’t wobble excessively. Over tightening the wheels may cause excess strain on the electrical and mechanical components of your vehicle. Operating your vehicle under these conditions will void your warranty.

• Taking the above into consideration, leaving wheels too loose can cause them to strip. It is recommended to check that the wheel nuts are tight every time you run your vehicle.

• Consequently running your vehicle will cause the tires to eventually wear out. Be sure to obtain and use genuine replacement parts from your local hobby dealer when necessary.

General Wear and Tear

Using your vehicle will cause general wear and tear which is not covered under warranty yet may necessitate replacement of components. Continued operation of your product with worn components may cause continued damage to other components.

Be sure to regularly inspect your vehicle and accessories for excess wear and damaged components.

Storage and Disposal

Storage

• Always store all equipment in a cool dry place when not in use.

• Always disconnect the batteries before storage.

• Never store the transmitter or receiver in direct sunlight for extended periods of time.

• Never store the transmitter with batteries installed for extended periods

of time. Doing so may allow the batteries to leak and cause permanent

damage to the transmitter.

• Always disconnect electrical connections after use in wet environments. Allowing the contacts to dry will reduce corrosion.

Disposal

Your product is considered electronic waste and should never be discarded in standard garbage containers. Please visit your local hobby dealer (and some home improvement centers) and use the FREE battery disposal center for proper disposal/recycling. Consult your local city hall for information on recycling other electronic waste.

HLNA0839

HLNA0801

HLNA0910

HLNA0909

HLNA0881

HLNA0796

HLNA0802

HLNA0840

HLNA0802

HLNA0803

HLNA0834

HLNA0837

HLNA0834

HLNA0803

HLNA0802

HLNA0840

HLNA0802

HLNA0798

HLNA0799

HLNA0918 (M3)

HLNA0803

HLNA0842

HLNA0801

HLNA0839

HLNA0840

HLNA0799

HLNA0800

HLNA0794

HLNA0831 (15x10x4)

HLNA0813

HLNA0819

HLNA0841

HLNA0849 (2x10)

HLNA0815

HLNA0848

HLNA0818

HLNA0795

HLNA0923

HLNA0814

HLNA0811

RDNA5119

HLNA0810

HLNA0820

HLNA0921 (M4 x 4)

HLNA0810

HLNA0929 (M3 x 18)

HLNA0817

HLNA0816

HLNA0812

HLNA0841

HLNA0812 (15x10x4)

HLNA0819

HLNA0837

HLNA0842

HLNA0803

HLNA0918 (M3)

XXXX

HLNA0848 (E2.5)

Exploded Views

HLNA0852 (M3 x 10)

HLNA0809

HLNA0794

HLNA0804

HLNA0825

HLNA0838

HLNA0836

HLNA0860 (M3 x 14)

HLNA0851 (M3 x 8)

HLNA0860 (M3 x 14)

HLNA0928 (M3 x 10)

HLNA0851 (M3 x 12)

HLNA0860 (M3 x 14)

HLNA0852 (M3 x 10)

HLNA0828

HLNA0928 (M3 x 14)

HLNA0838

HLNA0844

RDNA5115

HLNA0844

HLNA0843

HLNA0852 (M3 x 10)

HLNA0806

HLNA0805

HLNA0931 (3 x 4)

HLNA0807

HLNA0928 (M3 x 10)

HLNA0930 (M4 x 10)

HLNA0808

HLNA0797

HLNA0809

HLNA0856 (M3 x 20)

HLNA0935 (M3 x 12)

HLNA0856 (M3 x 18)

HLNA0935 (M3 x 12)

HLNA0858 (M3 x 8)

HLNA0859 (M3 x 12)

HLNA0862 (M3 x 36)

HLNA0808

HLNA0821

HLNA0838

HLNA0858 (M3 x 8)

HLNA0826

HLNA0837

HLNA0832

HLNA0830

HLNA0832

HLNA0824

HLNA0830

HLNA0860 (M3 x 14)

HLNA0851 (M3 x 8)

HLNA0823

HLNA0847 (E8)

HLNA0859 M3 x 12)

HLNA0913

HLNA0827

HLNA0833

HLNA0852

HLNA0884

HLNA0901

HLNA0820

HLNA0896

HLNA0852 (3 x 10)

HLNA0867 (23T)

HLNA0897

HLNA0900

HLNA0817

HLNA0914 (8 x 5 x 0.2)

RDNA5115

HLNA0921

HLNA0920

HLNA1083

RDNA5115

HLNA0837

HLNA0835

HLNA0859 (M3 x 12)

HLNA0852 (3 x 10)

HLNA0851 (M3 x 8)

HLNA0859 (M3 x 12)

HLNA0858 (M3 x 8)

HLNA0913

HLNA0852 (3 x 10)

HLNA0935 (M3x12)

HLNA0904

HLNA0935 (M3x12)

HLNA0935

(M3x12)

HLNA0935

(M3x12)

HLNA0935

(M3x12)

HLNA0935

(M3x12)

HLNA0852 (M3x10)

HLNA0850

(M3x6)

HLNA0850

(M3x6)

HLNA0850

(M3x6)

HLNA0850

(M3x6)

HLNA0870

HLNA0876

HLNA0871

HLNA0850 (M3x6)

HLNA0859 (M3x12)

HLNA0872

HLNA0906

HLNA0905

HLNA0792

HLNA0869

HLNA0870

HLNA0850 (M3x6)

HLNA0856

(M3x18)

Roll Cage & Body

HLNA0915 (M3x6)

HLNA0937

HLNA0938

HLNA0936 (M3x25)

HLNA0938

HLNA0915 (M3x6)

HLNA0936 (M3x25)

HLNA0891

HLNA0796

HLNA0890

HLNA0874

HLNA0902

HLNA0891

HLNA0888

HLNA0837

HLNA0882

HLNA0928 (M3x10)

HLNA0916 (M3x10)

HLNA0837

HLNA0851 (M3x8)

HLNA0828

HLNA0879

HLNA0851 (M3x8)

HLNA0908 (11x5x4)

HLNA0886

HLNA0841

HLNA0816

HLNA0815

HLNA0817

HLNA0815

HLNA0877

HLNA0818

HLNA0814

HLNA0849 (2x10)

HLNA0908 (11x5x4)

HLNA0818

HLNA0816

HLNA0831 (15x10x4)

HLNA0849

HLNA0851 (M3x8)

HLNA0878

HLNA0851

(M3x8)

HLNA0831 (15x10x4)

HLNA0923

HLNA0837

HLNA0907

HLNA0928 (M3x10)

HLNA0851 (M3x8)

HLNA0837

HLNA0837 (M3x10)

HLNA0888

HLNA0873

HLNA0936 (M3x25)

HLNA0837

HLNA0882

HLNA0892

HLNA0837

HLNA0843

HLNA0851 (M3x8)

HLNA0828

HLNA0879

HLNA0851 (M3x8)

HLNA0908 (11x5x4)

HLNA0838

HLNA0895

HLNA0894

HLNA0889

HLNA0838

HLNA0895

HLNA0894

HLNA0920 (M3x3)

HLNA0928 (M3x10)

HLNA0920 (M3x3)

HLNA0880

HLNA0887

HLNA0843

HLNA0892

HLNA0856

HLNS1161

HLNA0856

HLNS1161

HLNA0935 (M3x12)

HLNA0796

HLNA0890

HLNA0916

(M3x10)

Rear Suspension Assembly

HLNA0852 (M3x10)

HLNA0851 (M3x8)

HLNA0885

HLNA0851 (M3x8)

HLNA0893

HLNA0858 (M3x8)

HLNA0928 (3x10)

HLNA0858 (3x8)

HLNA0858

(M3x8)

HLNA0928 (3x10)

HLNA0883

HLNA0820

Chassis Assembly

Spare Parts List

HLNA0793 .............Printed body- Rock Rider Brushless

HLNA0794 .............Front Shock Complete 2pcs

HLNA0795 .............Diff. gearbox

HLNA0796 .............Rear Shock, Complete, 2 pcs: Rock Rider

HLNA0797 .............Front Shock Tower

HLNA0798 .............Front Shock Springs

HLNA0799 .............Front Shock Shaft + Piston Sets

HLNA0800 .............Front Shock Bodies

HLNA0801 .............Shock Upper Caps

HLNA0802 .............Shock Lower Caps

HLNA0803 .............Shock Lower holder & Adjust Ring 2sets

HLNA0804 .............Front Lower Susp,Arm 2pcs

HLNA0805 .............Steering Knuckle Arm 2sets

HLNA0806 .............Uprights 2pcs

HLNA0807 .............Front CVD 2pcs

HLNA0808 .............Front Susp, Holder 2pcs

HLNA0809 .............Bumper 1set

HLNA0810 .............Gearbox Housing Set 2pcs

HLNA0811 .............Diff Drive Gear w/pin 2sets

HLNA0812 .............Diff Case 2pcs

HLNA0813 .............Diff Drive Spur Gear 2pcs

HLNA0814 .............Diff Drive Gear 2pcs

HLNA0815 .............Diff Bevel Gear S.4pcs

HLNA0816 .............Diff Bevel Gear B.4pcs

HLNA0817 .............Diff Pin 2pcs

HLNA0818 .............Washer 6pcs

HLNA0819 .............Diff Drive Cup 4pcs

HLNA0820 .............Center Coupler 3pcs

HLNA0821 .............Body post 2pcs

HLNA0822 .............Servo Saver 1set

HLNA0823 .............Servo Saver post 2pcs

HLNA0824 .............Steering Ackerman

HLNA0825 .............Front Upper Susp Arm 2sets

HLNA0826 .............Steering Arm 2sets

HLNA0827 .............Servo Linkage

HLNA0828 .............Wheel Hub 4pcs

HLNA0829 .............Antenna Pipe 2sets

HLNA0830 .............Servo Saver

HLNA0831 .............Metal Bushing 15*10*4 6pcs

HLNA0832 .............Metal Bushing 8*5*2.5 6pcs

HLNA0833 .............M0.6 Pinion Gear 17T(EP)1pc

HLNA0834 .............Shock Ball End 6pcs

HLNA0835 .............Servo Link Ball End 6pcs

HLNA0836 .............Steering Linkage Ball End 6pcs

HLNA0837 .............Ball A 6pcs

HLNA0838 .............Ball B 6pcs

HLNA0839 .............Ball C 6pcs

HLNA0840 .............Shock O-ring (Lower)6pcs

HLNA0841 .............Diff O-ring Seal 6pcs

HLNA0842 .............Shock Seal Cover 4pcs

HLNA0843 .............Pin 6pcs10*2

HLNA0844 .............Hinge Pins(long & short)2sets

HLNA0845 .............Metal Bushing 10*5*4 6pcs

HLNA0846 .............Metal Bushing 8*5*2.5 6pcs

HLNA0847 .............E clip 4pcs 8mm

HLNA0848 .............E clip 6pcs 2.5mm

HLNA0849 .............Round Head Self Tapping Hex Screw 6pcs2*10

HLNA0850 .............Round Head Self Tapping Hex Screw 6pcsM3*6

HLNA0851 .............Button Head Hes Screw 6pcsM3*8

HLNA0852 .............Button Head Hes Screw 6pcsM3*10

HLNA0853 .............Button Head Hes Screw 6pcsM3*14

HLNA0854 .............Cap Head Hex Screw 6pcsM3*10

HLNA0855 .............Cap Head Hex Screw 6pcM3*14

HLNA0856 .............Cap Head Hex Screw 6pcM3*18

HLNA0857 .............Cap Head Hex Screw 6pcM3*28

HLNA0858 .............Flat Head Hex 6pcsM3*8

HLNA0859 .............Flat Head Hex 6pcsM3*12

HLNA0860 .............Flat Head Hex 6pcsM3*14

HLNA0861 .............Flat Head Hex 6pcsM3*20

HLNA0862 .............Flat Head Hex 6pcsM3*36

HLNA0863 .............1/10 Charger CE 1pc

HLNA0864 .............1/10 Charger UL 1pc

HLNA0865 .............1/10 Charger BS 1pc

HLNA0866 .............Ring Self Tapping Screw 3*6 6pcs

HLNA0867 .............Pinion Gear 23T 1pc

HLNA0868 .............Wheel 2pcs

HLNA0869 .............Roll cage Top Frame

HLNA0870 .............Roll cage side Frame 2pcs

HLNA0871 .............Roll cage Front 1pc

HLNA0872 .............Roll cage rear plate 1pc

HLNA0873 .............Rear link holder

HLNA0874 .............Rear Central CVD rear half

HLNA0875 .............Spare wheel support

HLNA0876 .............Roll cage window frame 1pc

HLNA0877 .............Rear axle housing

HLNA0878 .............Rear axle cover

HLNA0879 .............Axle adaptor 2pcs

HLNA0880 .............Rear holder for rear shock support rod 2pcs

HLNA0881 .............Rear Shock Spring 2pc

HLNA0882 .............Rear link set 2pcs

HLNA0883 .............Upper plate

HLNA0884 .............Front central drive shaft 1pc

HLNA0885 .............RX cover

HLNA0886 .............Rear drive Shaft short 1pc

HLNA0887 .............Rear drive shaft long 1pc

HLNA0888 .............Front holder for Rear shock support rod 2pcs

HLNA0889 .............Sway bar

HLNA0890 .............Battery case holder 2pcs

HLNA0891 .............Main frame 2pcs

HLNA0892 .............Rear shocks lower Support Rod 2pcs

HLNA0893 .............Chassis Plate

HLNA0894 .............Sway bar pull rod upper

HLNA0895 .............Sway bar pull rod lower

HLNA0896 .............Maingear 62T 1pc

HLNA0897 .............Central drive shaft

HLNA0898 .............Motor Mount (For 17T) 1pc

HLNA0899 .............Central transmission cover upper

HLNA0900 .............Central transmission cover lower

HLNA0901 .............Motor Mount (For 23T) 1pc

HLNA0902 .............Rear Central CVD front half

HLNA0903 .............Tyre & foam 2sets

HLNA0904 .............Preassembled Tyres 2sets

HLNA0905 .............Driver helmet 2pcs

HLNA0906 .............Driver Blister set w/decal

HLNA0907 .............Rear diff shaft 1pc

HLNA0908 .............Ball Bearing (11*5*4) 6pcs

HLNA0909 .............Rear Shock Shaft&piston set 2sets

HLNA0910 .............Rear Shock Body 2pcs(Al)

HLNA0911 .............Pin 2*13mm 6pcs

HLNA0912 .............Servo Horns

HLNA0913 .............Servo Post 2sets

HLNA0914 .............Washer (8*5*0.2mm) 6pcs

HLNA0915 .............Flat Head Hex (M3*6) 6pcs

HLNA0916 .............Set Screw M3*10 6pcs

HLNA0917 .............Ring self Tapping Screw 2.5*3mm 4pcs

HLNA0918 .............Nylon Lock Nut M3 6pcs

HLNA0919 .............Nylon Lock Nut M4 6pcs

HLNA0920 .............Set Screw M3*3 6pcs

HLNA0921 .............Set Screw M4*4 6pcs

HLNA0922 .............E Clip-4mm 6pcs

HLNA0923 .............Diff 16T Gear Washer 6pcs

HLNA0924 .............Cap Head Hex Screw M3*8 6pcs

HLNA0925 .............Body Clip(Small Size) 6pcs

HLNA0926 .............Body Clip(Medium Size) 6pcs

HLNA0927 .............Cap Head Hex Screw M3*5 6pcs

HLNA0928 .............Flat Head Hex M3*10 8p

HLNA0929 .............Flat Head Hex Screw M3*18 3pcs

HLNA0930 .............Button Head Hex Screw M4*10 6pcs

HLNA0931 .............Ring Self Tapping Screw 3*4 4pcs

HLNA0932 .............Round Head Self Tapping Hex Screw 2*6 4pcs

HLNA0933 .............Round Head Self Tapping Hex Screw 3*15 8pcs

HLNA0934 .............Cap Head Hex Screw M3*10 6pcs

HLNA0935 .............Button Head Hex Screw M3*12 6pcs

HLNA0936 .............Cap Head Hex Screw M3*25 6pcs

HLNA0937 .............Battery case 1pc

HLNA0938 .............Velcro Tape 2pcs

KNNS0024 ............ET3 3-Channel 2.4GHz (Krypton) - Transmitter and All Weather Receiver

RDNA0052 ............Reaktor Brushless Combo, NS 50A-3000kV 4P

RDNA0330 ............NiMH Trickle Wall Charger

RDNA0401.............RS-HT201-MG Standard 6.5kg Analog HT MG Servo

HobbyTown Warranty Information

30 DAY LIMITED WARRANTY

General Disclaimer: This item is to be free of manufacture defects at time

of purchase. This warranty does not cover breakage due to abuse, improper break-in, improper setup, or improper operation.

We at Helion RC have made every effort in component design, material selection and assembly to make our products as durable as possible. Helion products are covered under warranty only against manufacturer’s defect in materials, workmanship or assembly when it is new (before being used).

If you believe a defect in materials, workmanship or assembly was not apparent when the product was new and only became evident after the product was used, then please contact your local HobbyTown® to apply for warranty service. You must provide your original sales receipt verifying the proof-of purchase and date thereof.

Provided warranty conditions have been met, the components that are found to be defective, incorrectly made, or incorrectly assembled within the warranty coverage time period may be repaired or replaced under the sole discretion of HobbyTown®. In the event that your product needs a repair or a replacement part that is not covered by this warranty, your local HobbyTown® dealer can assist you with obtaining the genuine replacement parts and/or accessories to service your Helion RC product.

If you purchased your Helion RC product from a HobbyTown® internet site not

afliated with a local store, please consult that site for its service policies.

Model Engines Warranty Information

HELION RC 60 DAY WARRANTY

Model Engines (Aust.) Pty. Ltd. warrants this product to be free from defects in materials or workmanship for 60 days from the date of purchase and will repair, replace or refund the purchase should the product prove to be defective.

This warranty does not apply to any unit or system or component which has been dropped, damaged in a crash, improperly installed, assembled, handled or abused.

Model Engines (Aust.) Pty. Ltd. reserves the right to void the warranty if the

product has been altered or modied, has had a foreign part added, has

been misused or not used for the purpose for which it was designed, has been used near or in salt water, has been water damaged, or if the damage has been caused by the customer’s use of the product.

Under no circumstances does Model Engines (Aust.) Pty. Ltd. warrant nor will the consumer be entitled to consequential or incidental damages. Model Engines (Aust.) Pty. Ltd. assumes no responsibility for any other damage, inconvenience or other claims whatsoever.

LODGING A CLAIM

To lodge a claim, present the goods to your place of purchase (retailer where you bought the product) with your original purchase receipt and a written explanation of the defect.

The place of purchase (retailer where you bought the product) will then contact Model Engines (Aust.) Pty. Ltd. for a Return Authority number and will return the item for warranty assessment to Model Engines (Aust.) Pty. Ltd.. Items delivered to Model Engines (Aust.) Pty. Ltd. for warranty assessment without a Return Authority number will be returned to sender.

The warranty process may take up to 14 business days from the date of receipt. Model Engines (Aust.) Pty. Ltd. must assess each item and if warranty applies must repair or replace the item at its discretion and return it to the place of purchase (retailer where you bought the product).

Goods presented for warranty may be replaced by refurbished goods of the same type rather than being repaired. Refurbished parts may be used to repair the goods.

If the product is proved to be defective the cost and expenses relating to the delivery of the goods to Model Engines (Aust.) Pty. Ltd., will be borne by Model Engines (Aust.) Pty. Ltd..

The benets of this warranty are in addition to other rights and remedies of

the customer under any law to which this warranty relates.

Our goods come with guarantees that cannot be excluded under the Australian consumer Law. You are entitled to a replacement or refund for a

major failure and for compensation for any other reasonably foreseeable loss

or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to

a major failure.

Model Engines (Aust) Pty.Ltd P.O. Box 828 Noble Park Victoria 3174

www.modelengines.com.au

www.modelengines.com.au Ph (03) 8793 5555 warranties@modelengines. com.au

This warranty information relates to goods supplied on a wholesale basis by Model Engines (Aust.) Pty. Ltd. to Australian Retailers. The warranty complies with Australian regulatory requirements and supersedes all warranty information from the original manufacturer.

www. Helion-RC.com

Helion HLNA0769 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
