Heli-Max HMXE0805 Quick Start

™

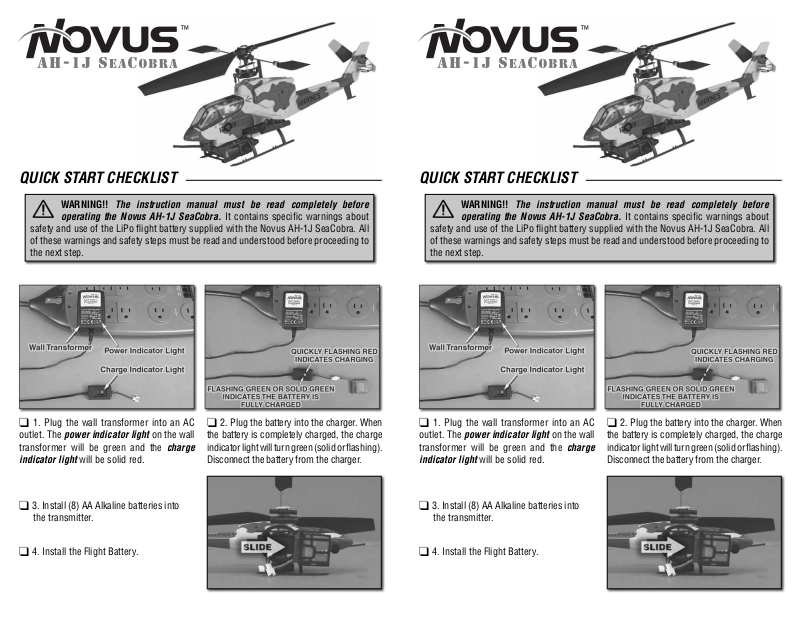

QUICK START CHECKLIST

WARNING!! The instruction manual must be read completely before operating the Novus AH-1J SeaCobra. It contains speciﬁ c warnings about

safety and use of the LiPo ﬂ ight battery supplied with the Novus AH-1J SeaCobra. All of these warnings and safety steps must be read and understood before proceeding to the next step.

1. Plug the wall transformer into an AC

❑

outlet. The power indicator light on the wall transformer will be green and the charge indicator light will be solid red.

3. Install (8) AA Alkaline batteries into

❑

the transmitter.

4. Install the Flight Battery.

❑

2. Plug the battery into the charger. When

❑

the battery is completely charged, the charge indicator light will turn green (solid or ﬂ ashing). Disconnect the battery from the charger.

5. Connect the ﬂ ight battery to the ESC.

❑

8. Wait while the transmitter binds to the receiver (the logo on the

❑

transmitter will quit ﬂ ashing).

9. Leave the helicopter still for 5 seconds so the gyro can perform

❑

the initialization process.

A safe start is built into the Novus Helicopter that prevents the motor from activating unless the collective stick has been lowered to the lowest position. If the motor won’t run and turn the main blades, please make sure the collective stick is all the way down and leave it there for a couple of seconds. Then try moving the stick up slowly.

10. Transmitter Controls:

❑

6. Position throttle stick in lowest position.

❑

7.Turn the transmitter on.

❑

Your Novus AH-1J SeaCobra is now ready to ﬂ y. Please refer to the ﬂ ying instructions on page 15 in the manual before operating the model.
