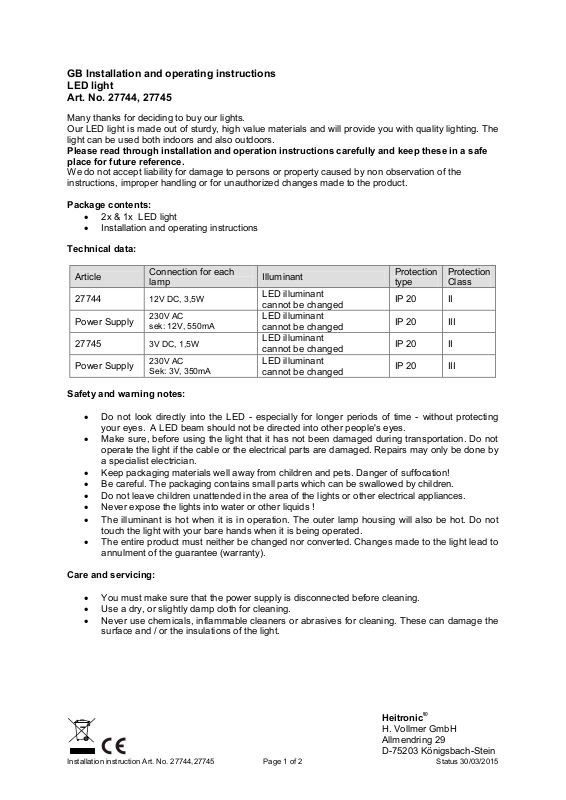

Heitronic 27744, 27745 User guide

GB Installation and operating instructions

Heitronic

®

LED light
Art. No. 27744, 27745

Many thanks for deciding to buy our lights.
Our LED light is made out of sturdy, high value materials and will provide you with quality lighting. The
light can be used both indoors and also outdoors.

Please read through installation and operation instructions carefully and keep these in a safe
place for future reference.

We do not accept liability for damage to persons or property caused by non observation of the
instructions, improper handling or for unauthorized changes made to the product.

Package contents:

 2x & 1x LED light
 Installation and operating instructions

Technical data:

Article

27744

Power Supply

27745

Power Supply

Connection for each
lamp

12V DC, 3,5W

230V AC
sek: 12V, 550mA

3V DC, 1,5W

230V AC
Sek: 3V, 350mA

Illuminant

LED illuminant
cannot be changed
LED illuminant
cannot be changed
LED illuminant
cannot be changed
LED illuminant
cannot be changed

Protection
type

Protection
Class

IP 20 II

IP 20 III

IP 20 II

IP 20 III

Safety and warning notes:

 Do not look directly into the LED - especially for longer periods of time - without protecting

your eyes. A LED beam should not be directed into other people's eyes.

 Make sure, before using the light that it has not been damaged during transportation. Do not

operate the light if the cable or the electrical parts are damaged. Repairs may only be done by
a specialist electrician.

 Keep packaging materials well away from children and pets. Danger of suffocation!
 Be careful. The packaging contains small parts which can be swallowed by children.
 Do not leave children unattended in the area of the lights or other electrical appliances.
 Never expose the lights into water or other liquids !

 The illuminant is hot when it is in operation. The outer lamp housing will also be hot. Do not

touch the light with your bare hands when it is being operated.

 The entire product must neither be changed nor converted. Changes made to the light lead to

annulment of the guarantee (warranty).

Care and servicing:

 You must make sure that the power supply is disconnected before cleaning.
 Use a dry, or slightly damp cloth for cleaning.
 Never use chemicals, inflammable cleaners or abrasives for cleaning. These can damage the

surface and / or the insulations of the light.

H. Vollmer GmbH
Allmendring 29
D-75203 Königsbach-Stein

Installation instruction Art. No. 27744,27745 Page 1 of 2 Status 30/03/2015

Disposal:

Heitronic

®

 Old electronic equipment must be brought to public connection points and must not be

disposed of as household waste.

Installation:

 Make sure that the connection values of your building installation for the power supply to the

light comply with the data stated on the name plate of this light.

 Decide on the location where installation has to take place. The lights are suitable for surface

mounting or under cabinet mounting. Mount the brackets for surface mounting or under
cabinet mounting. Make sure that the base and the fastening material are suitable and the
weight of the lights can be supported permanently and reliably.

 Do not bend the cable, make sure that the cable and the plug are free from strain and

rotational forces. Protect all cables and insulations from possible damage.

 Make sure you have a stable and reliable fastening.
 Switch on the circuit breakers of the junction box in the building again.
 The lamp has an integrated on / off switch on head.
 The name plate must not be removed.

ON/OFF

H. Vollmer GmbH
Allmendring 29
D-75203 Königsbach-Stein

Installation instruction Art. No. 27744,27745 Page 2 of 2 Status 30/03/2015
