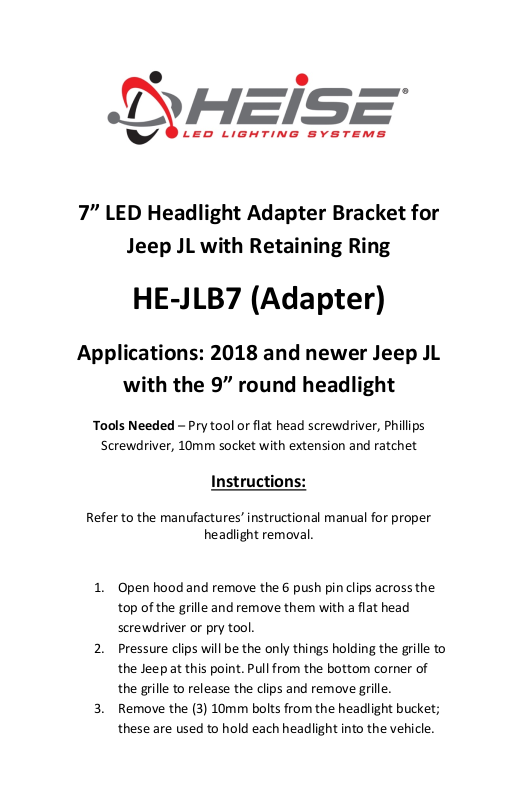

HEISE HE-JLB7 Instructions

7” LED Headlight Adapter Bracket for

Jeep JL with Retaining Ring

HE-JLB7 (Adapter)

Applications: 2018 and newer Jeep JL

with the 9” round headlight

Tools Needed – Pry tool or flat head screwdriver, Phillips

Screwdriver, 10mm socket with extension and ratchet

Instructions:

Refer to the manufactures’ instructional manual for proper

headlight removal.

1. Open hood and remove the 6 push pin clips across the

top of the grille and remove them with a flat head

screwdriver or pry tool.

2. Pressure clips will be the only things holding the grille to

the Jeep at this point. Pull from the bottom corner of

the grille to release the clips and remove grille.

3. Remove the (3) 10mm bolts from the headlight bucket;

these are used to hold each headlight into the vehicle.

4. Unplug and remove the headlight.

5. Plug the included H4 to OE adapter into the factory

headlight harness.

6. Plug the H4 decoder (included with HEISE 7” round

headlight) into the H4 to OE adapter.

7. Place adapter bracket in where the previously removed

headlight bucket was and place one nylon spacer

between the vehicle and bracket at all three contact

points before securing it to the vehicle with the three

previously removed 10mm bolts.

8. Remove the three Phillips head screws from the adapter

bracket and remove the retaining ring from the bracket.

9. Now that adapter bracket is attached to the vehicle and

the retaining ring is removed. Plug the new 7” round

headlight into the H4 decoder before placing headlight

into the adapter bracket and secure it with the

previously removed retaining ring and Phillips screws.

10. Repeat previous steps to install the other headlight.

11. Turn on headlights to ensure everything is in working

order and to make sure they are aimed properly.

12. Adjustments to the headlight aim can be made by

adjusting the spring loaded screws found on the

adapter bracket.

13. Reinstall grille by lining up pressure clip and pushing the

grille back into place.

14. Reattach the 6 push pin clips across the top of the grille

to complete install.

1-800-221-0932 www.HeiseLED.com

460 Walker Street, Holly Hill, FL 32117
