HE-CHASE-UNDGKT
"L4"
Driver side
"L3"
"R2"
"L2"
"To Controller Right"
"To Controller Left"

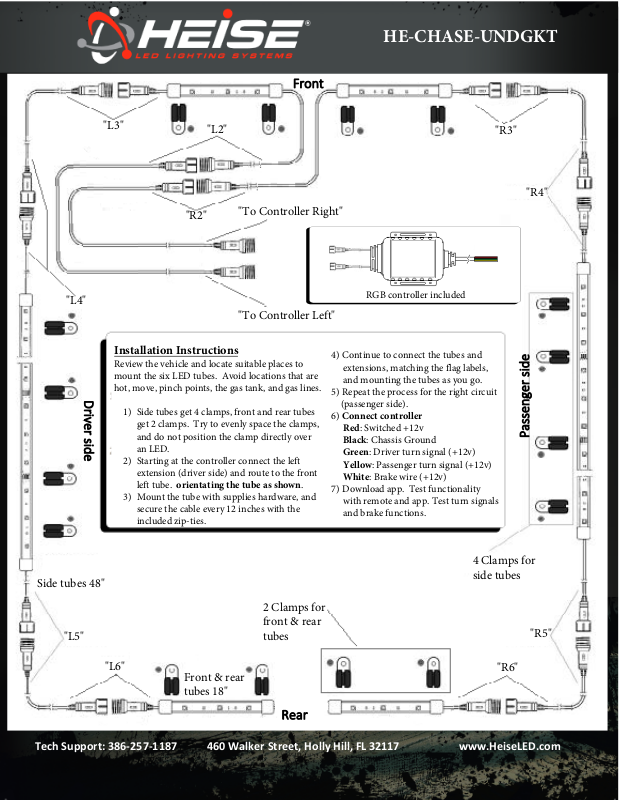

Installation Instructions
Review the vehicle and locate suitable places to
mount the six LED tubes. Avoid locations that are
hot, move, pinch points, the gas tank, and gas lines.
1) Side tubes get 4 clamps, front and rear tubes
get 2 clamps. Try to evenly space the clamps,
and do not position the clamp directly over
an LED.
2) Starting at the controller connect the left
extension (driver side) and route to the front
left tube. orientating the tube as shown.
3) Mount the tube with supplies hardware, and
secure the cable every 12 inches with the
included zip-ties.
RGB controller included
4) Continue to connect the tubes and
extensions, matching the flag labels,
and mounting the tubes as you go.
5) Repeat the process for the right circuit
(passenger side).
6) Connect controller
Red: Switched +12v
Black: Chassis Ground
Green: Driver turn signal (+12v)
Yellow: Passenger turn signal (+12v)
White: Brake wire (+12v)
7) Download app. Test functionality
with remote and app. Test turn signals
and brake functions.
"R3"
"R4"
Passenger side
Side tubes 48"
"L5"
"L6"
Tech Support: 386-257-1187
2 Clamps for
front & rear
tubes
Front & rear
tubes 18"
Rear
460 Walker Street, Holly Hill, FL 32117
4 Clamps for
side tubes
"R5"
"R6"
www.HeiseLED.com
