Heise LED Instructions
HeiseLED.com
HE-RGB-K8 / HE-RGBW-K8 / HE-CHASE-K8
8 Pack rock light kit
Wide angle 160°
Visit HeiseLED.com to view the available installation parts and accessories.

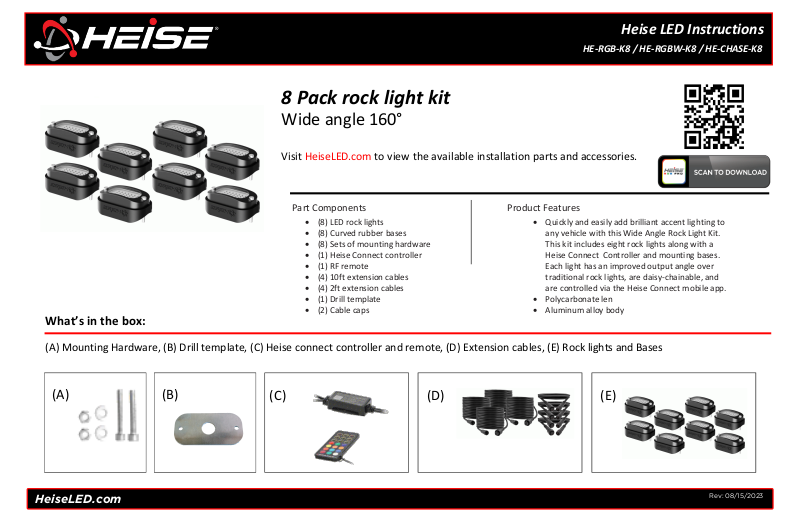

Part Components
• (8) LED rock lights
• (8) Curved rubber bases
• (8) Sets of mounting hardware
• (1) Heise Connect controller
• (1) RF remote
• (4) 10ft extension cables
• (4) 2ft extension cables
• (1) Drill template
• (2) Cable caps
Product Features
• Quickly and easily add brilliant accent lighting to
any vehicle with this Wide Angle Rock Light Kit.
This kit includes eight rock lights along with a
Heise Connect Controller and mounting bases.
Each light has an improved output angle over
traditional rock lights, are daisy-chainable, and
are controlled via the Heise Connect mobile app.
• Polycarbonate len
• Aluminum alloy body

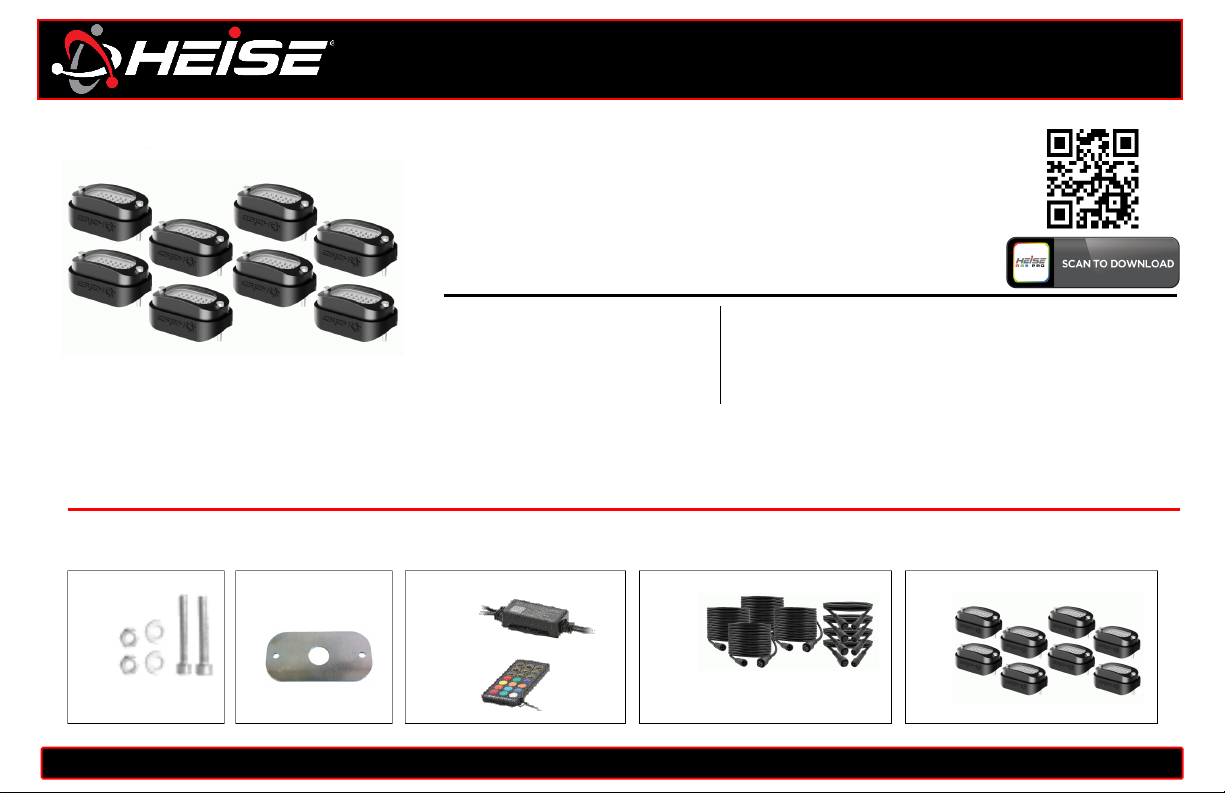

What’s in the box:
(A) Mounting Hardware, (B) Drill template, (C) Heise connect controller and remote, (D) Extension cables, (E) Rock lights and Bases
(A)
(B)
(C)
(D)
(E)
Rev: 08/15/2023
Page 2
2023 Metra Electronics Corp.
HeiseLED.com
INSTHE-ROCK-K8
10-foot extensions X 4
Rock lights X8
Heise LED Instructions
HE-RGB-K8 / HE-RGBW-K8 / HE-CHASE-K8

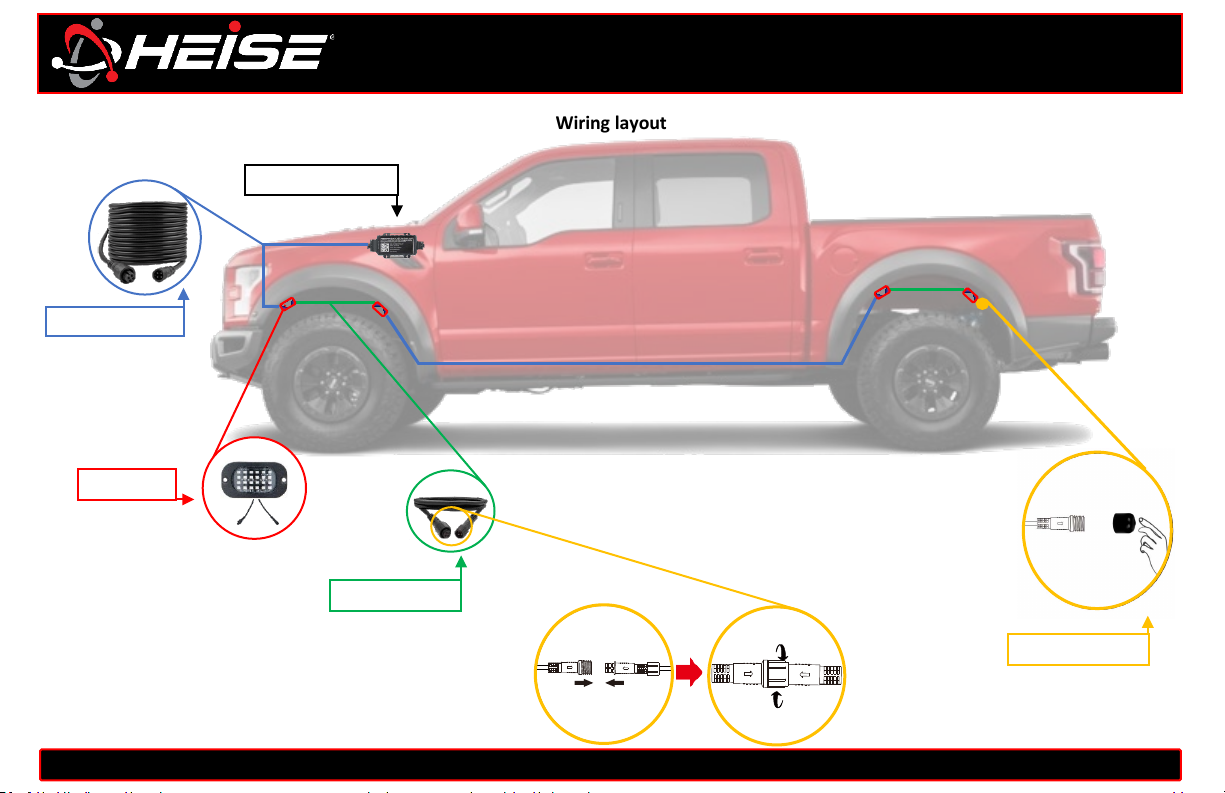

Wiring layout
Heise Connect co ntroller
← PUSH
2-foot extensions X4
Rock light end cap X2
Ⓒ
Page 3
IINSTHE-ROCK-K8
2023 Metra Electronics Corp.
HeiseLED.com
Heise LED Instructions
HE-RGB-K8 / HE-RGBW-K8 / HE-CHASE-K8

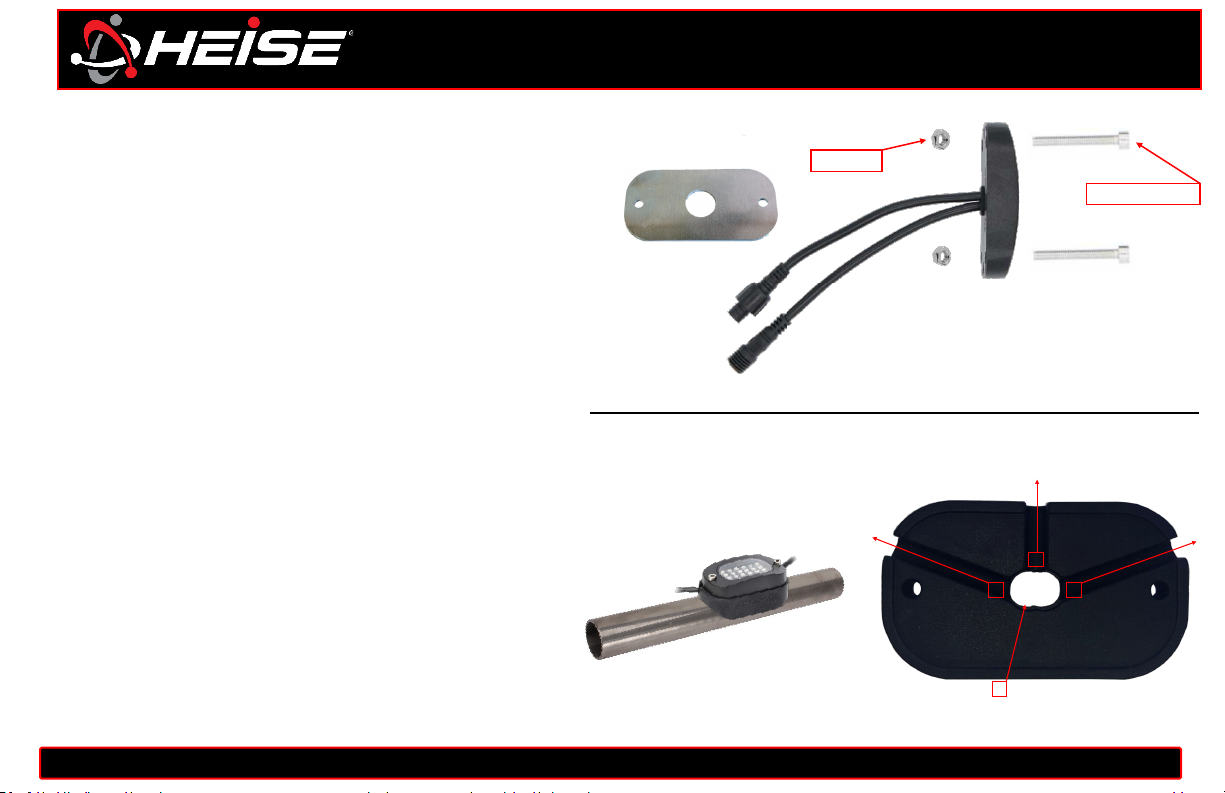

Moun ting:
• With the drill template, mark the (2) outer
holes for the screws. Use a 5/32”drill bit
to drill these mounting holes.
A) For flat surface mounting, mark the center
hole in the drill template for the cable to
pass through. Use a 1/2" drill bit to drill
the access hole.
B) For curved surfaces (using the cuved
rubber base) either create an access hole
(see option A) or route the cables in the
channels on the rear of the base.
• Insert the hex head bolt and tighten the
rock light to the vehicle, using a 3mm
Allen key and 7mm wrench.
A)
7mm nut
3mm (Allen) Hex bolt
Flat mounting rock light
B)
Four wire routing options
Rubber mount, for mounting on curved surfaces
4
2 3
1
Ⓒ
Page 4
Speed Adjustment
Brightness Adjustment
Press and hold for 5 seconds to lock
Demo Mode
Power Off
Change Mode
Single Color
Press and hold for 5 seconds to unlock
Power On
Ⓒ 2023 Metra Electronics Corp.
HeiseLED.com
INSTHE-ROCK-K8

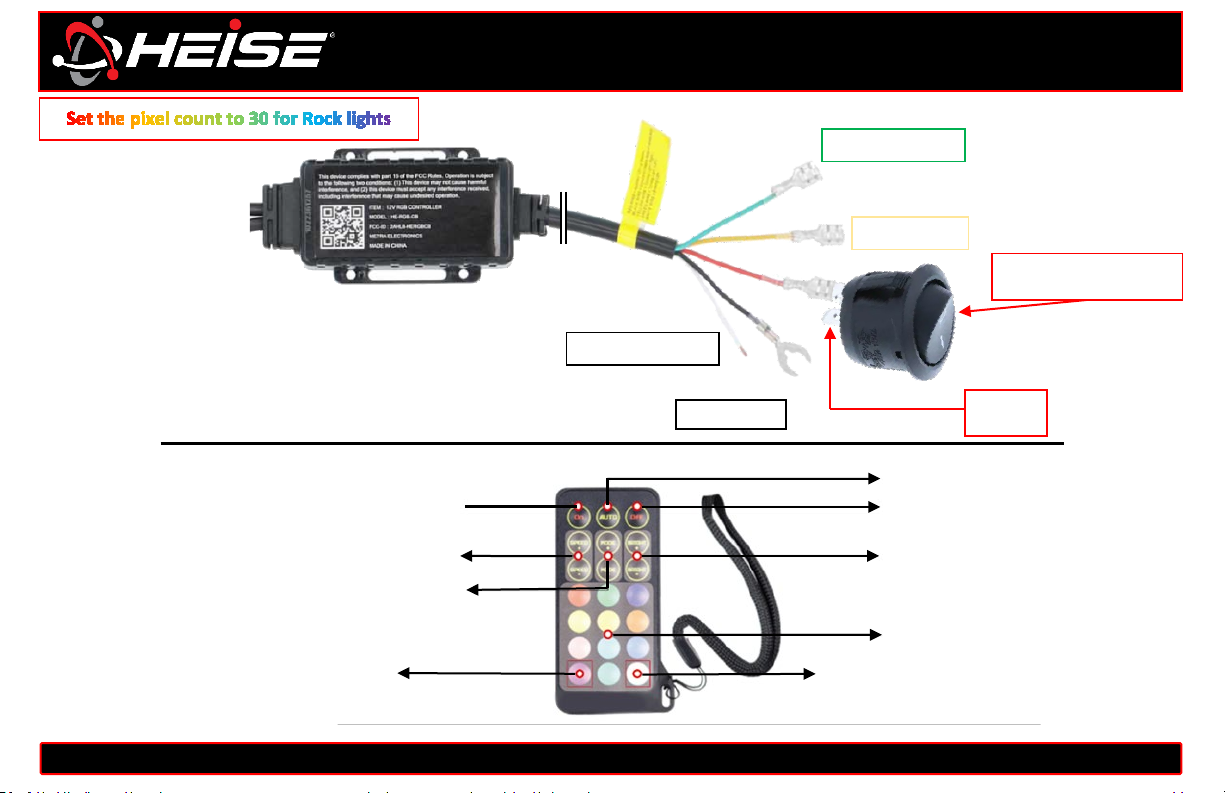

(+12) Brake signa l trigger
Heise LED Instructions
HE-RGB-K8 / HE-RGBW-K8 / HE-CHASE-K8
(+12) Left signal trigger
(+12) Right sign al
Interior mounte d latching switch
(Not included)
controller to work only with this remote.
(app control will cont inue to function)
Chassis Ground
+12VDC
Power
controller from remote.
(Allows contro ller to work with multiple remotes.)
