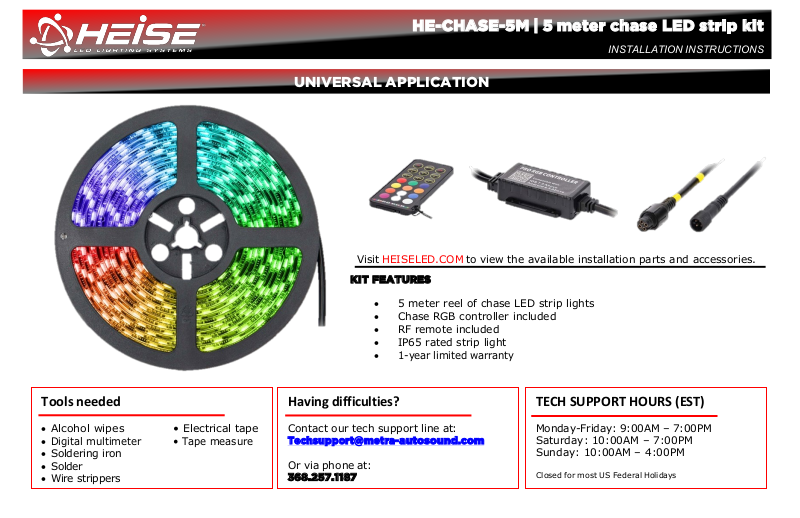

HE-CHASE-5M | 5 meter chase LED strip
kit
HE-CHASE-5M | 5 me ter chase LED strip kit
HE-CHASE-5M | 5 meter chase strip LED
kit
Techsupport@metra-
autosound.com
368.257.1187
UNIVERSAL APPLICATION
Visit HEISELED.COM to view the available installation parts and accessories.
INSTALLATION INSTRUCTIONS

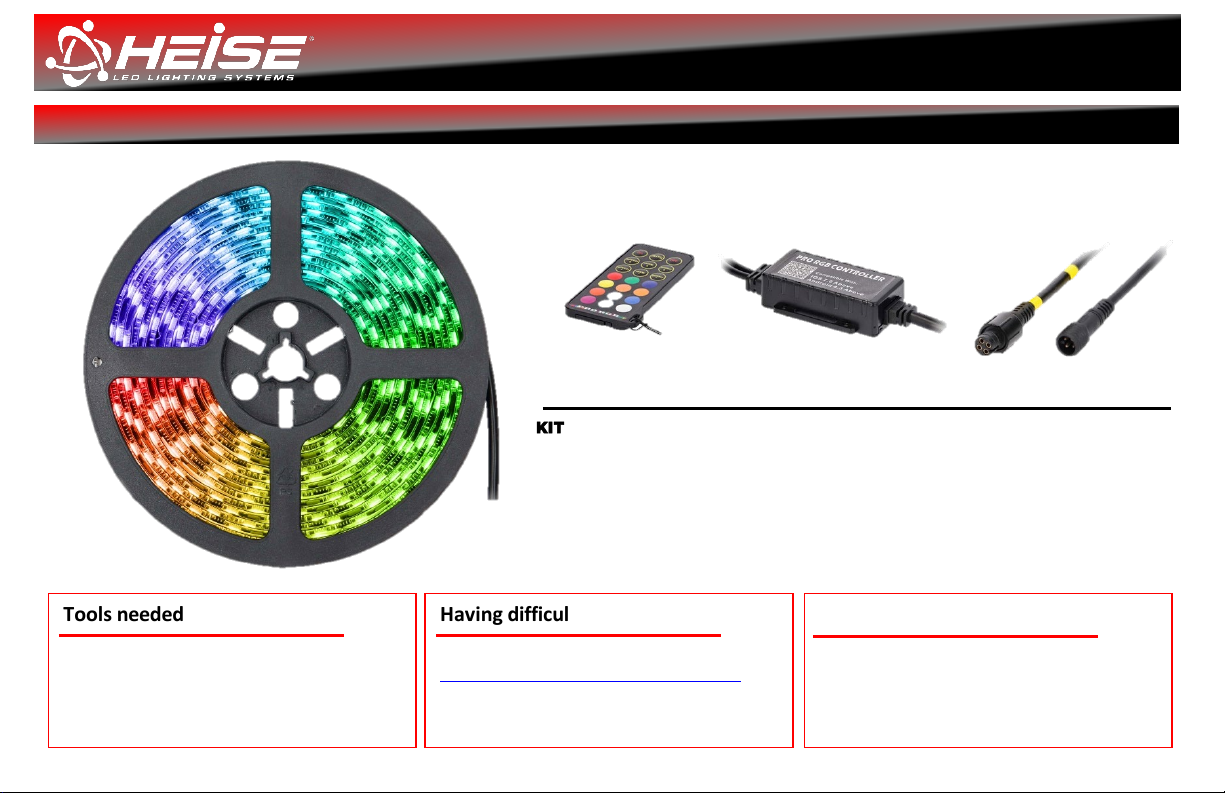

KIT FEATURES
• 5 meter reel of chase LED strip lights
• Chase RGB controller included
• RF remote included
• IP65 rated strip light
•
Tools needed
•
Alcohol wipes
•
Digital multimeter
• Soldering iron
• Solder
• Wire strippers
• Electrical tape
• Tape measure
Having difficulties?
Contact our tech support line at:
Or via phone at:
1-year limited warranty
TECH SUPPORT HOURS (EST)
Monday-Friday: 9:00AM – 7:00PM
Saturday: 10:00AM – 7:00PM
Sunday: 10:00AM – 4:00PM
Closed for most US Federal Holid ays
Page 2
HE-CHASE-5M | 5 meter chase LED strip
kit
MetraOnline.com
Installation instructions
Technical Support: 386-257-
1187
HE-CHASE-5M | 5 meter chase LED stri p kit
INSTALLATION INSTRUCTIONS
1. Measure the length of desired mounting location for LED strip.
2. Roll out a LED strip to the same length. Cut the LED strip across the nearest cut line.
3. Count and record the number of strip segments that are on the cut LED strip.
4. Clean the mounting location with an alcohol wipe and let full dry.
5. Remove the protective backing from the LED strip, then press the strip into place. Apply pressure
for 30 seconds.
6. Mount controller and connect red wire to switched +12V, and black wire to chassis ground.
7. Connect strip to controller.
8. Download app and set chase pixel count to the number recorded in step 3.
9. Test functionality with remote and app.

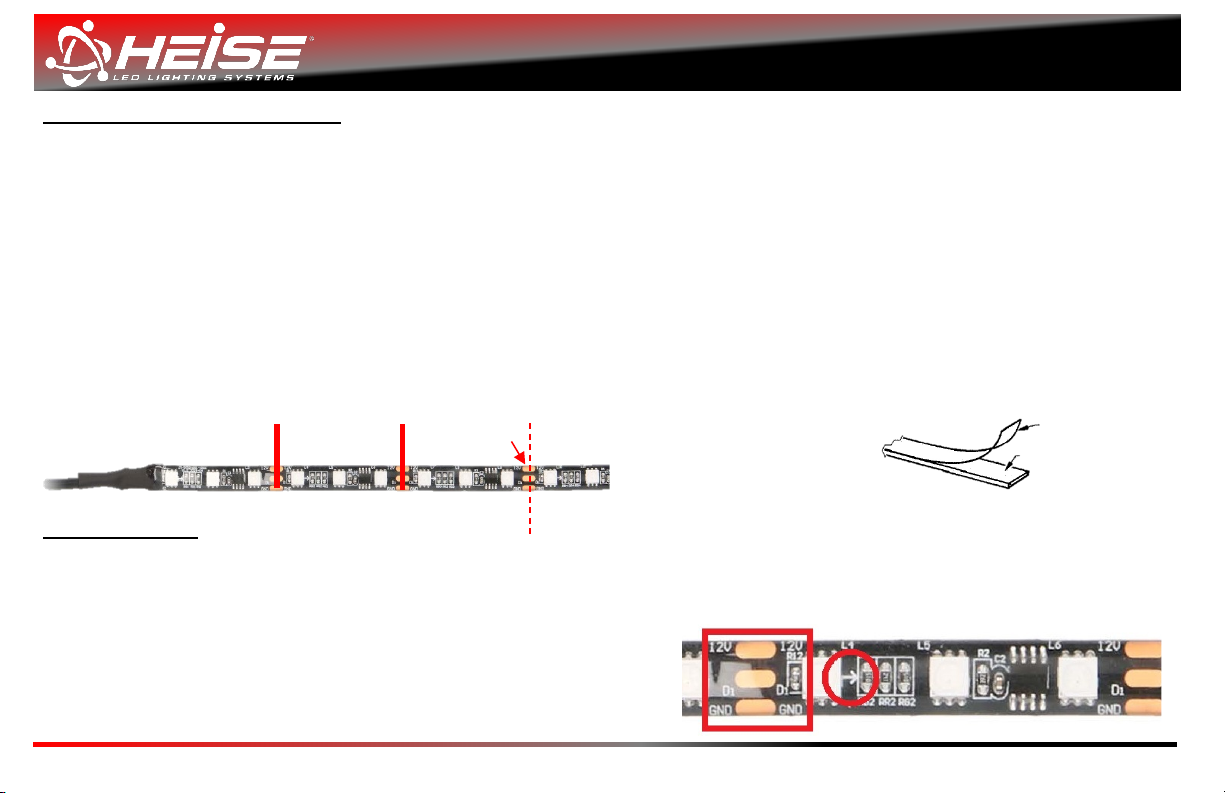

1 strip
segment
Cut line
Protective backing
Adhesive tape
Second Strip
The remaining strip can be used by soldering a RGB-PT1 (not included) to the 3 contact pads. Make
sure to solder to the start of the strip. The strip direction is indicated by the arrow printed on the
strip. Connect the red wire to the 12V pad, black wire to the GND pad, and blue wire to the D1
pad. The green wire from the RGB-PT1 is not used.
