HEISE HE-4CHRGBC, HE-2CHRGBC Installation Guide

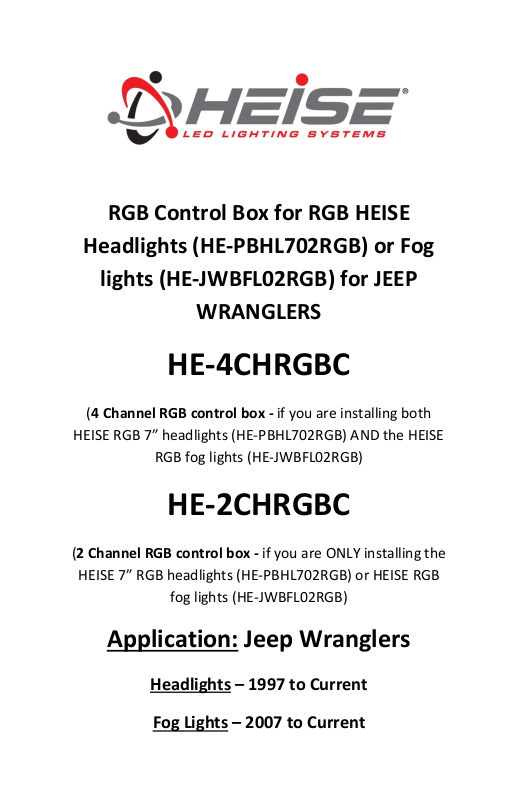

RGB Control Box for RGB HEISE
Headlights (HE-PBHL702RGB) or Fog
lights (HE-JWBFL02RGB) for JEEP
WRANGLERS
HE-4CHRGBC
(4 Channel RGB control box - if you are installing both
HEISE RGB 7” headlights (HE-PBHL702RGB) AND the HEISE
RGB fog lights (HE-JWBFL02RGB)
HE-2CHRGBC
(2 Channel RGB control box - if you are ONLY installing the
HEISE 7” RGB headlights (HE-PBHL702RGB) or HEISE RGB
fog lights (HE-JWBFL02RGB)
Application: Jeep Wranglers
Headlights – 1997 to Current
Fog Lights – 2007 to Current
Instructions:
1. Open the hood.
2. Find a secure location to mount the control box that is
free and clear of moving parts and pinch points.
3. Attach the control box 12v positive wire (RED) to the
positive side of the battery and the ground wire (BLACK)
to the negative side of the battery and secure the
connections.
4. Connect the 4pin connector from the control box to the
4 pin connector on the headlights OR fog lights (HE-
2CHRGBC). If installing the (HE-4CHRGBC) be sure to
connect all four connectors to the headlights AND fog
lights.
5. Download the BLEDIM app from the Play Store or the
App Store or scan the QR code (found on the control
box) to control the RGB halos with your mobile device
or use the included RF remote.
1-800-221-0932 www.HeiseLED.com
460 Walker Street, Holly Hill, FL 32117
Ver.01
11/16/17
