HEINE mini 3000® Battery Handle
HEINE Optotechnik GmbH & Co. KG
Kientalstr. 7 · 82211 Herrsching · Germany
Tel. +49 (0) 81 52 / 38 - 0
Fax +49 (0) 81 52 / 38 - 2 02
E-Mail: [email protected] · www.heine.com
med 3306 2013-12-06
V-200.00.075
1
2
3
Page 2
5/20
med 3306 2013-12-06
ENGLISH
HEINE mini 3000® Battery Handle
Please read and follow these instructions for use and keep them for future reference.
General Conditions of Warranty
Instead of the statutory warranty time period of 2 years, HEINE will grant a guarantee of 5 years from the date
of the consignment of the goods ex works, concerning its equipment (excluding disposables, e.g. bulbs, singleuse articles, and rechargeable batteries). Date of consignment means that HEINE hands the goods over to the
transport carrier, freight forwarder or any other person designated by the Customer for the transport of the goods
without loading the collecting vehicle.
The guarantee covers irreproachable workmanship, on condition of the proper use of the equipment and the
observation of the operating instructions. During the warranty- and guarantee time period, errors and deficiencies
arising on the equipment will be rectified free of charge, in so far as such are evidenced by defective materials,
processing and/or constructional errors. Should buyer complain of a material deficiency during the warranty time
period, then the onus of proof is always to be on the orderer, that the product was defective already upon receipt
of the goods. The statutory warranty and the guarantee do not apply to loss or damage caused by wear and
tear, negligent use, the non-employment of original HEINE components and/or spares (in particular bulbs, as
these have been especially developed for HEINE instruments in accordance with the following criterions: colour
temperature, useful service life, safety, optical quality and performance. The statutory warranty and the guarantee
do not apply to interventions by persons not authorised by HEINE or when the operating instructions are not
observed by the customer. Any modification of a HEINE product with parts or additional parts which do not
conform to the original HEINE specification will invalidate the warranty for the correct function of the product
and further invalidate any warranty claims which result from such a change or modification. Further claims, in
particular claims for replacement of loss or damage, which are experienced otherwise than directly on the
HEINE product itself, are hereby excluded.
For U.S. only:
Federal law restricts this device to sale by or on the order of a Physician or Practitioner!
Warnings and Safety Information
CAUTION! Indicates potential hazardous situations. Ignoring the corresponding instructions may lead to
dangerous situations of mild to moderate extent. (Background color yellow; foreground color black).
NOTE! Indicates valuable advice in terms of installation, operation, maintenance or repair. Notes are
important, but not related to hazardous situations.
Intended Use
The HEINE mini 3000® battery handle should only be used for operation to power HEINE mini 3000® instruments.
Operate
Batteries:
• 2 alkali cells (AA /LR 6)
Important: Do not use alkali manganese batteries with lithium as bulb life will be reduced.
• The HEINE mini 3000
®
battery handle can be charged in the HEINE mini NT® with the
HEINE mini 2Z rechargeable battery 2,5 V.
Charging time:
• The mini NT indicates when the rechargeable battery is fully-charged. The illuminated ring is lit continuously.
• mini 2Z rechargeable battery (2,5 V, NiMH = ca. 4 h (730 mAh)
Instrument connector:

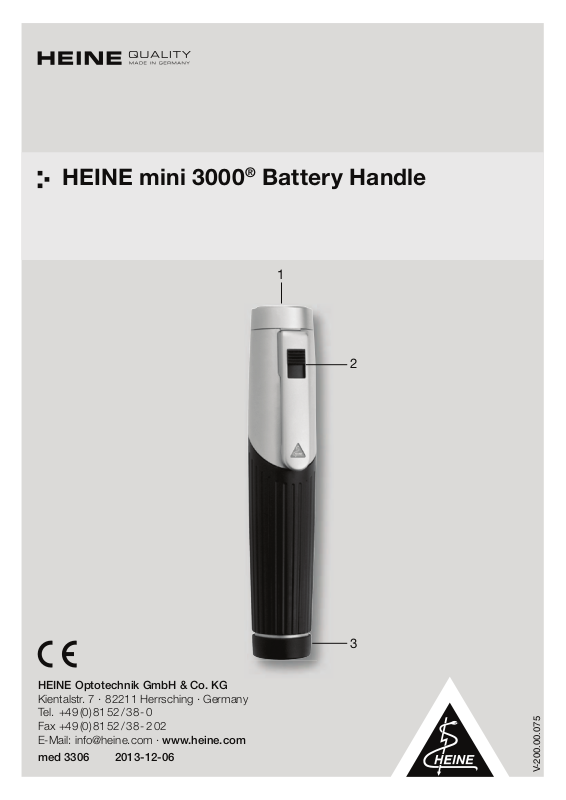

Internal thread in handle head (1).
Switching on:
Push switch (2) down.
Switching off:
Push switch up. If the handle is put back firmly into a coat pocket the handle is automatically switched off.
Changing the batteries:
Unscrew the end-cap (3) and shake out the old batteries. Insert new batteries with the plus contact facing the
handle head.
Page 3
6/20
med 3306 2013-12-06
Hygienic Cleaning / Processing
The handle can be cleaned with a damp cloth (e.g. alkaline or pH- neutrale detergent).
For cleaning disinfection of the outer surface we recommend the so called wipe disinfection by using detergents,
which are released for Medical Devices made out of plastic. Disinfection by spraying or immersion as well as
sterilisation is not allowed.
Maintenance
This product does not require regular maintenance.
Service
This product does not require regular service.
Disposal
The product must be recycled as separated electrical and electronic devices. Please observe the relevant
state-specific disposal regulations.
General Notes and Warnings
Check the correct operation of the product at regular intervals. Do not use the equipment if it shows visible
signs of damage.
- Safety information according to the international standard IEC 60601-1
“Electric Safety of Medical devices”
Do not open the instrument / battery handle in the vicinity of the patient.
This product is a precise optical instrument. Please handle this product with care and store it in a clean place.
This product is not allowed to be entered or used in strong magnetic fields like MRI scanners.
The CE mark indicates that the product complies with the
European medical device directive 93/42/EEC.
Catalogue- or reference number
Serial number
Manufacturer
Date of manufacture
Product bearing this symbol may not be disposed of together with
general household waste, but instead requires separate disposal
according to local provisions. (European Waste Electrical and
Electronic Equipment Directive, WEEE)
Temperature limits in °C for storage and transport
Temperature limits in °F for storage and transport
Humidity limitation for storage and transport
Please read and follow the instructions for use and keep them for
future reference (background color blue; foreground color white)
Fragile, handle with care!
Keep dry
Interference may occur in the vicinity of equipment marked with
the following symbol
“Grüner Punkt” (country-specific)
Explanation of utilized symbols
The following symbols are used on the device or on the packaging:
REF
SN
