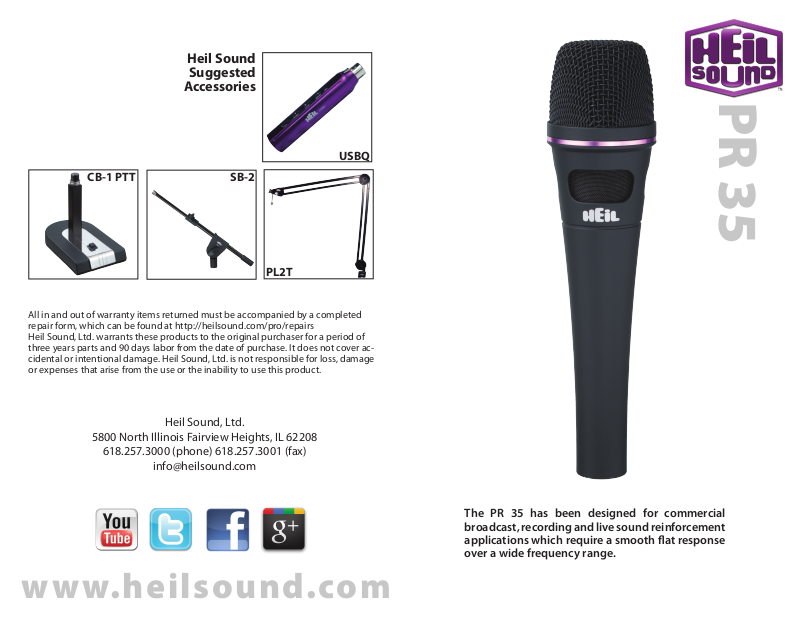

Page 1
Heil Sound
Suggested
Accessories
PR 35
USBQ
CB-1 PTT
All in and out of warranty items returned must be accompanied by a completed
repair form, which can be found at http://heilsound.com/pro/repairs
Heil Sound, Ltd. warrants these products to the original purchaser for a period of
three years parts and 90 days labor from the date of purchase. It does not cover accidental or intentional damage. Heil Sound, Ltd. is not responsible for loss, damage
or expenses that arise from the use or the inability to use this product.
Heil Sound, Ltd.
5800 North Illinois Fairview Heights, IL 62208
618.257.3000 (phone) 618.257.3001 (fax)
[email protected]
SB-2
PL2T
www.heilsound.com
The PR 35 has been designed for commercial
broadcast, recording and live sound reinforcement
applications which require a smooth at response
over a wide frequency range.
Page 2
PR 35
180
210
240
270
300
150
120
90
60
30
330
0
The PR 35 has been designed for commercial broadcast, recording and live sound
reinforcement applications, which require a smooth at response over a wide frequency range. It was designed around the widely acclaimed Heil PR 30 large diaphragm dynamic element. The element has been mounted in a special internal
rubber shock mount to further eliminate handling noise.
The PR 35 achieves its exceptional performance from the large aluminum 1 1/ 2”
low mass voice coil assembly encompassed by a neodymium magnet assembly
comprised of neodymium, iron and boron. Special attention has been paid to the
phasing plug assembly. Equally placed ports sense a large amount of unwanted
audio from behind the source which enters out of phase. This results in rear rejection of -35 dB . Little to nothing is heard from the rear while the front pattern allows the vocalists to move freely about the front of the PR 35 without any change
in response. There is virtually no o-axis coloration, even if ‘cupped’, the response
of this new Heil technology will not change . The new Heil element can be used in
extreme high sound pressure levels and is immune to overload conditions. It produces a beautifully smooth audio response without the inconvenience of phantom or outside d.c. powering.
The PR 35 has an internal low frequency lter push button switch which can be accessed by using a small screwdriver or paperclip. With the switch pushed DOWN,
the audio rolls o at 80Hz at -6 dB per octave. In the UP position the lter is removed and the entire wide response of 40 Hz. to 18 kHz is present.
Supplied with an SM-5 mic clip, a windscreen, three color trim rings and a
leatherette carrying case.
Output Connection 3 pin XLR
Element Type Dynamic
Frequency Response
40 Hz - 18 kHz (UP- no lter)
80 Hz - 18 kHz (DOWN- lter on)
Polar Pattern Cardioid
Rear Rejection @ 180° o axis -35 dB
Impedance 370 ohms balanced
Output Level -52.9 dB @ 1 kHz
Weight 9 oz.
Max SPL 140 dB
-40
-50
-60
-70
-80
-90
20
0 Deg
100
180 Deg
200
1k
500
2k
50
10k
5k
20k
