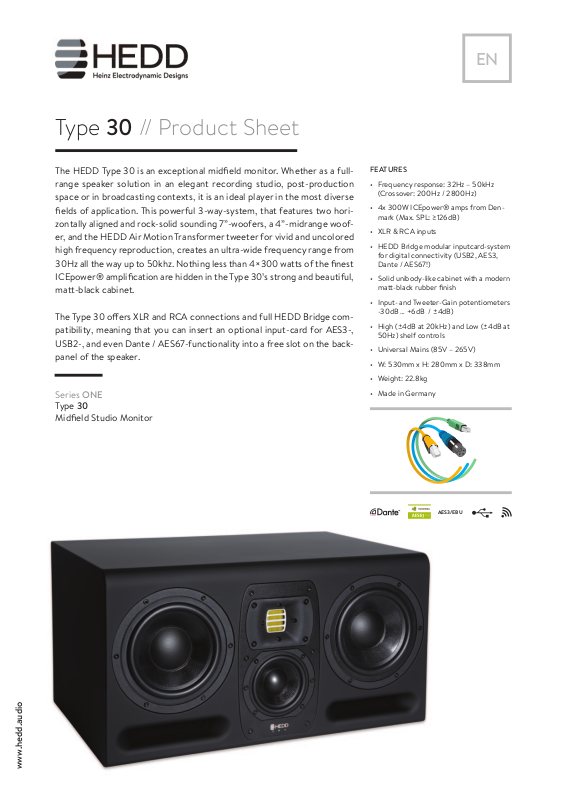

Type 30 // Product Sheet
EN
The HEDD Type 30 is an exceptional midfi eld monitor. Whether as a fullrange speaker solution in an elegant recording studio, post-production
space or in broadcasting contexts, it is an ideal player in the most diverse
fi elds of application. This powerful 3-way-system, that features two horizontally aligned and rock-solid sounding 7”-woofers, a 4”-midrange woofer, and the HEDD Air Motion Transformer tweeter for vivid and uncolored
high frequency reproduction, creates an ultra-wide frequency range from
30Hz all the way up to 50khz. Nothing less than 4×300 watts of the fi nest
ICEpower® amplifi cation are hidden in the Type 30’s strong and beautiful,
matt-black cabinet.
The Type 30 o ers XLR and RCA connections and full HEDD Bridge compatibility, meaning that you can insert an optional input-card for AES3-,
USB2-, and even Dante / AES67-functionality into a free slot on the backpanel of the speaker.
Series ONE
Type 30
Midfi eld Studio Monitor
FEATURES
• Frequency response: 32Hz – 50kHz
(Crossover: 200Hz / 2800Hz)
• 4x 300W ICEpower® amps from Denmark (Max. SPL: ≥126dB)
• XLR & RCA inputs
• HEDD Bridge modular inputcard-system
for digital connectivity (USB2, AES3,
Dante / AES67!)
• Solid unibody-like cabinet with a modern
matt-black rubber fi nish
• Input- and Tweeter-Gain potentiometers
-30dB … +6dB / ±4dB)
• High (±4dB at 20kHz) and Low (±4dB at
50Hz) shelf controls
• Universal Mains (85V – 265V)
• W: 530mm x H: 280mm x D: 338mm
• Weight: 22.8kg
• Made in Germany
www.hedd.audio
AES3/EBU
