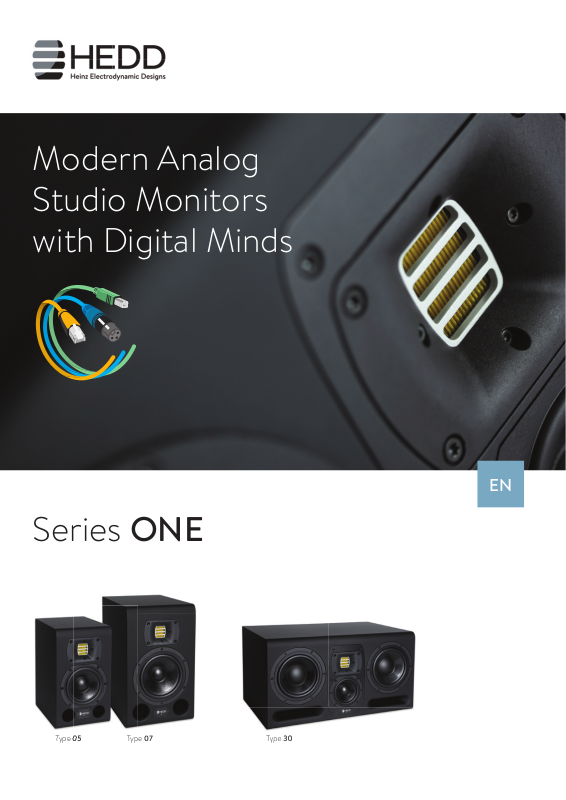

Page 1
Modern Analog
Studio Monitors
with Digital Minds
Series ONE
Type 05 Type 30Type 07
EN
EN
Page 2
Welcome to HEDD
Heinz Electrodynamic Designs
We are a Berlin based manufacturer of
analog state-of-the-art studio monitors for all fields of music production,
broadcast and installation.
Founded by one of the most experienced loudspeaker designers in
the professional audio world, Klaus
Heinz, and his son Frederik Knop, a
musicologist and mastering engineer,
the HEDD team creates versatile and
surgically precise studio monitors that
producers and sound engineers from
a wide array of musical branches can
use as tools for their audio monitoring
processes. Not only are HEDD loudspeakers Made in Germany, they also
feature improved diaphragm materials, super solid cabinets, ultra-ecient
amplifiers and a new version of Klaus
Heinz’ well known tweeter design: the
HEDD Air Motion Transformer.
Last but not least our monitors oer
an unprecedented level of digital
connectivity. The entire Series ONE is
equipped with our modular input-card
system, the HEDD Bridge. Besides
standard analog XLR and RCA connectors, each monitor features an
empty card slot that we have specifically designed to read optional AES3/
EBU, Dante, or Ravenna Network
(AES67) input cards.
And this is just the beginning ...
Please go ahead and get familiar with our
pioneering products!
www.hedd.audio
Dr. Frederik Knop
Vice President
Klaus Heinz
CEO
Page 3
Type 05 Type 07
The Type 05 model is a real multitasker. Its strong performance with
2x 50W ICEpower amplifi ers, digital
connectivity, and compact size turn
it into an ideal choice for mobile
broadcast stations, project studios,
multichannel-setups, gamers and VoIP
conferences.
The Type 05 is based on a 2-way system that provides a solid fundament,
an incredible low-end and a superior
degree of accuracy in the frequency
range between 44Hz and 50kHZ.
Our Type 07 could be described as
a classic nearfi eld monitor speaker,
although that would not nearly do
justice to its versatility and powerful sound. The way in which the solid
black cabinet, amplifi ers and drivers
work together, creates a degree of
sonic stability, strength, spatiality and
transparency that will amaze you.
With its 2× 100 Watt amps and its well
balanced frequency response (38Hz–
50kHz), the Type 07 monitor sounds
more mature than its moderate size
and sleek design make it appear. It
is for this reason that there is hardly
a fi eld of audio production, which
the Type 07 is not suited for. It is an
especially good performer in project-,
recording- and mixdown studios.
Series ONE
Page 4
Type 30 HEDD AMT
The HEDD Type 30 is an exceptional
midfi eld studio monitor. Whether
as a full range speaker in an elegant
recording studio, mastering room or
in broadcasting contexts, this 3-way
system is an ideal player in the most
diverse fi elds of audio. The impressive technical facts alone speak for
themselves: two horizontally aligned
7” woofers, 4” midrange woofer, our
evolutionary Air Motion Transformer,
and nothing less than 4× 300 watts
amplifi cation create an ultra-wide
frequency range from 30Hz to 50khz.
In addition to being super solid and
having an extremely high fi delity in
the bass and mid range reproduction,
the HEDD Air Motion Transformer
produces vivid and uncoloured high
frequencies. This is one extra fi ne
piece of gear!
Klaus Heinz’ new Air Motion Transformer design: meet the HEDD AMT!
HEDD’s Series ONE studio monitors feature an improved version of
Klaus Heinz’ well known Air Motion
Transformer Design based on an early
invention by the German-American
physicist Oskar Heil. Back in the
1960s Heil proposed a folded elastic
diaphragm, where single folds open
and close in an alternating pattern
and thus „breathe“ air in and out, with
the special charm that the air driven
through the folds is accelerated to a
ratio four times as fast as the diaphragm itself.
In the new HEDD AMT a strong magnetic fi eld lowers distortion and intermodulation while a special waveguide
is used to reach lower crossover frequencies, which is crucial for succesfully shaping the midrange of 2-way
studio monitors such as HEDD’s Type
05 and Type 07.
The new HEDD AMT is Klaus Heinz’
best interpretation of the Air Motion
Transformer yet. It unleashes ultradynamic, detailed and uncoloured
high frequency material – a fascinating listening experience.
Page 5
HEDD Bridge
AES67
The HEDD Bridge. Paving the Way
toward Digital Connectivity in Studio
Monitors
In order to secure an ideal – futureoriented, safe and fl exible – integration of our HEDD loudspeakers
in digitally based workspaces, we
developed our very own modular
input-card system, the HEDD Bridge.
It was inspired by the vital idea that
our speakers should feature a freely
confi gurable system, that, being located on the back panel of each monitor, allows for the integration various
digital audio protocols.
The diverse range of our HEDD
Bridge modules ensures that we can
provide solutions for many platforms.
We o er modules that can integrate
AES3/EBU as well as modules that can
– and this is unheard of – read Audioover-IP protocols such as Dante and
Ravenna/AES67. We will introduce
additional input cards for USB2 and
Wireless integration in the near future.
Like many other renowned manufacturers in the professional audio sector,
we think that Ethernet-based multichannel systems are the future of the
studio, live music, and installation sector. While Audio-over-IP has by now
become more and more prominent in
mixdown, interface and microphone
technologies, this development
has yet to reach the level of studio
monitors. The HEDD Bridge is the fi rst
system to close this gap.
AES3/EBU
BRIDGE
BRIDGE
AES6
7
BRIDGE
L/R
AES3/EBU
BRIDGE
BRIDGE
CH2 OUT
CH2 OUT
DIG. THRU AES IN
CH2 OUT
USB 2.0
B1-DANTE
Dante
B2-AES67
AES67
B3-AES3
B4-USB
USB 2.0
B5-WIRELESS
Audio-over-IP
B1 DANTE B2 AES67
Page 6
HEDD Audio GmbH | Ringbahnstr. 32–34 | 12099 Berlin | GERMANY
