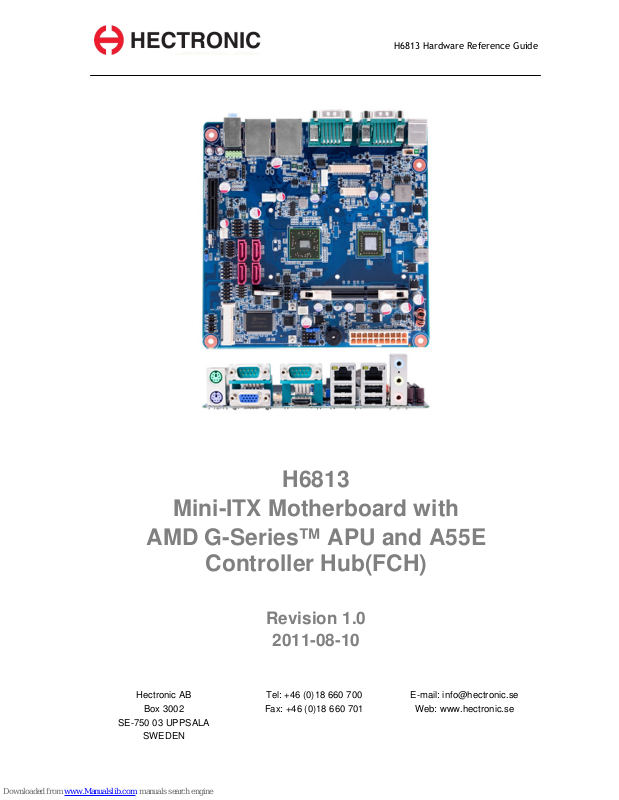

Page 1
H6813 Hardware Reference Guide
H6813
Mini-ITX Motherboard with
AMD G-Series™ APU and A55E
Controller Hub(FCH)
Revision 1.0
2011-08-10
Hectronic AB
Box 3002
SE-750 03 UPPSALA
SWEDEN
Tel: +46 (0)18 660 700
Fax: +46 (0)18 660 701
E-mail: [email protected]
Web: www.hectronic.se
Page 2
H6813 Hardware Reference Guide
2
Preface
Safety Declaration
This device complies with the requirements in Part 15 of the FCC rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
Page 3
H6813 Hardware Reference Guide
3

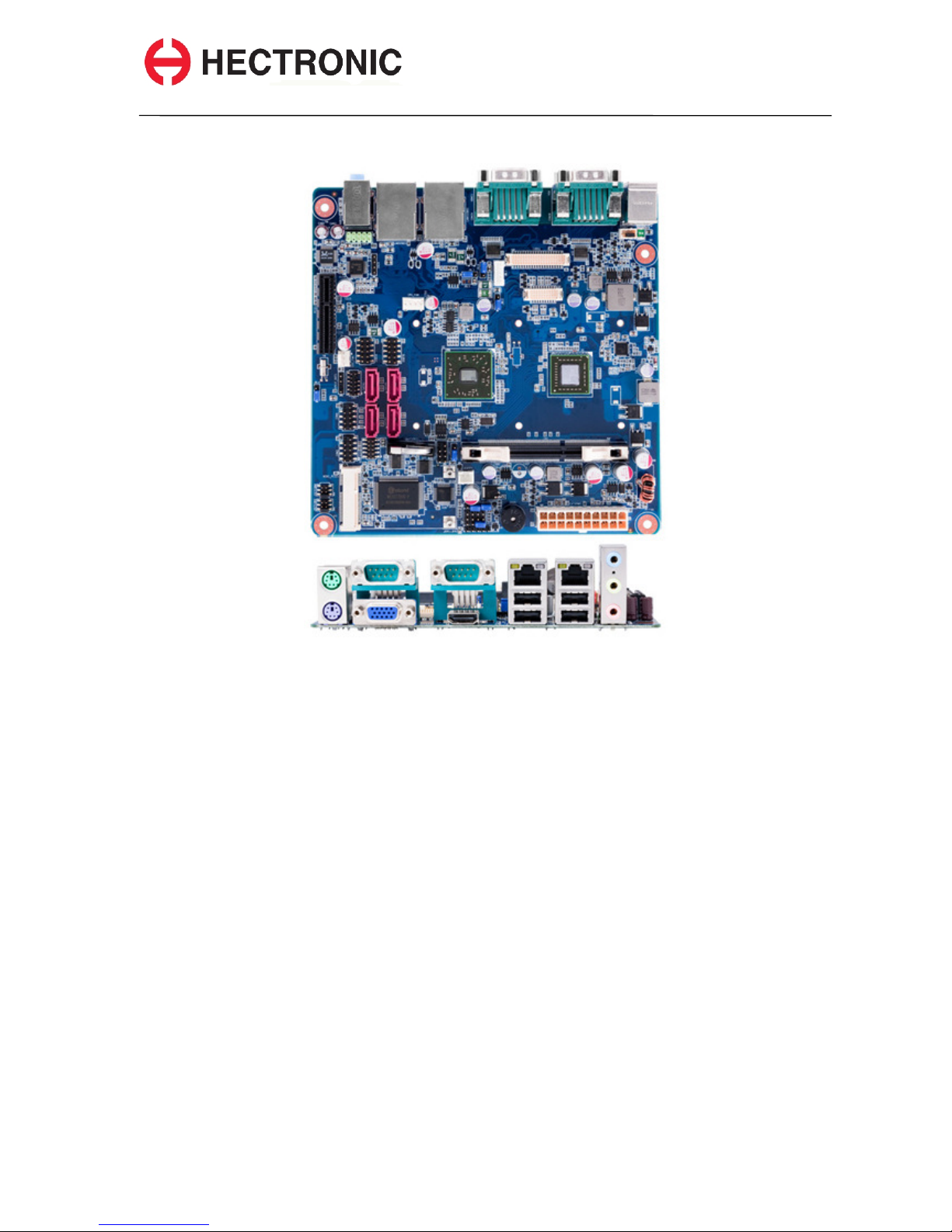

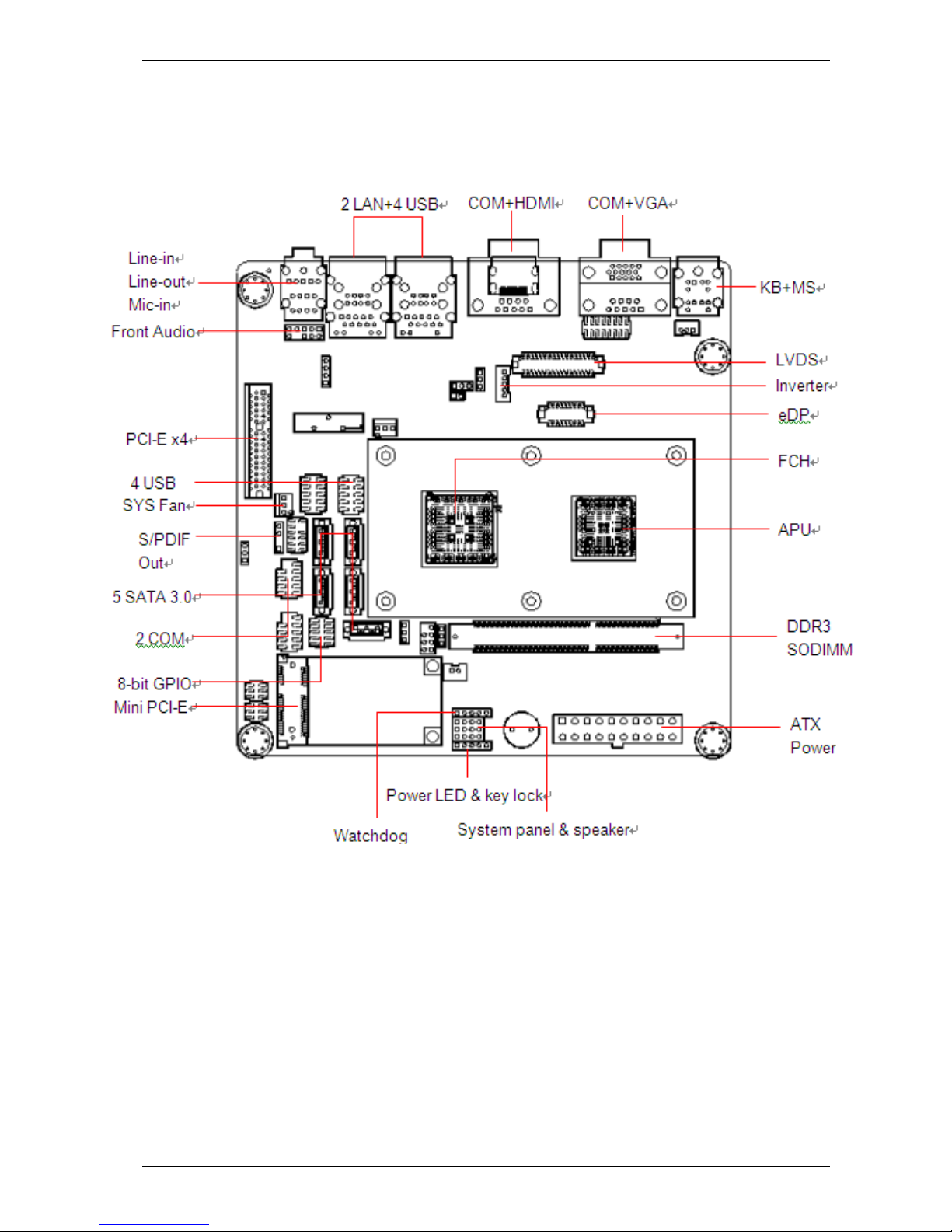

1 Product Overview
Page 4
H6813 Hardware Reference Guide
4
2 Specifications
Specifications
System
APU
AMD G-
Series T56N 1.6GHz/T48N 1.4GHz/T40N 1.0GHz/T44R 1.2GHz
FCH
AMD A55E Controller Hub (Hudson
-
E1)
BIOS
AMI 16Mb SPI
System Chipset
AMD G-Series+A55E Controller Hub
I/O Chipset
Winbond W83627DHG-P
Memory
One 204-pin SODIMM sockets support up to 4GB DDR3 1066
SSD
CFast connector
Watchdog Timer
Reset: 1 to 255 sec/min per step
H/W Status Monitor
Monitoring temperature, voltage and cooling fan status. Auto throttling control
when CPU overheats.
Expansion Slots
1 PCI-E x4 Gen.2, 1 Mini PCI-E, 1 CFast
Power State
S3, S4, S5
Wake up on LAN or Ring
LAN
Smart Fan Control
Yes
Display
Chipset
AMD Radeon HD 6310 (T56N/T48N) / AMD Radeon HD 6250 (T40N/T44R)
Display Memory
Shared Memory, up to 512MB
Dual Display
VGA+LVDS, VGA+HDMI, HDMI+LVDS, eDP+HDMI, eDP+VGA
VGA
Onboard, T56N/T48N (18W) supports up to 2560 x 1600
T40N/T44R (9W) supports up to 1920 x 1200
HDMI
Onboard, supports HDMI 1.3a & 1080P up to 1920 x 1200
LVDS
Onboard, 18-bit single channel LVDS
LVDS Backlight
Yes, PWM Control (Backlight adjusted from AMD A55E Controller Hub)
eDP
Onboard, Optional ( 18,24,30 bpp up to 1920x1200 9W / 2560 X1600 18W )
Audio
Audio
Codec
Realtek ALC892, 7.1 Channel HD Audio
Audio Interface
Line-in, Line-out, Mic-in, S/PDIF, Front Audio Header
Ethernet
LAN1
Realtek RTL8111DL GbE LAN
LAN2
Realtek RTL8111DL GbE LAN
Page 5
H6813 Hardware Reference Guide
5

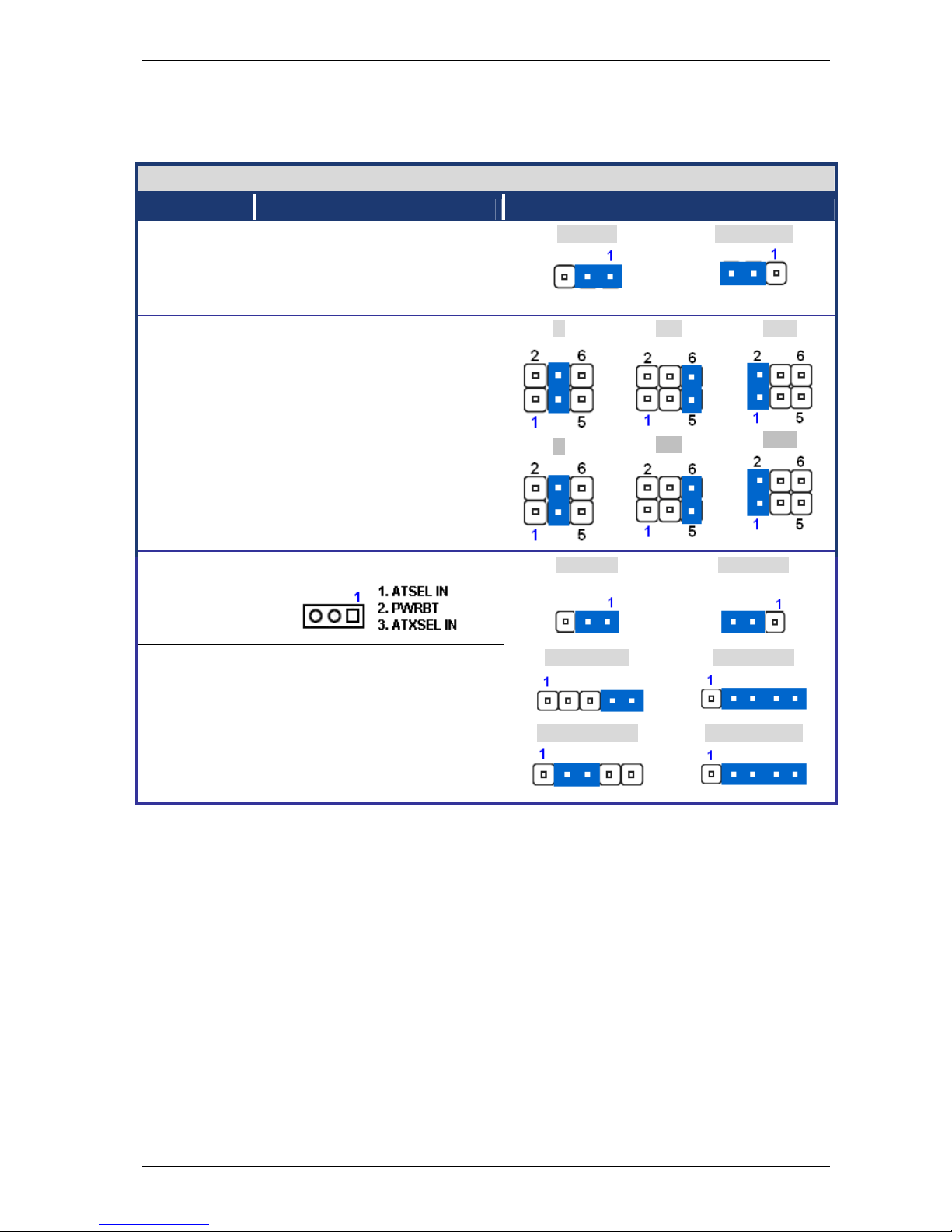

3 Jumpers
Jumpers
Label
Function
Note
CMOS1
Clear CMOS
Normal *
Clear CMOS
JSETCOM3
,
JSETCOM4
COM3, CO
M4 RI/+5V/+12V Select
RI
+5V +12V
COM3
COM4
RI
+5V
+12V
PSON1
AT/ATX Mode Select
AT MODE
ATX
M
ODE
JWDT1
+
JOBS1
WDT Select + Buzzer Select
WDT Disable
WDT Enable
Buzzer Disable
Buzzer Enable
Page 6
H6813 Hardware Reference Guide
6

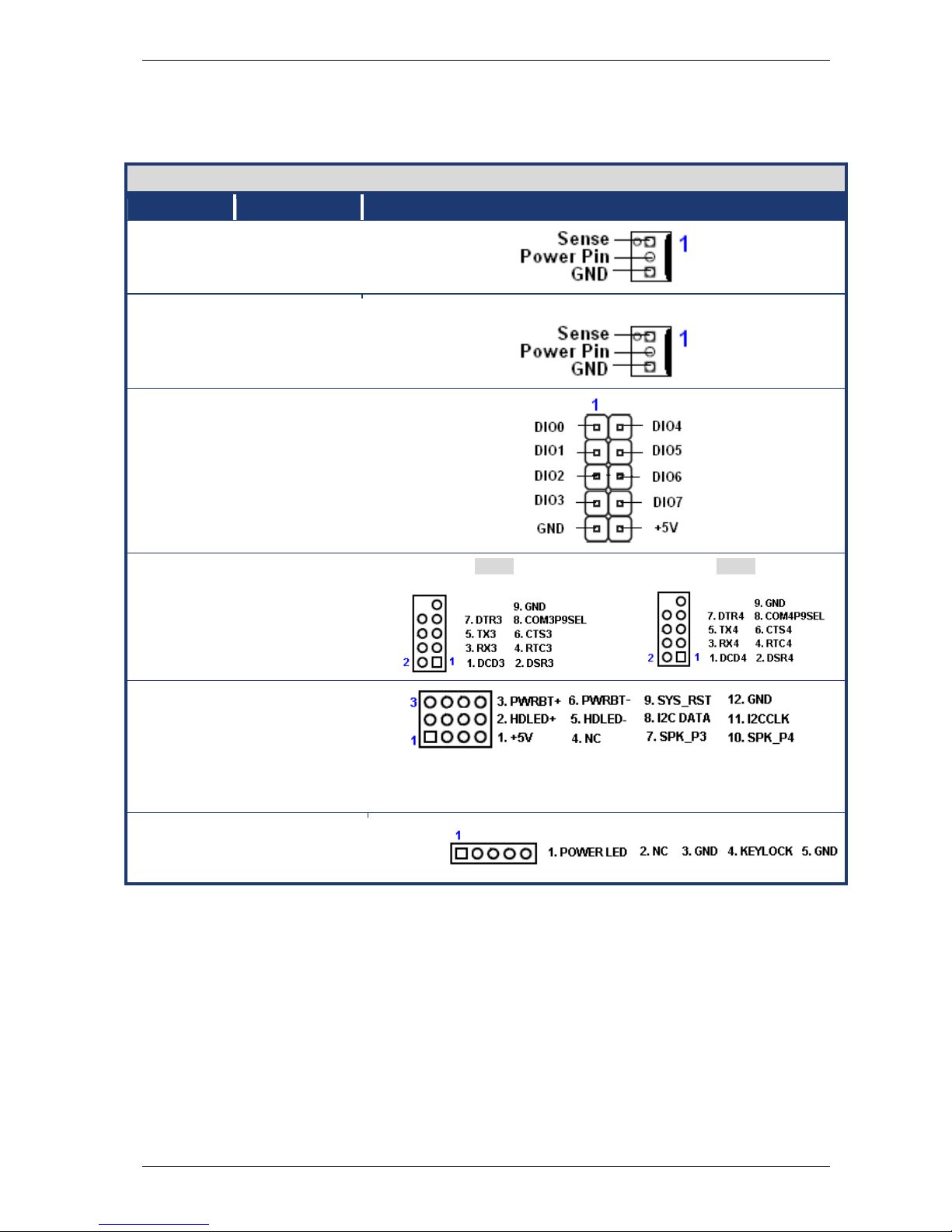

4 Connectors
Connectors
1(3)
Label
Functio
n Note
CPU_FAN
CPU Fan
Connector
SYS_FAN
System Fan
Connector
DIO1
Digital I/O
Connector
COM3, COM4
Serial Port
Connector
COM3
COM4
JFP1+JFP2
Syste
m Panel &
Speaker
PIN7-10
PIN1-10
SPK3
SPK4
PIN3-6
PIN9-12
POWER BT
SYS_RESET
JFP3
Power
LED
&
Keylock
Page 7
H6813 Hardware Reference Guide
7

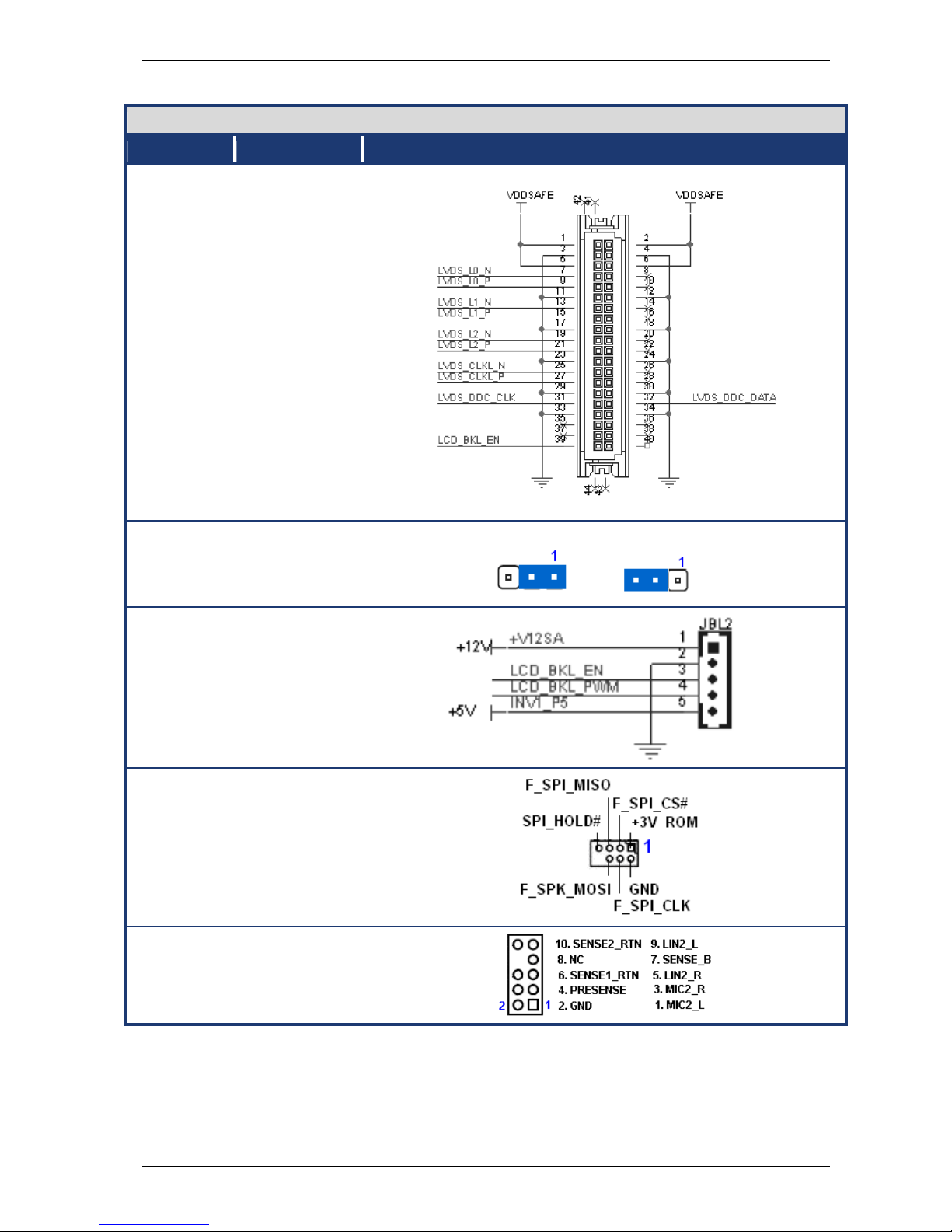

Connectors
2(3)
Label
Function
Note
LVDS1
18-
bit LVDS
Connector
JBL3
LCD POWER
(VDDSAFE )
3.3V/5V
SELECTION
3.3V 5V
JBL1
Inverter PWR
JBL1
LCD Inverter
Connector
AAFP
Audio Mic.
-In
&
Line-Out
Connector
Page 8
H6813 Hardware Reference Guide
8

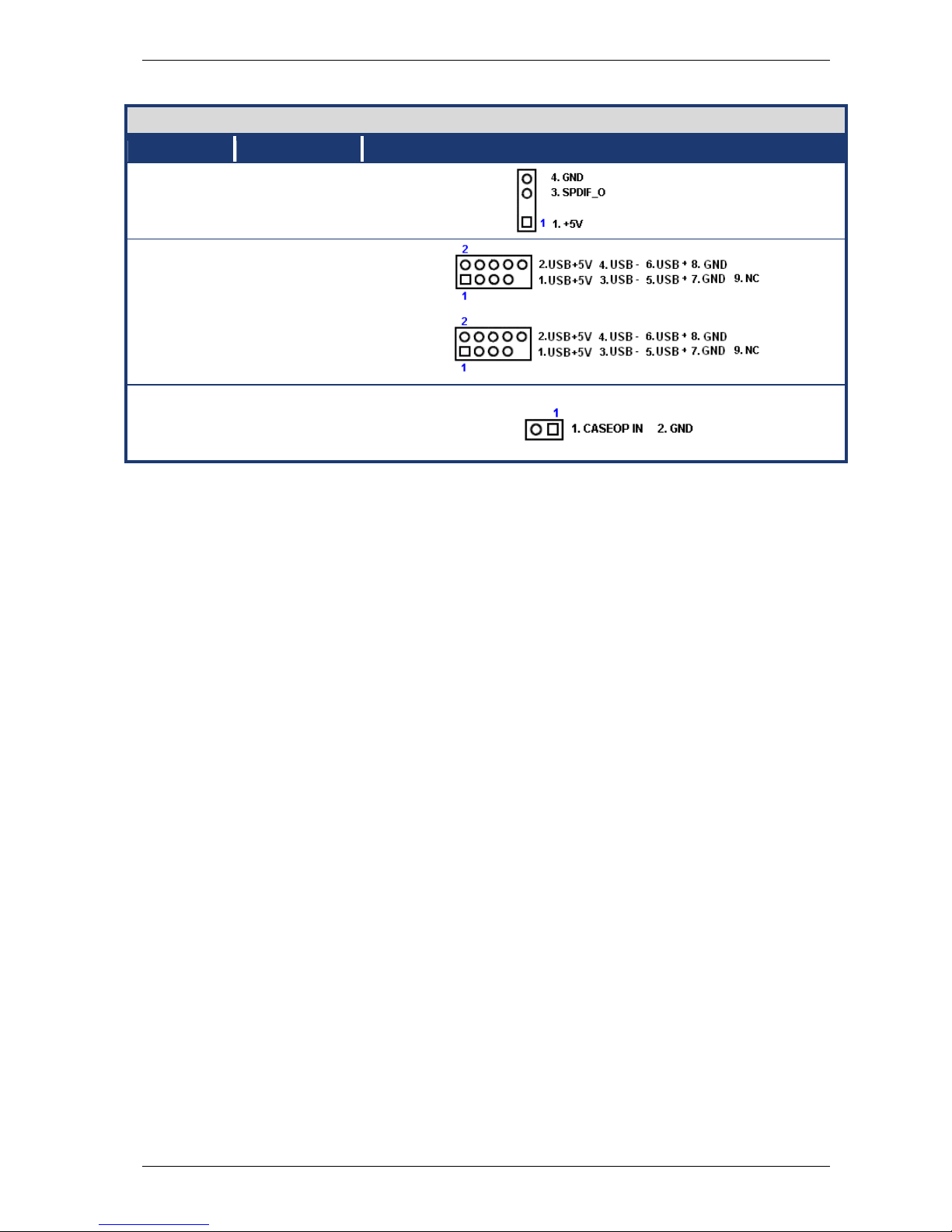

Connectors
3(3)
Label
Function
Note
SPDIF_OUT1
SPDIF
OUT
USB56
USB 2.0 5&6
Connector
USB78
USB 2.0 7&8
Connector
JCASE1
Case open
