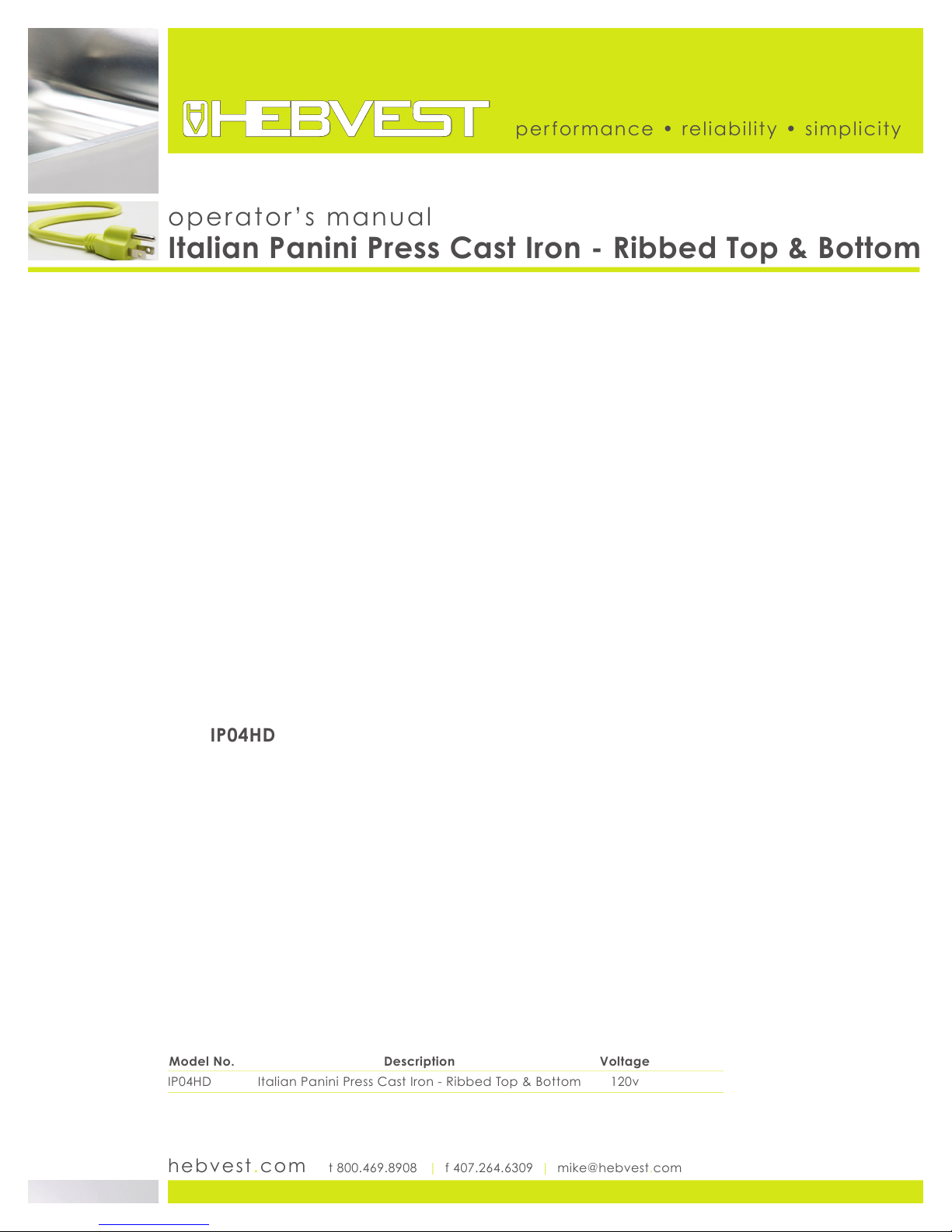

Page 1
hebvest.com t 800.469.8908 | f 407.264.6309 | mike@hebvest.com
performance • reliability • simplicity
Model No. Description Voltage
IP04HD Italian Panini Press Cast Iron - Ribbed Top & Bottom 120v
IP04HD
operator’s manual
Italian Panini Press Cast Iron - Ribbed Top & Bottom
Page 2
hebvest.com t 800.469.8908 | f 407.264.6309 | mike@hebvest.com

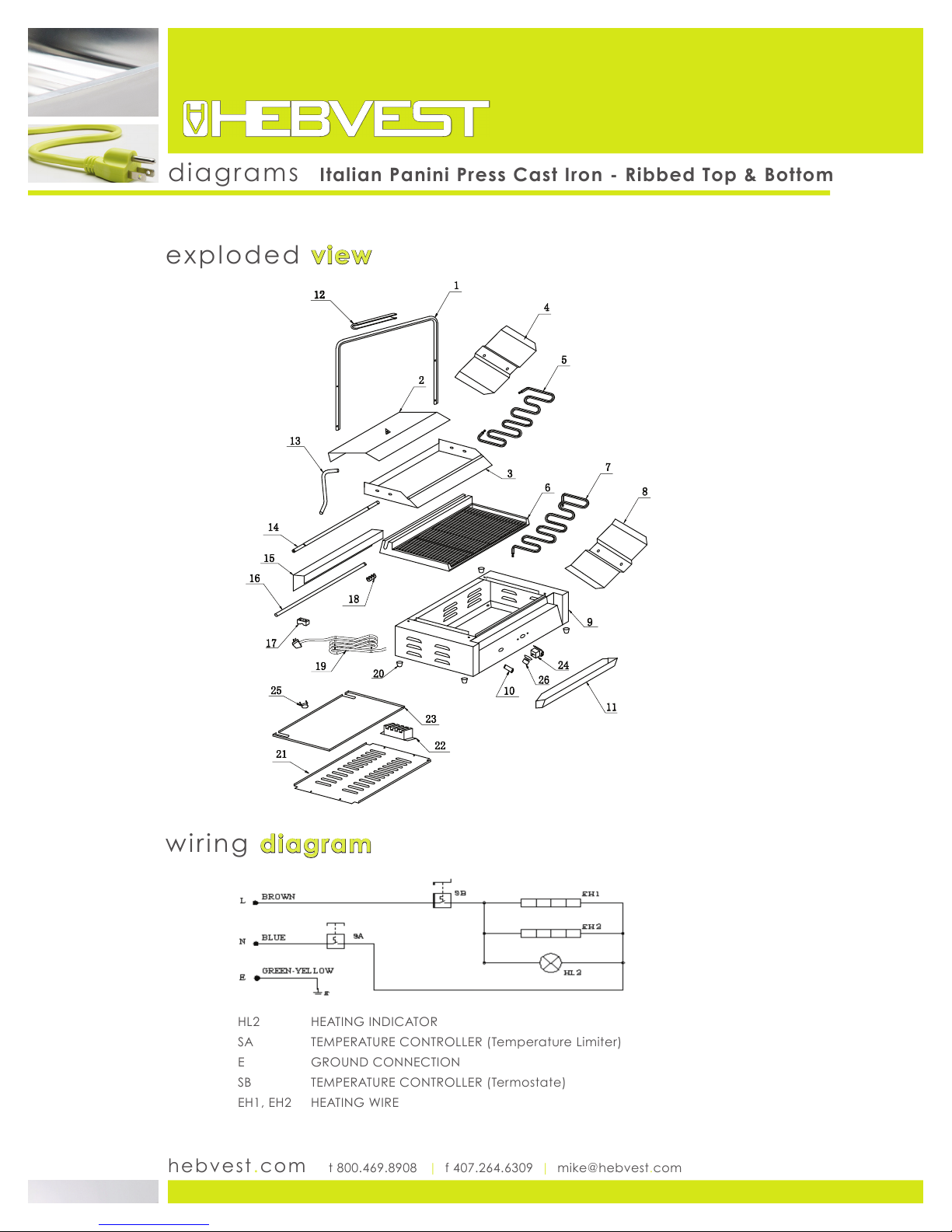

diagrams Italian Panini Press Cast Iron - Ribbed Top & Bottom
exploded view
wiring diagram
HL2 HEATING INDICATOR
SA TEMPERATURE CONTROLLER (Temperature Limiter)
E GROUND CONNECTION
SB TEMPERATURE CONTROLLER (Termostate)
EH1, EH2 HEATING WIRE
Page 3
hebvest.com t 800.469.8908 | f 407.264.6309 | mike@hebvest.com

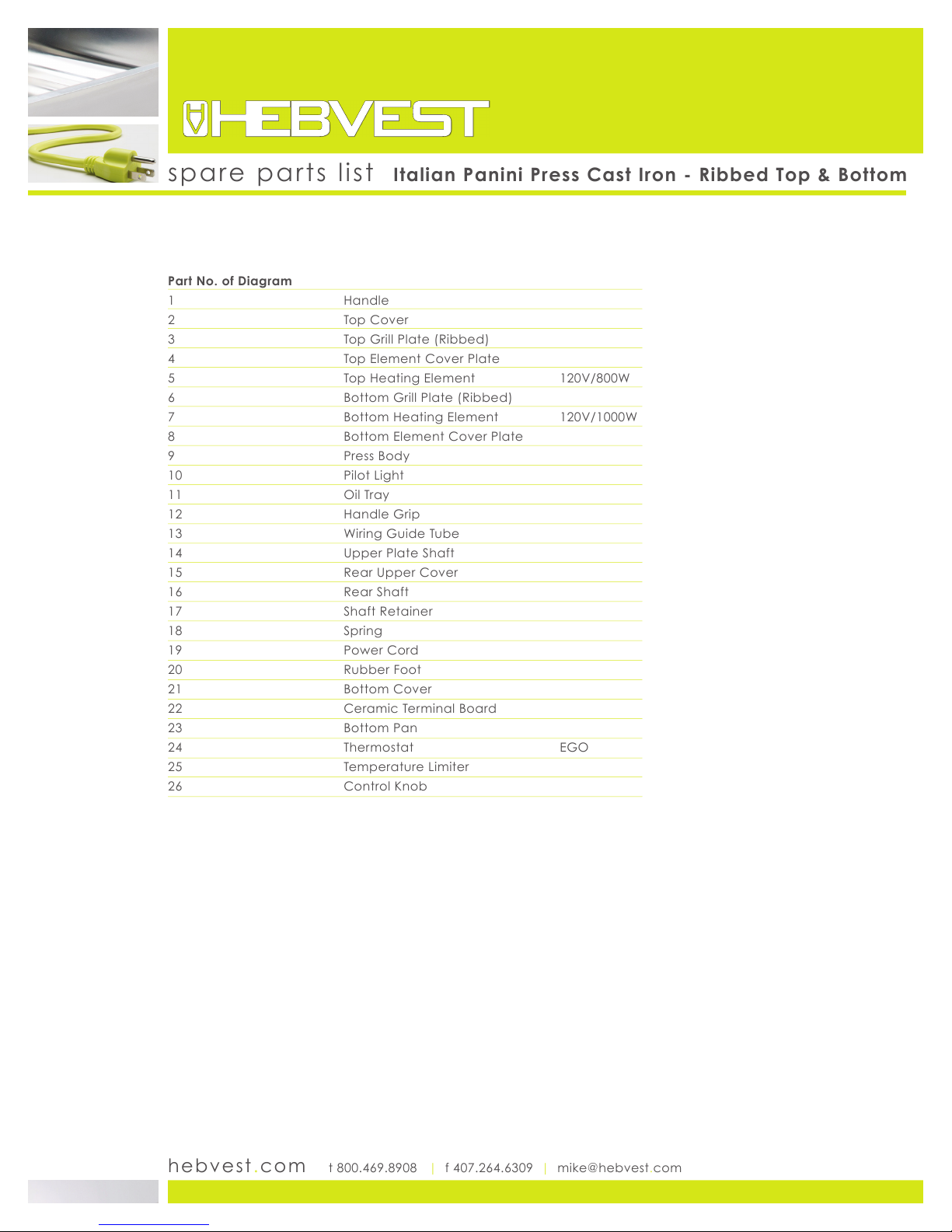

spare parts list Italian Panini Press Cast Iron - Ribbed Top & Bottom
Part No. of Diagram
1 Handle
2 Top Cover
3 Top Grill Plate (Ri bbe d)
4 Top Element Cover P lat e
5 Top Heating Element 120V/800W
6 Bottom Grill Plate (Ribbed)
7 Bottom Heating Element 120V/1000W
8 Bottom Element Cover Plate
9 Press Body
10 Pilot Light
11 Oil Tray
12 Handle Grip
13 Wiring Guide Tube
14 Upper Plate Shaft
15 Rear Upper Cover
16 Rear Shaft
17 Shaft Retainer
18 Spring
19 Power Cord
20 Rubber Foot
21 Bottom Cover
22 Ceramic Terminal Board
23 Bottom Pan
24 Thermostat EGO
25 Temperature Limi ter
26 Control Knob
Page 4
hebvest.com t 800.469.8908 | f 407.264.6309 | mike@hebvest.com

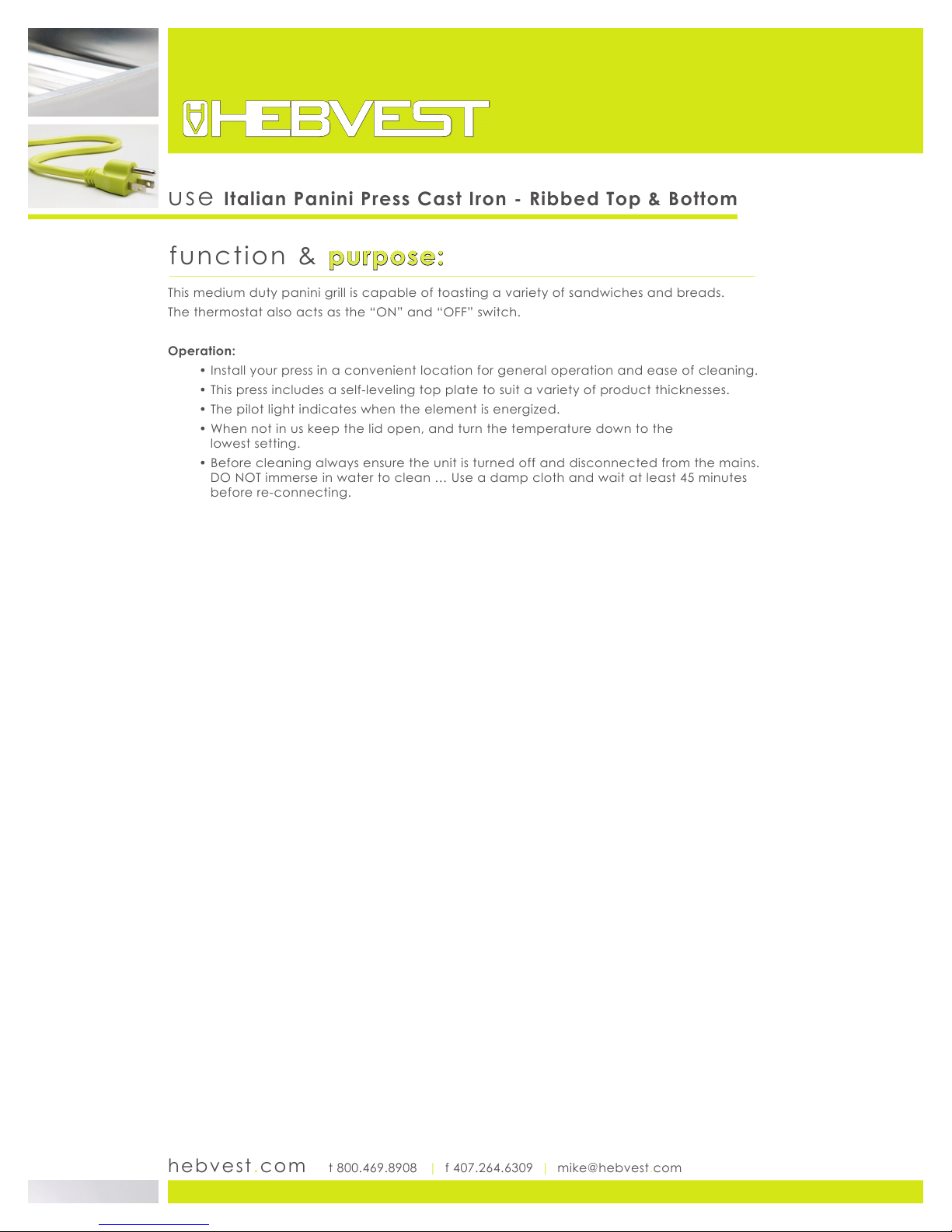

use Italian Panini Press Cast Iron - Ribbed Top & Bottom
function & purpose:
This medium duty panini grill is capable of toasting a variety of sandwiches and breads.
The thermostat also acts as the “ON” and “OFF” switch.
Operation:
• Install your press in a convenient location for general operation and ease of cleaning.
• This press includes a self-leveling top plate to suit a variety of product thicknesses.
• The pilot light indicates when the element is energized.
• When not in us keep the lid open, and turn the temperature down to the
lowest setting.
• Before cleaning always ensure the unit is turned off and disconnected from the mains.
DO NOT immerse in water to clean … Use a damp cloth and wait at least 45 minutes
before re-connecting.
