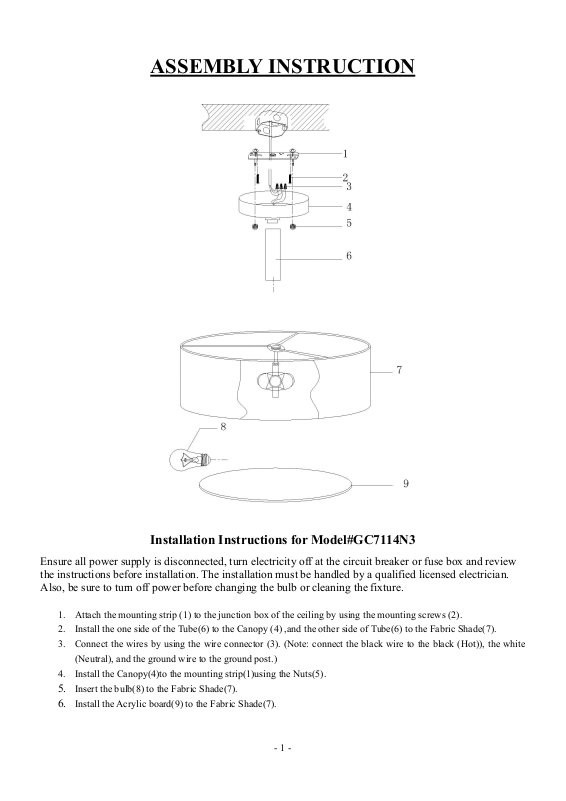

ASSEMBLY INSTRUCTION
Installation Instructions for Model#GC7114N3
Ensure all power supply is disconnected, turn electricity off at the circuit breaker or fuse box and review
the instructions before installation. The installation must be handled by a qualified licensed electrician.
Also, be sure to turn off power before changing the bulb or cleaning the fixture.
1. Attach the mounting strip (1) to the junction box of the ceiling by using the mounting screws (2).
2. Install the one side of the Tube(6) to the Canopy (4) ,and the other side of Tube(6) to the Fabric Shade(7).
3. Connect the wires by using the wire connector (3). (Note: connect the black wire to the black (Hot)), the white
(Neutral), and the ground wire to the ground post.)
4. Install the Canopy(4)to the mounting strip(1)using the Nuts(5).
5. Insert the bulb(8) to the Fabric Shade(7).
6. Install the Acrylic board(9) to the Fabric Shade(7).
