OWNER’S MANUAL

FOUR-PERSON & SIX-PERSON

SAUNAS

SA2418/SA1318/SA1323

TABLE OF CONTENTS

ASSEMBLY TIPS & WARNINGS

PARTS IDENTIFIER

ASSEMBLY INSTRUCTIONS

OPERATION INSTRUCTIONS

ENJOYING YOUR SAUNA

HEALTH & SAFETY WARNINGS

CLEANING & MAINTANENCE

TROUBLESHOOTING GUIDE

REPLACEMENT PARTS

5-9

13-14

15-17

WARRANTY INFORMATION

The information contained in this manual is subject to change without notice.

ASSEMBLY TIPS & WARNINGS

• Before you begin, read all assembly instructions and safety warnings carefully.

• This sauna requires at least 3 adults to complete assembly.

• Remove all of the contents from boxes and verify that you have all of the parts shown on the Parts Identier before you begin assembly. Note: Some parts may be pre-installed or pre-assembled.

• This manual is used for the assembly of several sauna models; therefore, some gures or drawings may not look exactly like your product.

• Cover the sauna oor during assembly to avoid staining the unnished wood surface.

• Retain this Owner’s Manual for future reference.

ELECTRICAL REQUIREMENTS

• We recommend consulting a licensed electrician and checking local ordinances before installing ANY sauna.

• Four-Person Models require a 20 amp receptacle and a 20 amp circuit breaker. Note: Electrical modi-

cations may be required to accommodate 20 amp power.

• Six-Person Models require a dedicated 220V line that should ONLY be installed by a licensed electrician.

• Refer to the serial plate on the back of the sauna for complete electrical specications.

• This sauna requires a dedicated circuit - No other appliances should share the same outlet with the sauna.

CHOOSING A LOCATION

• This sauna should only be placed INDOORS on a dry, level surface.

• There should be a minimum of 5 inches clearance between the sauna and any wall.

• Make sure the main power cord will reach the outlet and remains easy to access.

• The sauna should only be used in a dry location as moisture will damage the wood and electrical components.

• Keep the sauna away from any potential hazards including water sources, ammable objects and combustible materials.

PARTS IDENTIFIER (NOT TO SCALE)

* Refer to REPLACEMENT PARTS (PAGE 15-17) to determine the correct part number when ordering replacements.

ASSEMBLY INSTRUCTIONS

1. Begin assembly by determining an appropriate location for your sauna – see ASSEMBLY TIPS & WARNINGS for details. Attach the BACK PANEL to the FLOOR by lining up the BACK PANEL with the groove in the back of the FLOOR.

2. Attach the LEFT PANEL to the FLOOR. Buckle the LEFT PANEL to the BACK PANEL.

3. Attach the RIGHT PANEL to the FLOOR. Buckle the RIGHT PANEL to the BACK PANEL.

ASSEMBLY INSTRUCTIONS (CONT.)

4. Attach the FRONT PANEL to the FLOOR. Buckle the FRONT PANEL to the LEFT and RIGHT PANELS.

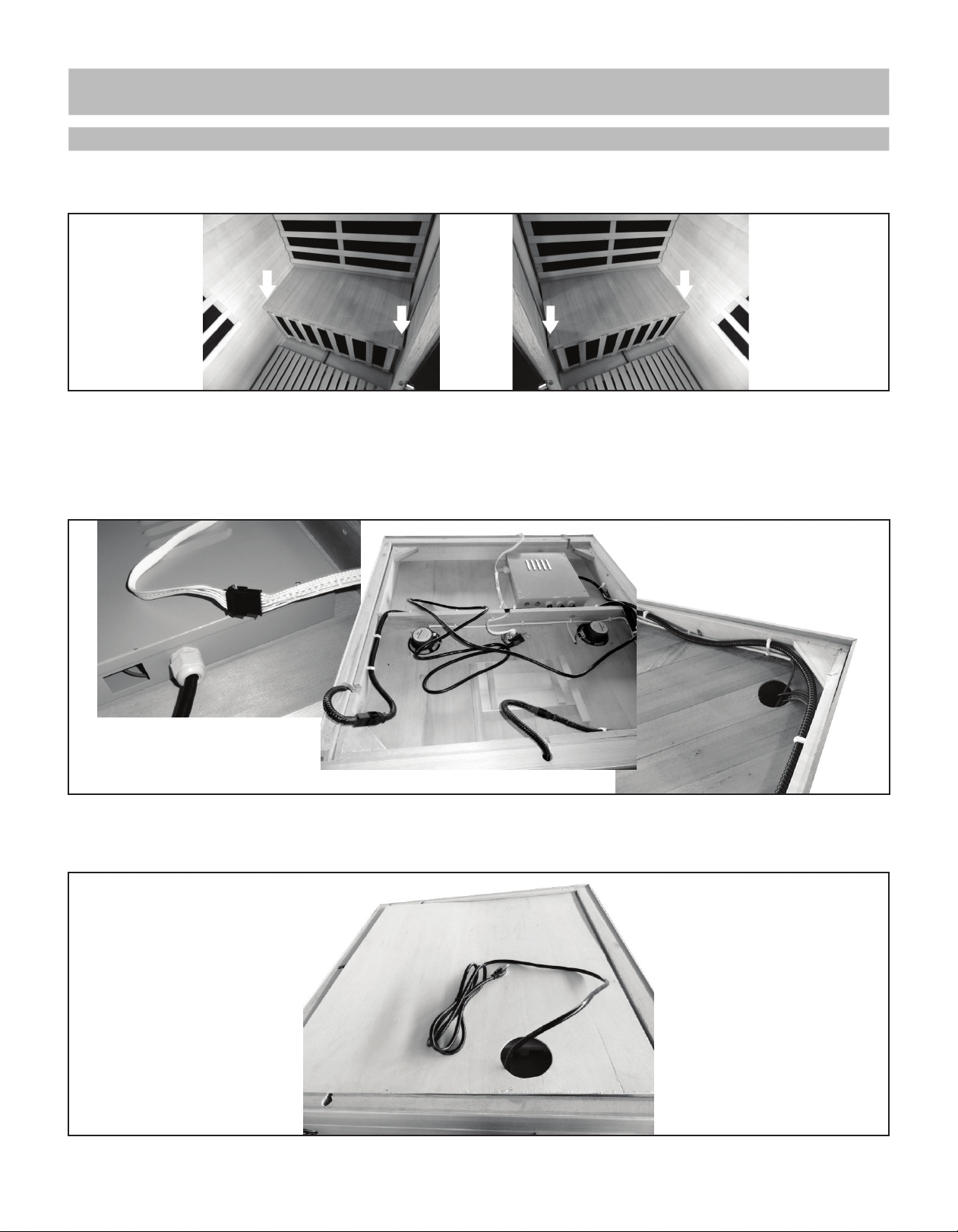

5. Attach the FLOOR HEATER to the FLOOR with 1-1/2” SCREWS. Connect one heater plug to each side of the sauna.

6. Slide each BENCH HEATER PANEL into place between the FRONT and BACK PANELS. Connect the heater plugs. Note: Make sure each FLOOR HEATER cable is placed through the groove

in the bottom of the corresponding BENCH HEATER PANEL.
