HeatWave SA1315, SA1322 User Manual
OWNER’S MANUAL
3-4 and 4-5 Person
Cedar Elite Premium Saunas
Ver. 9/16
Please Do Not Hesitate to
Contact Our Consumer Hotline
at
800-759-0977
with Any Questions That May
Arise During Assembly or
Use of This Product!
SA1315/SA1322
TABLE OF CONTENTS
ASSEMBLY TIPS & WARNINGS
PARTS IDENTIFIER
ASSEMBLY INSTRUCTIONS
OPERATION INSTRUCTIONS
ENJOYING YOUR SAUNA
HEALTH & SAFETY WARNINGS
CLEANING & MAINTANENCE
TROUBLESHOOTING GUIDE
REPLACEMENT PARTS
3
4
5-9
10
11
12
13
13-14
15-17
WARRANTY INFORMATION
If you would like a French version of this manual, please contact
our Customer Service Department at 800-759-0977 or custserv@splashnetxpress.com
Si vous voulez une version française d’un manuel, s'il vous plaît contacter
notre service à la clientèle au 800-759-0977 ou custserv@splashnetxpress.com
18
The information contained in this manual is subject to change without notice.
2
ASSEMBLY TIPS & WARNINGS
• Before you begin, read all assembly instructions and safety warnings carefully.
• This sauna requires at least 2 adults to complete assembly.
• Remove all of the contents from boxes and verify that you have all of the parts shown on the Parts
Note: Some parts may be pre-installed or pre-assembled.
may not look exactly like your product.
• Retain this Owner’s Manual for future reference.
ELECTRICAL REQUIREMENTS
• We recommend consulting a licensed electrician and checking local ordinances before installing
ANY sauna.
• These saunas require a 20 amp receptacle and a 20 amp circuit breaker. Note: Electrical modi -
• These saunas requires a dedicated circuit - No other appliances should share the same outlet
with the sauna.
CHOOSING A LOCATION
• This sauna should only be placed INDOORS on a dry, level surface.
• There should be a minimum of 5 inches clearance between the sauna and any wall.
• Make sure the main power cord will reach the outlet and remains easy to access.
• The sauna should only be used in a dry location as moisture will damage the wood and electrical
components.
combustible materials.
3

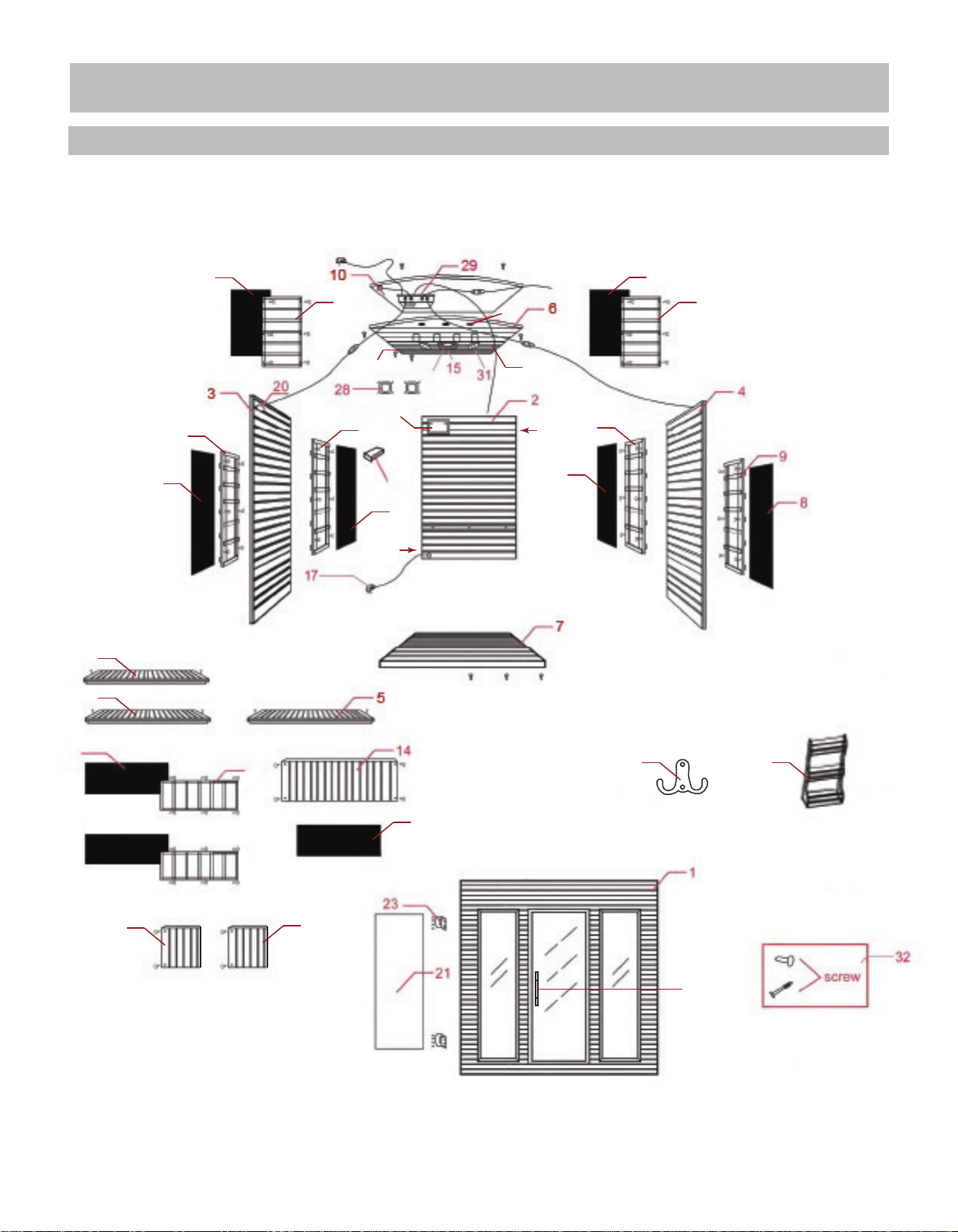

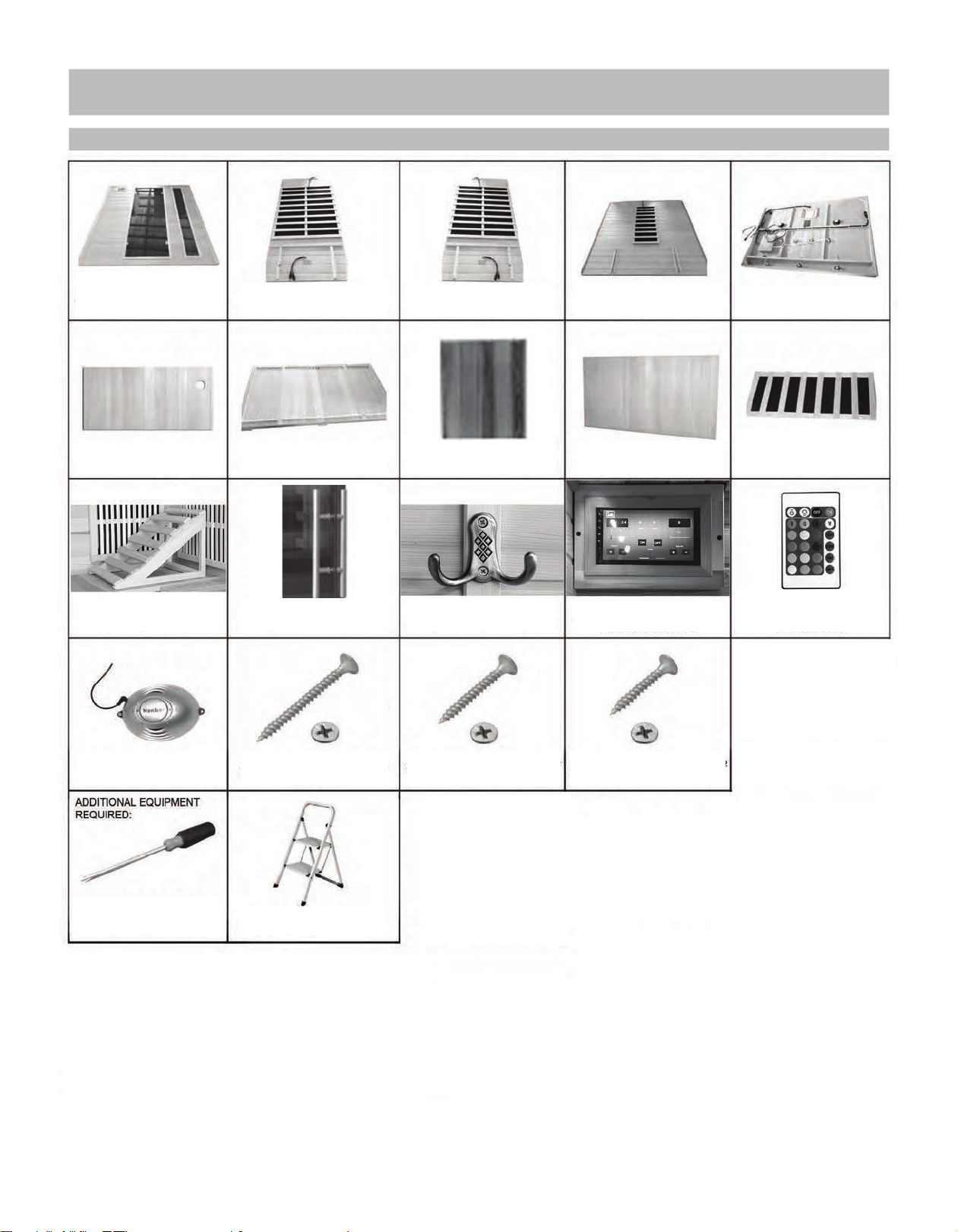

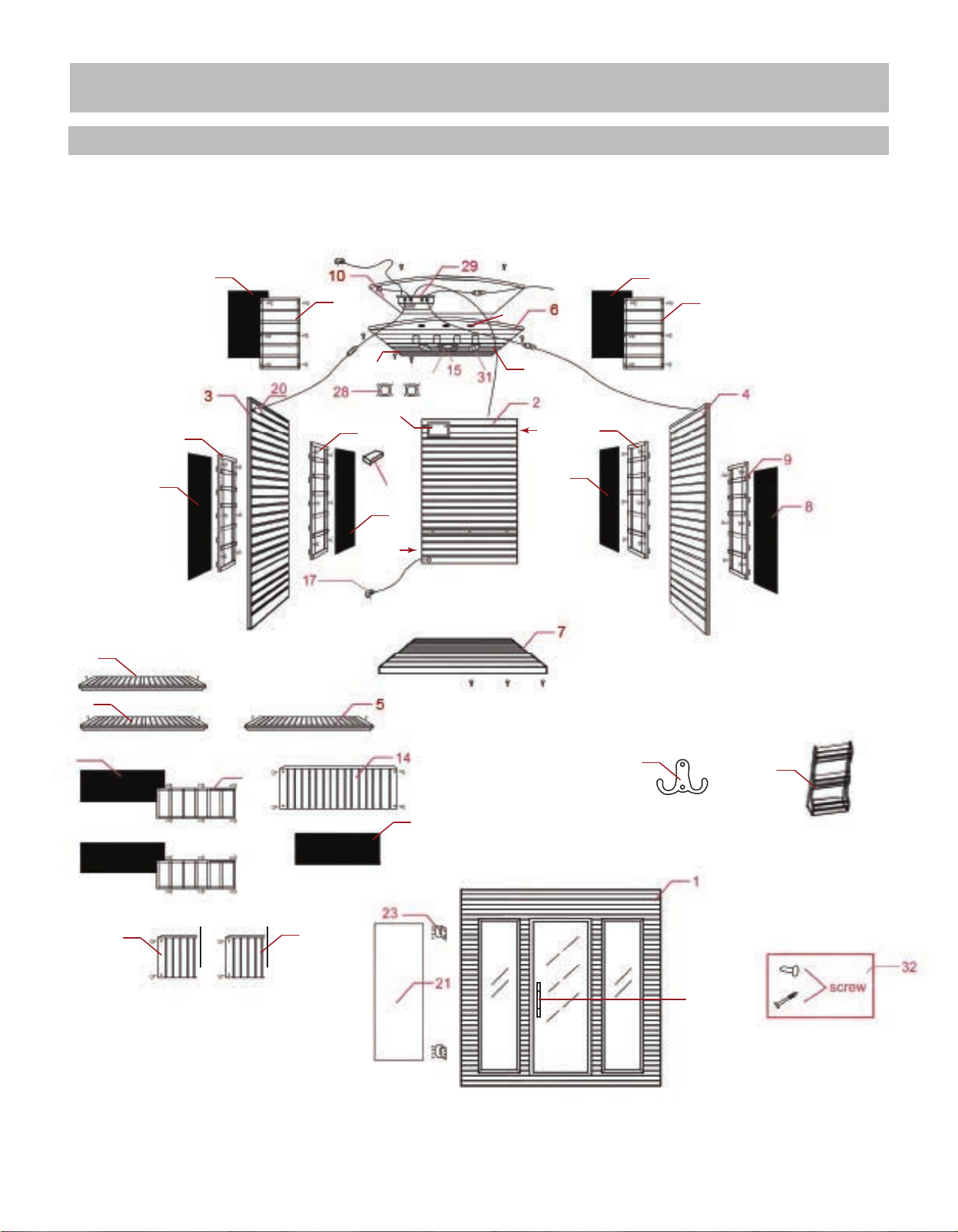

PARTS IDENTIFIER (NOT TO SCALE)
This manual is used for the assembly of several
sauna models; therefore, some images or drawings
may not look exactly like your product.
Refer to REPLACEMENT PARTS (PAGE 15-17) to determine the correct part number when ordering replacements.
For replacement parts please call 800-759-0977.
4

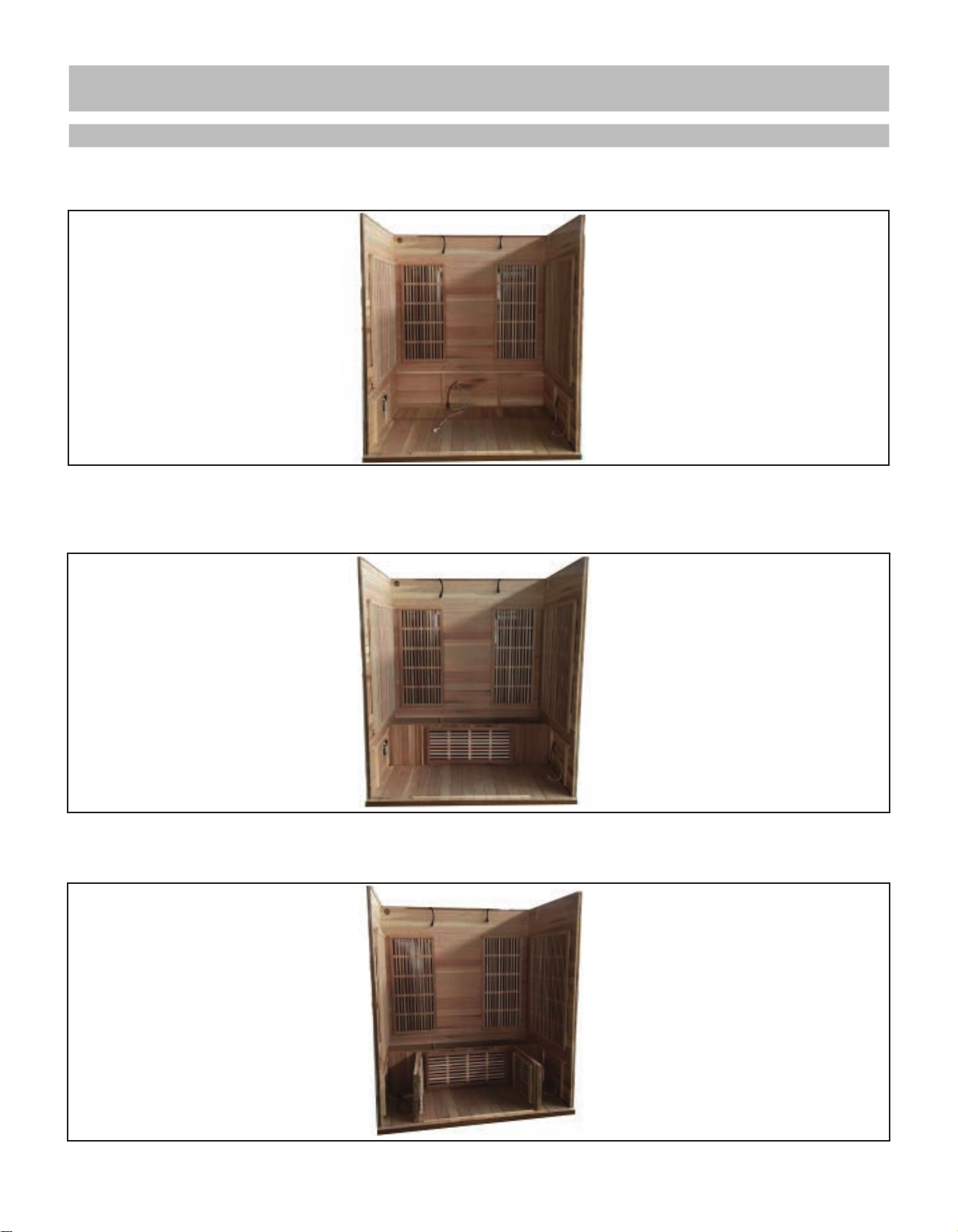

ASSEMBLY INSTRUCTIONS

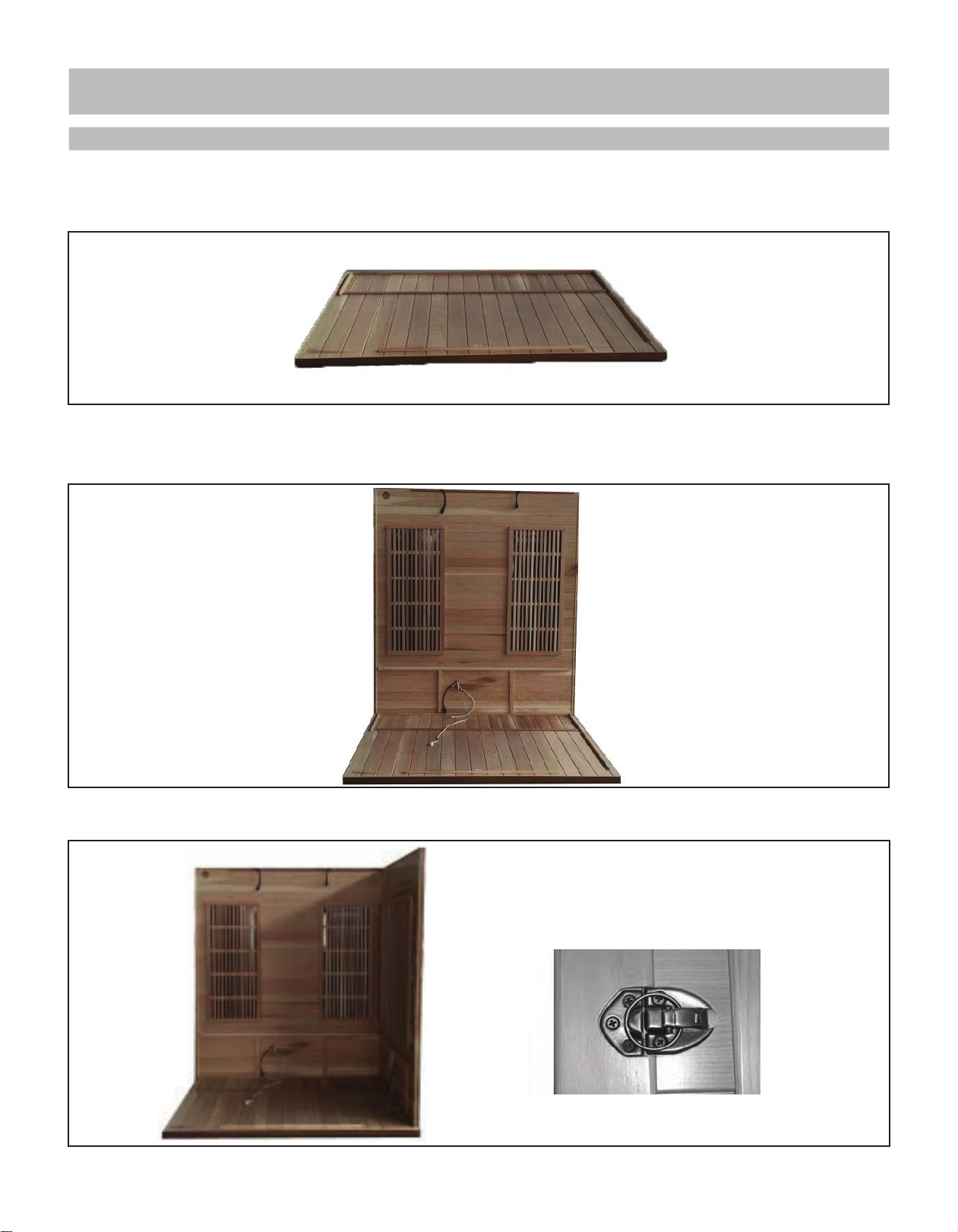

1. Begin assembly by determining an appropriate location for your sauna – see ASSEMBLY
TIPS & WARNINGS for details. Place the FLOOR PANEL on the oor in this location.
2. Place the BACK PANEL on the FLOOR PANEL, lining up the BACK PANEL against the oor
trim piece on the backside of the FLOOR.
3. Place the RIGHT PANEL on the FLOOR in the same manner and buckle it to the BACK PANEL.
NOTE: make sure all panels t together snugly,
with side wall end tting in groove and outer
trim overlapping wall, when buckling panels.
5

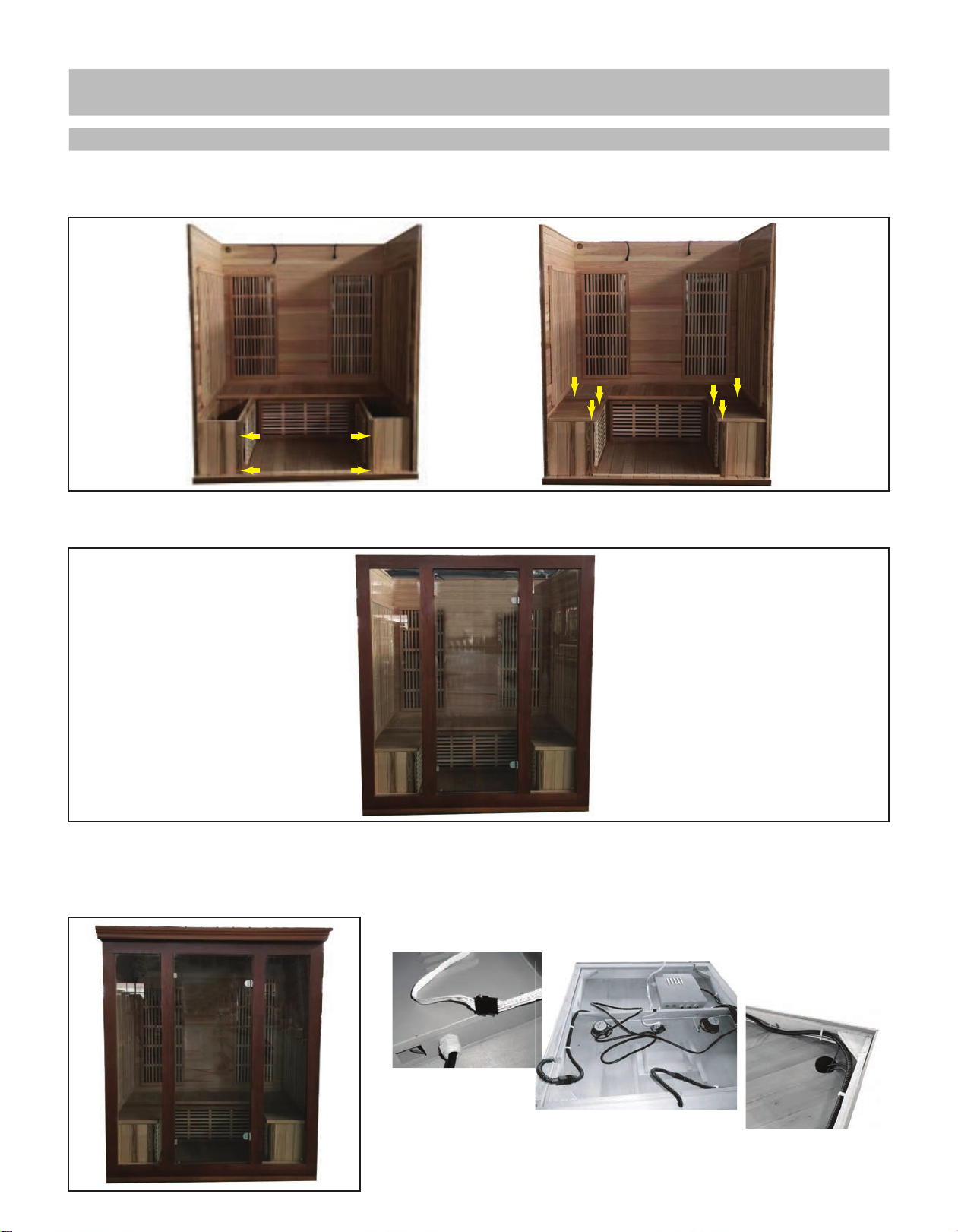

ASSEMBLY INSTRUCTIONS (CONT.)
4. Place the LEFT PANEL on the FLOOR in the same manner and buckle it to the BACK PANEL.
5. Slide the BENCH SUPPORT HEATER PANEL (LONG) into place between the two SIDE PANELS
Connect the heater plug. Note: It may be necessary to move a side wall out slightly to do this.
6. Place the two BENCH SUPPORT HEATER PANELS (SHORT) into place, one on each side, against
the back SUPPORT HEATER PANEL. Connect the heater plugs.
6
ASSEMBLY INSTRUCTIONS (CONT.)
7. Attach two FRONT SIDE BENCH SUPPORTS to BENCH SUPPORT HEATER PANELS (SHORT) with
2” SCREWS. Attach each BENCH SEAT with 2” SCREWS.
8. Place the FRONT PANEL on front lip of the FLOOR and buckle it to the SIDE PANELS.
9. Lift the ROOF above the sauna, feeding the control panel and heater cables through the
corresponding holes. Secure the ROOF to the sauna with 1-1/8” SCREWS. Connect the control
panel wires, antenna, color therapy light and heater plugs.
7
ASSEMBLY INSTRUCTIONS (CONT.)

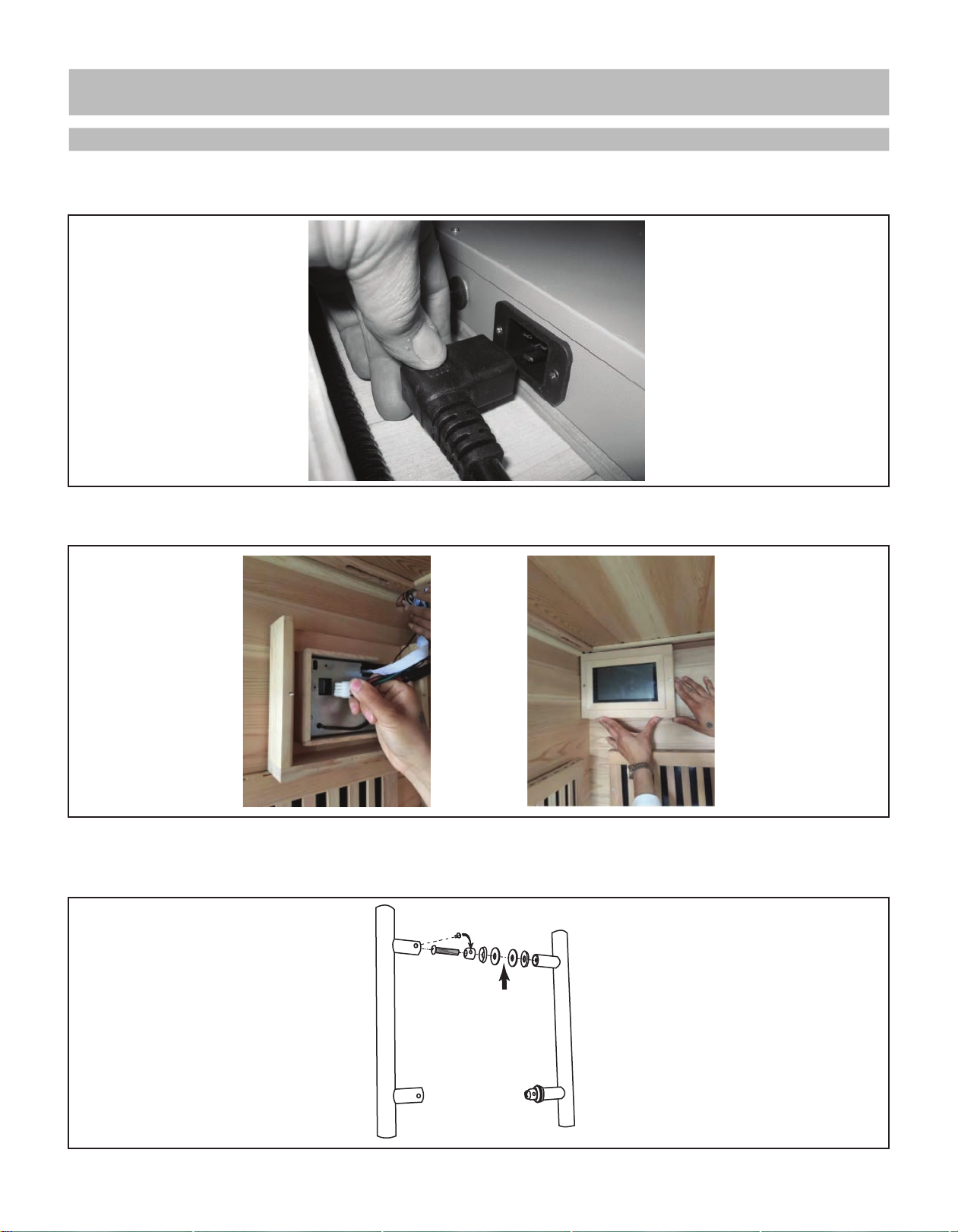

10. Feed the main power cable through hole in ROOF and plug securely into receptacle on back
of POWER SUPPLY box . Secure the ROOF COVER with 3/4” SCREWS.
11. Connect touch screen control panel as shown and mount frame to BACK PANEL with 2” SCREWS.
12. Attach the DOOR HANDLE to the GLASS DOOR by assembling parts (A) as shown (for top
B
A
C
GLASS
DOOR
OUTSIDEINSIDE
8
ASSEMBLY INSTRUCTIONS (CONT.)

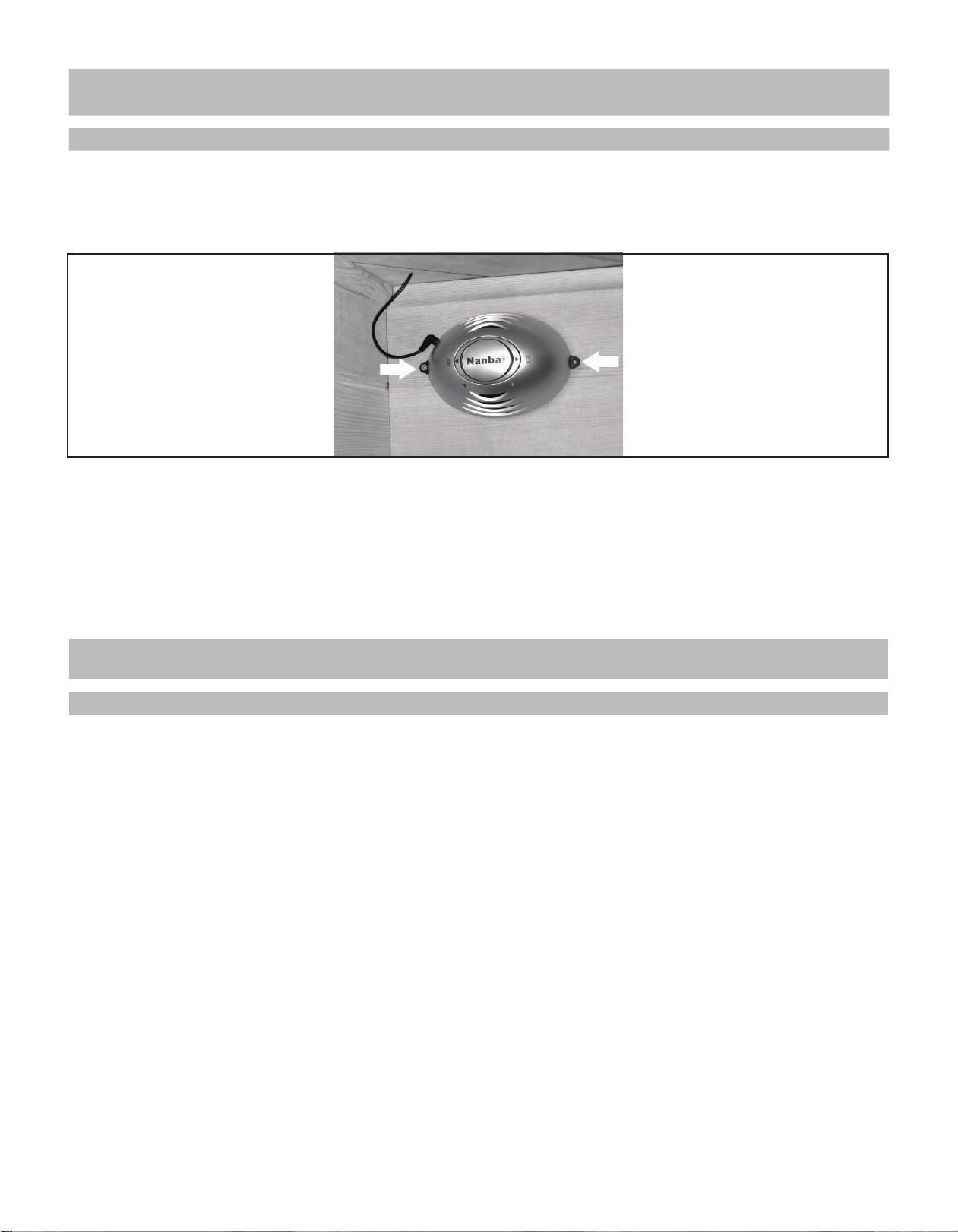

13. Remove the back cover of the OXYGEN IONIZER by turning it as indicated. Unwrap and
install the fragrance patch, then reattach the back cover. Attach the OXYGEN IONIZER in the
designated position with 3/4” SCREWS. Plug the power cable into the OXYGEN IONIZER.
14. Attach the DOUBLE TOWEL HOOK with 3/4” SCREWS. Note: attaching hook is optional, but
if you do, consider the position carefully before driving any screws into the sauna interior.
15. Plug the main power cable into a dedicated outlet. Note: No other appliances should share
the same outlet with this sauna.
CONGRATULATIONS!
The assembly of your sauna is now complete.
Please review the Operation Instructions and Health & Safety warnings before using your
sauna.
To ensure years of trouble-free use, follow the Cleaning & Maintenance guidelines carefully.
9
OPERATION INSTRUCTIONS

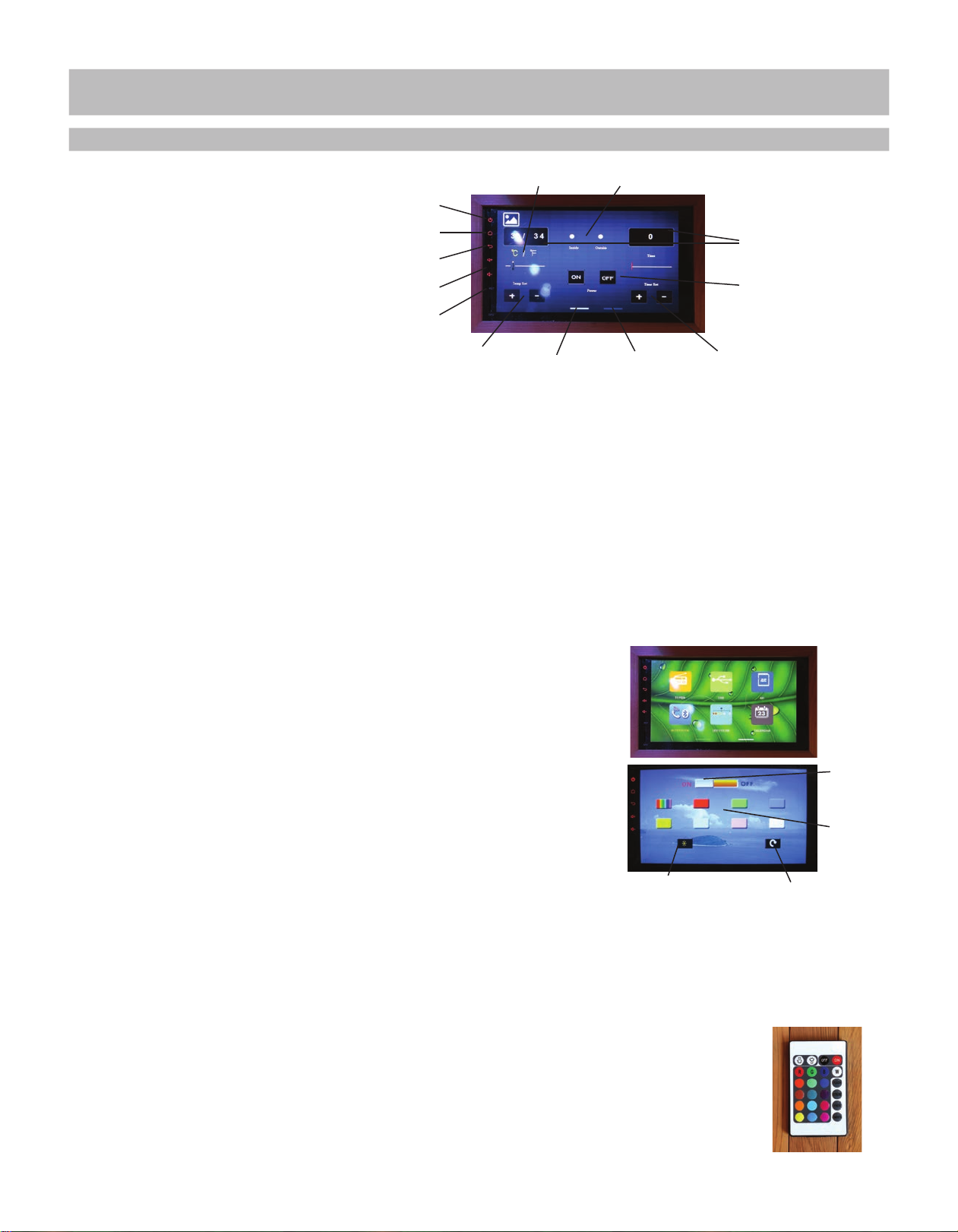

SAUNA CONTROL PANEL MAIN SCREEN
Return to Last Screen
1. & 6. Power
Home Screen
Volume
Reset
3. Set °C or °F
3. Set
Temperature
Main
Screen
7. Lights (Inside & Outside)
5. Temperature &
Time Readings
2. Heater Switch
4. Set Time
8. Second
Screen
1. Press POWER to turn ON Control Panel. This will open Main Screen.
2. Press center Heater Switch to turn Sauna Heater Panels ON or OFF .
3. Select °C or °F and set the desired TEMPERATURE with the (+) and (-) buttons.
4. Set the desired TIME with the (+) and (-) buttons.
5. When the TIME reaches 00, the heaters will turn OFF automatically.
6. After your sauna session, press POWER to turn OFF the sauna.
7. Press INSIDE or OUTSIDE to turn ON or OFF the corresponding light.
8. Use bottom right button to get to SECOND SCREEN for music and color therapy light controls.
SECONDARY SCREEN - Use button to select function
COLOR THERAPY CONTROL PANEL
(use LED COLOR button to reach controls)
1. Press ON or OFF in top white bar.
2. Press cycled color, or individual color desired,
using color buttons.
1. On/O Switch
3. Use dimer switch to control brightness.
4. Cycle switch can be used to go through colors
and select.
3. Dimer Switch
TUNER - Use buttons to select AM and FM radio signal (FM1, FM2, FM3, AM1 or AM2), scroll through
channels (<>), or auto seek (AMS). Channels can be saved in P1- P6.
BLUETOOTH - Use touch contols to select and play music.
CALENDAR - Use arrow buttons on right side of screen to set date and time, then press SAVE.
INTERIOR MOOD LIGHTING
2. Color Selection
3. Color Cycle
1. Use the remote control to make adjustments to interior light color and intensity.
OXYGEN IONIZER
1. Press ION to release negatively charged ions to purify the air.
2. Press O3 to disinfect the air with ozone.
10
ENJOYING YOUR SAUNA
1. Prior to initial use, wipe down all interior surfaces of the sauna with a damp cloth.
3. Always drink plenty of water before, during and after your sauna session to stay properly
hydrated.
4. A normal sauna session should last 30 minutes or less.
5. Allow approximately 15 to 25 minutes for the sauna to warm up before entering.
6. Perspiration will begin within 15 to 25 minutes after entering the sauna.
7. Limit the use of lotions or oils on your body while using your sauna. These products can
8. For spot treatment of a particular area, position that body part closer to the heater, allow-
ing for deeper heating in that area.
spiration and maintain the cleanliness of your sauna.
freely.
11. Open the ceiling vent or the front door to allow fresh air into your sauna.
12. Allow your body to cool down following your sauna session, then rinse the perspiration
-
