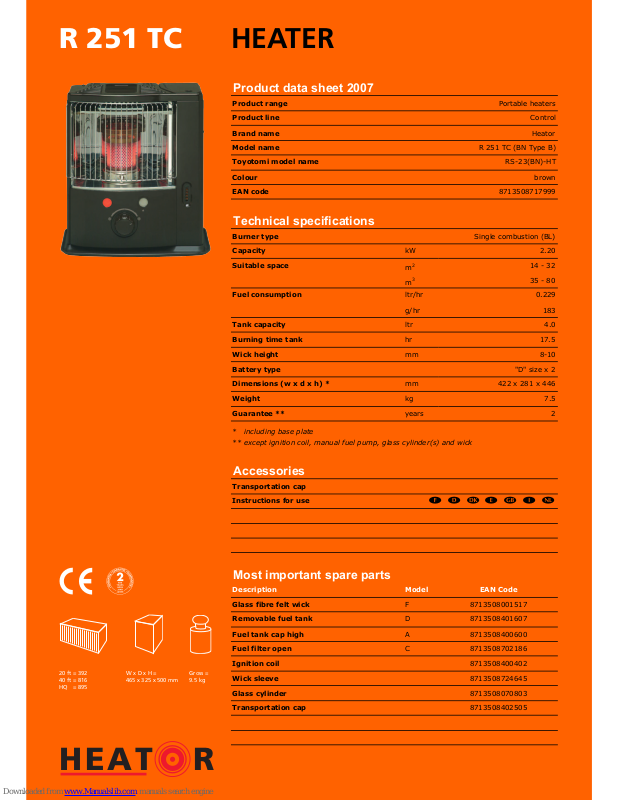

Page 1
R 251 TC
HEAT R
Portable heaters
Control
Heator
R 251 TC (BN Type B)
RS-23(BN)-HT
brown
8713508717999
Burner type Single combustion (BL)
Capacity kW 2.20
Suitable space
m
2
14 - 32
m
3
35 - 80
F
uel consumption
l
tr/hr 0.229
g
/hr 183
Tank capacity ltr 4.0
Burning time tank hr 17.5
Wick height mm 8-10
Battery type "D" size x 2
Dimensions (w x d x h) * mm 422 x 281 x 446
Weight kg 7.5
Guarantee ** years 2
* including base plate
Transportation cap
Instructions for use
Description Model EAN Code
Glass fibre felt wick
F 8713508001517
Removable fuel tank D 8713508401607
Fuel tank cap high A 8713508400600
Fuel filter open C 8713508702186
Ignition coil 8713508400402
Wick sleeve 8713508724645
Glass cylinder 8713508070803
Transportation cap 8713508402505
Technical specifications
Product data sheet 2007
Product range
Product line
Brand name
Model name
Toyotomi model name
Colour
EAN code
Accessories
Most important spare parts
** except ignition coil, manual fuel pump, glass cylinder(s) and wick
3 2 6 5 4 > 1
20 ft = 392
40 ft = 816
HQ = 895
W x D x H =
465 x 325 x 500 mm
Gr
oss =
9.5 kg
HEATER
Page 2
R 251 TC HEATER
Features
No installation: This heater can be installed without wires and without
exhaust pipes. This makes it a very convenient heating source.
High efficiency: This heater has a 99.99% heat efficiency with infrared
radiation heating.
Automatic tip-over switch: The heater will be shut off automatically
when the heater is knocked over.
S
afe top:This heater is equipped with a safe top. The temperature of the
top plate is kept relatively low for improved safety.
Safety stop: This heater is equipped with a shut-off safety switch. By
pressing this switch the heater will be shut off immediately.
Made in Japan: This heater has been produced according to the ISO
9000:2000 Quality Control Standard.
Room temperature thermistor: This heater automatically shuts off when
the room temperature becomes too high, to avoid the risk of a lack of
oxygen.
A
utomatic tip-over switch
R
oom temperature
t
hermistor
Open filter
Transportation cap
Safety stop
S
afe top
Easy to move
Adjustable flame height
