HEATIZON SYSTEMS
RADIANT HEATING, FLOOR WARMING AND
SNOW MELTING SYSTEMS
© 2014 Heatizon Systems
www.heatizon.com
The Heatwave Heating Cable comes in pre-established lengths that have been
designed to deliver a specified heat density. Therefore, it is essential that all of
the Heatwave Heating Element contained in your kit be installed.
In order to minimize the risk of damage to the Heatwave Heating Cable, Heatizon
Systems recommends that the Heatwave Cable be installed immediately prior to
the installation of the cementitious material that goes over it.
Never cross the Heatwave Heating Cable over itself, the in-floor sensor wire , or
any other conductive material or wire.
When installing Heatizon Systems products, strict compliance with the National
Electrical Code, local Building Codes, and Heatizon’s Installation Manual is es-
sential.
It is highly recommend to take photographs of the installed Heatwave before in-
stalling the flooring.
2
Distributed by: Heatizon Systems
4137 South 500 West
Murray, UT 84123
Phone: (801) 293-1232
Fax: (801) 293-3077
Email: info@heatizon.com
Website: www.heatizon.com
Table of Contents
General Information ............................................................................................. 4
Planning the Installation ....................................................................................... 5
Important Safeguards and Warnings ................................................................... 6
1. General Guidelines .......................................................................................... 6
1.1 Use of the Manual..................................................................................... 6
1.2 Safety Guidelines ..................................................................................... 6
1.3 Remember to Measure Resistance .......................................................... 7
1.4 15-year Limited Warranty ......................................................................... 7
2. Heatwave System ........................................................................................... 7
2.1 Heatwave Specifications ........................................................................... 7
2.2 Thermostat Specifications ........................................................................ 7
2.3 Heatwave Typical Installations and Applications ...................................... 8
3. Floor Heating Installation Design .................................................................... 9
3.1 Design the Installation ............................................................................. 9
4. Product Selection ........................................................................................... 10
4.1 Heatwave Mat Selection ........................................................................... 10
4.2 Heatwave Cable Selection ........................................................................ 11
5. Heatwave Layout and Installation ................................................................... 12
5.1 Before Laying Your Heatwave Product .................................................... 12
5.2 Heatwave Mat Installation ........................................................................ 14
5.3 Heatwave Cable Installation .................................................................... 15
6. Completing Installation ................................................................................... 16
7. Commissioning ............................................................................................... 18
7.1 Insulation Resistance Test ........................................................................ 18
7.2 Heating Cable Resistance Test ................................................................ 18
7.3 Sensor Resistance Test ............................................................................ 18
8. Troubleshooting .............................................................................................. 19
Additional Information
Electrical Connection Details .......................................................................... 20
Heatwave Warranty ........................................................................................ 21
Heatwave Installation Registration Form ........................................................ 22
Layout Grid ..................................................................................................... 23
3
General Information
The instructions in this manual must be followed when preparing and
installing the Heatwave Cable or Mat Floor Warming System. This
manual and the installation layout should be made available to all
contractors and installers working on the job. Both should then be
turned over to the building owner after the installation is complete.
NOTE: FAILURE TO FOLLOW THE INSTRUCTIONS IN THIS MANUAL MAY VOID
THE WARRANTY ON THE FLOOR-WARMING SYSTEM.
Temperature and Time Control
For optimal control of the Heatwave floor warming system, contact your Heatizon Systems
distributor for a variety of floor-sensing thermostat options.
Maintenance
The Heatwave floor-warming system has no moving parts and is virtually maintenance-free.
The GFCI (Ground Fault Circuit Interrupt), internal to the thermostat if Heatizon Systems
supplied it, should be tested monthly as described in the manufacturer’s pamphlet to insure
its continued safe operation. If an external GFCI is utilized instead, it should be tested
monthly.
Subfloors
Heatwave may be installed over any well insulated subfloor (i.e. plywood, concrete, or underlayment material) prepared in accordance with the most recent TCA (Tile Council of
America) guidelines and rated to withstand 180 degrees Fahrenheit.
Floor Coverings
Heatwave will be most effective if installed under rigid floors that are naturally good conductors of heat such as ceramic tile, marble, and other stone floorings. There are limitations in
applications that utilize different floor coverings. Please consult with your Heatizon Systems
Distributor for details on heating wall-to-wall carpeting, parquet, laminate or engineered
wood floors and vinyl or linoleum flooring
Insulation
Heatwave will be most effective and efficient if installed over well-insulated areas. Insulation
will minimize heat loss into the subfloor (i.e. concrete slab), al-
lowing the heat to transfer to the surface more quickly.
4
Planning the Installation
Before laying the Heatwave Cable or Mat Floor Warming System, review the installation layout and verify that all dimensions match the need of the project. The installa-
tion plan should include the following:
1. Placement, direction, and dimensions of the Heatwave Cable or Mat
2. The starting and ending points of each Heating Cable length or Mat size
3. The location of the thermostat or other suitable activation
4. The location of the floor sensor between two heating cables
REMEMBER! The installation plan for each area should be attached to this manual
and be provided to the building owner when the installation is complete.
Installation Considerations
DO
1. Completely inspect the Heatwave System
immediately upon its arrival and report any
damage to Heatizon Systems and the deliv-
ery party.
2. Clean the floor of all debris before placing
the mat/cable on the floor.
3. Make sure there are no protruding objects
(nails, staples, etc.) on the subfloor that
could damage the heating element.
4. Walk over the unprotected Cable/Mat with
rubber soled shoes.
5. Measure and record Cable/Mat resistance
according to the instructions.
6. Use Cables/Mats connected to the same
controller or used in the same room or area, that have the same heat output. i.e.
ALL Cables/Mats should be EITHER 10
watts/sq. ft. OR ALL 15 watts/sq. ft.
7. Make sure all components of the system
are rated for the same Voltage (120V OR
240V).
8. Have all electrical work completed by a pro-
fessional electrician in accordance with all
local and national codes and regulations.
9. Connect Heatwave to a dedicated circuit.
10. Call our Technical Support Hotline at 888-
239-1232 if you need answers to installa-
tion questions, need help solving a problem, or believe that the Heatwave system
got cut or damaged during installation.
DON’T
1. DON’T shorten the heating Cable/Mat.
2. DON’T cut the heating wire.
3. DON’T drop or bang any tools (i.e.
trowel) on or hit the heating wires
with any sharp objects.
4. DON’T install any fasteners such as
nails, screws, etc. through any area
covered by the Heatwave Cable/Mat.
5. DON’T install Heatwave under
cabinets, built-in appliances, etc. to
avoid excessive heat from building up
in those areas.
6. DON’T install Cables/Mats over
expansion joints.
7. DON’T install Heatwave in walls.
8. DON’T install Heatwave in showers.
9. DON’T overlap Cables/Mats or allow
any wires to cross or touch each other.
10. DON’T crimp the heating wire while
customizing the mat.
11. DON’T place area or throw rugs thicker
that ½” (or other objects) over the heat-
ed area to avoid excessive build-up of
heat in these areas.
12. DON’T attempt to repair cut or damaged
heating wire without the proper instructions and repair kit (obtained from your
distributor or Heatizon Systems).
13. DON’T forget to install the floor
sensor if you are installing a floor-
sensing thermostat.
14. DON’T install Heatwave in glues other
than cement-based, self leveling tile-
setting mortars.
5
Important Safeguards and Warnings
WARNING: Shock and fire hazard
If the Heatwave System is damaged or not installed properly, fire or shock could occur
resulting in serious personal injuries or damage to property. You must carefully follow
the warnings and instructions contained in this manual.
It is important that this equipment is installed only by qualified persons who are familiar with the proper sizing, installation, construction and operation of floor warming
systems and the hazards involved. The installation must comply with all national and
local electrical codes. If you are unfamiliar with these requirements, contact the NEC
(National Electric Code), CSA (Canadian Standard Assocation) or an Electrician.
The Heatwave System is designed for under floor heating purposes only. Be sure
that the floor is not penetrated by nails, screws, or similar devices that can cause dam-
age during and after installation or during subsequent or future floor work .
If the Heatwave System is damaged, it must be replaced. Do not attempt to splice or
repair any part of the system.
1 General Guidelines
1.1 Use of the Manual This manual describes the Heatwave Mat and Cable floor
heating system — how to design the room, select the product, and install the system.
It is important to thoroughly review this manual and the Thermostat Installation and
Operation Manual prior to installation:
For additional information regarding any aspect of the Heatwave System, contact:
Heatizon Systems
4137 South 500 West
Murray, UT 84123 USA
Tel: 888-239-1232
Tel: 801-293-1232
Fax: 801-293-3077
www.heatizon.com
1.2 Safety Guidelines
The safety and reliability of any floor heating system depends on proper design, installation, and testing. Incorrect installation or mishandling of the product can cause damage to the heating cable, system components and property, and can create a risk of
fire or shock. The guidelines and instructions contained in this guide are important.
Follow them carefully to minimize these risks and to ensure that the Heatwave System
performs reliably.
Pay special attention to the following:
Instructions marked
Safety warnings identified as WARNING
IMPORTANT
6
1.3 Remember to Measure Resistance
The resistance should be measured between the two conductors wires.
Compare this resistance reading to the resistance specified in the Product Selection
“Table 1.” The value should be within ±10%. If you get a different reading, contact
Heatizon Systems at 888-239-1232. Also, measure the resistance between each of the
two conductors and the shielding/ground wire. Both should read infinity. If you get a differ-
ent reading, contact Heatizon Systems at 888-239-1232. Please refer to “7 Commissioning” for instructions on how to measure the resistance.
Important: measure the resistance four times during the installation process
Remember to always measure, verify and record the actual resistance throughout the installation process (out of the box, after installation, after covering with cementitious mate-
rial, and after installation of floor tiles).
1.4 Fifteen-year Limited Warranty
For a period of fifteen (15) years, from the date of purchase, Heatizon warrants that the
Heatwave heating cable is free from defects in material, design and workmanship. The
warranty is only valid if the warranty certificate has been properly completed and mailed,
and the installation is in accordance with the installation instructions.
2 Heatwave System
2.1 Heatwave Specifications
Cable Construction Twin Conductor Twin Conductor
Rated Voltage 120V, 240V 120V, 240V
Output 12W/ft
Cable Spacing 3" (76.2mm) 2.5" to 4.5" (64.5mm to 114.3mm)
Cable Diameter
Conductor Insulation Fluoropolymer Fluoropolymer
Outer Insulation Fluoropolymer or TPE Fluoropolymer or TPE
2
(130W/m2) ± 10% 2.73 to 4.36W.ft (8.66 to 14.30W/m) ± 10%
1
/8" to 1/6" (3.2mm to 4.2mm)
Max. Ambient Temp. 85°F (30°C) 85°F (30°C)
Min Installation Temp 40°F (5°C) 40°F (5°C)
Cold Lead 2-wire heating conductor plus ground braid; 15 ft
(4.57 M)
Mats Cables
1
/8" to 1/6" (3.2mm to 4.2mm)
2-wire heating conductor plus ground braid; 15 ft
(4.57 M)
2.2 Thermostat Specifications
Functions On/Off Control
Supply Voltage 120/240V ± 15%, 50/60 Hz
Maximum Switching Current 16 AMP
Temperature Control Range 40° to 104°F (5° to 40°C)
Ambient Range 32° to 104°F (0° to 40°C)
Floor Temperature Sensor 2-wire, 10 foot lead wire
7
2.3 Heatwave typical installations and applications
Alternative method: self-leveling cement is recommended for large surfaces and the fol-
lowing floor materials: engineered wood, laminate, floating floors, vinyl, linoleum and
carpet.
Warning
Consult the manufacturer for information on special installation requirements for carpets,
wood, laminate and vinyl or linoleum flooring.
Important
Read the instructions carefully before installing Heatwave system.
Remember to measure the resistance four times.
Do not install Heatwave in walls or ceilings.
The cable must be embedded in cementitious material.
The minimum installation temperature is 40ºF (5°C ).
The heating cable cannot be cut to length, crossed over itself, or installed too close.
Use copper conductor wire only.
Remember to check that the supply voltage matches the voltage of the Heatwave.
Remember to place the labels as written in this instruction.
Only for indoor installation.
Metal structures or materials used for the support of or on which the Heatwave is in-
stalled must be grounded in accordance with applicable CSA or NEC requirements.
Please consult Heatizon Systems for any other questions.
8
3 Floor Heating Installation Design
3.1 Design the Installation
3.1.1 Measure the heated area
Determine the heated area of the floor where there are no permanent fixtures or furniture
such as showers, toilets, vanities, or cabinets. Measure the heated area of the floor.
For example, in Figure 3, the area of the bathroom is 96 ft2, but when you subtract the area
of the vanity, shower and toilet, the total heated area is only 74 ft
3.1.2 Determine the power supply voltage
The available supply voltages include 120 V, 208 V or 240 V.
Important
Operating the 240V cable at 208V reduces the power output to approximately 9W/
sq.ft. (25% reduction)
3.1.3 Plan the design
Determine the optimum Heatwave Cable or Mat layout for your heated area to ensure coverage. Select a spot for the thermostat in the wall above the heated area where it can be
reached by the 10-foot cold lead on the Heatwave, and the length of the floor temperature
sensor. Please refer to Figure 4.
Important
The predetermined Heatwave spacing must be maintained to ensure proper floor
heating. To avoid cold areas on the floor, do not change the Heatwave heating cable
spacing when you lay out the Mat or Cable.
2
.
Figure 3:
Heated area example
Figure 4:
Typical cold lead and floor
9
4.0 Product Selection—Select Either Heatwave Mat or
Heatwave Cable
4.1 Heatwave Mat Selection
Confirm that your Heatwave is no larger than the heated area. Following the example
from Figure 3, if the heated area is 74 ft2, select the 70 ft
Heatwave Mats, 12 Watts/Ft2, 120 VAC
2
Heatwave Heating Mat.
Heatizon Part
Number
HW2012-100 120 120.0 1.0 2.73 10.0 12.00 6.1’ 20” 2.90” 10’ HW2012-10
HW2012-150 180 80.0 1.5 3.59 15.0 12.00 9.1’ 20” 3.81” 10’ HW2012-15
HW2012-200 240 60.0 2.0 3.13 20.0 12.00 12.2’ 20” 3.33” 10’ HW2012-20
HW2012-250 300 48.0 2.5 2.63 25.0 12.00 15.2’ 20” 2.79” 10’ HW2012-25
HW2012-300 360 40.0 3.0 2.55 30.0 12.00 18.3’ 20” 2.71” 10’ HW2012-30
HW2012-350 420 34.3 3.5 3.47 35.0 12.00 21.3’ 20” 3.69” 10’ HW2012-35
HW2012-400 480 30.0 4.0 3.12 40.0 12.00 24.4’ 20” 3.31” 10’ HW2012-40
HW2012-500 600 24.0 5.0 3.20 50.0 12.00 30.5’ 20” 3.40” 10’ HW2012-50
HW2012-600 720 20.0 6.0 3.40 60.0 12.00 36.6’ 20” 3.61” 10’ HW2012-60
HW2012-700 840 17.1 7.0 2.93 70.0 12.00 42.7’ 20” 3.11” 10’ HW2012-70
HW2012-800 960 15.0 8.0 2.65 80.0 12.00 48.8’ 20” 2.82” 10’ HW2012-80
HW2012-900 1080 13.3 9.0 3.36 90.0 12.00 54.9’ 20” 3.56” 10’ HW2012-90
HW2012-1000 1200 12.0 10.0 4.15 100.0 12.00 61.0’ 20” 4.44” 10’ HW2012-100
Manufacturer
Number
Total
Watts
Total
Ohms
Amp
Load
Watts/
Foot
Heatwave Mats, 12 Watts/Ft2, 240 VAC
Heatizon Part
Number
HW2012-400B 480 120.0 2.0 3.13 40.0 12.00 24.4’ 20” 3.33” 10’ HW2024-40
HW2012-500B 600 96.0 2.5 2.63 50.0 12.00 30.5’ 20” 2.79” 10’ HW2024-50
HW2012-600B 720 80.0 3.0 2.55 60.0 12.00 36.6’ 20” 2.71” 10’ HW2024-60
HW2012-700B 840 68.6 3.5 2.39 70.0 12.00 42.7’ 20” 2.54” 10’ HW2024-70
HW2012-800B 960 60.0 4.0 3.12 80.0 12.00 48.8’ 20” 3.31” 10’ HW2024-80
HW2012-900B 1080 53.3 4.5 2.59 90.0 12.00 54.9’ 20” 2.75” 10’ HW2024-90
HW2012-1000B 1200 48.0 5.0 3.20 100.0 12.00 61.0’ 20” 3.40” 10’ HW2024-100
HW2012-1100B 1320 43.6 5.5 2.86 110.0 12.00 67.1’ 20” 3.03” 10’ HW2024-110
HW2012-1200B 1440 40.0 6.0 3.40 120.0 12.00 73.2’ 20” 3.61” 10’ HW2024-120
HW2012-1450B 1740 33.1 7.3 3.14 145.0 12.00 88.4’ 20” 3.33” 10’ HW2024-145
HW2012-1600B 1920 30.0 8.0 2.65 160.0 12.00 97.6’ 20” 2.82” 10’ HW2024-160
Manufacturer
Number
Total
Watts
Total
Ohms
Amp
Load
Watts/
Foot
Coverage
Area/Square
Foot
Coverage
Area/Square
Foot
Watts/
Square
Foot
Watts/
Square
Foot
Mat
Length
Mat
Length
Mat
Width
Mat
Width
Cable
spacing
(O.C.)
Cable
spacing
(O.C.)
14AWG
Cold Lead
Length
14AWG
Cold Lead
Length
10
4.2 Heatwave Cable Selection
The Heatwave
to deliver a specified heat density. To insure that the Heatwave® Heating Element length
®
Heating Cable comes in pre-established lengths that have been designed
you have purchased is the correct size for your project, complete this simple worksheet
prior to beginning the installation process.
STEP 1.
STEP 2.
STEP 3.
STEP 4.
STEP 5.
Heatizon
Part Number
120V Input
HWC-815 HWC2012-44 120 120.0 1.0 2.73 8-15 14-8 44’ 2.5-4.5”
HWC-1630 HWC2012-77 240 60.0 2.0 3.12 16-30 14-8 77’ 2.5-4.5”
HWC-3260 HWC2012-154 480 30.0 4.0 3.12 32-60 14-8 154’ 2.5-4.5”
HWC-5094 HWC2012-203 750 19.2 6.3 3.69 50-94 14-8 203’ 2.5-4.5”
HWC-64120 HWC2012-362 960 15.0 8.0 2.65 64-120 14-8 362’ 2.5-4.5”
Heatizon Part
240V Input
HWC-1631B HWC2024-86 245 235.1 1.0 2.85 16-31 14-8 86’ 2.5-4.5”
HWC-3260B HWC2024-110 480 120.0 2.0 4.36 32-60 14-8 110’ 2.5-4.5”
HWC-56105B HWC2024-242 840 68.6 3.5 3.47 56-105 14-8 242’ 2.5-4.5”
HWC-80150B HWC2024-375 1200 48.0 5.0 3.20 80-150 14-8 375’ 2.5-4.5”
HWC-114214B HWC2024-564 1710 33.7 7.1 3.03 114-214 14-8 564’ 2.5-4.5”
HWC-128239B HWC2024-726 1915 30.1 8.0 2.64 128-239 14-8 726’ 2.5-4.5”
STEP 6.
Calculate Square Footage to be Heated. Determine the square footage of the
area to be warmed. Note: this is not necessarily the same as the room dimen-
sions. Enter the total square footage on line A.
Determine Watts Per Square Foot. Determine the Watts per square foot that
you will need for your application. Heatizon Systems suggests the following
Watts per square foot:
Floor Warming—8 to 15 Watts per square foot
Space Heating—Watts per square foot and spacing
between element runs should be determined by a heat loss calculation.
Contact Heatizon Systems for information on how to obtain a heat loss
calculation.
Enter the desired total Watts per square foot on Line B.
Calculate Total Watts. Calculate total Watts by multiplying Line A by Line B,
and enter the result on Line C.
Determine Input Voltage. Determine if the Heatwave® Heating Cable will be
powered by 120VAC or 240VAC, and check the correct input voltage on Line D.
Select the Correct Heatwave® Heating Cable Length. Use the table below to
select the Heatwave® Heating Cable Model that is the correct input Voltage
from line D, and will deliver the total watts calculated on Line C. Heatizon Systems recommends that you select the next larger Heatwave® Heating Cable
Length if the total Watts calculated in Step 3 is between two models. Select the
model number, and write the corresponding Element “Cable Length” on Line E.
Coverage
Area/Square
Foot
Coverage
Area/Square
Foot
Number
Manufacturer
Number
Manufacturer
Number
Total
Watts
Total
Watts
Total
Ohms
Total
Ohms
Amp
Load
Amp
Load
Watts/
Foot
Watts/
Foot
Calculate Element Spacing. Calculate the amount of space between
the runs of element for your application and the Heatwave® Heating Element
Model you have selected. Enter the element spacing on Line F.
____________ ÷ _____________ x 12 = _______________
Square footage Element Length Element Spacing
From Line A from Line E (Enter on Line F)
Watts/
Square
Foot
Watts/
Square
Foot
Line A ________________
(Square Footage)
Line B ________________
(Watts per Square Foot)
Line C ________________
(Total Watts)
Line D 120VAC 240VAC
(Circle One)
Line E ________________
(Element Length)
Cable
Length
Cable
Length
Cable
spacing
(O.C.)
Cable
spacing
(O.C.)
Line F __________ inches
(Element Spacing)
Above Above
11
5 Installation
Important: Tools and materials required
The following items may be required to install and test the floor heating system:
Scissors Tape measure
Utility knife Screwdriver
Wire strippers Multimeter
Heatizon Plastic Cable Clips or Spacing Band
5.1 Before Laying the Heatwave Mat or Cable
Note: A continuous continuity check should be conducted on the Heatwave Heating
Cable or Mat and all electrically conductive material prior to and during the pouring of
concrete, installation of floor coverings, and immediately prior to energizing all Heatwave products. The circuit should always be open. Always complete a Heatizon Systems “Resistance in OHMS Form” (see form in the back of this manual) out of the box,
immediately following the installation of the Heatwave Heating Cable/Mat, immediately
prior to covering the Heatwave Heating Cable/Mat, and again just prior to energizing
the Heatwave Heating Cable/Mat.
Follow these steps to ensure a successful
Heatwave installation.
5.1.1 PLAN YOUR LAYOUT
Using the last page of this manual, make a sketch layout or
a floor plan of the room; include all permanent furnishings
such as toilets, bathtubs, appliances, cabinetry, etc. Indicate all dimensions required to determine the available
floor area and the position of the thermostat.
Important Heatizon recommends that the installation is documented with photos and drawings to note
the location of connections and the sensor.

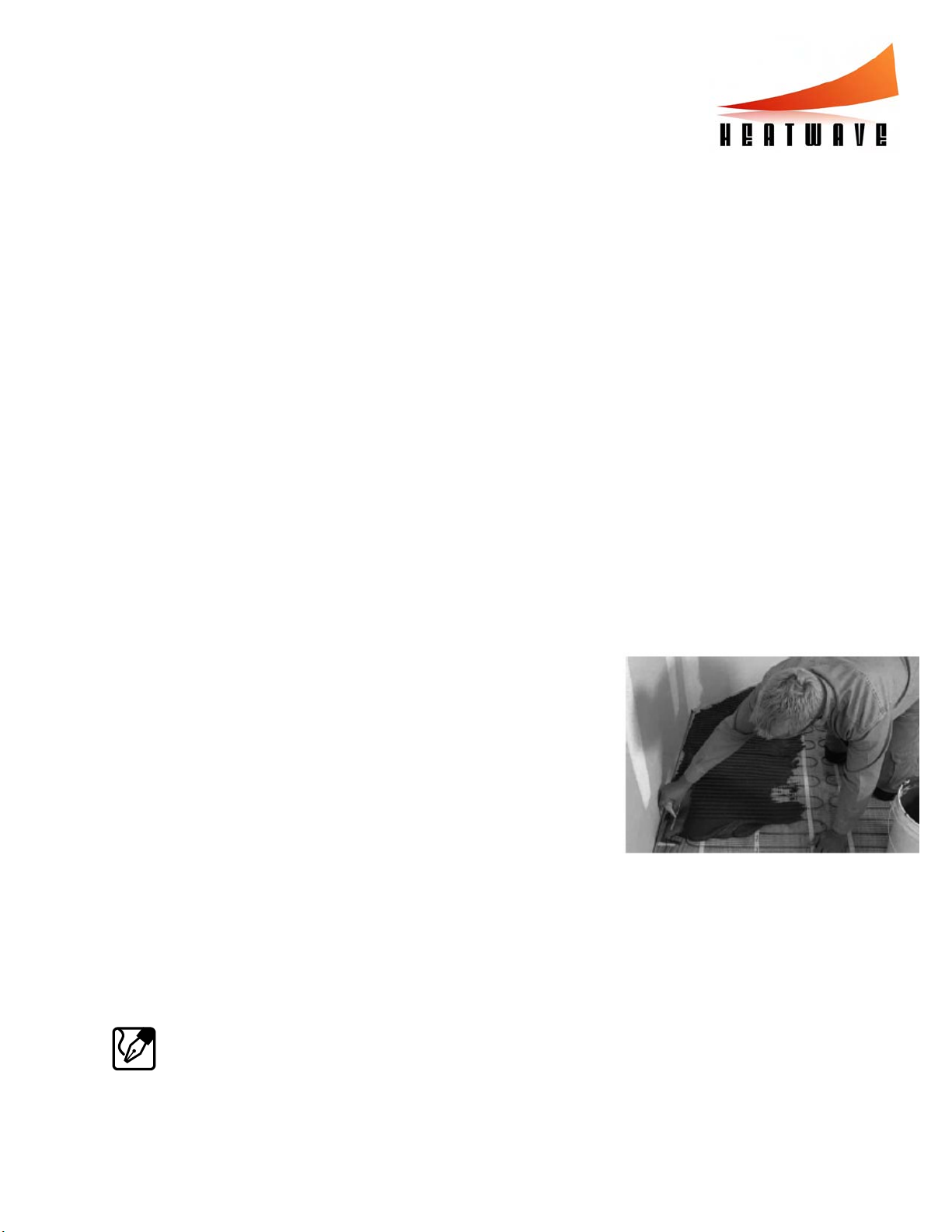

5.1.2 TRANSFER LAYOUT TO FLOOR
Draw an outline of the layout on the room floor including a
foot print of all furnishings that are not yet installed. Unroll
the first few feet of the Heatwave Mat or Cable. The starting point of the cable must be placed within 10 ft. of the
thermostat.
Important Mark the position of the connection point
between the power lead and the red Heatwave heat-
ing cable. This connection must be concealed in ce-
mentitous material. When using a floor temperature sensing thermostat, mark the sensor position in the middle of
two heating cables, about 10 in. (25 cm) away from the
wall (within the heated area), as close as possible to the
thermostat.
12
5.1.3 INSTALL SENSOR
If using a floor temperature sensing thermostat,
install the sensor now, either in conduit tube, or
directly to the subfloor. The sensor and/or tube
needs to be installed between the thermostat wall
box and the sensor position. The conduit tube
must be partially countersunk into the subfloor. Cut
a channel approximately 5/16″ deep × 5/16″ wide
in the floor and wall up to the thermostat for the
sensor conduit. The conduit has to go from the
thermostat and minimum of 10″ away from the wall
towards the middle of the floor.
Note:It is recommended that the sensor be installed in conduit tube. This will allow the sensor to
be easily replaced in the unlikely event of failure.
Important
The sensor conduit must be centered in the cable loop (between two red heating wires). Use
duct tape to close the end of the conduit so that the cementitious material can't penetrate the
conduit. Use duct tape to hold the sensor conduit into the groove to prevent it from floating up
when the cementitious material is poured. If the sensor is installed directly in the mortar bed,
use duct tape to secure to subfloor.
5.1.4 PREPARE SUBFLOOR SURFACE
Clean and vacuum the floor thoroughly and remove
dust and debris from the floor that may damage the
heating cable. Ensure that the subfloor is secure
and stable. Carefully fill in all cracks to prevent any
potential damage to the new tiles resulting from
shifts in the subfloor.
5.1.5 MEASURE THE RESISTANCE (TEST #1)
Use a digital OHM meter to measure the resistance of the Heatwave Mat/Cable
and compare it to the total OHMS in table in Section 4.1 for Mats or in Section 4.2
for Cables. Record the measured resistance on the Registration Form. Documenting the resistance at each stage of installation is required for warranty purposes.
Also, measure the resistance between each conductor and the shielding/ground
wire. Both should read infinity. Please refer to “7 Commissioning” for instructions
on how to measure the resistance.
NEVER CUT OR SHORTEN THE RED HEATING CABLE!
DO NOT STAPLE THE RED HEATWAVE HEATING CABLE. STAPLE ONLY
THE WEBBING ON HEATWAVE MATS WHERE NO CABLE IS LOCATED!
NEVER PLACE RED CABLE WITHIN 6” OF A WAX TOILET RING.
13
If you are installing
HEATWAVE MATS,
continue with your installation
below beginning with section 5.2.
5.2 Heatwave Mat Installation
5.2.1 Start by placing the mat such that the con-
nection point and the temperature sensor are in
their intended positions and bring the power cable
to the thermostat or connection box. Begin unrolling the Heatwave Mat evenly across the floor
outside the areas that you marked previously.
When you reach the next wall, cut the mesh
(being careful not to cut the heating cable),
turn the mat, and begin rolling in the desired di-
rection.
5.2.2 Ensure that the Heatwave is in full contact
with the subfloor at all times. Avoid walking on the
heating mat. If this is not possible, use shoes with
very soft rubber soles. When approaching obstacles (toilets, cabinets, etc.), carefully remove
some of the red heating cable from the mat and
lead the cable around the obstacle. In some cas-
es pieces of the mesh will be cut away entirely.
5.2.3 Use Heatizon Plastic Cable Clips or a thin
strip of tape to secure the loose cable to the floor.
OR
If you are installing
HEATWAVE CABLES,
skip to Section 5.3 to continue
with your installation.
5.2.4 MEASURE THE RESISTANCE (TEST #2)
Use a digital OHM meter to measure the resistance of the Heatwave Mat and compare it to
the total OHMS in table in Section 4.1. Record the
measured resistance on the Registration Form.
Documenting the resistance at each stage of installation is required for warranty purposes. Also,
measure the resistance between each conductor and the shielding/ground wire. Both
should read infinity. Please refer to “7 Commissioning” for instructions on how to meas-
ure the resistance.
GO TO STEP 6.
14
If you are using Heatwave Cable, continue your installation
beginning with 5.3 below.
5.3 Heatwave Cable Installation
Make sure you have verified that you
have purchased the correct Heatwave
Cable to heat the area you have selected and that you have determined the
correct spacing for the area you are
heating, the Watts you need the system to deliver, and the size of system you purchased See
Table in Section 4.2.
5.3.1 Plan room layout using tape measure, marking
pencil, and chalk line. Lay out perimeter of area to be
heated first, keeping a minimum of 3 inches from walls
and or cabinets and the first run of element. Once the
layout is complete, roll out the Heatwave Heating Cable,
making sure that both ends of the heating element
(where the Heatwave Heating Cable is pre-connected to
the Cold Lead segment) are within 10 vertical and horizontal feet of the power switching thermostat location to
accommodate Cold Lead length.
Note: All of the Heatwave Heating Cable and the connection
between it and Cold Lead must be surrounded by cementitious
material.
5.3.2 Tie off one Cold Lead at the location where the
Power Switching Thermostat will be located. Continue by
laying out Heatwave Heating Cable on the predetermined
layout, and fasten with plastic clips as described below
for your floor surface.
5.3.3 When anchoring the Heatwave Heating Cable to
wood subfloors use either the Plastic Clips and Nails
Heatizon Part #ANCHPLUGKIT or Metal Spacing Banding Heatizon Part #HWCSTRAP33. Never use any attachment that will compromise the Heatwave Heating Cable or its insulation in any way. Each 90 degree bend
and each 180 degree turn requires two Heatizon Plastic
Clips. Heatizon Plastic Clips should be spaced approximately every 24 inches along the length of the Heating
cable. Heatizon Plastic Clips can be inserted around
Heatwave Heating Cable, and secured to sub floor by
hammering nail or driving a screw through anchor ends
until both plastic tails are flat against sub floor surface.
Repeat with each Heatizon Plastic Clip until all clips are
secure. If Heatizon’s Metal Spacing Bands are used
please check continuity between the Heatwave Heating
Cable and the Band as the cable is installed.
15
5.3.4 If Heatwave Heating Cable is being installed directly on existing concrete, a Heatizon Anchoring Plug Kit may be purchased.
Use a 1/4" cement drill bit to drill holes 1" deep in every location
where a nail or screw will be located. Install one Anchoring Plug into
each pre-drilled hole by tapping plugs until they are flush with the
surface of the concrete. Anchoring Plugs should fit tightly in pre-drilled holes. If using
Heatizon Plastic Clips, put a clip around Heatwave Heating Cable and secure by hammering nail through anchor ends directly into the wood plug, until both plastic tails of
the clip are flat against the concrete and plug. Repeat with each Heatizon Plastic Clip
until all clips are secure.
5.3.5 Continue laying out and anchoring Heatwave Heating Cable until complete.
Make certain the end of the Cold Leads attached to the Heatwave Heating Cable return to the thermostat location. When all of the Heatwave Heating Cable has been installed and secured, run the second Cold Lead parallel to the first Cold Lead back to
the thermostat, and secure both Cold Leads to the stud nearest the chosen location for
the thermostat.
5.3.6 MEASURE THE RESISTANCE (TEST #2)
Use a digital OHM meter to measure the resistance of the Heatwave Mat/Cable and compare it to the total OHMS in table in section 4.1 for Mats or in section 4.2 for Cables. Record
the measured resistance on the Registration Form. Documenting the resistance at each
stage of installation is required for warranty purposes. Also, measure the resistance between each conductor and the shielding/ground wire. Both should read infinity. Please refer
to “7 Commissioning” for instructions on how to measure the resistance.
6 Completing Installation
ENSURE THAT THE SENSOR CONDUIT HAS BEEN
PROPERLY INSTALLED BEFORE PROCEEDING
In the case of tiles, proceed with the installation of the tiles
by covering the heating cables with a layer of thin-set ce-
ment as directed by the tile manufacturer. Ensure that the
thin-set mortar covers the entire height of the heating cable
as the tiles are installed. In the case of a wood, engineered
or laminate floor covering, it is recommended that the flooring manufacturer be
contacted. For wooden floors, a minimum of 3/16 in. of self-leveling cement over
the heating cable is recommended. Ensure that all moisture in the self-leveling
cement has been fully eliminated in accordance with the drying times recommended by the manufacturer (consult the manufacturer for exact drying time) prior
to energizing your Heatwave product. Do not use Heatwave to dry self-leveling or
other cementitious material.
Important
The system must not be turned on until the cementitious material has fully dried.
A minimum of two weeks is recommended.
16
6.1 MEASURE THE RESISTANCE (TEST #3)
Use a digital OHM meter to measure the resistance of the Heatwave
Mat/Cable and compare it to the total OHMS in table in section 4.1 for
Mats or in section 4.2 for Cables. Record the measured resistance on the
Registration Form. Documenting the resistance at each stage of installation is
required for warranty purposes. Also, measure the resistance between each
conductor and the shielding/ground wire. Both should read infinity. Please re-
fer to “7 Commissioning” for instructions on how to measure the resistance.
6.2 INSTALL THE LOW RESISTANCE FLOOR COVERING
To install tile, apply a layer of acrylic or latex modified thin-set using the ridged
side of your trowel. Tile and grout the floor using best industry practices and in
accordance with instructions provided by the manufacturer of the tile.
6.3 CONNECT POWER SUPPLY AND THERMOSTAT
The connection of the power supply and the thermostat must be done by a
qualified person in accordance with the National Electrical Code (NEC) and
the Canadian Electrical Code (CEC). Connect the floor sensor to the thermostat, take the final resistance reading and record it on the Registration Form,
see 6.5.
Note: You need to mark the appropriate circuit breaker reference label indicating which branch circuit supplies the circuits to those electric space heating
cables.
6.4 MEASURE THE RESISTANCE (TEST #4)
Use a digital OHM meter to measure the resistance of the Heatwave Mat/
Cable and compare it to the total OHMS in table in section 4.1 for Mats or in
section 4.2 for Cables. Record the measured resistance on the Registration
Form. Documenting the resistance at each stage of installation is required for
warranty purposes. Also, measure the resistance between each conductor and
the shielding/ground wire. Both should read infinity. Please refer to “7 Com-
missioning” for instructions on how to measure the resistance.
6.5 RECORD INFORMATION AND AFFIX LABELS
It is important for the homebuilder/owner to mail in the warranty certificate immediately after installing the system (Heatwave Mat or Cable and Thermostat).
Failure to do so could void the manufacturer's warranty. The warranty is subject to the guarantee conditions listed on the warranty certificate. Keep a copy
of the Registration Form for your reference. Place the included label “Electric
Shock or Fire Hazard” on the inside of the electrical power distribution panel.
6.6 ENJOY THE COMFORT OF HEATWAVE
The Heatwave Heating System is now ready to use. Increase the floor temperature gradually and adjust it until it reaches a comfortable level depending on
the type of room and your personal preferences.
17
7 Commissioning
Important
For the 15-year limited warranty to apply, you must perform these tests, record
the results on the Registration Form, and retain a copy of the record. You must
perform the Insulation Resistance Test, the Heating Cable Resistance Test, and the
Sensor Resistance Test four times (Please refer to 4 Installation) during the installation
process.
7.1 Insulation Resistance Test
This test ensures that the insulating jackets of the heating
cable are not damaged. A low value indicates the cable
has been damaged and must be replaced.
A. Connect the ground wire to the black lead and
both power wires to the red lead of the multimeter.
B. Make sure the meter reads “Open” or “OL.” If
you get a different reading, contact Heatizon at
888-239-1232.
C. Record these readings on the Registration
Form.
7.2 Heating Cable Resistance Test
This test measures the resistance of the Heatwave and is used to determine circuit in-
tegrity.
A. Set your multimeter to the 200 or 2000 ohm
range.
B. Connect the multimeter leads to the black and
white cold lead wires.
C. Compare this resistance reading to the resistance specified in the Product Selection “Table 1
or Table 2”. The value should be within ±10%. If
you get a different reading, contact Heatizon at 888
-239-1232.
D. Record these readings on the Registration
Form.
7.3 Sensor Resistance Test
This test measures the resistance of the floor sensor
and is used to verify the sensor integrity.
A. Set your multimeter to the 200K ohm range.
B. Connect the mutimeter leads to the red and
green lead wires.
C. Make sure the meter reads between 9-25K
ohms. If you get a different reading, contact
Heatizon at 888-239-1232.
D. Record these readings on the Registration
Form.
18
8 Troubleshooting
Symptom Probable Causes Corrective Action
Floor doesn’t heat No voltage. Check circuit breaker.
Circuit breaker tripped. Ensure that there are not too
many appliances connected on
the same circuit. The Heatwave
Mat may require a dedicated
circuit. See the Product Se-
lection “Table 1” of this manual
Floor warm all the time Clock not set correctly. Refer to Thermostat Installation
Floor not warm enough Thermostat setting not set cor-
Ground-fault tripped in the thermostat.
Thermostat not turned on Refer to Section 4 of this manu-
Cable not connected to thermo-
stat
Floor temperature sensor not
connected
Faulty sensor. Contact Heatizon Systems at
rectly
Refer to Thermostat Installation
and Operation Manual.
al and the Thermostat Installa-
tion and Operation Manual
Refer to Thermostat Installation
and Operation Manual.
Refer to Thermostat Installation
and Operation Manual.
888-239-1232.
and Operation Manual.
Refer to Thermostat Installation
and Operation Manual.
Installation instructions Download Heatwave Installa-
tion instructions from
www.heatizon.com
888-239-1232
www.heatizon.com
19
Note: All Electrical Connections for the Heatwave Floor-Warming
System and Controls should be performed by a Professional Elec-
trician in accordance with all Local and National Electrical Codes.
Electrical Connection Details
A deep, 2 1/8” X 4” single-gang junction box (OR a “roomier” 4” X 4” double-gang box
with a mud plate) should be provided by the electrician for the thermostat connections.
See Rough-In Electrical Preparation Diagram, below.
Conduit to Power
Source
A dedicated circuit is
recommended for
ALL installations. A
separate GFCI and a
Contactor will be
required if the heating current exceeds
15 Amps.
2 1/8 X 4” Deep
Junction Box
OR
4” x 4” Deep
Junction Box with
adjustment mud
plate for
Thermostat with
Internal GFCI
1
/2” Conduit
for Sensor
Wire (Must be
kept separate
from Cold
Lead wires)
Junction Box
(Needed for
Multiple Mat
or Cable
Installations
3
/
”
4
Conduit
for Cold
Leads
20
Heatwave Limited Warranty
Heatizon Systems warrants the Heatwave product to be free of defects in materials and workmanship for 15 years from the date of installation while in possession of the original owner,
provided:
1. The product is installed and tested in accordance with the Installation/ Homeowners Manual
and Heatwave Resistance Documentation Procedures.
2. The installation is registered with Heatizon Systems within 10 days of the installation date.
This registration is accomplished by the installer and/or homeowner, who must complete and
return the Installation Registration Form to Heatizon Systems (at the address given below).
3. The product was not damaged or misused by the homeowner or any tradesman/agent of the
owner. Heatizon Systems takes no responsibility under this warranty for damage caused by the
homeowner or tradesman retained by the homeowner to install the Heatwave product.
Heatizon Systems staff will be available to provide advice and consultation to the installers of
the Heatwave product to assure that they are informed concerning the procedures required to
complete a proper installation. Controls used to operate the Heatwave product are warranted
by their manufacturers according to their warranty policies. Under this Limited Warranty,
Heatizon Systems will, at its option, provide either or both of the following:
A. Technical support (by phone) to assist the installer(s) in isolating the problem area. If
deemed repairable, the appropriate repair kit shall be provided. In such a case, ALL
OTHER MATERIALS AND LABOR necessary to complete the repair of the affected
area must be supplied by the homeowner.
B. Credit for the faulty Heatwave product up to the limit of the original price of the
Heatwave product used in the installation, as Heatizon Systems’ sole obligation under
this LIMITED warranty.
This LIMITED Warranty is null and void if the owner does not inform Heatizon Systems of the
problem within thirty (30) days of it’s discovery OR if the homeowner or any tradesman retained by the homeowner attempts to repair the problem without informing and consulting with
a staff member of Heatizon Systems regarding the appropriate testing and/or repair proce-
dures.
HEATIZON SYSTEMS DISCLAIMS ANY WARRANTY NOT PROVIDED HEREIN INCLUDING
THE IMPLIED WARRANTY OF MERCHANTIBILITY AND IMPLIED WARRANTY
OF FITNESS FOR A PARTICULAR PURPOSE. HEATIZON SYSTEMS FURTHER
DISCLAIMS ANY RESPONSIBILITY FOR LOSSES, EXPENSES, INCONVENIENCES, SPE-
CIAL, INDIRECT, SECONDARY, INCIDENTAL, OR CONSEQUENTIAL DAMAGES ARISING
FROM OWNERSHIP OR USE OF THE PRODUCT. THERE ARE NO WARRANTIES
THAT EXTEND BEYOND THE FACE HEREOF.
Heatizon Systems
4137 South 500 West
Murray, UT 84123
Phone (801) 293-1232 Fax (801) 293-3077
www.heatizon.com
21
Heatwave Installation Registration Form
Instructions: This form must be completed and returned for each installation. A copy should be retained
by the homeowner. An installation is defined as each individual space or room in which Heatwave is installed such as a bathroom, kitchen, sunroom, etc. Each Heatwave shipment includes the following information essential to the proper installation of the products: Installation/Homeowners Manual, Wiring Diagrams, and Theoretical Ohm Readings necessary to test the products. If any of this information is missing
from the shipment, please call your dealer or our service department at 1-888-239-1232.
TO INSURE WARRANTY PROTECTION FOR THE INSTALLATION(S), THE HOMEOWNER OR INSTALLER MUST COMPLETE ALL THE INFORMATION BELOW FOR EACH INSTALLATION AND RETURN THIS FORM TO HEATIZON SYSTEMS AT THE ADDRESS LISTED BELOW WITHIN 10 DAYS
OF THE COMPLETED INSTALLATION.
I. Installer Information:
Installer’s Name: ___________________________Installation Date: ___-___-___
Business Address ________________________________________________________
Phone Number: _____-_____-______ Fax Number (if available): _____-_____-______
Name of Company (from which Heatwave was purchased) ______________________
II. Owner Information:
Owner’s Name: __________________________________________________________
Home Address: __________________________________________________________
Phone Number: _____-_____-______ Fax Number (if available): _____-_____-______
Name of Space and Location in Structure where installed: ________________________
III. Products Used in Installation: (List Each Heatwave Mat or Cable on a Separate
Line)
R E S I S T A N C E I N O H M S
Mat
Number
SAMPLE 1 x 50 750 120 19.2 19.2 None None 19.2 None None 19.2 None None 19.2 None None
#1
#2
#3
#4
#5
#6
Total
Size
Watts
Volts
Received After Mat is Customized/Cut
Hot
to
Neutral
Hot
to
Neutral
Hot
to
Ground
After Mat is Stapled or Bound
to Subfloor/Underlayment
Neutral
Ground
Hot
to
to
Neutral
Hot
to
Ground
Neutral
Ground
After Mat is Embedded in
Hot
to
to
Neutral
Thinset or Mortar
Hot
to
Ground
Neutral
to
Ground
After Tile has Been Installed
on Top of Mat
Hot
Hot
to
Ground
Neutral
to
Ground
to
Neutral
Confirmation: The above information was measured and recorded
correctly as indicated on the measuring instrument, and the enclosed
drawing shows the final layout of the products and the electrical
connections.
Installer’s Signature: ___________________________________________
Heatizon Systems
4137 South 500 West
Murray, UT 84123
Phone 1-888-239-1232
Fax 1-801-293-3077
22
© 2012 Heatizon Systems
23
888-239-1232
www.heatizon.com
24
Loading...
