GNTC50
Direct Vent Gas Fireplace
Page 2
GNTC50
Direct Vent Gas Fireplace
Space-Saving 16”
Depth Fits Anywhere!
• Space-saving 16” deep footprint gives
unlimited installation options.
• Choice of standard refractory firebox
lining or optional black firebox finish.
• Available in standing pilot or industry-
exclusive IntelliFire technology.
• Entire burner system easily lifts out for
future adjustments and upgrades.
• Sealed combustion chamber uses only
outside air for combustion, helping to
preserve indoor air quality and prevent
negative air pressure problems.
• 15,000 to 21,000 Btus/hour input for
natural gas and 16,000 to 21,000 Btus/
hour input for L.P. gas.
• U.L. tested and listed; Limited
Lifetime Warranty.
IntelliFire
• With IntelliFire, there’s no need for a constantly burning pilot, saving the homeowner an average of $7 per month.
When the fireplace is turned on, the pilot lights first then ignites the main burner. When the fireplace is not
operating, the pilot also shuts down.
• The IntelliFire system installation choices include hardwiring, hardwiring with a battery backup, or operating with
two size D batteries (not included).
TM
Certifications/General Considerations
• Certified for installation in bedrooms and bed/sitting rooms.
• The rough framing dimensions shown represent the distance from stud to stud only and do not take into consideration
the addition of sheetrock/drywall. Consult local building codes for local installation and operational guidelines.
• For best results, do not construct the framing until the unit is in place.
• A hearth extension is not required.
Venting
• Use of Heatilator Cinch Pipe Series venting and accessories is required.
• Consult installation manual for complete venting specifications.
Finishing Materials
• When finishing the GNTC50, combustible material may be brought up to the sides of the fireplace but must
never overlap the black area. The black metal may be completely covered with noncombustible material
only, such as marble, tile, stone, etc.
800-927-6841 •
Page 3

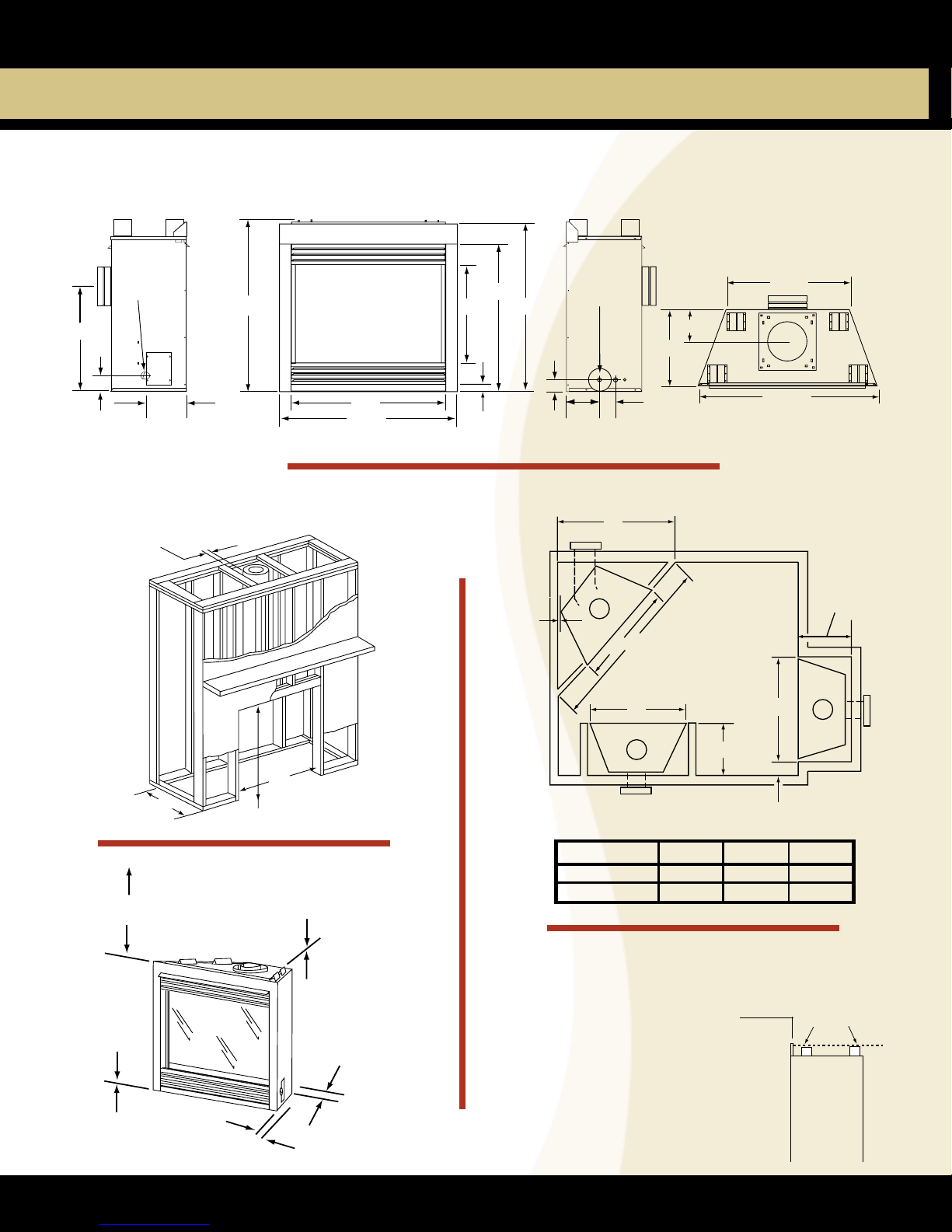

PRODUCT, FRAMING & CLEARANCE DIMENSIONS
f
This information is for planning purposes only. Please refer to installation instructions when installing this product.
Product Dimensions
Gas Line
Pass-
Through
221/8"
3
/
3
"
8
Left Hand Side
1" Min. air space
clearance to enclosure
365/8"
1
/8"
9
Framing Dimensions
Mantel
33"
381/8"
213/8"
1‰"
31‰"
36"
½"
5
2
Electrical
Pass-
Through
/
8
"
1
/
7
8
"
Right Hand Side
A
B
5
/8"
6
16"
3
3
/8"
38
Fireplace Locations
C
B
26
B
1
/8"
1
/8"
16½"
30"
to ceiling
0"
to floor
1
39
/8"
16½"
min.
36
5
/8"
Clearance Dimensions
0" to level of
standoffs
1/2" to back o
1/2" to side of
appliance
GNTC50
appliance
16½"
GNTC50
Rear Vent 42¼" 391/8"595/8"
Top Vent 42¼" 39
ABC
Mantel Projections
9” to 12 mantel projection: 41” height
6” to 9” mantel projection: 39” height
3” to 6” mantel projection: 38” height
0” to 3” mantel projection: 36” height
Mantel height listed is measured
from the BASE of the appliance
1" min.
1
/8"595/8"
Framing must be
above standoffs
heatilator.com
Page 4
GNTC50
Direct Vent Gas Fireplace

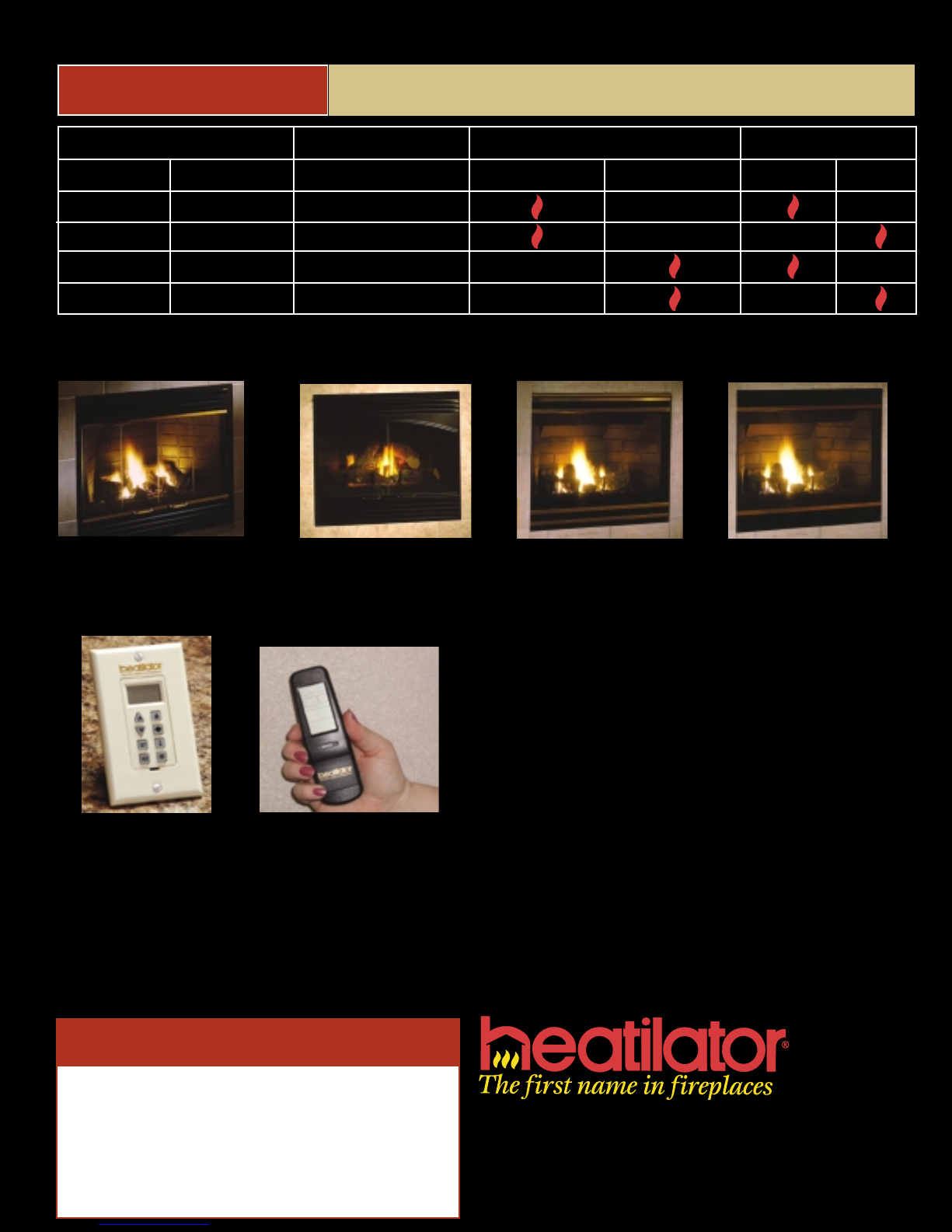

MODELS AND OPTIONS
Unit Size Nomenclature Ignition Fuel
Viewing Depth Model No. Stdg Pilot IntelliFire NG LP
33” 16” GNTC50
33” 16” GNTC50L
33” 16” GNTC50E
33” 16” GNTC50LE
Options
DFN3B/S
Fixed Doors in
Polished Brass
or Stainless Steel
DFA33/B/S
Fixed Arched Doors in
Black, Polished Brass
or Stainless Steel
TKN33B/S
5-Piece Trim Kit in
Polished Brass or
Stainless Steel
Options Not Shown
GFK4 Transaxial fan
BC10 Fan motor rheostat control
CKVP L.P. gas conversion kit
CKVN Natural gas conversion kit
MF1, MF2 Manual flame controls
TKN32 12-piece full face stainless steel trim kit
Mantels & See MSRP book
Surrounds
WSK-MLT-HTL
Multi-Functional
Wall Switch
RC-SMART-HTL
SMART-STAT-HTL
RC-BATT-HTL
RCT-MLT-HTL
SMART-BATT-HTL
Multi-Functional Remote Control
Venting Accessories
Cinch Pipe See MSRP for complete selection
TKN35B/S
2-Piece Trim Kit in
Polished Brass or
Stainless Steel
AVAILABLE FROM
a brand of Hearth & Home Technologies Inc.
1915 West Saunders Street • Mt. Pleasant, Iowa 52641
800-927-6841 • fax 800-259-1549 • heatilator.com
Heatilator is a registered trademark of Hearth & Home Technologies
Inc. Specifications and options are subject to change.
73928B CG 09/03
