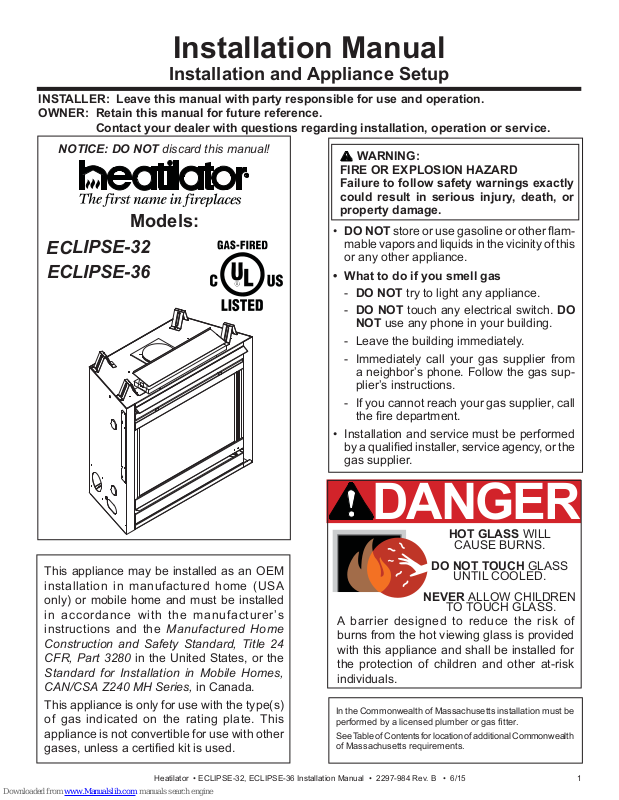

Page 1
Installation Manual
Installation and Appliance Setup
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
Contact your dealer with questions regarding installation, operation or service.
NOTICE: DO NOT discard this manual!
Models:
ECLIPSE-32
ECLIPSE-36
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
• DO NOT store or use gasoline or other fl am-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Leave the building immediately.
- Immediately call your gas supplier from
a neighbor’s phone. Follow the gas supplier’s instructions.
- If you cannot reach your gas supplier, call
the fi re department.
• Installation and service must be performed
by a qualifi ed installer, service agency, or the
gas supplier.
This appliance may be installed as an OEM
installation in manufactured home (USA
only) or mobile home and must be installed
in accordance with the manufacturer’s
instructions and the Manufactured Home
Construction and Safety Standard, Title 24
CFR, Part 3280 in the United States, or the
Standard for Installation in Mobile Homes,
CAN/CSA Z240 MH Series, in Canada.
This appliance is only for use with the type(s)
of gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certifi ed kit is used.
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
DANGER
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and shall be installed for
the protection of children and other at-risk
individuals.
In the Commonwealth of Massachusetts installation must be
performed by a licensed plumber or gas fi tter.
See Table of Contents for location of additional Commonwealth
of Massachusetts requirements.
1
Page 2
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Used to address practices not related to personal injury.
Table of Contents
Installation Standard Work Checklist . . . . . . . . . . . . . . . . . . . . 3
1 Product Specifi c and Important Safety Information
A. Appliance Certifi cation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
B. Glass Specifi cations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
C. BTU Specifi cations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
D. High Altitude Installations . . . . . . . . . . . . . . . . . . . . . . . . . . 4
E. Non-Combustible Materials Specifi cation. . . . . . . . . . . . . . 4
F. Combustible Materials Specifi cation . . . . . . . . . . . . . . . . . 4
G. Electrical Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
H. Requirements for the Commonwealth of Massachusetts . . 5
2 Getting Started
A. Design and Installation Considerations . . . . . . . . . . . . . . . 6
B. Tools and Supplies Needed . . . . . . . . . . . . . . . . . . . . . . . . 6
C. Inspect Appliance and Components . . . . . . . . . . . . . . . . . . 6
3 Framing and Clearances
A. Appliance/Decorative Front Dimension Diagrams . . . . . . . 7
B. Clearances to Combustibles . . . . . . . . . . . . . . . . . . . . . . . 9

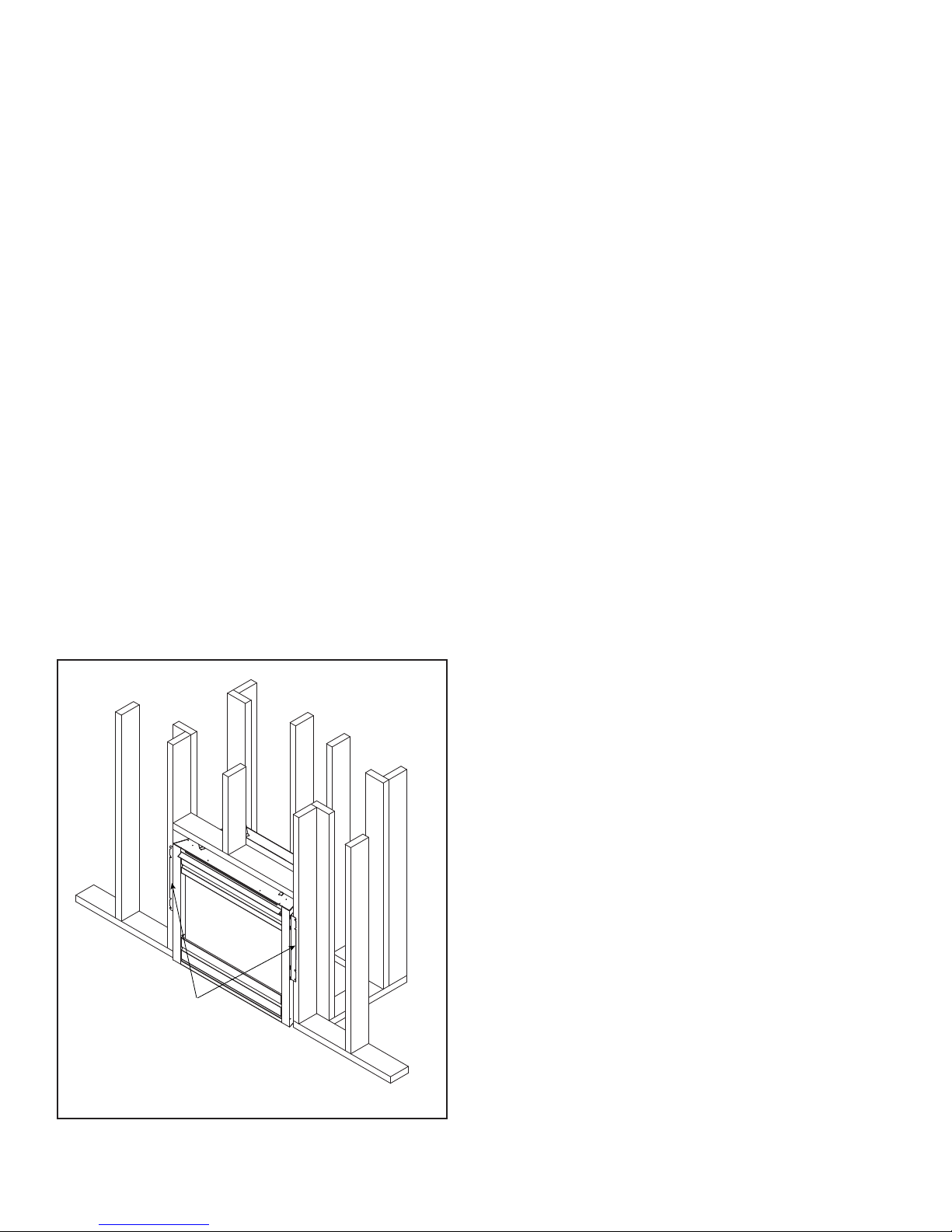

C. Constructing the Appliance Chase . . . . . . . . . . . . . . . . . . 10
D. Floor Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4 Termination Location and Vent Information
A. Vent Termination Minimum Clearances . . . . . . . . . . . . . . 11
B. Chimney Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
C. Approved Pipe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
D. Use of Elbows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
E. Measuring Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
F. Use of Flex Vent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

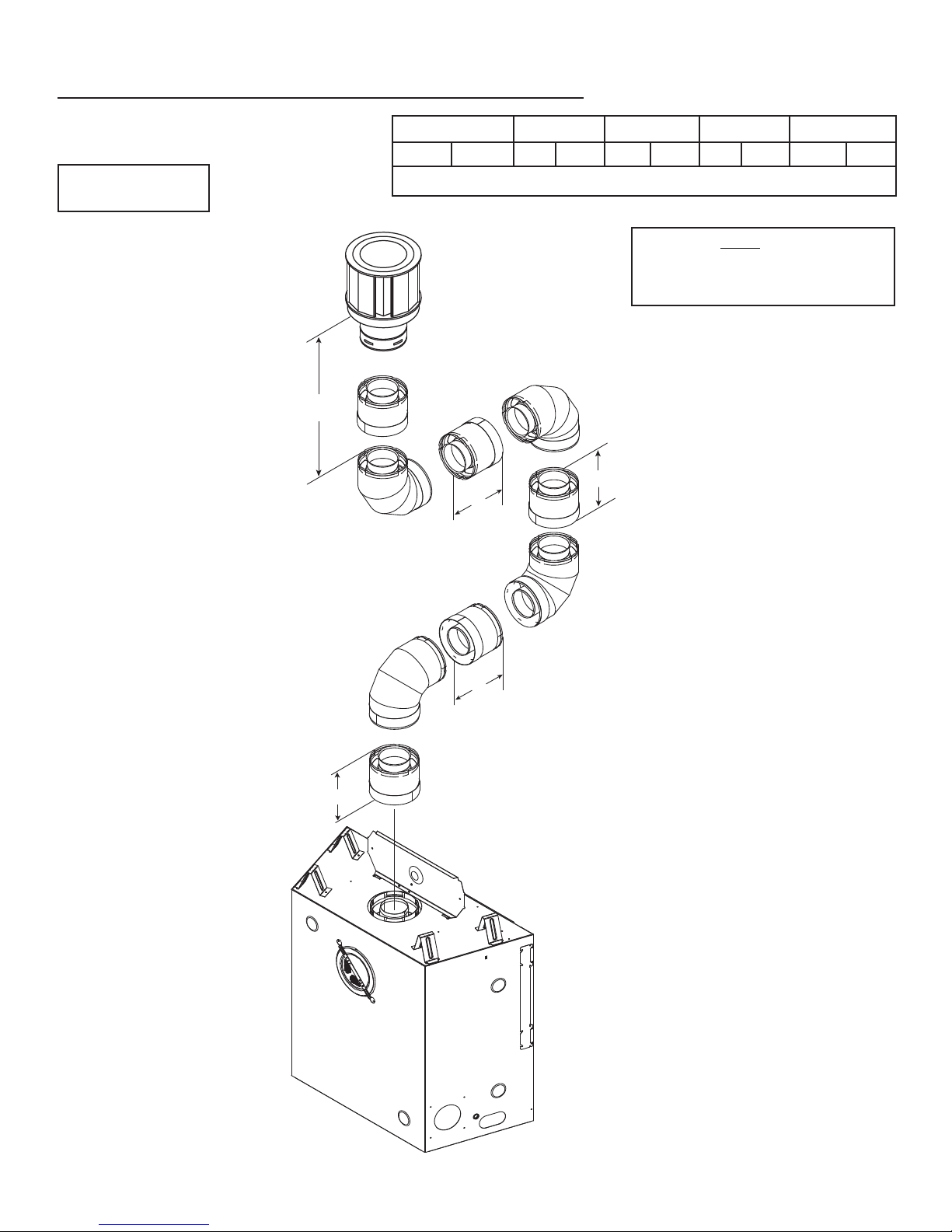

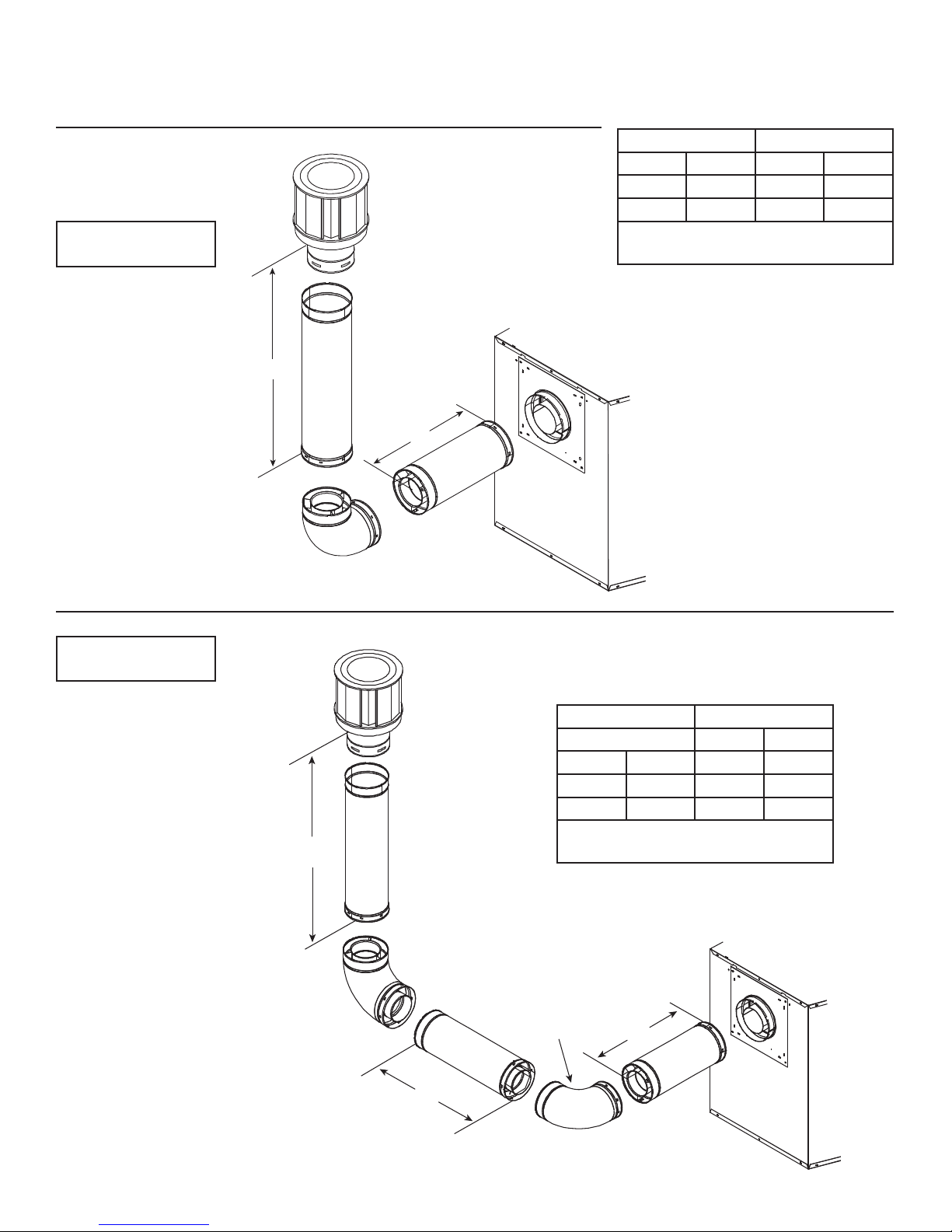

G. Vent Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
7 Venting and Chimneys

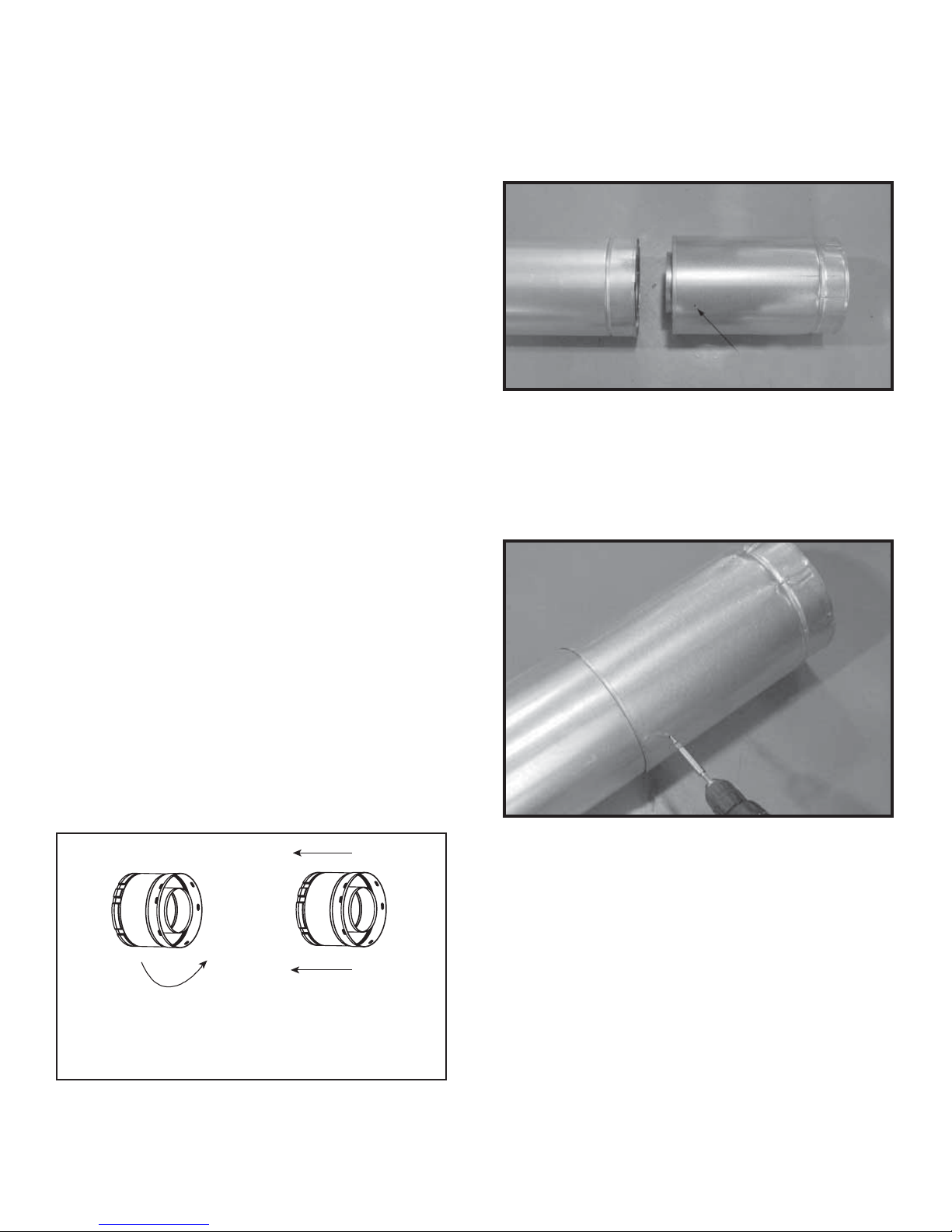

A. Assemble Vent Sections (DVP Pipe) . . . . . . . . . . . . . . . . 33
B. Assemble Vent Sections (SLP Pipe) . . . . . . . . . . . . . . . . 34
C. Assemble Slip Sections . . . . . . . . . . . . . . . . . . . . . . . . . . 34
D. Secure the Vent Sections . . . . . . . . . . . . . . . . . . . . . . . . . 35
E. Disassemble Vent Sections . . . . . . . . . . . . . . . . . . . . . . . 35
F. Vertical Termination Requirements . . . . . . . . . . . . . . . . . . 36
G. Horizontal Termination Requirements . . . . . . . . . . . . . . . 37

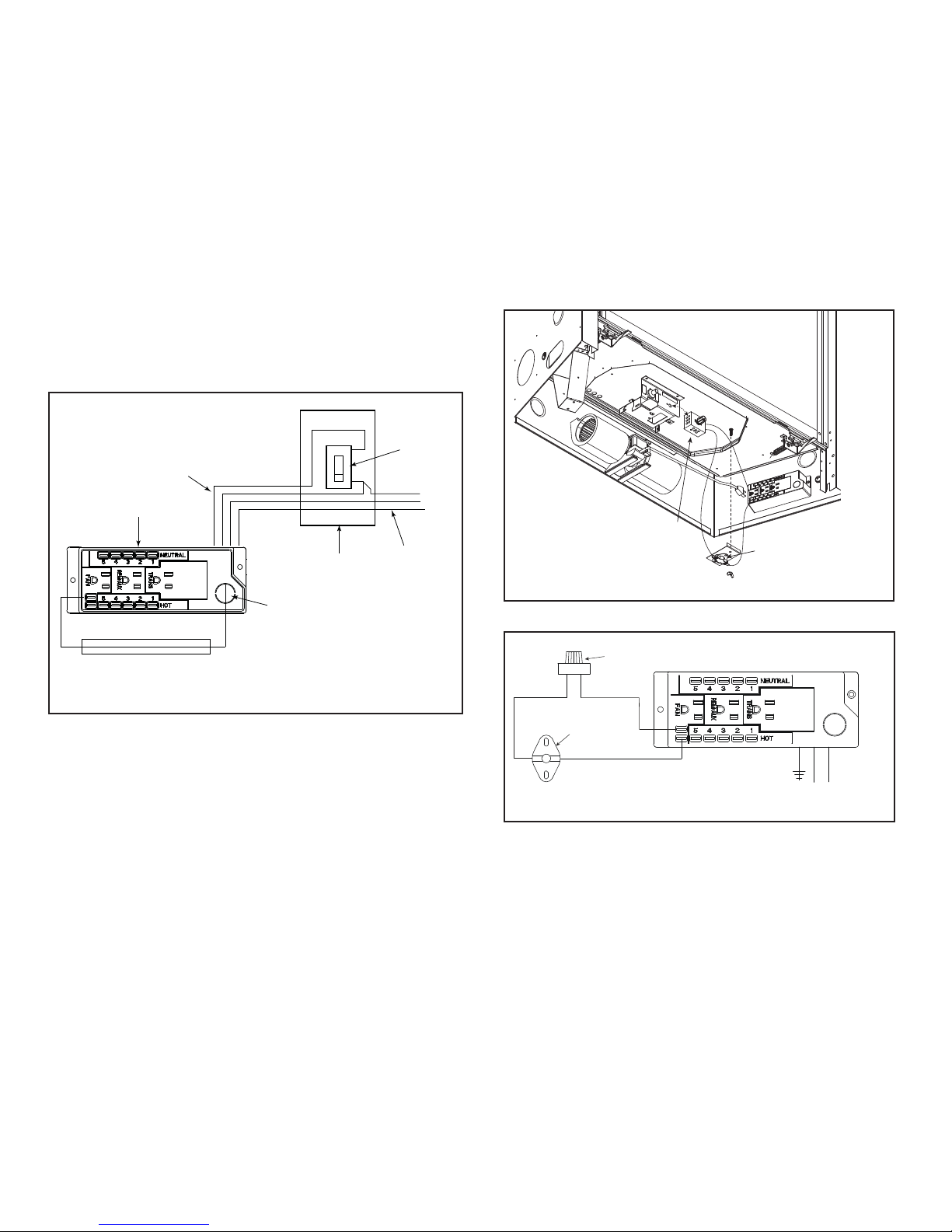

8 Electrical Information
A. General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
B. Wiring Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
9 Gas Information
A. Fuel Conversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
B. Gas Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
C. Gas Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
D. High Altitude Installations . . . . . . . . . . . . . . . . . . . . . . . . . 42
E. Air Shutter Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
10 Finishing

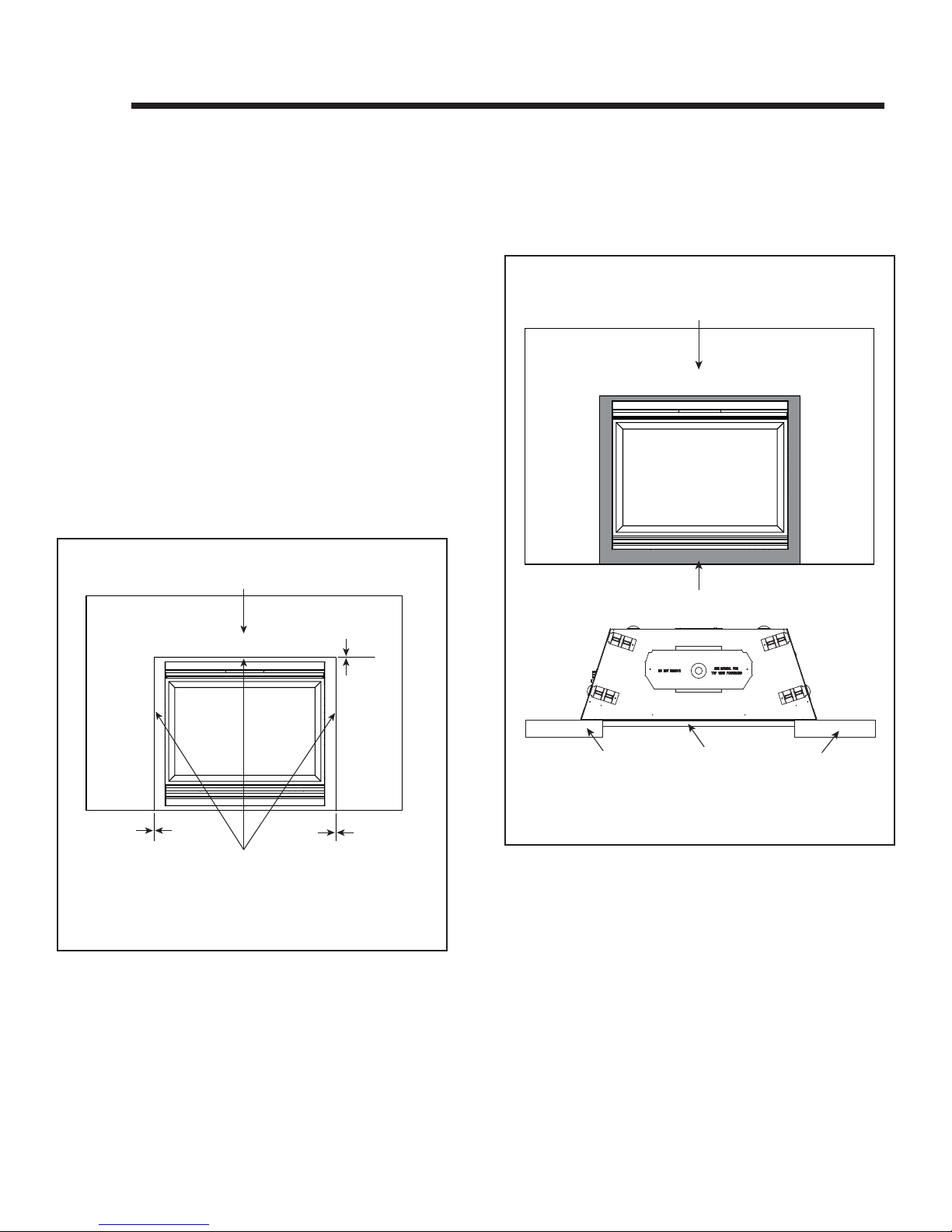

A. Facing and Finishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
B. Mantel and Wall Projections . . . . . . . . . . . . . . . . . . . . . . . 45
11 Appliance Setup
A. Remove Fixed Glass Assembly . . . . . . . . . . . . . . . . . . . . 46
B. Remove the Shipping Materials . . . . . . . . . . . . . . . . . . . . 46
C. Clean the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

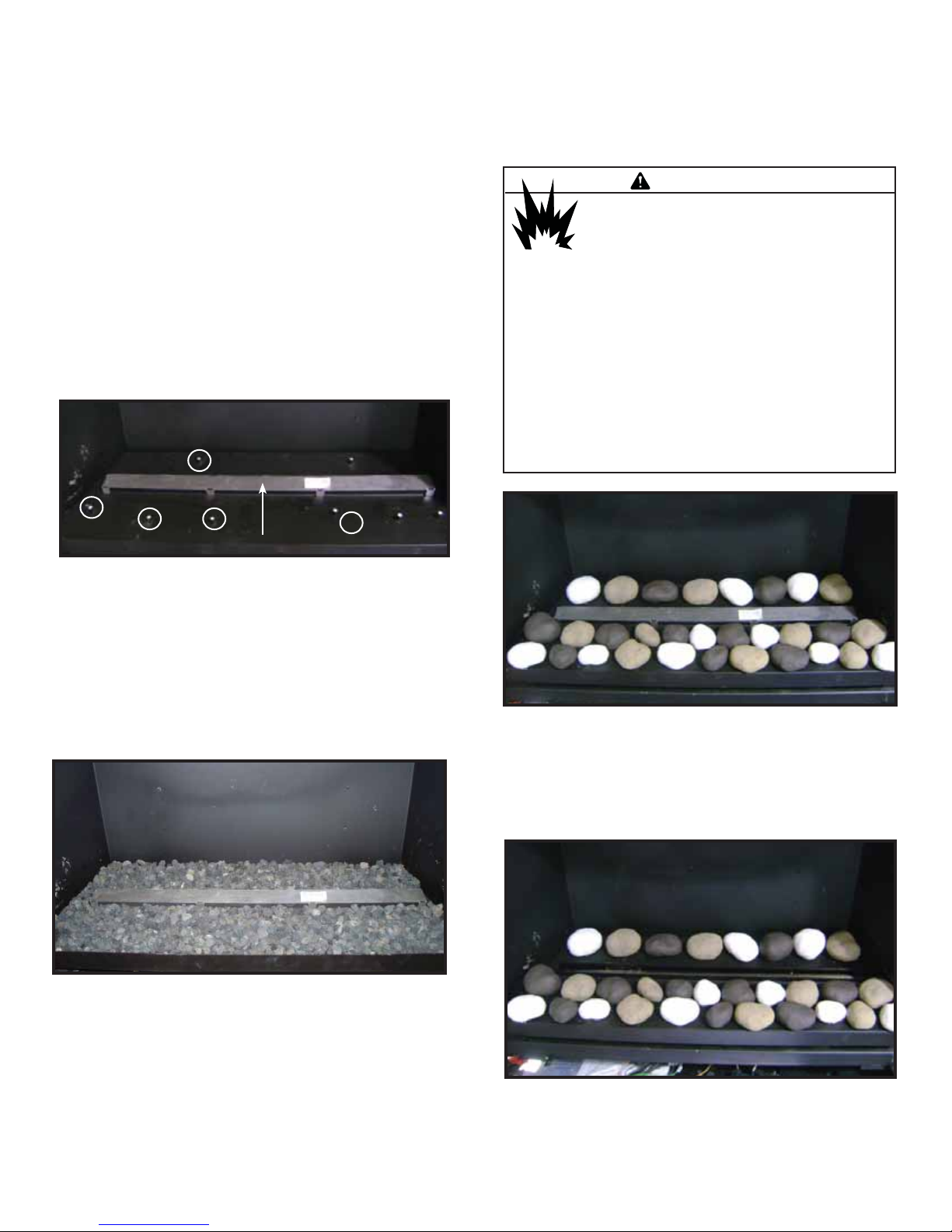

D. Install the Stones and Lava Rock . . . . . . . . . . . . . . . . . . . 47
E. Install Fixed Glass Assembly . . . . . . . . . . . . . . . . . . . . . . 48
F. Install Decorative Front . . . . . . . . . . . . . . . . . . . . . . . . . . 48
5 Vent Clearances and Framing
A. Pipe Clearances to Combustibles . . . . . . . . . . . . . . . . . . 28
B. Wall Penetration Framing/Firestops . . . . . . . . . . . . . . . . . 28

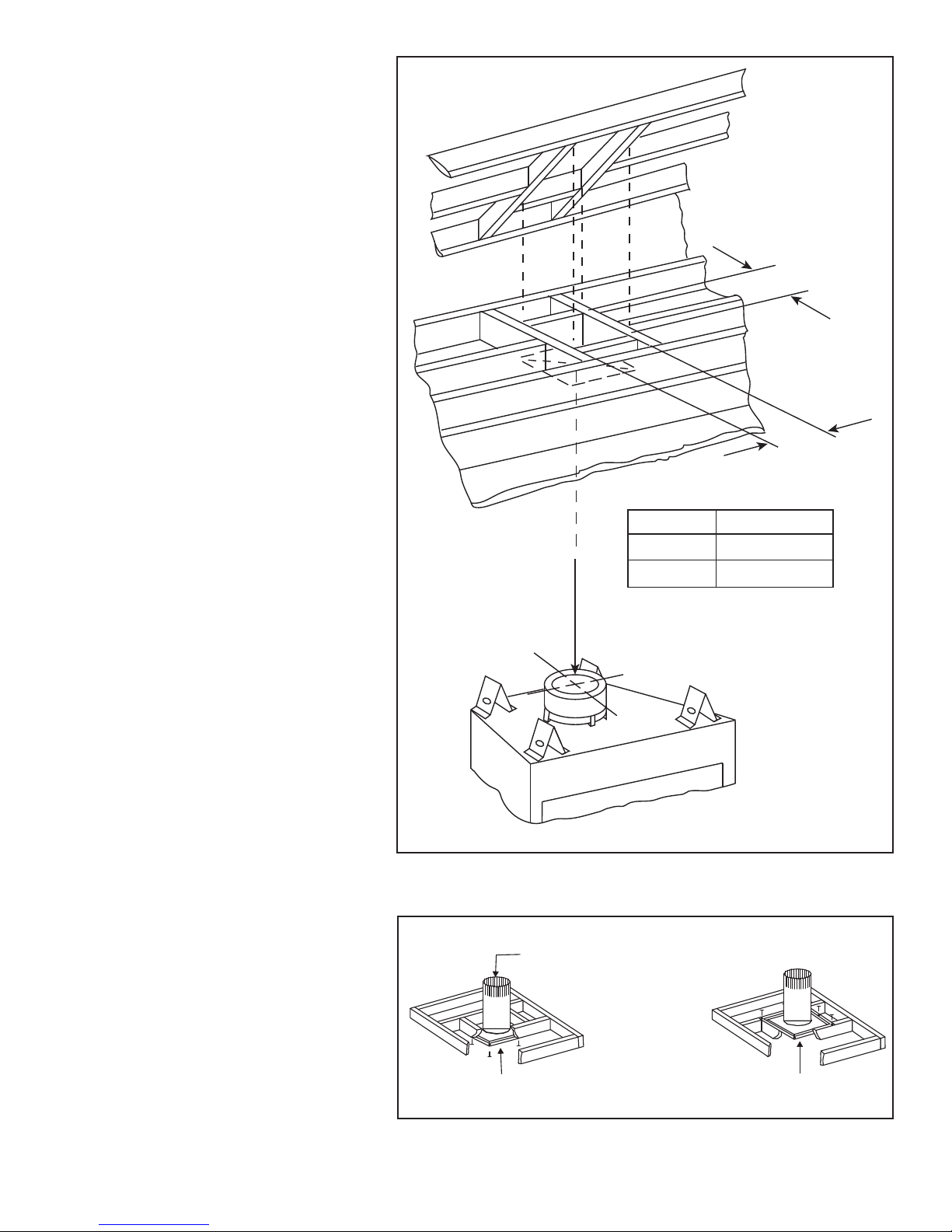

C. Ceiling Firestop/Floor Penetration Framing . . . . . . . . . . . 29
D. Install Attic Insulation Shield . . . . . . . . . . . . . . . . . . . . . . . 29
6 Appliance Preparation

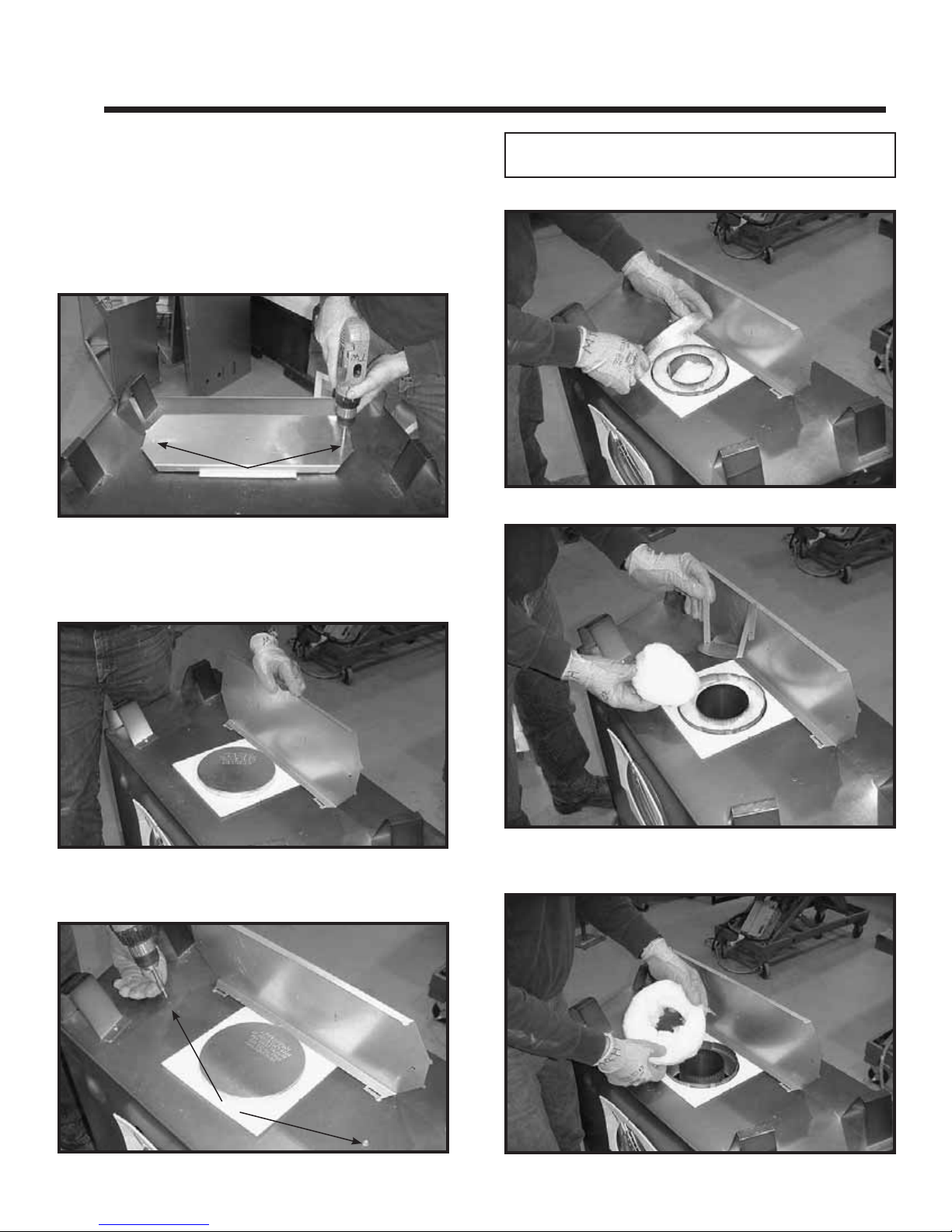

A. Vent Collar Preparation - Top or Rear . . . . . . . . . . . . . . . 30
B. Securing and Leveling the Appliance . . . . . . . . . . . . . . . . 32
2
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
12 Reference Materials

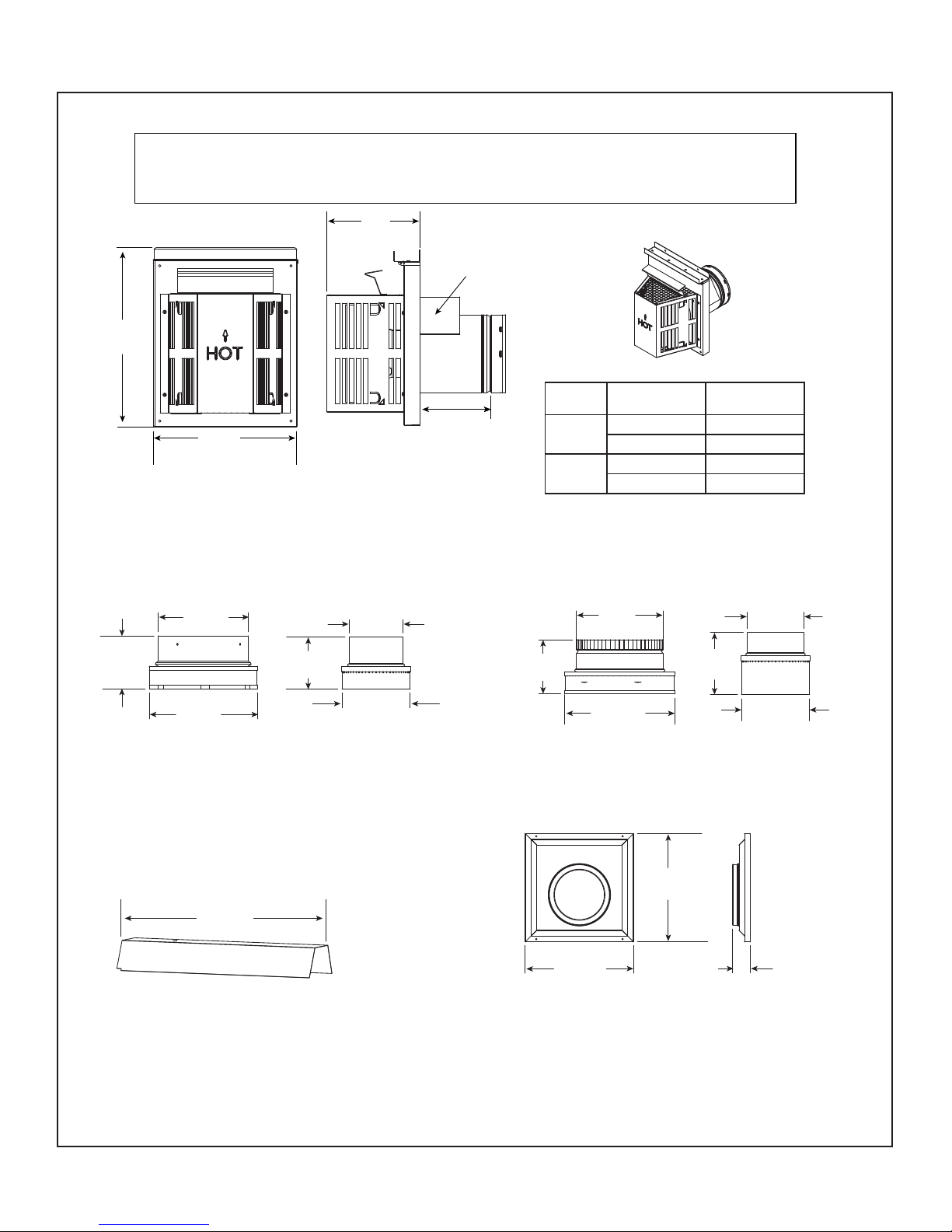

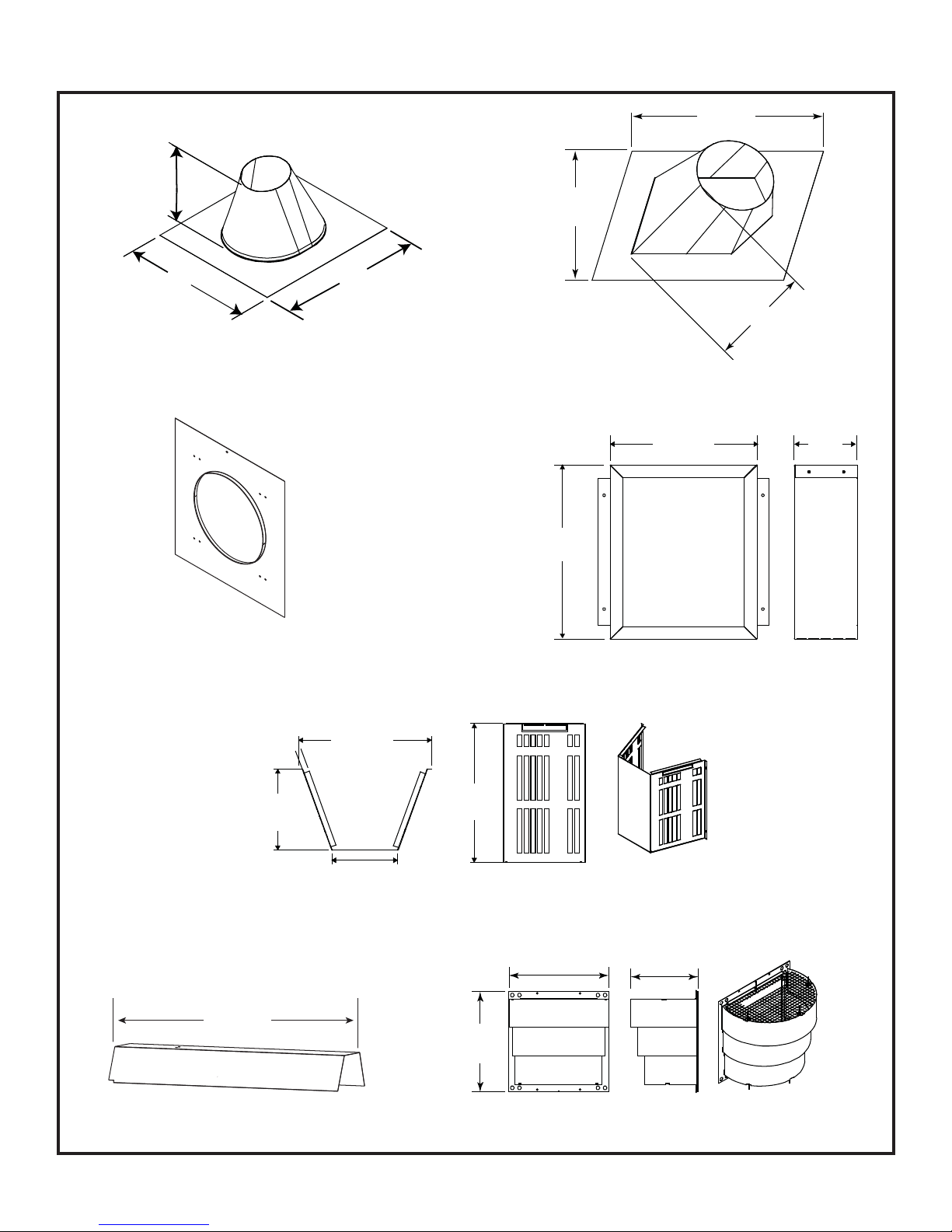

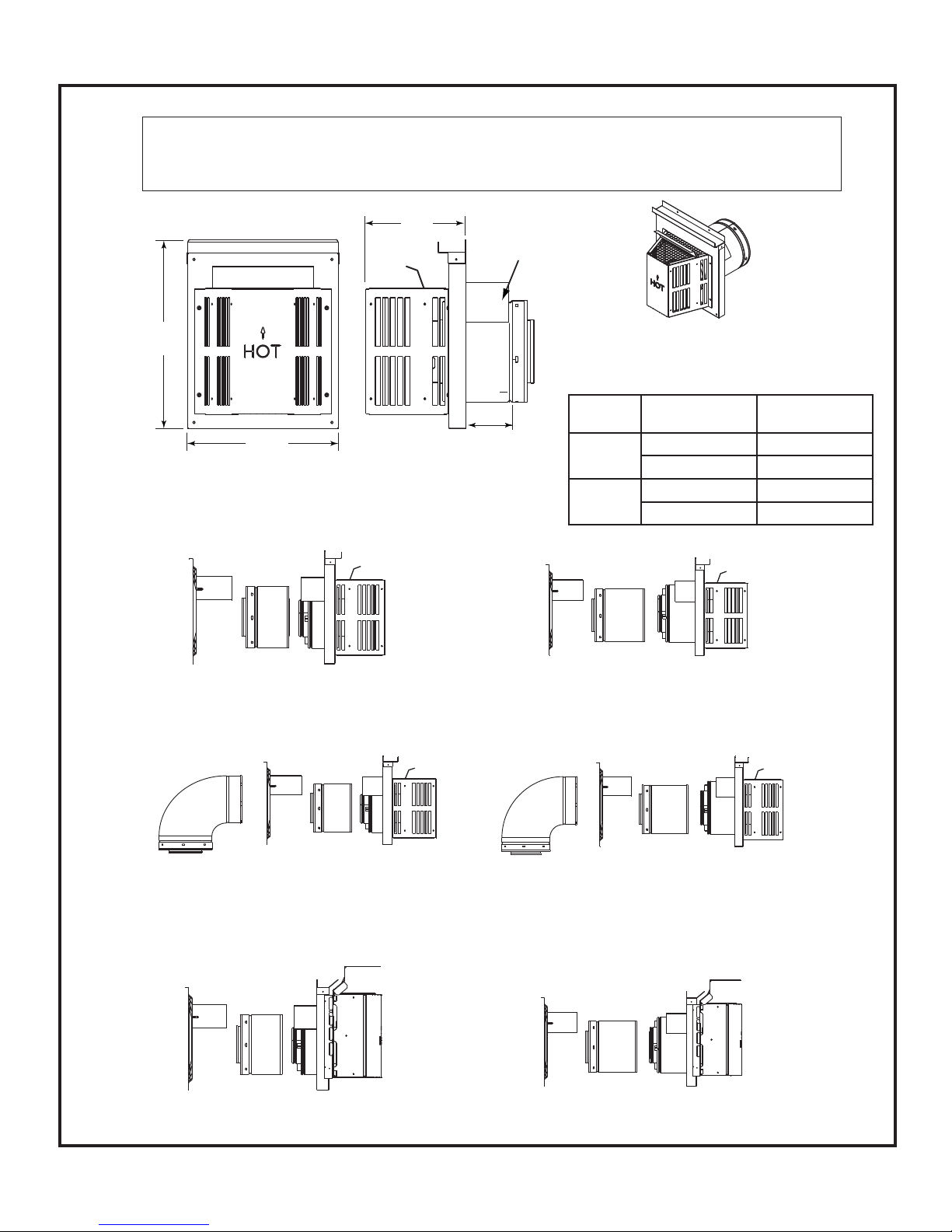

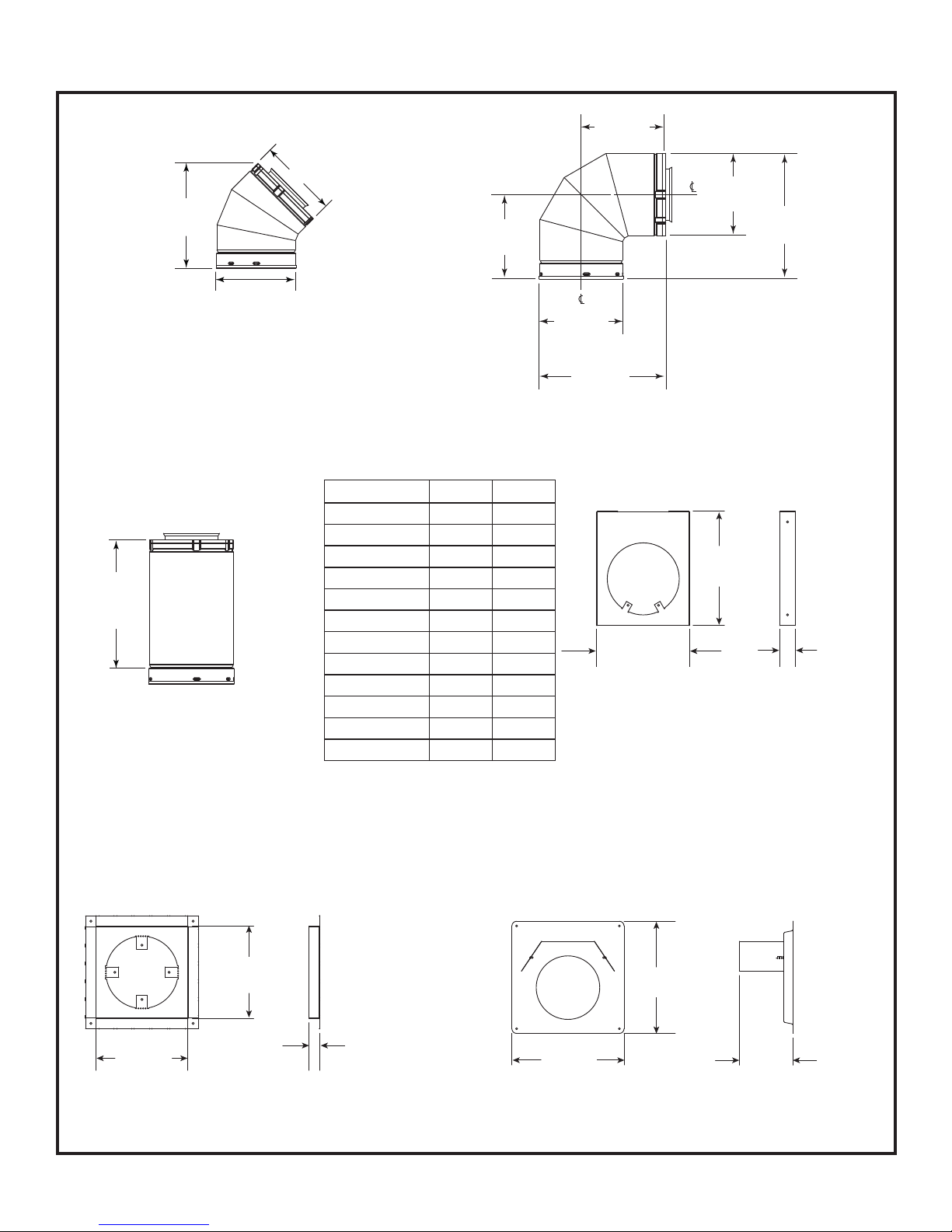

A. Vent Components Diagrams . . . . . . . . . . . . . . . . . . . . . . 49
B. Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
= Contains updated information.
Page 3
Installation Standard Work Checklist
ATTENTION INSTALLER:
Follow this Standard Work Checklist
This standard work checklist is to be used by the installer in conjunction with, not instead of, the instructions contained in this
installation manual.
Customer:
Lot/Address:
Model (circle one): ECLIPSE-32 ECLIPSE-36
WARNING! Risk of Fire or Explosion! Failure to install appliance according to these instructions could
lead to a ¿ re or explosion.
Appliance Install YES IF NO, WHY?
Veri¿ ed that the chase is insulated and sealed. (Pg. 10) ___________________________
Veri¿ ed clearances to combustibles. (Section 3) ___________________________
Fireplace is leveled and secured. (Pg. 32) ___________________________
Venting/Chimney Section 7 (Pg 33-38)
Venting con¿ guration complies to vent diagrams. ___________________________
Venting installed, locked and secured in place with proper clearance. ___________________________
Firestops installed. ___________________________
Attic insulation shield installed. ___________________________
Exterior wall/Roof À ashing installed and sealed. ___________________________

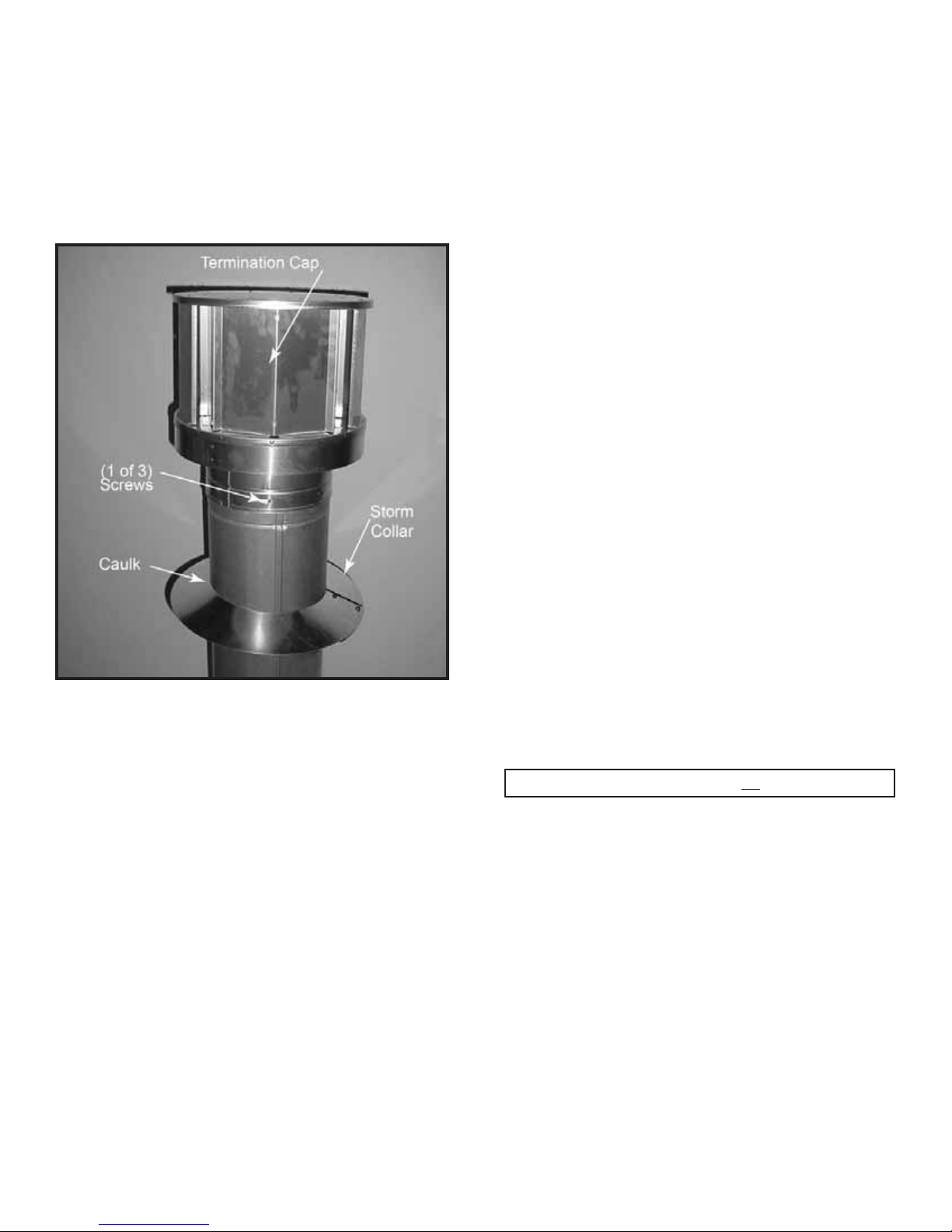

Terminations installed and sealed. ___________________________
Date Installed:
Location of Fireplace:
Installer:
Dealer/Distributor Phone #
Serial #:
Electrical Section 8 (Pg 39-41)
Unswitched power (110-120 VAC) provided to the appliance. ___________________________
Switch wires properly installed. ___________________________
Gas Section 9 (Pg 42-43)
Proper appliance for fuel type. ___________________________
Was a conversion performed? ___________________________
Leak check performed and inlet pressure veri¿ ed. ___________________________
Veri¿ ed proper air shutter setting for installation type. ___________________________
Finishing Section 10 (Pg 44-45)
Combustible materials not installed in non-combustible areas. ___________________________
Veri¿ ed all clearances meet installation manual requirements. ___________________________
Mantels and wall projections comply with installation manual requirements. ___________________________
Appliance Setup Section 11 (Pg 46-48)
All packaging and protective materials removed (inside & outside of appliance). ___________________________
Refractories, media, stones and embers installed correctly. ___________________________
Glass assembly installed and secured. ___________________________
Accessories installed properly. ___________________________
Mesh, doors, or decorative front properly installed. ___________________________
Manual bag and all of its contents are removed from inside/under
the appliance and given to party responsible for use and operation. ___________________________
Started appliance and veri¿ ed no gas leaks exist. ___________________________
Hearth & Home Technologies recommends the following:
• Photographing the installation and copying this checklist for your ¿ le.
• That this checklist remain visible at all times on the appliance until the installation is complete.
Comments: Further description of the issues, who is responsible (Installer/ Builder/ Other Trades, etc) and corrective
action needed _____________________________________________________________________________________
_________________________________________________________________________________________________
_________________________________________________________________________________________________
Comments Communicated to party responsible ____________________ by ______________________on ___________
(Builder / Gen. Contractor/) (Installer) (Date)
Î = Contains updated information.
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
2297-986 8/14
3
Page 4
1
1
Product Specifi c and Important Safety Information
A. Appliance Certifi cation
MODELS: ECLIPSE-32, ECLIPSE-36
LABORATORY: Underwriters Laboratories, Inc. (UL)
TYPE: Direct Vent Heater
STANDARD: ANSI Z21.88-2014/CSA 2.33-2014
This product is listed to ANSI standards for “Vented Gas
Fireplace Heaters” and applicable sections of “Gas Burning Heating Appliances for Manufactured Homes and
Recreational Vehicles”, and “Gas Fired Appliances for
Use at High Altitudes”.
NOTICE: This installation must conform with local codes.
In the absence of local codes you must comply with the
National Fuel Gas Code, ANSI Z223.1-latest edition in
the U.S.A. and the CAN/CGA B149 Installation Codes in
Canada.
NOT INTENDED FOR USE AS A PRIMARY HEAT SOURCE.
This appliance is tested and approved as either supplemental room heat or as a decorative appliance. It should not be
factored as primary heat in residential heating calculations.
B. Glass Specifi cations
Hearth & Home Technologies appliances manufactured
with tempered glass may be installed in hazardous locations such as bathtub enclosures as defi ned by the
Consumer Product Safety Commission (CPSC). The
tempered glass has been tested and certifi ed to the re-
quirements of ANSI Z97.1 and CPSC 16 CFR 1202
(Safety Glazing Certifi cation Council SGCC# 1595 and
1597. Architectural Testing, Inc. Reports 02-31919.01
and 02-31917.01).
This statement is in compliance with CPSC 16 CFR Sec-
tion 1201.5 “Certifi cation and labeling requirements”
which refers to 15 U.S. Code (USC) 2063 stating “…Such
certifi cate shall accompany the product or shall otherwise
be furnished to any distributor or retailer to whom the
product is delivered.”
Some local building codes require the use of tempered
glass with permanent marking in such locations. Glass
meeting this requirement is available from the factory.
Please contact your dealer or distributor to order.
C. BTU Specifi cations
Models
(U.S. or Canada)
ECLIPSE-32
(NG)
ECLIPSE-32
(LP)
ECLIPSE-36
(NG)
ECLIPSE-36
(LP)
(0-2000 FT)
(0-2000 FT)
(0-2000 FT)
(0-2000 FT)
Maximum
Input BTU/h
17,500 12,000 45
17,000 13,500 1.25 mm
23,500 16,500 42
20,500 16,500 54
Minimum
Input
BTU/h
Orifi ce
Size (DMS)
D. High Altitude Installations
NOTICE: If the heating value of the gas has been reduced,
these rules do not apply. Check with your local gas utility
or authorities having jurisdiction.
When installing above 2000 feet elevation:
• In the USA: Reduce input rate 4% for each 1000 feet
above 2000 feet.
• In CANADA: Input ratings are certifi ed without a
reduction of input rate for elevations up to 4500 feet
(1370 m)above sea level. Please consult provincial and/
or local authorities having jurisdiction for installations at
elevations above 4500 feet (1370 m).
Check with your local gas utility to determine proper
orifi ce size.
E. Non-Combustible Materials Specifi cation
Material which will not ignite and burn. Such materials are
those consisting entirely of steel, iron, brick, tile, concrete,
slate, glass or plasters, or any combination thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in
a Vertical Tube Furnace at 750 ºC shall be considered
non-combustible materials.
F. Combustible Materials Specifi cation
Materials made of or surfaced with wood, compressed paper, plant fi bers, plastics, or other material that can ignite
and burn, whether fl ame proofed or not, or plastered or
unplastered shall be considered combustible materials.
G. Electrical Codes
NOTICE: This appliance must be electrically wired
and grounded in accordance with local codes or, in the
absence of local codes, with National Electric Code
ANSI/NFPA 70-latest edition or the Canadian Electric
Code CSA C22.1.
• A 110-120 VAC circuit for this product must be pro-
tected with ground-fault circuit-interrupter protection,
in compliance with the applicable electrical codes,
when it is installed in locations such as in bathrooms
or near sinks.
4
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
Page 5
Note: The following requirements reference various
Massachusetts and national codes not contained in this
document.
H. Requirements for the Commonwealth of
Massachusetts
For all side wall horizontally vented gas fueled equipment
installed in every dwelling, building or structure used in
whole or in part for residential purposes, including those
owned or operated by the Commonwealth and where the
side wall exhaust vent termination is less than seven (7)
feet above fi nished grade in the area of the venting, in-
cluding but not limited to decks and porches, the following
requirements shall be satisfi ed:
Installation of Carbon Monoxide Detectors
At the time of installation of the side wall horizontal vented
gas fueled equipment, the installing plumber or gas fi tter
shall observe that a hard wired carbon monoxide detector
with an alarm and battery back-up is installed on the fl oor
level where the gas equipment is to be installed. In addition, the installing plumber or gas fi tter shall observe that
a battery operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of
the dwelling, building or structure served by the side wall
horizontal vented gas fueled equipment. It shall be the
responsibility of the property owner to secure the services
of qualifi ed licensed professionals for the installation of
hard wired carbon monoxide detectors.
In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic,
the hard wired carbon monoxide detector with alarm and
battery back-up may be installed on the next adjacent
fl oor level.
In the event that the requirements of this subdivision can
not be met at the time of completion of installation, the
owner shall have a period of thirty (30) days to comply
with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon
monoxide detector with an alarm shall be installed.
Inspection
The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the
installation unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed
in accordance with the provisions of 248 CMR 5.08(2)(a)1
through 4.
Exemptions
The following equipment is exempt from 248 CMR
5.08(2)(a)1 through 4:
• The equipment listed in Chapter 10 entitled “Equipment
Not Required To Be Vented” in the most current edition
of NFPA 54 as adopted by the Board; and
• Product Approved side wall horizontally vented gas fu-
eled equipment installed in a room or structure separate
from the dwelling, building or structure used in whole or
in part for residential purposes.
MANUFACTURER REQUIREMENTS
Gas Equipment Venting System Provided
When the manufacturer of Product Approved side wall
horizontally vented gas equipment provides a venting
system design or venting system components with the
equipment, the instructions provided by the manufacturer
for installation of the equipment and the venting system
shall include:
• Detailed instructions for the installation of the venting
system design or the venting system components; and
• A complete parts list for the venting system design or
venting system.
Gas Equipment Venting System NOT Provided
When the manufacturer of a Product Approved side wall
horizontally vented gas fueled equipment does not provide the parts for venting the fl ue gases, but identifi es
“special venting systems”, the following requirements
shall be satisfi ed by the manufacturer:
Approved Carbon Monoxide Detectors
Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA
720 and be ANSI/UL 2034 listed and IAS certifi ed.
Signage
A metal or plastic identifi cation plate shall be permanent-
ly mounted to the exterior of the building at a minimum
height of eight (8) feet above grade directly in line with the
exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The sign shall read,
in print size no less than one-half (1/2) in. in size, “GAS
VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS”.
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
• The referenced “special venting system” instructions
shall be included with the appliance or equipment installation instructions; and
• The “special venting systems” shall be Product Ap-
proved by the Board, and the instructions for that system shall include a parts list and detailed installation
instructions.
A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions, all parts lists for venting
instructions, and/or all venting design instructions shall
remain with the appliance or equipment at the completion
of the installation.
See Gas Connection section for additional Commonwealth of Massachusetts requirements.
5
Page 6
2
2
Getting Started
A. Design and Installation Considerations
Heatilator direct vent gas appliances are designed to operate with all combustion air siphoned from outside of the
building and all exhaust gases expelled to the outside. No
additional outside air source is required.
Installation MUST comply with local, regional, state and
national codes and regulations. Consult insurance carrier,
local building inspector, fi re offi cials or authorities having
jurisdiction over restrictions, installation inspection and
permits.
Before installing, determine the following:
• Where the appliance is to be installed.
• The vent system confi guration to be used.
• Gas supply piping requirements.
• Electrical wiring requirements.
• Framing and fi nishing details.
• Whether optional accessories—devices such as a fan,
wall switch, or remote control—are desired.
Installation and service of this appliance should be
performed by qualifi ed personnel. Hearth & Home
Technologies suggests NFI certifi ed or factory
trained professionals, or technicians supervised by
an NFI certifi ed professional (www.nfi certifi ed.org).
C. Inspect Appliance and Components
• Carefully remove the appliance and components from
the packaging.
• The vent system components and decorative doors and
fronts may be shipped in separate packages.
• If packaged separately, the log set and appliance grate
must be installed.
• Report to your dealer any parts damaged in shipment,
particularly the condition of the glass.
• Read all of the instructions before starting the instal-
lation. Follow these instructions carefully during the
installation to ensure maximum safety and benefi t.
WARNING! Risk of Fire or Explosion! Damaged parts
could impair safe operation. DO NOT install damaged, in-
complete or substitute components. Keep appliance dry.
Hearth & Home Technologies disclaims any responsibility for,
and the warranty will be voided by, the following actions:
• Installation and use of any damaged appliance or vent
system component.
• Modifi cation of the appliance or vent system.
• Installation other than as instructed by Hearth & Home
Technologies.
• Improper positioning of the gas logs or the glass door.
• Installation and/or use of any component part not approved
by Hearth & Home Technologies.
Any such action may cause a fi re hazard.
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. For
assistance or additional information, consult a qualifi ed
service technician, service agency or your dealer.
B. Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
Tape measure Framing material
Pliers Hammer
Phillips screwdriver Manometer
Gloves Framing square
Voltmeter Electric drill and bits (1/4 in.)
Plumb line Safety glasses
Level Reciprocating saw
Flat blade screwdriver
Non-corrosive leak check solution
1/2 - 3/4 in. length, #6 or #8 Self-drilling screws
Caulking material (300ºF minimum continuous exposure
rating)
One 1/4 in. female connection (for optional fan).
WARNING! Risk of Fire, Explosion or Electric Shock!
DO NOT use this appliance if any part has been under
water. Call a qualifi ed service technician to inspect the
appliance and to replace any part of the control system
and/or gas control which has been under water.
6
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
Page 7
3
3
Framing and Clearances
A. Appliance/Decorative Front Dimension Diagrams
Dimensions are actual appliance dimensions. Use for reference only. For framing dimensions and clearances refer to Section 5.
GAS LINE ACCESS
O
P
Q
R
Ø
C
V
S
T
B
A
N
M
L
K
Ø
J
E
D
F
U
G
I
H
ELECTRICAL
ACCESS
Figure 3.1 Appliance Dimensions
ECLIPSE-32 ECLIPSE-36
Location Inches Millimeters Inches Millimeters
A 36 914 41 1041
B 31-1/8 791 36-1/8 918
C 27-3/16 691 32-1/16 814
D 18-1/16 459 21-1/2 546
E 31-1/8 791 34-5/8 880
F 3-9/16 91 3-9/16 91
G 6-7/8 175 6-7/8 175
H 23-3/8 594 26-7/8 683
I 34-3/8 873 37-7/8 962
J 35-1/2 902 39-15/16 1014
K 8 203 8 203
L 8-13/16 224 8-13/16 224
M 16-5/16 414 16-5/16 414
N 1/2 13 1/2 13
O 25-3/4 654 30-3/4 781
P 12-7/8 327 15-3/8 391
Q 15-7/8 403 15-7/8 403
R 6-5/8 168 6-5/8 168
S 2-3/16 56 2-3/16 56
T 6 152 6 152
U 1 25 1 25
V 30-1/16 764 33-9/16 853
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
7
Page 8
Decorative Front Dimensions
SIMON DECORATIVE FRONTS
SIM-32
28-9/16 IN.
30-13/16 IN.
Figure 3.2 Simon Decorative Front Dimensions
SIM-36
32-1/16 IN.
35-13/16 IN.
CLEAN FACE DECORATIVE FRONTS
CF-32
23-3/4 IN.
30-13/16 IN.
CF-36
27-1/4 IN.
35-13/16 IN.
Figure 3.3 Clean Face Decorative Front Dimensions
8
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
Page 9
B. Clearances to Combustibles
K
C
A
L
F
I
B
G
E
D
J
J
G
A
F
C
A
H
M
N
Refer to Section 10.B for mantel and wall
projection information.
Consider the mantel or cabinet system to be
installed and comply with the necessary
requirements for elevated hearth. Refer to
instructions included with cabinet system.
When selecting a location for the appliance it is important
to consider the required clearances to walls (see Figure
3.4).
WARNING! Risk of Fire or Burns! Provide adequate
clearance around air openings and for service access.
Due to high temperatures, the appliance should be located out of traffi c and away from furniture and draperies.
NOTICE: Illustrations refl ect typical installations and are
FOR DESIGN PURPOSES ONLY. Illustrations/diagrams
are not drawn to scale. Actual installation may vary due to
individual design preference.
Models A B C D
ECLIPSE-32
ECLIPSE-36
Figure 3.4 Appliance Locations
E
in. 42 37 59-1/2
mm 1067 940 1511 25 13 1118 1581 413 1232 1746 383 191 181
in. 45-1/2 42 64-3/8 1 1/2 45-1/2 64-3/8 16-1/4 48-1/2 68-3/4 16-5/8 7-1/2 9
mm 1156 1067 1635 25 13 1156 1635 413 1232 1746 422 191 229
See Section
5.D for Alcove
Installation
Min.FMin.
1 1/2 44 62-1/4 16-1/4 48-1/2 68-3/4 15-1/16 7-1/2 7-1/8
GH I JK LMN
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
9
Page 10
C. Constructing the Appliance Chase
A chase is a vertical box-like structure built to enclose the
gas appliance and/or its vent system. In cooler climates
the vent should be enclosed inside the chase.
NOTICE: Treatment of ceiling fi restops and wall shield
fi restops and construction of the chase may vary with the
type of building. These instructions are not substitutes
for the requirements of local building codes. Therefore,
you MUST check local building codes to determine the
requirements to these steps.
Chases should be constructed in the manner of all outside walls of the home to prevent cold air drafting problems. The chase should not break the outside building
envelope in any manner.
Walls, ceiling, base plate and cantilever fl oor of the chase
should be insulated. Vapor and air infi ltration barriers
should be installed in the chase as per regional codes for
the rest of the home. Additionally, in regions where cold
air infi ltration may be an issue, the inside surfaces may be
sheetrocked and taped (or an equivalent method may be
used) to achieve maximum air tightness.
To further prevent drafts, the wall shield and ceiling fi re-
stops should be caulked with caulk with a minimum of
300ºF continuous exposure rating to seal gaps. Gas
line holes and other openings should be caulked with
caulk with a minimum of 300ºF continuous exposure rating
or stuffed with unfaced insulation. If the appliance is being
installed on a cement surface, a layer of plywood may be
placed underneath to prevent conducting cold up into the
room.
WARNING! Risk of Fire! Maintain specifi ed air space
clearances to appliance and vent pipe:
• Insulation and other materials must be secured to prevent
accidental contact.
• The chase must be properly blocked to prevent blown
insulation or other combustibles from entering and
making contact with fi replace or chimney.
• Failure to maintain airspace may cause overheating and
a fi re.
D. Floor Protection
NOTICE: Install appliance on hard metal or wood surfaces
extending full width and depth. DO NOT install directly
on carpeting, vinyl, tile or any combustible material other
than wood.
A
B
C
D
MINIMUM FRAMING DIMENSIONS*
ABCDEFGHIJ
Models
ECLIPSE-32
ECLIPSE-36
DVP
Pipe
Rough
Opening
(Width)
in. 10 8-5/8 34-3/4 16-1/4 16-1/4 37 32 0 0 1/2 1/2 36
mm 254 219 883 413 413 940 813 0 0 13 13 914
in. 10 8-5/8 38-1/4 16-1/4 16-1/4 42 32 0 0 1/2 1/2 36
mm 254 219 972 413 413 1067 813 0 0 13 13 914
SLP
Pipe
Rough
Opening
(Width)
Rough
Opening
(Height)
**DVP
Pipe
Rough
Opening
(Depth)
SLP
Pipe
Rough
Opening
(Depth)
Rough
Opening
(Width)
* Adjust framing dimensions for interior sheathing (such as sheetrock)
C** Add 12 inches for rear venting with one 90º elbow.
F
Clearance
to Ceiling
J
G
Combustible
Floor
Combustible
Flooring
I
Behind
Appliance
E
H
Sides of
Appliance
Front of
Appliance
Figure 3.5 Clearances to Combustibles
10
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
Page 11
4
4
Termination Location and Vent Information
A. Vent Termination Minimum Clearances
WARNING
Fire Risk.
Maintain vent clearance to combustibles as
specifi ed.
• DO NOT pack air space with insulation or other
materials.
Failure to keep insulation or other materials away
from vent pipe could cause overheating and fi re.
6 in. (minimum) up to 20 in.
AB
152 mm/508 mm
20 in. and over 0 in. minimum
Gas, Wood or Fuel Oil
Termination Cap
B
A *
18 in. minimum
457 mm
HORIZONTAL
OVERHANG
2 FT.
MIN.
GAS DIRECT VENT
TERMINATION CAP
Roof Pitch H (Min.) Ft.
Flat to 6/12...........................................................1.0*
Over 6/12 to 7/12 .................................................1.25*
Over 7/12 to 8/12 .................................................1.5*
Over 8/12 to 9/12 .................................................2.0*
Over 9/12 to 10/12 ...............................................2.5*
Over 10/12 to 11/12 .............................................3.25
Over 11/12 to 12/12 .............................................4.0
Over 12/12 to 14/12 .............................................5.0
Over 14/12 to 16/12 .............................................6.0
Over 16/12 to 18/12 .............................................7.0
Over 18/12 to 20/12 .............................................7.5
Over 20/12 to 21/12 .............................................8.0
* 3 foot minimum in snow regions
Figure 4.1 Minimum Height From Roof To Lowest Discharge
Opening
20 INCHES MIN.
LOWEST
DISCHARGE
OPENING
H (MIN.) - MINIMUM HEIGHT FROM ROOF
TO LOWEST DISCHARGE OPENING
X
12
ROOF PITCH
VERTICAL
WALL
IS X/ 12
Gas
Termination
Cap **
If using decorative cap cover(s), this distance may need to be
*
increased. Refer to the installation instructions supplied with the
decorative cap cover.
In a staggered installation with both gas and wood or fuel oil
**
terminations, the wood or fuel oil termination cap must be
higher than the gas termination cap.
Figure 4.2 Staggered Termination Caps
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
11
Page 12
B. Chimney Diagram
C
V
B
J
V
V
= VENT TERMINAL
X
= AIR SUPPLY INLET
B
D
V
V
V
A
= AREA WHERE TERMINAL IS NOT PERMITTED
A = 12 inches.................clearances above grade, veranda,
porch, deck or balcony
9 inches...................clearance to window or door that may
B =
be opened, or to permanently closed
window
C = 18 inches.................clearance below unventilated soffi t
18 inches.................clearance below ventilated soffi t
30 inches .................clearance below vinyl soffits and
electrical service
D = 6 inches...................clearance to outside corner
E = 6 inches...................clearance to inside corner
F = 3 ft. (Canada) ..........not to be installed above a gas me-
ter/regulator assembly within 3 feet
horizontally from the center-line of the
regulator
G = 3 ft ...........................clearance to gas service regulator
vent outlet
H =
12 inches.................clearance to non-mechanical (unpow-
ered) air supply inlet, combustion air
inlet or direct-vent termination
i = 3 ft. (U.S.A.)
6 ft. (Canada) ...........clearance to a mechanical (powered)
air supply inlet
All mechanical air intakes within 10 feet of a termination cap
must be a minimum of 3 feet below termination.
J = 7 ft. ......................... On public property: clearance above
paved sidewalk or a paved driveway.
A vent shall not terminate directly above a sidewalk or paved
driveway which is located between two single family dwellings
and serves both dwellings.
F
B
G
O
N
P
R
Q
H or i
V
X
M
V
H
V
H
E
V
V
A
V
K
V
L
Electrical
Service
C
V
K
V
Covered Alcove Applications
(Spaces open only on one side and with an overhang)
N = 6 inches ........... non-vinyl sidewalls
12 inches ......... vinyl sidewalls
O = 18 inches ......... non-vinyl soffi t and overhang
42 inches ......... vinyl soffi t and overhang
P = 8 ft.
Q
MIN
1 cap 3 feet 2 x Q
2 caps 6 feet 1 x Q
3 caps 9 feet 2/3 x Q
4 caps 12 feet 1/2 x Q
Q
= # termination caps x 3 R
MIN
Measure vertical clearances from this surface.
Measure horizontal clearances from this surface.
= (2 / # termination caps) x Q
MAX
CLEARANCE = 6 IN.
R
MAX
ACTUAL
ACTUAL
ACTUAL
ACTUAL
ACTUAL
K = 6 inches................. clearance from sides of electrical
service
L = 12 inches................ clearance above electrical service
Location of the vent termination must not interfere with access to the
electrical service.
M = 18 inches ....................clearance under veranda, porch, deck,
balcony or overhang
42 inches ................vinyl or composite overhang
Permitted when veranda, porch, deck or balcony is fully open
on a minimum of 2 sides beneath the fl oor.
Figure 4.3 Minimum Clearances for Termination
12
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
CAUTION! Risk of Burns! Termination caps are HOT,
consider proximity to doors, traffi c areas or where people
may pass or gather (sidewalk, deck, patio, etc.). Listed cap
shields available. Contact your dealer.
• Local codes or regulations may require different
clearances.
• Vent system termination is NOT permitted in screened
porches.
• Vent system termination is permitted in porch areas with
two or more sides open.
• Hearth & Home Technologies assumes no responsibility
for the improper performance of the appliance when the
venting system does not meet these requirements.
• Vinyl protection kits are suggested for use with vinyl siding.
Page 13
C. Approved Pipe
This appliance is approved for use with Hearth & Home
Technologies DVP or SLP venting systems. Refer to Section 12.A for vent component information and dimensions.
DO NOT mix pipe, fi ttings or joining methods from differ-
ent manufacturers.
The pipe is tested to be run inside an enclosed wall.
There is no requirement for inspection openings at each
joint within the wall.
WARNING! Risk of Fire or Asphyxiation. This appliance requires a separate vent. DO NOT vent to a pipe
serving a separate solid fuel burning appliance.
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
13
Page 14
D. Use of Elbows
Diagonal runs have both vertical and horizontal vent aspects when calculating the effects. Use the rise for the
vertical aspect and the run for the horizontal aspect. See
Figure 4.4.
Two 45º elbows may be used in place of one 90º elbow.
On 45º runs, one foot of diagonal is equal to 8-1/2 in. (216
mm) horizontal run and 8-1/2 in. (216 mm) vertical run. A
length of straight pipe is allowed between two 45º elbows.
See Figure 4.4.
Figure 4.5 shows the vertical and horizontal offsets for
DVP or SLP elbows.
Y
X
VERTICAL
RISE
SLP
Pipe
EFFECTIVE
LENGTH
RUN
HORIZONTAL
Effective Length Rise/Run
Inches Millimeters Inches Millimeters
SLP4 4 102 2-3/4 70
SLP6 6 152 4-1/4 108
SLP12 12 305 8-1/2 216
SLP24 24 610 17 432
SLP36 36 914 25-1/2 648
SLP48 48 1219 34 864
SLP6A 3 to 6 76 to 152
SLP12A 3 to 12 76 to 305
2-1/8-4-1/4 54-108
2-1/8-8-1/2 54-216
Vent
Type
Inches Millimeters Inches Millimeters
XY
DVP 4-1/2 114 17 432
SLP 5 127 11-3/4 298
X
X
Vent Type
Inches Millimeters
DVP 16-1/4 413
SLP 11-1/4 286
Figure 4.5 Vertical and Horizontal Offset for DVP and SLP Elbows
X
DVP
Pipe
Effective Length Rise/Run
Inches Millimeters Inches Millimeters
DVP4 4 102 2-3/4 70
DVP6 6 152 4-1/4 108
DVP12 12 305 8-1/2 216
DVP24 24 610 17 432
DVP36 36 914 25-1/2 648
DVP48 48 1219 34 864
DVP6A 3 to 6 76 to 152
DVP12A 3 to 12 76 to 305
Figure 4.4
14
2-1/8-4-1/4 54-108
2-1/8-8-1/2 54-216
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
Page 15
E. Measuring Standards
Vertical and horizontal measurements listed in the vent
diagrams were made using the following standards:
• Pipe measurements are shown using the effective length
of pipe. See Section 12.A (Figure 12.1 for DVP, Figure
12.6 for SLP) for information on effective length of pipe
components.
• Horizontal terminations are measured to the outside
mounting surface (fl ange of termination cap). See
Figure 4.3.
• Vertical terminations are measured to bottom of
termination cap.
• Horizontal pipe installed level with no rise.
F. Use of Flex Vent
The fl ex vent must be supported with the spacing between
support intervals not exceeding 4 feet, with no more than
½ inch sag between supports.
A support is required at each change in venting direction,
and in any location where it is necessary to maintain the
necessary clearance to combustibles. A simple “up and
out” installation (Figure 4.6) requires only enough support to maintain the necessary clearance to combustibles.
However, the vent attachment point and the fi restop loca-
tion are considered to be supports.
G. Vent Diagrams
General Rules:
• SUBTRACT 3 ft. from the total H measurement for each
90º elbow installed horizontally.
• SUBTRACT 1-1/2 ft. from the total H measurement for
each 45º elbow installed horizontally.
• When penetrating a combustible wall, a wall shield
fi restop must be installed.
• When penetrating a combustible ceiling, a ceiling fi restop
must be installed.
• Horizontal runs of vent do not require vertical rise;
horizontal runs may be level.
• Horizontal termination cap should have a 1/4 inch
downward slant to allow any moisture in cap to be
released. See Figure 4.7.
FLEX-VENT
Figure 4.6
3 in. CLEARANCE
TERMINATION
CAP
1 in.
CLEARANCE
1/4 in. max.
Figure 4.7
(6 mm)
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
15
Page 16
Top Vent - Horizontal Termination
One Elbow
Note: Use SLP Series
components only.
WARNING**
Fire Risk.
• When using SLP-HRC-SS and SLP-HRC-ZC-SS
termination caps on top vented fi replaces, a one
foot minimum vertical vent section is required
before installing fi rst elbow.
• When using DVP-TB1 termination cap on top
vented fi replaces, a three foot minimum vertical
vent section is required before installing first
elbow.
V1 Minimum** H1 Maximum
90 Elbow Only** 2 ft. 610 mm
1/2 ft.** 152 mm 2 ft. 610 mm
1-1/2 ft.** 457 mm 3 ft. 914 mm
2-1/2 ft.** 762 mm 5 ft. 1.5 m
3-1/2 ft. 1.1 m 7 ft. 2.1 m
4-1/2 ft. 1.4 m 15 ft. 4.6 m
H
MAX. =15 ft. (4.6 m)
1
V1 + H1 MAX. = 40 ft. (12.2 m)
** See Warning.
Note: There MUST be a 25% reduction
in total H when using fl ex vent except
when using the simple up and out
installation (see Figure 4.6).
H
V
1
1
Figure 4.8
16
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
Page 17
Top Vent - Horizontal Termination - (continued)
Two Elbows
Note: Use SLP Series
components only.
Note: There MUST be a 25% reduction in total H when using fl ex
vent except when using the simple up and out installation (see
Figure 4.6).
H
V1 Minimum** H1 + H2 Maximum
90 Elbow Only** 1/2 ft. 152 mm
1/2 ft.** 152 mm 1 ft. 305 mm
1-1/2 ft.** 457 mm 2 ft. 610 mm
2-1/2 ft.** 762 mm 4 ft. 1.2 m
3-1/2 ft. 1.1 m 6 ft. 1.8 m
4-1/2 ft. 1.4 m 14 ft. 4.3 m
H
+ H2 MAX. =14 ft. (4.3 m)
1
V1 + H1 + H2 MAX. = 40 ft. (12.2 m)
**See Warning Below.
V
1
2
H
1
INSTALLED
HORIZONTALLY
WARNING**
Fire Risk.
• When using SLP-HRC-SS and SLP-HRC-ZC-SS
termination caps on top vented fi replaces, a one
foot minimum vertical vent section is required
before installing fi rst elbow.
• When using DVP-TB1 termination cap on top
vented fi replaces, a three foot minimum vertical
vent section is required before installing fi rst
elbow.
Figure 4.9
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
17
Page 18
Top Vent - Horizontal Termination - (continued)
Three Elbows
Note: There MUST be a 25% reduction
in total H when using fl ex vent except
when using the simple up and out
installation (see Figure 4.6).
H
2
V1 Minimum** H1 Maximum H1 + H2 Maximum
90 Elbow Only** 1-1/2 ft. 457 mm 2 ft. 610 mm
1/2 ft.** 152 mm 1-1/2 ft. 457 mm 4 ft. 1.2 m
1-1/2 ft. 457 mm 3 ft. 914 mm 6 ft. 1.8 m
2-1/2 ft. 762 mm 5 ft. 1.5 m 10 ft. 3.0 m
3-1/2 ft. 1.1 m 7 ft. 2.1 m 14 ft. 4.3 m
4-1/2 ft. 1.4 m 14 ft. 4.3 m 14 ft. 4.3 m
H
+ H2 MAX. =14 ft. (4.3 m)
1
+ V2 + H1 + H2 MAX. = 40 ft. (12.2 m)
V
1
** See Warning Below.
V
2
Note: Use SLP Series
components only.
Fire Risk.
• When using SLP-HRC-SS and SLP-HRC-ZCSS termination caps on top vented fi replaces,
a one foot minimum vertical vent section is
required before installing fi rst elbow.
WARNING**
V
H
1
1
Figure 4.10
18
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
Page 19
CAP
V
1

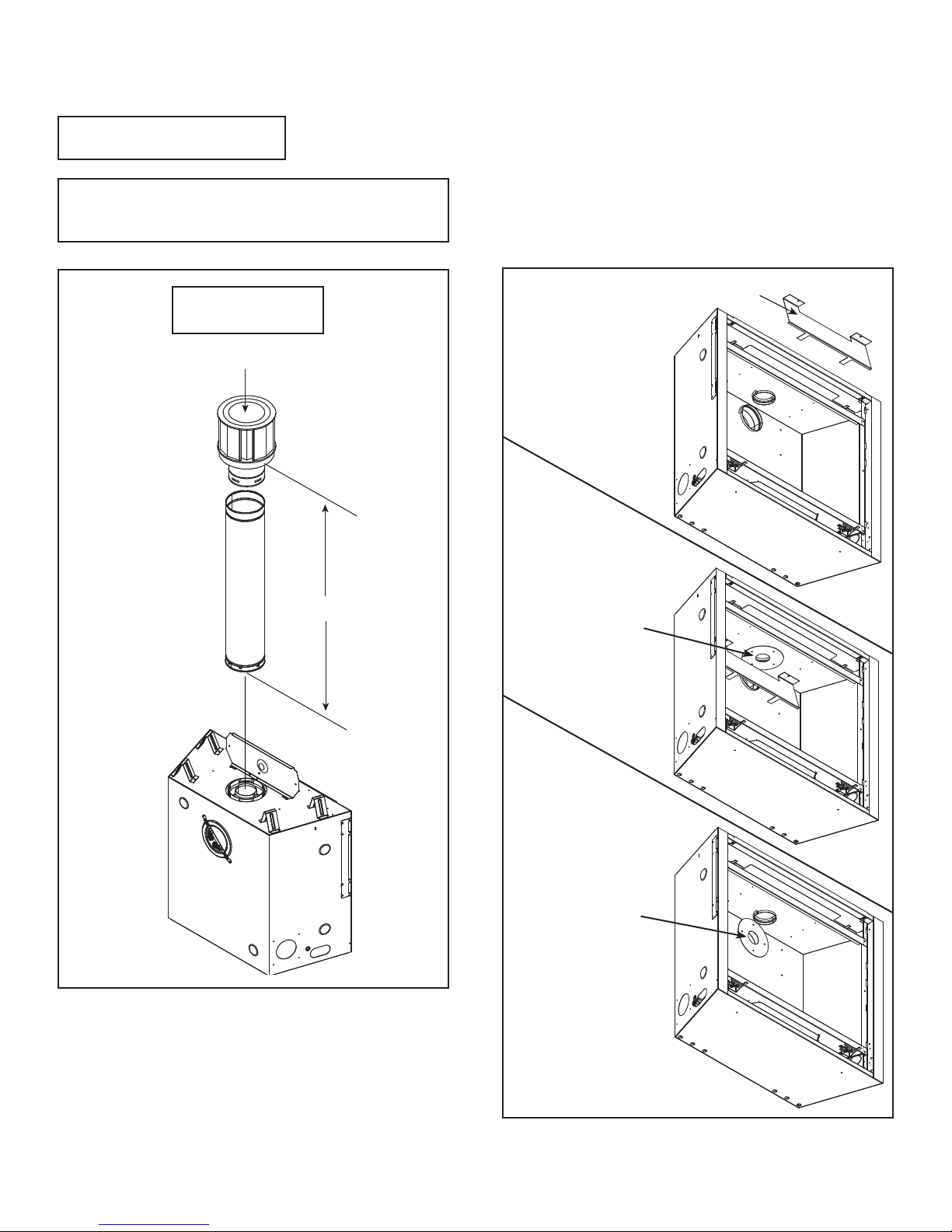

Top Vent - Vertical Termination
No Elbows
V1 = 60 ft. Max. (18.3 m)
Note: If installing a vertical vent/termination off the top of
the appliance, the optional vertical termination baffl e may
be needed.
Note: Use SLP Series
components only.
Exhaust restrictor Instructions
1. Install the exhaust restrictor over the center of the exhaust outlet in the fi rebox. See Figure 4.12.
2. Center the exhaust restrictor in the open end of the
exhaust outlet and secure through the slots on the exhaust restrictor with the 2-1/4 in. self tapping screws
provided in the appliance manual bag.
EXHAUST BAFFLE
To access the exhaust
openings, remove the
exhaust baffl e. To re-
move exhaust baffl e, re-
move the two wing nuts.
Figure 4.11
Exhaust restrictors are recommended for these vertically terminated products which have excessive draft.
Exhaust restrictors will compensate for high draft, and
restore visual fl ame height. If the vent confi guration has
a total vertical of 15-60 feet, an exhaust restrictor may
be needed. The exhaust restrictor can be located in the
appliance manual bag.
Top Vent Application
Exhaust restrictor
Rear Vent Application
Exhaust restrictor
Note: Be sure to reinstall the exhaust baffl e
after exhaust restrictor
installation.
Figure 4.12
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
19
Page 20

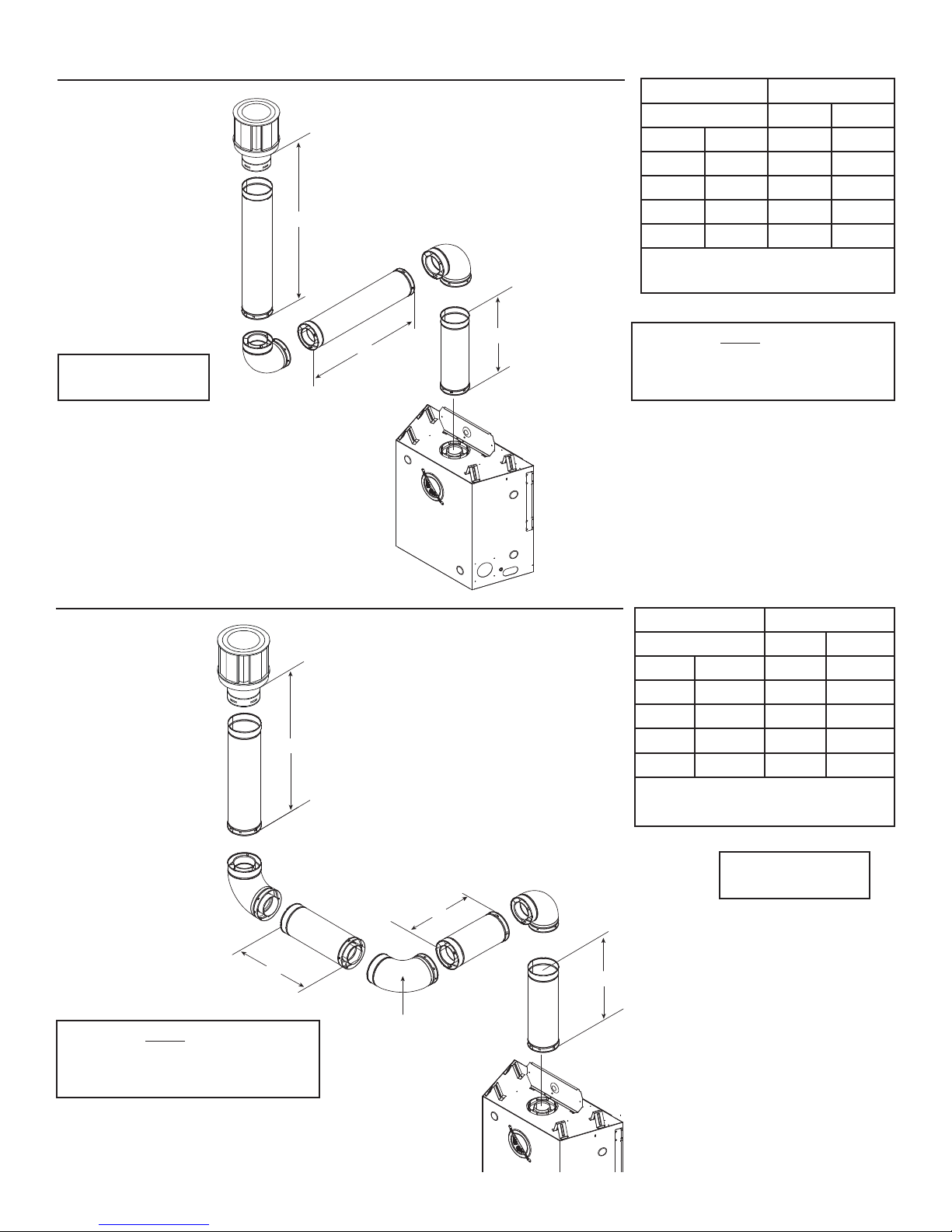

Top Vent - Vertical Termination - (continued)
Two Elbows
V
2
H
1
Note: Use SLP Series
components only.
V1 Minimum H1 Maximum
90 Elbow Only 1-1/2 ft. 457 mm
1/2 ft. 152 mm 2 ft. 610 mm
1-1/2 ft. 457 mm 3 ft. 914 mm
2-1/2 ft. 762 mm 5 ft. 1.5 m
3-1/2 ft. 1.1 m 7 ft. 2.1 m
4-1/2 ft. 1.4 m 15 ft. 4.6 m
MAX. =15 ft. (4.6 m)
H
1
V1 + V2 + H1 MAX. = 40 ft. (12.2 m)
V
1
Note: There MUST be a 25% reduction
in total H when using fl ex vent except
when using the simple up and out
installation (see Figure 4.6).
Figure 4.13
Three Elbows
V
H
2
Note: There MUST be a 25% reduction
in total H when using fl ex vent except
when using the simple up and out
installation (see Figure 4.6).
V1 Minimum H1 + H2 Maximum
90 Elbow Only 1/2 ft. 152 mm
1/2 ft. 152 mm 1 ft. 305 mm
1-1/2 ft. 457 mm 2 ft. 610 mm
2-1/2 ft. 762 mm 4 ft. 1.2 m
2
3-1/2 ft. 1.1 m 6 ft. 1.8 m
4-1/2 ft. 1.4 m 14 ft. 4.3 m
+ H2 MAX. =14 ft. (4.3 m)
H
1
V1 + V2 + H1 + H2 MAX. = 40 ft. (12.2 m)
Note: Use SLP Series
components only.
H
1
V
1
INSTALLED
HORIZONTALLY
Figure 4.14
20
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
Page 21

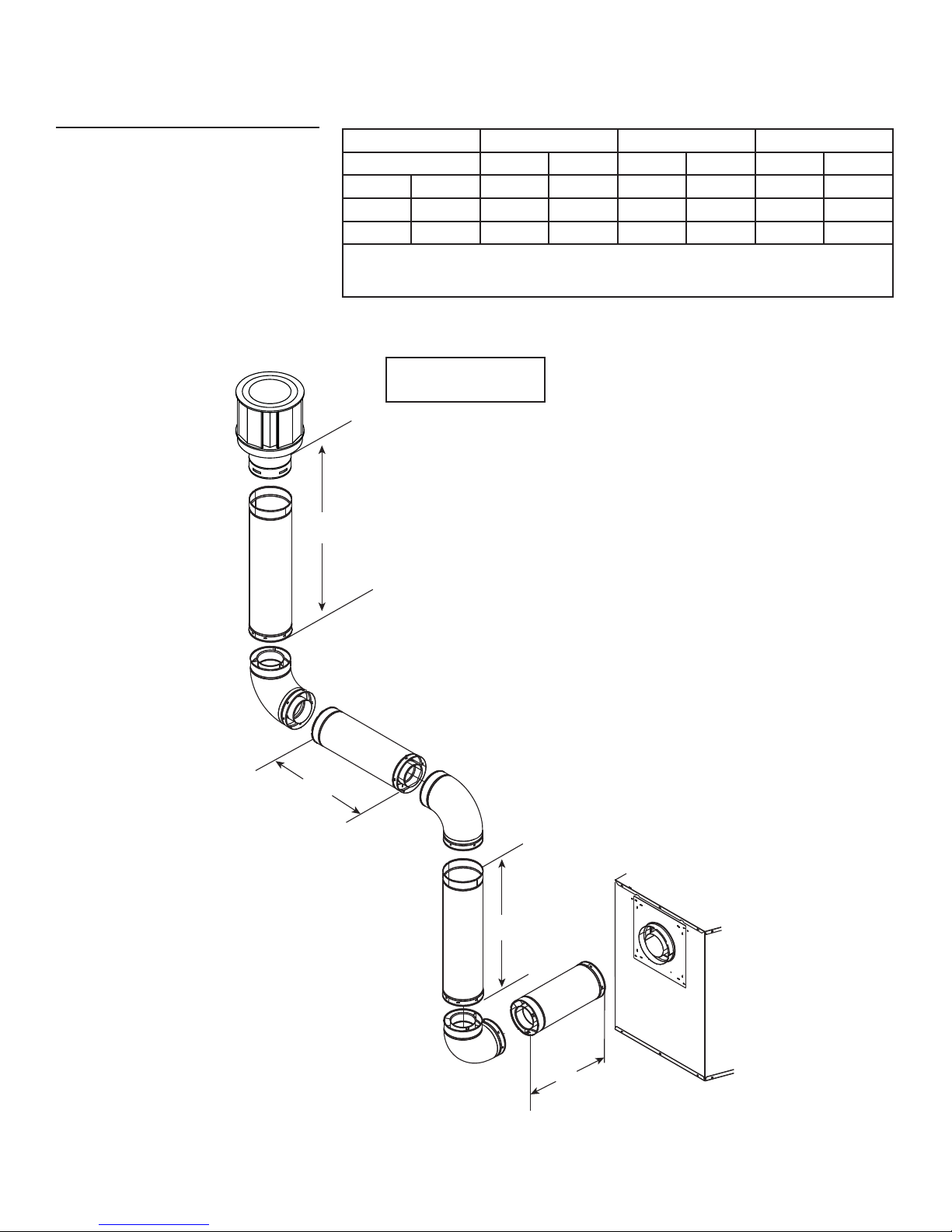

Top Vent - Vertical Termination - (continued)
Four 90º Elbows
Note: Use SLP Series
components only.
V1 MIN. H1 MAX. V2 MIN. H2 MAX. V3 MIN.
1-1/2 ft. 457 mm 4 ft. 1.2 m 4 ft. 1.2 m 4 ft. 1.2 m 3-1/2 ft. 1.1 m
+ V2 + V
V
1
+ H2 Maximum= 40 ft. (12.2 m)
3 + H1
Note: There MUST be a 25% reduction
in total H when using fl ex vent except
when using the simple up and out
installation (see Figure 4.6).
V
3
V
2
H
2
H
1
V
1
Figure 4.15
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
21
Page 22

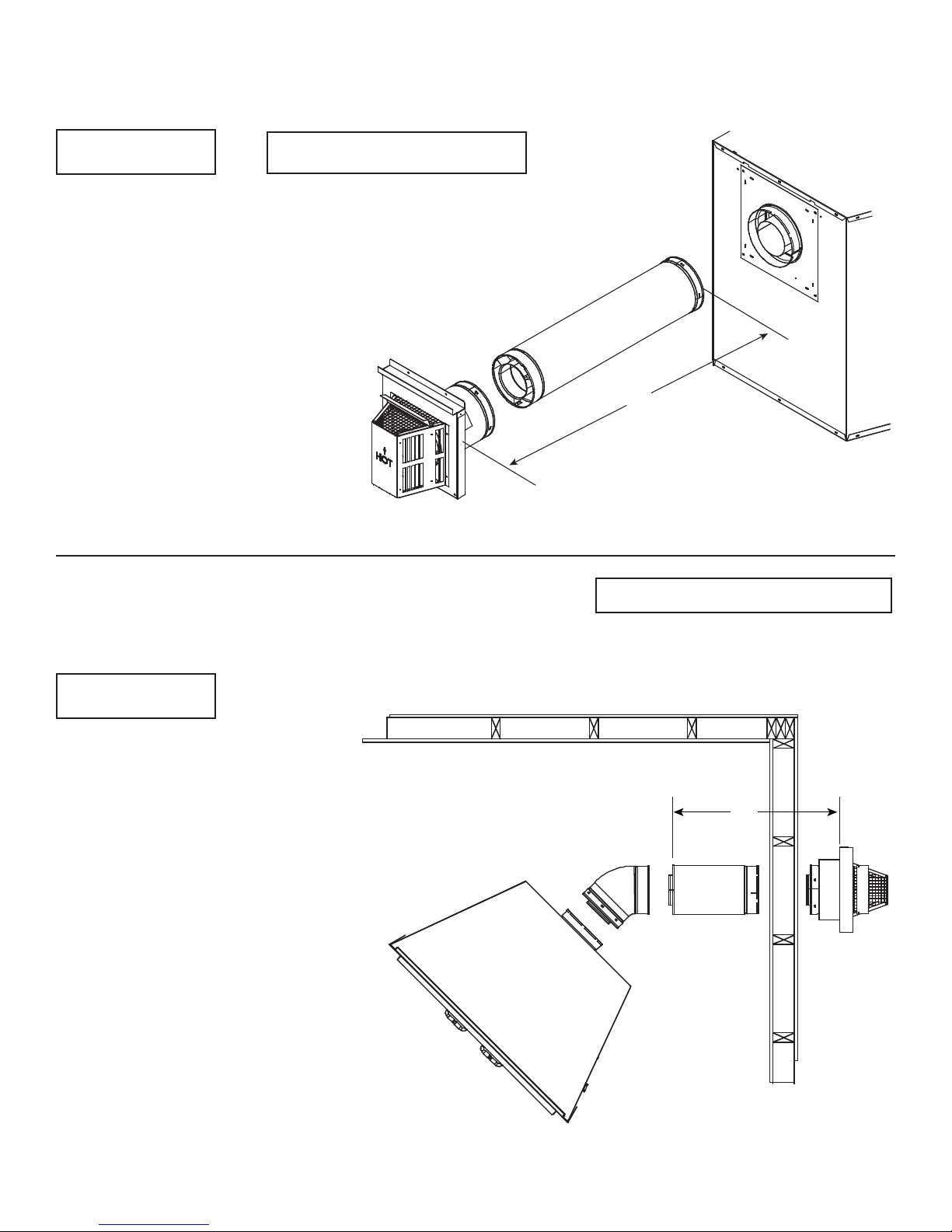

Rear Vent - Horizontal Termination
H
1
H
1
No Elbows
Note: Use DVP Series
components only.
Figure 4.16
H1 = 24 in. Max. (610 mm)
Rear Vent - Horizontal Termination
One 45º Elbow
H1 = 9 in. (229 mm) Maximum
Note: Use DVP Series
components only.
Figure 4.17
22
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
Page 23
INSTALLED
HORIZONTALLY
H
3
H
1
H
2
V
1
H
1
H
2
V
1

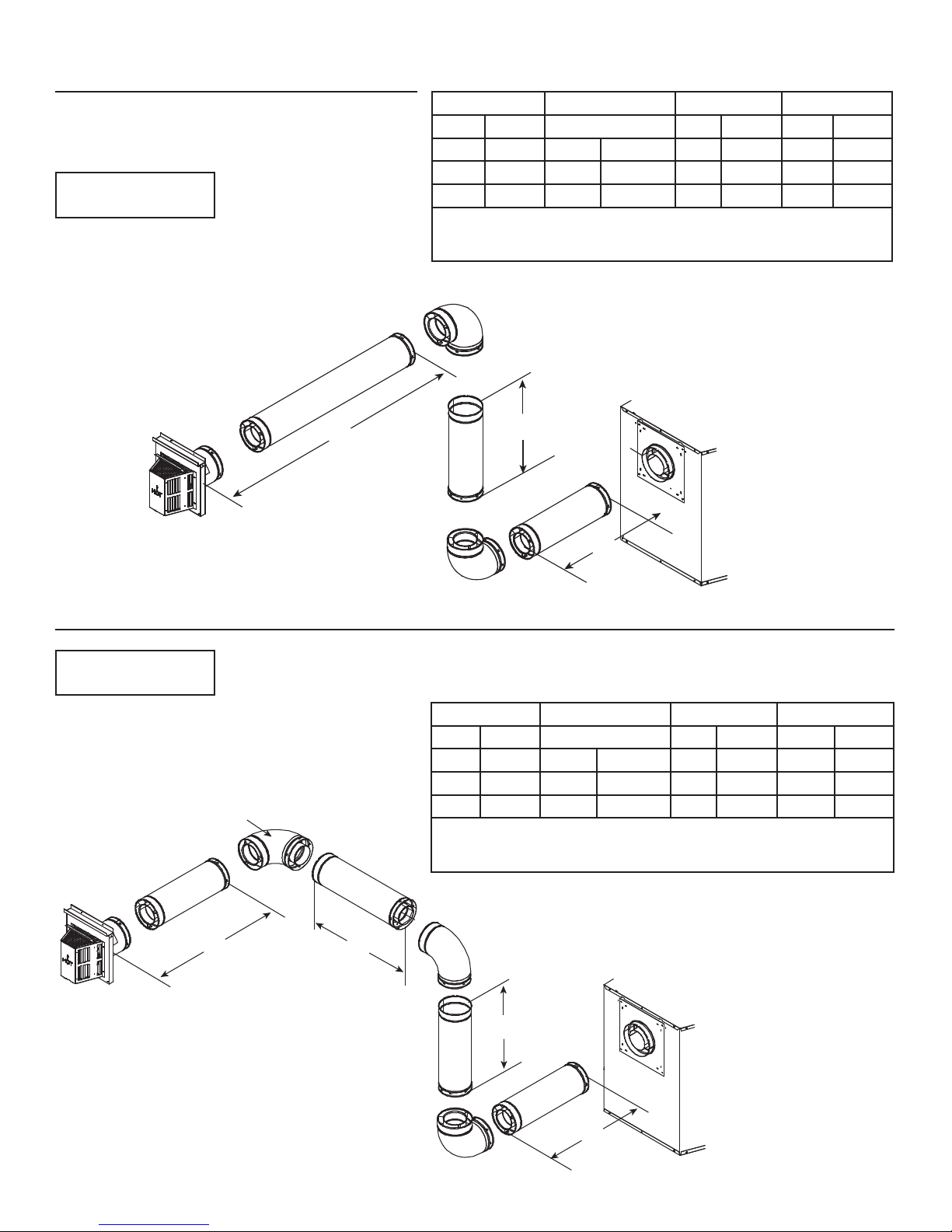

Rear Vent - Horizontal Termination - (continued)
Two Elbows
Note: Use DVP Series
components only.
H1 MAX. V1 MIN. H2 MAX. H1 + H2 MAX.
1-1/2 ft. 457 mm Back to back elbows 1 ft. 305 mm 2-1/2 ft. 762 mm
3 ft. 914 mm 1 ft. 305 mm 3 ft. 914 mm 6 ft. 1.8 m
5 ft. 1.5 m 3 ft. 914 mm 5 ft. 1.5 m 10 ft. 3.0 m
7 ft. 2.1 m 5 ft. 1.5 m 7 ft. 2.1 m 14 ft. 4.3 m
H
MAX. = 7 ft. (2.1 m)
1
H1 + H2 MAX. = 14 ft. (4.3 m)
V1 + H1 + H2 MAX. = 40 ft. (12.2 m)
Figure 4.18
Note: Use DVP Series
components only.
Three Elbows
H1 MAX. V1 MIN. H2 + H3 MAX. H1 + H2+ H3 MAX.
1-1/2 ft. 457 mm Back to back elbows 1 ft. 305 mm 2-1/2 ft. 762 mm
3-1/2 ft. 1.1 m 1 ft. 305 mm 2 ft. 610 mm 5-1/2 ft. 1.7 m
5-1/2 ft. 1.7 m 2 ft. 610 mm 4 ft. 1.2 m 9-1/2 ft. 2.9 m
7-1/2 ft. 2.3 m 3 ft. 914 mm 6 ft. 1.8 m 13-1/2 ft. 4.1 m
H
MAX. = 7-1/2 ft. (2.3 m)
1
H1 + H2+ H3 MAX. = 13-1/2 ft. (4.1 m)
V1 + H1 + H2+ H3 MAX. = 40 ft. (12.2 m)
Figure 4.19
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
23
Page 24
Rear Vent - Vertical Termination
INSTALLED
HORIZONTALLY
H
1
H
2
V
2
One Elbow
Note: Use DVP Series
components only.
V
1
V1 MIN. H1 MAX.
1 ft. 305 mm 3-1/2 ft. 1.1 m
2 ft. 610 mm 5-1/2 ft. 1.7 m
3 ft. 914 mm 7-1/2 ft. 2.3 m
H MAX. = 7-1/2 ft. (2.3 m)
V
+ H1 MAX. = 40 ft. (12.2 m)
1
H
1
Figure 4.20
Note: Use DVP Series
components only.
Two Elbows
H1 + H2 MAX V1 MIN.
Back to back elbows 1/2 ft. 152 mm
2-1/2 ft. 762 mm 1 ft. 305 mm
4-1/2 ft. 1.4 m 2 ft. 610 mm
6-1/2 ft. 2.0 m 3 ft. 914 mm
H MAX. = 6-1/2 ft. (2 m)
+ H+ H1 MAX. = 40 ft. (12.2 m)
V
Figure 4.21
24
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
Page 25
Rear Vent - Vertical Termination - (continued)
Three Elbows
V1 MIN. H1 MAX. H2 MAX. H1 + H2 MAX.
Back to back elbows 1-1/2 ft. 457 mm 1 ft. 305 mm 2-1/2 ft. 762 mm
1 ft. 305 mm 3-1/2 ft. 1.1 m 3 ft. 914 mm 6-1/2 ft. 2.0 m
2 ft. 610 mm 5-1/2 ft. 1.7 m 5 ft. 1.5 m 10-1/2 ft. 3.2 m
3 ft. 914 mm 7-1/2 ft. 2.3 m 7 ft. 2.1 m 14-1/2 ft. 4.4 m
Note: Use DVP Series
components only.
H
MAX. = 7-1/2 ft. (2.3 m)
1
H1 + H2 MAX. = 14-1/2 ft. (4.4 m)
V1 + V2 + H1 + H2 MAX. = 40 ft. (12.2 m)
H
V
2
2
V
1
Figure 4.22
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
H
1
25
Page 26

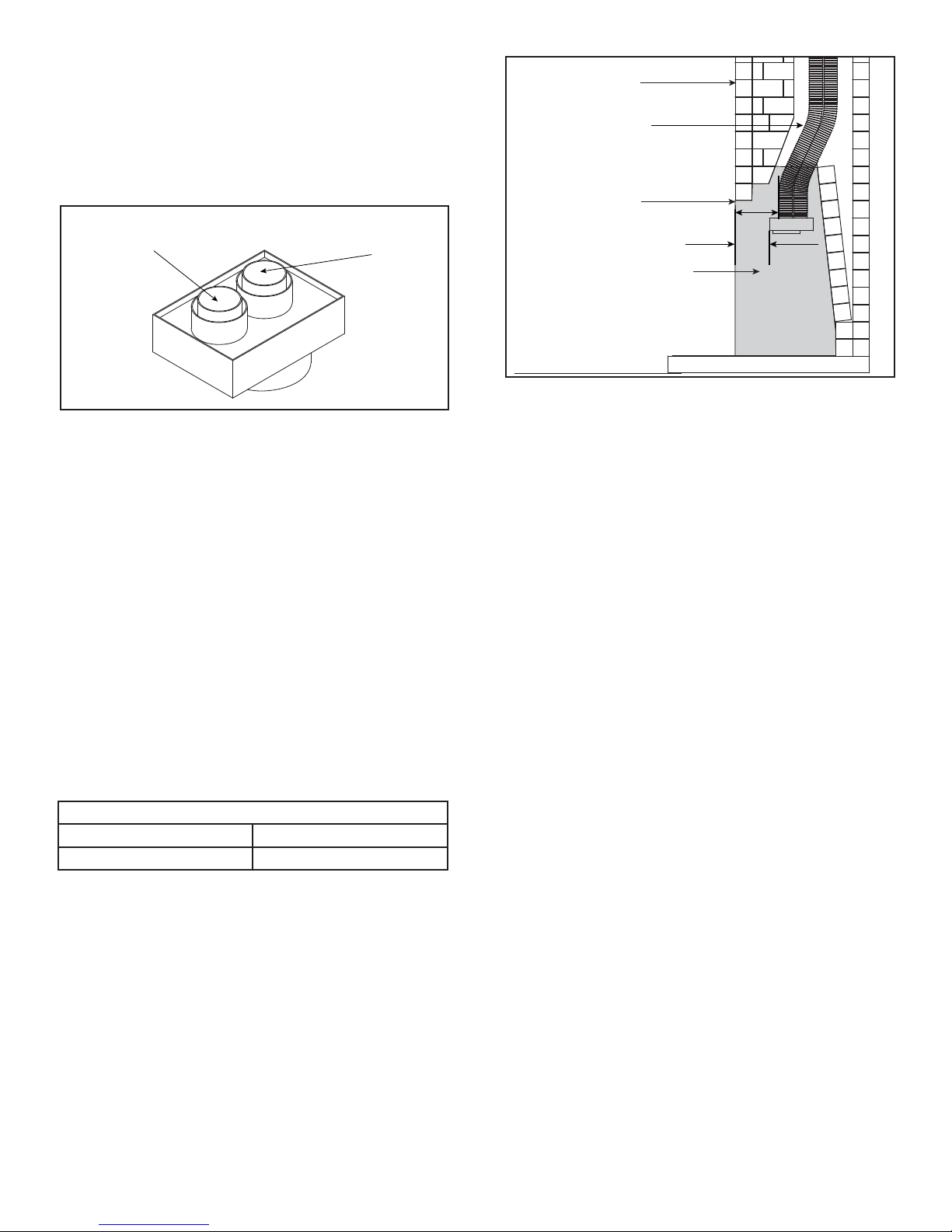

Coaxial to Colinear Venting
The coaxial to colinear adapter (DV-46DVA-GCL) is approved for installations into solid fuel masonry or factory
built fi replaces that have been installed in accordance
with the National, Provincial, State and local building
codes. The DV-46DVA-GCL must be recessed into existing masonry fi replace. See Table 1 and Figure 4.24.
OUTSIDE FACE OF
FIREPLACE
EXHAUST VENT PIPE
TOP OF FIREPLACE
OPENING
5 IN. MIN.
INLET AIR VENT PIPE
Figure 4.23 Coaxial/Colinear Appliance Connector
EXHAUST VENT PIPE
WARNING! Risk of Fire! Coaxial to colinear venting con-
fi guration may only be used in existing non-combustible
chimney. Installation in any other venting application
could cause fi re.
Prior to installing the gas appliance:
• Have the chimney and adjacent structure inspected
and cleaned by qualifi ed professionals. Hearth & Home
Technologies recommends that NFI or CSIA certifi ed
professionals, or technicians under the direction of certifi ed professionals, conduct a minimum of a NFPA 211
Level 2 inspection of the chimney.
• Replace component parts of the chimney and fi replace
as specifi ed by the professionals.
• Ensure all joints are properly engaged and the chimney
is properly secured.
Table 1
CLEARANCE TO COMBUSTIBLES REQUIREMENTS
DV-46DVA-GCL 3 IN.
Exhaust Vent Pipe 5 IN.
3 IN. MIN.
SHADED AREA DEFINED AS
“INSIDE EXISTING MASONRY
FIREPLACE”
Figure 4.24 Existing Fireplace DV-46DVA-GCL
Clearance Requirements
Clearances to Combustibles:
Refer to Section 3 for clearances to the appliance, mantel, mantel legs and wall projection.
Refer to Section 5 for pipe clearances to combustibles.
Termination Cap
For installation of termination cap see minimum vent
heights for various pitched roofs. See Section 4.A.
Flue Damper
Fully lock the solid fuel fi replace’s fl ue damper in the open
position, OR completely remove it.
Venting Components
The LINK-DV30B is approved for use with the coaxial/colinear venting application. The LINK-DV30B kit includes:
• Two 30 foot sections of fl exible vent pipe (3 inches Ø).
One section is used to draw combustion air and the other
section is used to expel exhaust gases.
• One vertical termination cap.
CAUTION! DO NOT use any fl ue restrictor when vent-
ing with the DV-46DVA-GCL adapter and LINK-DV30B
kit. This could result in poor fl ame appearance, sooting,
pilot malfunction, or overheating.
26
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
Page 27

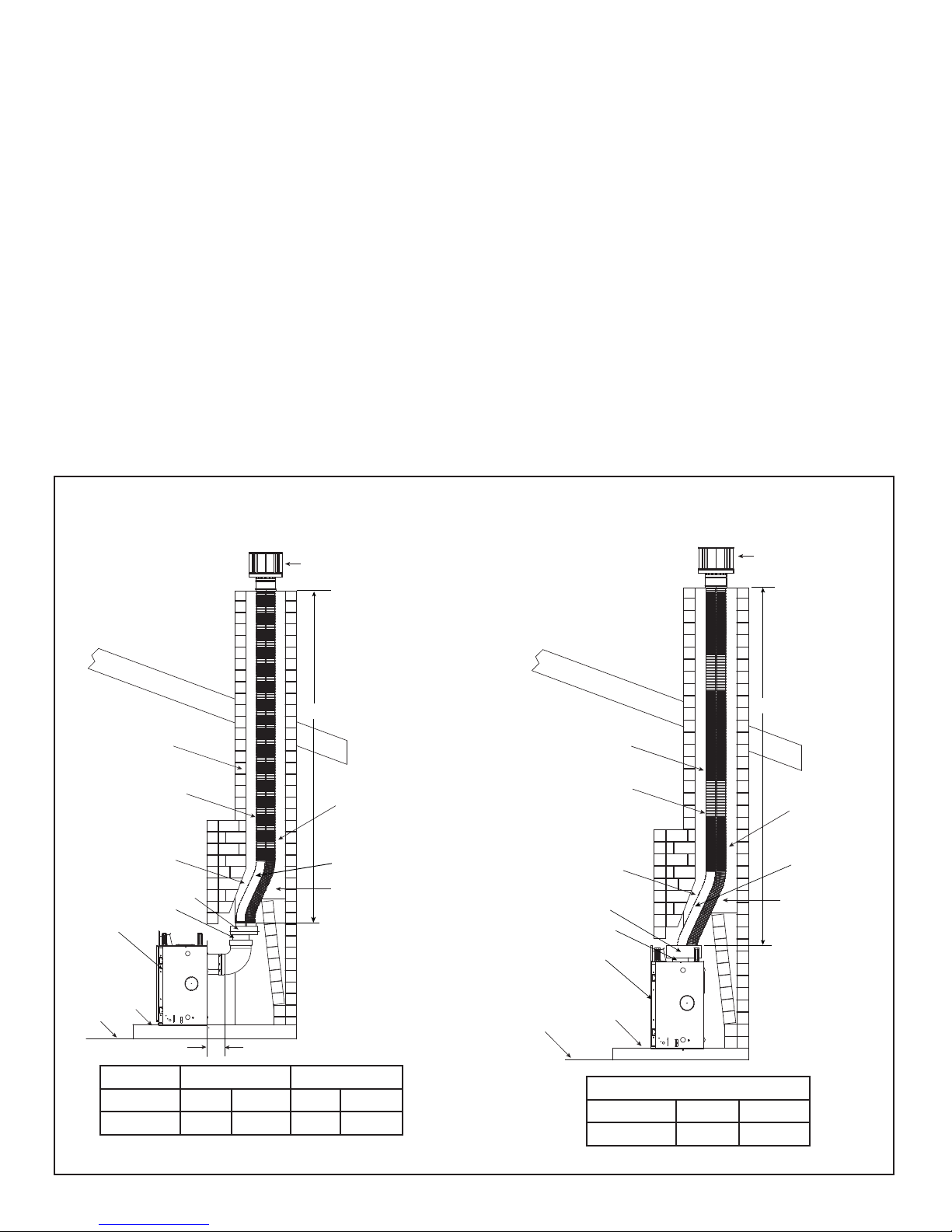

Connecting the DV-46DVA-GCL Adapter to Appliance
Top Vent
• Remove top seal cap and insulation if equipped. See
Section 14, “Appliance Setup.” Attach the DVP-2SL to
the 8 inch starting collar. Follow installation instructions
included with DVP-2SL kit. Attach the DV-46DVA-GCL
adapter to the appliance starting collar with 3-1/2 in.
self-tapping screws. See Figure 4.25.
Rear Vent
• Remove the rear seal cap and insulation if equipped.
Connect the DVP-2SL adapter to the vertically positioned
elbow. Follow installation instructions included with DVP2SL kit. Secure DV-46DVA-GCL adapter to DVP-2SL with
3-1/2 in. self-tapping screws. See Figure 4.25.
Connecting the LINK-DV30B to the DV-46DVA-GCL
adapter
• Insert the two sections of fl exible vent pipe down the
existing chimney.
• Attach one section of stainless steel fl ex pipe to the
exhaust collar on top of the DV-46DVA-GCL adapter with
three screws.
• Attach one section of fl exible vent pipe to the stainless
steel fl ex pipe with three self-tapping screws.
• Attach one section of fl exible vent pipe to the inlet collar
on top of the DV-46DVA-GCL adapter with three selftapping screws.
• To minimize cold air drafts, seal around the fl ex vents
at the damper inside the chimney with non-combustible
unfaced fi berglass or rock wool insulation.
The DV-46DVA-GCL adapter must be recessed into existing
masonry fi replace. This measurement is taken from the top
of the fi replace opening. See Table 1 and Figure 4.24.
WARNING! Risk of Fire, Explosion or Asphyxiation!
Do NOT connect this gas appliance to a chimney fl ue
serving a separate solid fuel or gas burning appliance.
• Could impair safe operation of this appliance or other
appliances connected to the fl ue.
• Vent this appliance directly outside.
• Use separate vent system for this appliance.
EXISTING CHIMNEY
EXHAUST AIR
VENT PIPE
EXISTING CHIMNEY
COAXIAL/COLINEAR
APPLIANCE CONNECTOR
DIRECT VENT FIREPLACE
DVP-2SL
REAR VENT
TERMINATION CAP
CAUTION! DO NOT use any fl ue restric-
tor when venting with the DV-46DVA-GCL
adapter and LINK-DV30B kit. This may re-
sult in poor fl ame appearance, sooting, pilot
malfunction, or overheating.
NOTICE: To achieve optimum perfor-
V
mance of appliance, minimize or avoid
bends in exhaust vent pipe.
INLET AIR VENT PIPE
The first 3 feet of
exhaust flue must be
stainless flex pipe.
To minimize cold air
drafts, seal with
non-combustible
insulation.
EXISTING CHIMNEY
EXHAUST AIR
VENT PIPE
EXISTING CHIMNEY
COAXIAL/COLINEAR
APPLIANCE CONNECTOR
DVP-2SL
DIRECT VENT FIREPLACE
TOP VENT
TERMINATION CAP
V
INLET AIR
VENT PIPE
The first 3 feet of
exhaust flue must
be stainless flex
To minimize cold air
drafts, seal with
non-combustible
insulation.
pipe.
HEARTH
FLOOR
H
VH
Minimum 10 ft. 3.05 m 0 ft. 0 mm
Maximum 40 ft. 12.2 m 2 ft. 610 mm
Figure 4.25
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
FLOOR
HEARTH
V
Minimum 10 ft. 3.05 m
Maximum 40 ft. 12.2 m
27
Page 28
5
5
C
D
B*
A*
10 in.
12 in.
10 in.
10 in.

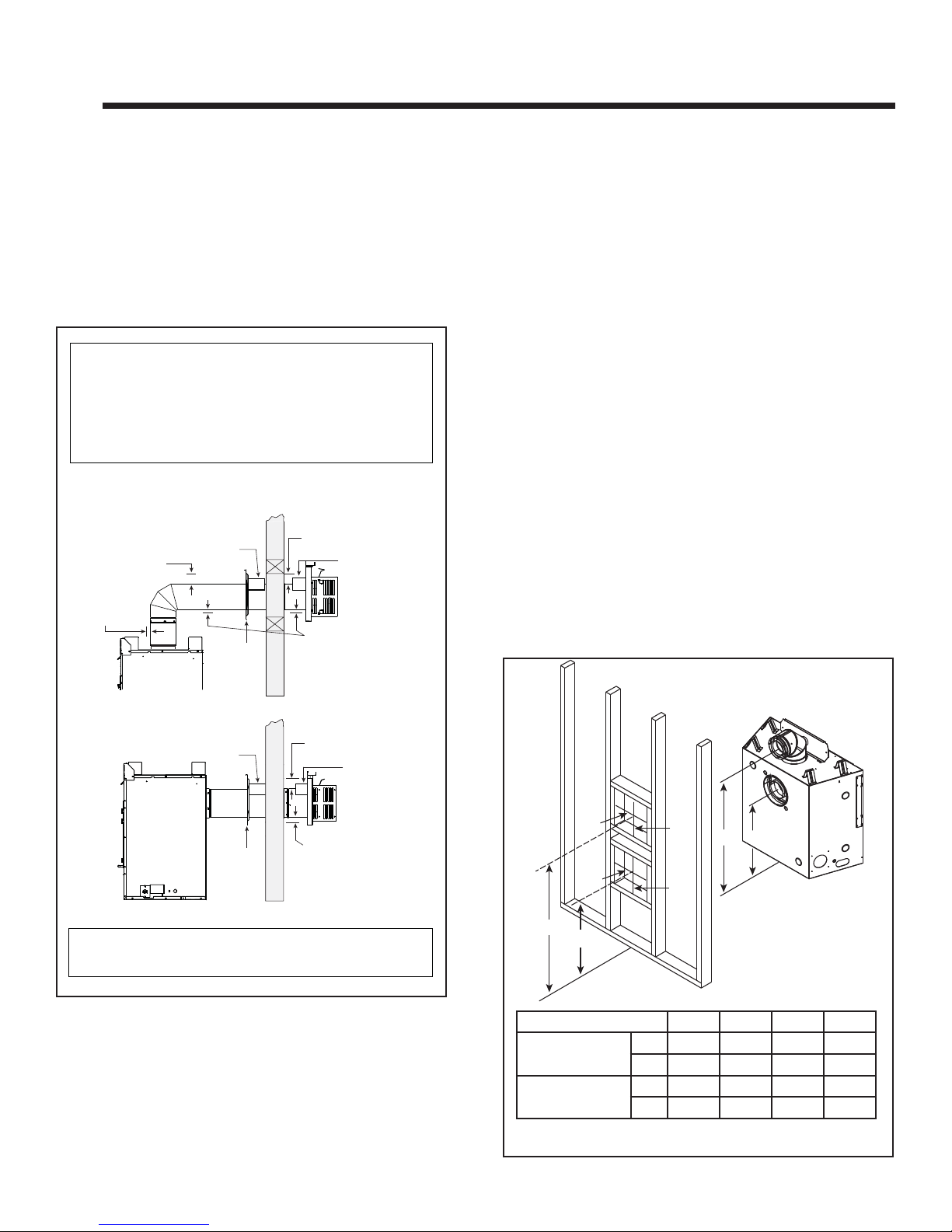

Vent Clearances and Framing
A. Pipe Clearances to Combustibles
WARNING! Risk of Fire! Maintain air space clearance to
vent. DO NOT pack insulation or other combustibles:
• Between ceiling fi restops
• Between wall shield fi restops
• Around vent system
Failure to keep insulation or other material away from
vent pipe could cause overheating and fi re.
Note: Heat shields MUST overlap by a minimum of 1-1/2 in. (38 mm).
DVP heat shield - designed to be used on a wall 4 in. to 7-1/4 in. (102 mm to 184
mm) thick.
,IZDOOWKLFNQHVVLVOHVVWKDQLQWKHH[LVWLQJKHDWVKLHOGVPXVWEHILHOGWULPPHG,I
wall thickness is greater than 7-1/4 in. a DVP-HSM-B will be required.
SLP heat shield - designed to be used on a wall 4-3/8 in. to 7-5/8 in. (111 mm to
194 mm thick).
,IZDOOWKLFNQHVVLVOHVVWKDQWKHH[LVWLQJKHDWVKLHOGVPXVWEHILHOGWULPPHG
,IZDOOWKLFNQHVVLVJUHDWHUWKDQLQD'93+60%ZLOOEHUHTXLUHG
(DVP-SLP Pipe Shown)
3 in. (76 mm)
top clearance
1 in. (25 mm)
clearance around
vertical sections
Heat
Shield
Wall
Shield
Firestop
3 in. (76 mm)
top clearance *
Heat
Shield
1 in. (25 mm)
clearance
bottom & sides
B. Wall Penetration Framing/Firestops
Combustible Wall Penetration
Whenever a combustible wall is penetrated, you must
frame a hole for the wall shield fi restop(s). The wall shield
fi restop maintains minimum clearances and prevents cold
air infi ltration.
• The opening must be framed on all four sides using the
same size framing materials as those used in the wall
construction.
• SLP pipe - A wall shield fi restop must be placed on each
side of an interior wall. A minimum 1-1/2 in. (38 mm)
overlap of attached heat shields must be maintained.
• DVP pipe - A wall shield fi restop is required on one side
only on interior walls. If your local inspector requires a
wall shield fi restop on both sides, then both wall shield
fi restops must have a heat shield (refer to Section
12.A.) attached to them.
• See Section 7.G. for information for regarding the installation of a horizontal termination cap.
Non-Combustible Wall Penetration
If the hole being penetrated is surrounded by non-combustible materials such as concrete, a hole with diameter
one inch greater than the pipe is acceptable.
Whenever a non-combustible wall is penetrated, the wall
shield fi restop is only required on one side and no heat
shield is necessary.
WALL
Heat
Shield
Wall
Shield
Firestop
WALL
* When using SLP pipe, minimum clearances from the vent pipe to combustible materi-
als at inside wall firestops are: Top: 2-1/2 in. (64 mm)
Bottom: 1/2 in. (13 mm)
Sides: 1 in. (25 mm)
Figure 5.1 Horizontal Venting Clearances To Combustible
Materials
28
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
3 in. (76 mm)
top clearance *
1 in. (25 mm)
clearance
bottom & sides
Heat
Shield
A* B* C D
ECLIPSE-32
ECLIPSE-36
* Shows center of vent framing hole for top or rear venting. The center of the
hole is one (1) in. (25.4 mm) above the center of the horizontal vent pipe.
Figure 5.2 Wall Penetration
in. 37 24-3/8 36 23-3/8
mm 940 619 914 594
in. 41 27-7/8 40 26-7/8
mm 1041 708 1016 683
Page 29
C. Ceiling Firestop/Floor Penetra-
INSTALL ATTIC INSULATION SHIELDS
BEFORE OR AFTER INSTALLATION OF VENT SYSTEM
CEILING FIRESTOP
INSTALLED BELOW CEILING
CEILING FIRESTOP
INSTALLED ABOVE CEILING
tion Framing
A ceiling fi restop MUST be used between
fl oors and attics.
• DVP pipe only - Frame an opening 10 in.
by 10 in. (254 mm by 254 mm) whenever
the vent penetrates a ceiling/fl oor (see
Figure 5.3).
• SLP pipe only - Frame opening 9 in. x 9
in. (229 mm x 229 mm) whenever the vent
penetrates a ceiling/fl oor (see Figure 5.3).
• Frame the area with the same sized lumber
as used in ceiling/fl oor joist.
• The ceiling fi restop may be installed above or
below the ceiling joists when installed with a
attic insulation shield. It must be under joists
between fl oors that are not insulated. Refer
to Figure 5.4.
• Secure with three fasteners on each side.
WARNING! Risk of Fire! DO NOT pack insu-
lation around the vent. Insulation must be kept
back from the pipe to prevent overheating.
D. Install Attic Insulation Shield
WARNING! Fire Risk. DO NOT allow loose
materials or insulation to touch vent. Hearth
& Home Technologies requires the use of an
attic shield.
The International Fuel Gas Code requires an
attic shield constructed of 26 gauge minimum
steel that extends at least 2 in. (51 mm) above
insulation.
• Attic insulation shields must meet specifi ed
clearances to combustible materials and be
secured in place.
• An attic insulation shield kit is available from
Hearth & Home Technologies. Contact your
dealer to order. Install attic insulation shield
according to instructions included with kit.
Figure 5.3 Installing Ceiling Firestop
PIPE
DVP
SLP
ATTIC ABOVE
A
A
A
10 in. (254 mm)
9 in. (229 mm)
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
Figure 5.4 Installing the Attic Shield
29
Page 30
6
6
Appliance Preparation
A. Vent Collar Preparation - Top or Rear
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during installation. Sheet metal edges are sharp.
NOTICE: Once appliance is set up for top or rear venting,
it CANNOT be changed at a later time.
Top Vent
2 SCREWS
Figure 6.1 For top vent, remove the two screws holding
the top heat shield in place. For rear vent, see next page.
WARNING! Risk of Fire! Do not remove heat shield. Elevated header temperatures may cause a fi re.
Note: Actual appliance may look different than the appliance
shown in this section.
Figure 6.4 Remove the seal cap.
Figure 6.2 Rotate the top heat shield to the vertical
position as shown above. The heat shield must remain in
the vertical position.
2 SCREWS
Figure 6.3 Replace the two screws as shown.
30
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
Figure 6.5 Remove the insulation basket and white insulation from the center vent pipe.
Figure 6.6 Remove the insulation from the outer vent pipe.
Page 31

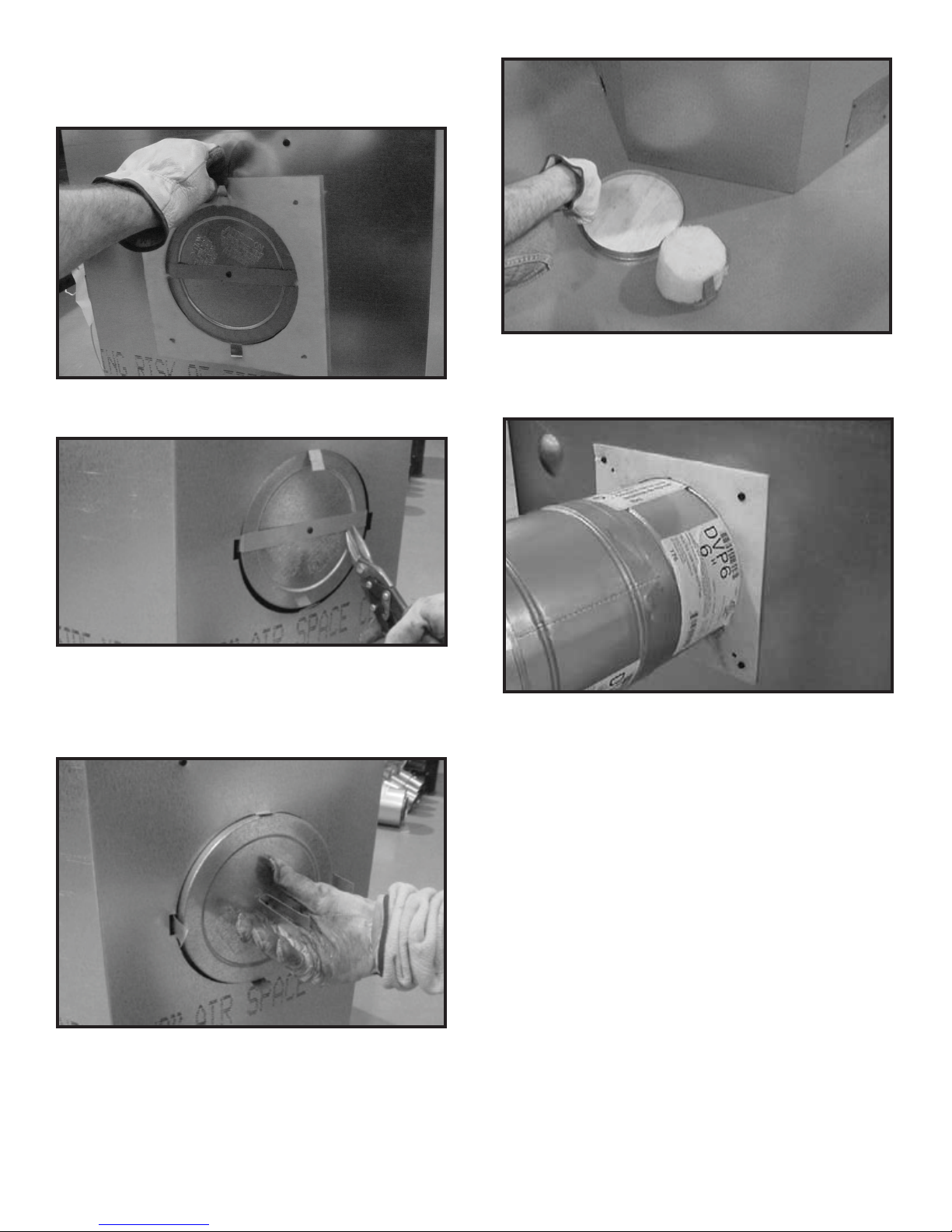

Rear Vent
NOTICE: Once appliance is set up for top or rear venting,
it CANNOT be changed at a later time.
Figure 6.7 Fold the tabs toward the center of the fi re plug
(90º) and remove the insulation gasket.
Figure 6.10 Discard the seal cap, remove and discard
the insulation basket. Note: Once the seal cap has been
removed it CANNOT be reattached.
Figure 6.8 Cut the metal retaining band and fold the
sides out.
NOTICE: Once the seal cap has been removed it CANNOT
be reattached.
Figure 6.9 Fold the center parts of the retaining band
toward the center as shown. Remove the seal cap.
Figure 6.11 Attach the fi rst vent section (it will snap into
place). Slide the insulation gasket onto the vent section,
up against the appliance and over the tabs. Use four selftapping screws to secure gasket to outer wrap.
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
31
Page 32
B. Securing and Leveling the Appliance
WARNING! Risk of Fire! Prevent contact with:
• Sagging or loose insulation
• Insulation backing or plastic
• Framing and other combustible materials
Block openings into the chase to prevent entry of blownin insulation. Make sure insulation and other materials
are secured.
DO NOT notch the framing around the appliance
standoffs.
Failure to maintain air space clearance could cause
overheating and fi re.
The diagram shows how to properly position and secure
the appliance. See Figure 6.12. Nailing tabs are provided
to secure the appliance to the framing members.
• Bend out nailing tabs on each side.
• Place the appliance into position.
• Keep nailing tabs fl ush with the framing.
• Level the appliance from side to side and front to back.
• Shim the appliance as necessary. It is acceptable to use
wood shims underneath the appliance.
• Secure the appliance to the framing by using nails or
screws through the nailing tabs.
• Secure the appliance to the fl oor by inserting two screws
through the pilot holes at the bottom of the appliance.
NAILING TABS
(BOTH SIDES)
Figure 6.12 Proper Positioning and Securing of an Appliance
32
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
Page 33
7
7
Lances

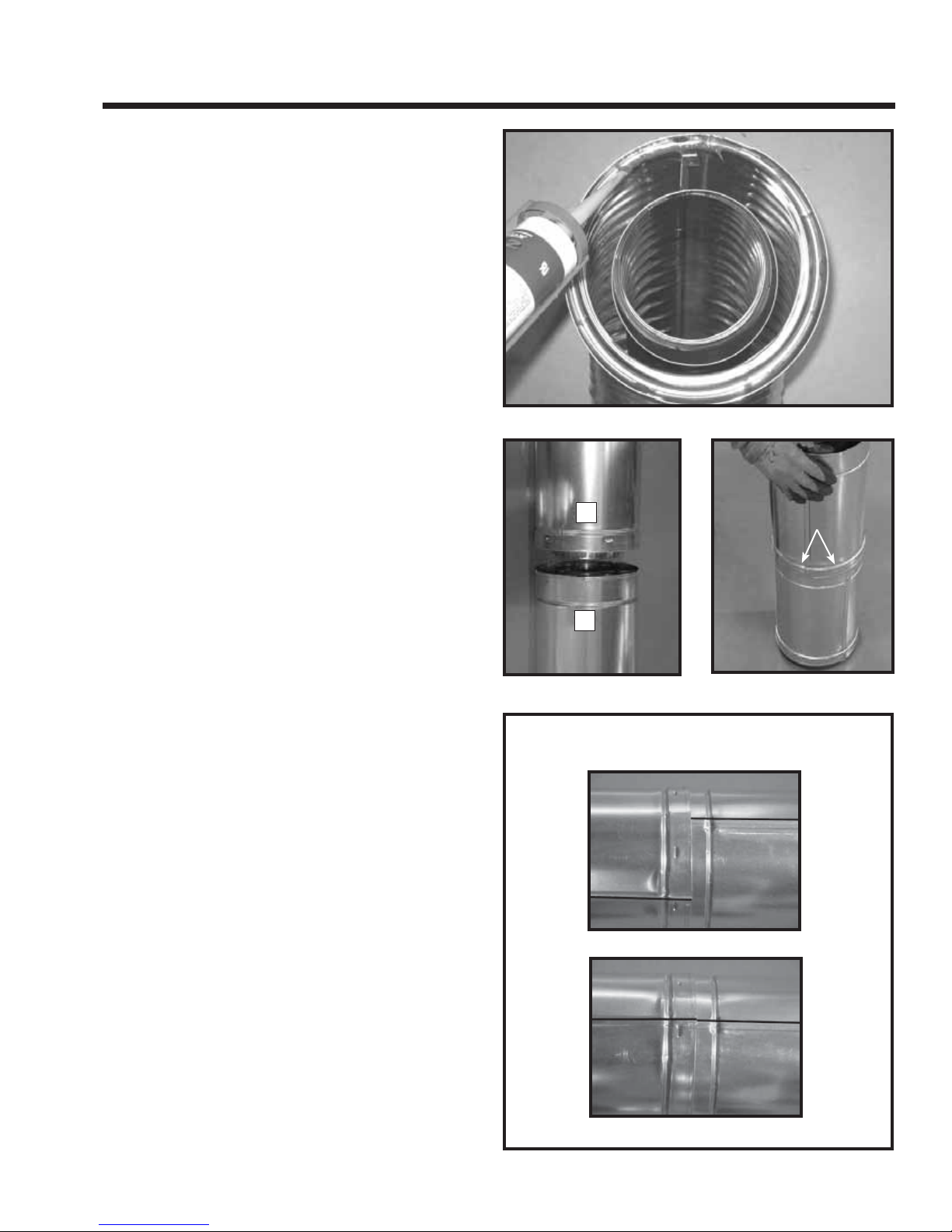

Venting and Chimneys
A. Assemble Vent Sections (DVP Pipe)
Attach Vent to the Firebox Assembly
Note: The end of the pipe sections with the lanced tabs
will face toward the appliance.
Attach the fi rst pipe section to the starting collar:
• Lanced pipe end of the starting collar.
• Inner pipe over inner collar.
• Push the pipe section until all lanced tabs snap in place.
• Lightly tug on pipe to confi rm it has locked.
Required Commercial, Multi-family (Multi-level exceeding
two stories), or High-Rise Applications
All outer pipe joints must be sealed with 100% silicone
(300º F minimum continuous exposure rating), including
the slip section that connects directly to the horizontal termination cap.
• Apply a bead of silicone sealant (300º F minimum continuous exposure rating) inside the female outer pipe
joint prior to joining sections. See Figure 7.1.
• Only outer pipes need to be sealed. All unit collar, pipe,
slip section, elbow and cap outer fl ues shall be sealed
in this manner, unless otherwise stated.
Figure 7.1 High Temperature Silicone Sealant
A
B
Lances
WARNING! Risk of Fire or Explosion! DO NOT break
silicone seals on slip sections. Use care when removing termination cap from slip pipe. If slip section seals
are broken during removal of the termination cap, vent
could leak.
Assemble Pipe Sections
Per Figure 7.2:
• Start the inner pipe on the lanced end of section A into
the fl ared end of section B.
• Start the outer pipe of section A over the outer pipe of
section B.
• Once both vents sections are started, push fi rmly until
all lanced tabs lock into place.
• Lightly tug on the pipe to confi rm the tabs have locked.
It is acceptable to use screws no longer than 1/2 in. (13
mm) to hold outer pipe sections together. If predrilling holes,
DO NOT penetrate inner pipe.
For 90º and 45º elbows that are changing the vent direction
from horizontal to vertical, one screw minimum should be
put in the outer fl ue at the horizontal elbow joint to prevent
the elbow from rotating. Use screws no longer than 1/2
in. (13 mm). If predrilling screw holes, DO NOT penetrate
inner pipe.
Figure 7.2
Note: Make sure that the seams are not aligned to prevent
unintentional disconnection.
CORRECT
INCORRECT
Figure 7.3
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
Figure 7.4 Seams
33
Page 34
B. Assemble Vent Sections (SLP Pipe)
Pilot hole
To attach the fi rst vent component to the starting collars
of the appliance:
• Lock the vent components into place by sliding the pipe
section onto the collar.
• Align the seam of the pipe and seam of collar to allow
engagement. Rotate the vent component to lock into
place. Use this procedure for all vent components. See
Figure 7.5.
• Slide the gasket over the fi rst vent section and place it
fl ush to the appliance. This will prevent cold air infi ltration.
Caulk with a minimum of 300ºF continuous exposure
rating may be used to hold the part in place.
• Continue adding vent components, locking each
succeeding component into place.
• Ensure that each succeeding vent component is securely
fi tted and locked into the preceding component.
C. Assemble Slip Sections
• Slide the inner fl ue of the slip section into the inner fl ue
of the pipe section and the outer fl ue of the slip section
over the outer fl ue of the pipe section. See Figure 7.6.
• Slide together to the desired length.
Pilot hole
Figure 7.6 Slip Section Pilot Holes
Required Commercial, Multi-family (Multi-level exceeding
two stories), or High-Rise Applications
For Installation into a commercial, multi-family (multi-level
exceeding two stories) or high-rise applications: All outer
pipe joints must be sealed with high temperature silicone
(300º F minimum continuous exposure rating), including
the slip section that connects directly to the horizontal termination cap.
• Apply a bead of silicone sealant (300º F minimum continuous exposure rating) inside the female outer pipe
joint prior to joining sections. See Figure 7.1.
• Only outer pipes need to be sealed. All unit collar, pipe,
slip section, elbow and cap outer fl ues shall be sealed
in this manner, unless otherwise stated.
WARNING! Risk of Fire or Explosion! DO NOT break
silicone seals on slip sections. Use care when removing termination cap from slip pipe. If slip section seals
are broken during removal of the termination cap, vent
could leak.
• Maintain a 1-1/2 in. (38 mm) overlap between the slip
section and the pipe section.
• Secure the pipe and slip section with two screws no
longer than 1/2 in. (13 mm), using the pilot holes in the
slip section. See Figure 7.7.
Figure 7.7 Screws into Slip Section
• Continue adding pipe as necessary following instructions
in “Assembling Pipe Sections.”
NOTICE: If slip section is too long, the inner and outer fl ues
of the slip section can be cut to the desired length.
Note: Align seams to engage pipe,
then rotate counterclockwise to lock
Figure 7.5 Adding Venting Components
34
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
NOTICE: When installing a vent system with an HRC
termination cap, all pipe system joints shall be sealed
using a high temperature silicone sealant (300º F minimum
continuous exposure rating).
• Apply a bead of silicone sealant (300º F minimum
continuous exposure rating) inside the female outer pipe
joint prior to joining sections.
• Only outer pipes are sealed, sealing the inner fl ue is not
required.
• All unit collar, pipe, slip section, elbow and cap outer
fl ues shall be sealed.
Page 35

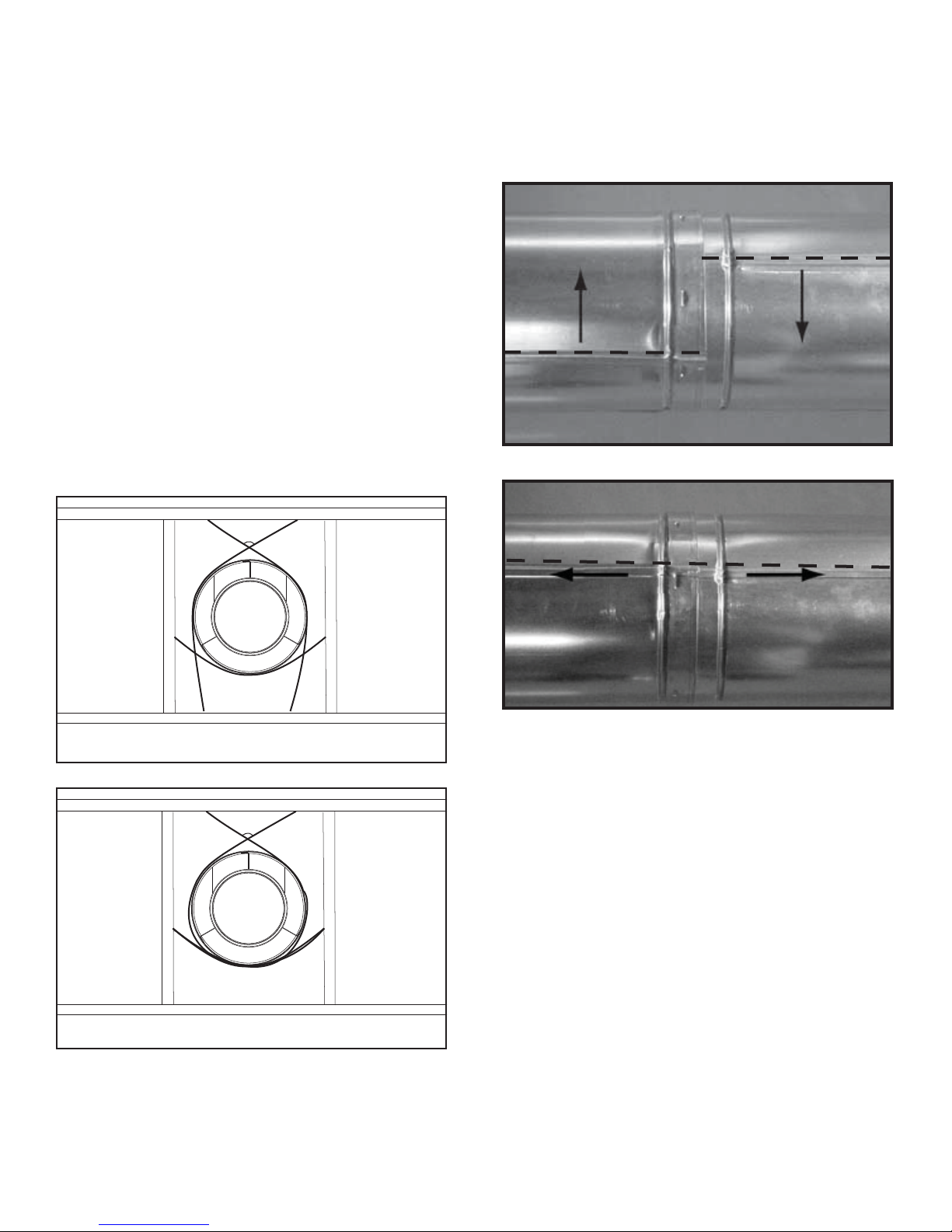

D. Secure the Vent Sections
• Vertical runs originating off the top of the appliance, with
no offsets, must be supported every 8 ft. (2.44 m) after
the maximum allowed 25 ft. (7.62 m) of unsupported rise.
• Vertical runs originating off the rear of the appliance, or
after any elbow, must be supported every 8 ft. (2.44 m).
• Horizontal runs must be supported every 5 feet (1.52
m).
• Vent supports or plumbers strap (spaced 120º apart)
may be used to support vent sections. See Figures 7.8
and 7.9.
• Wall shield fi restops may be used to provide horizontal
support to vent sections.
• SLP ceiling fi restops have tabs that may be used to
provide vertical support.
WARNING! Risk of Fire, Explosion or Asphyxiation!
Improper support could allow vent to sag and separate.
Use vent run supports and connect vent sections per installation instructions. DO NOT allow vent to sag below
connection point to appliance.
E. Disassemble Vent Sections
• Rotate either section (see Figure 7.10) so the seams on
both pipe sections are aligned as shown in Figure 7.11.
• Pull carefully to separate the pieces of pipe.
Figure 7.10 Rotate Seams for Disassembly
120º
Figure 7.8 Securing Vertical Pipe Sections
120º
Figure 7.11 Align and Disassemble Vent Sections
Figure 7.9 Securing Horizontal Pipe Sections
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
35
Page 36

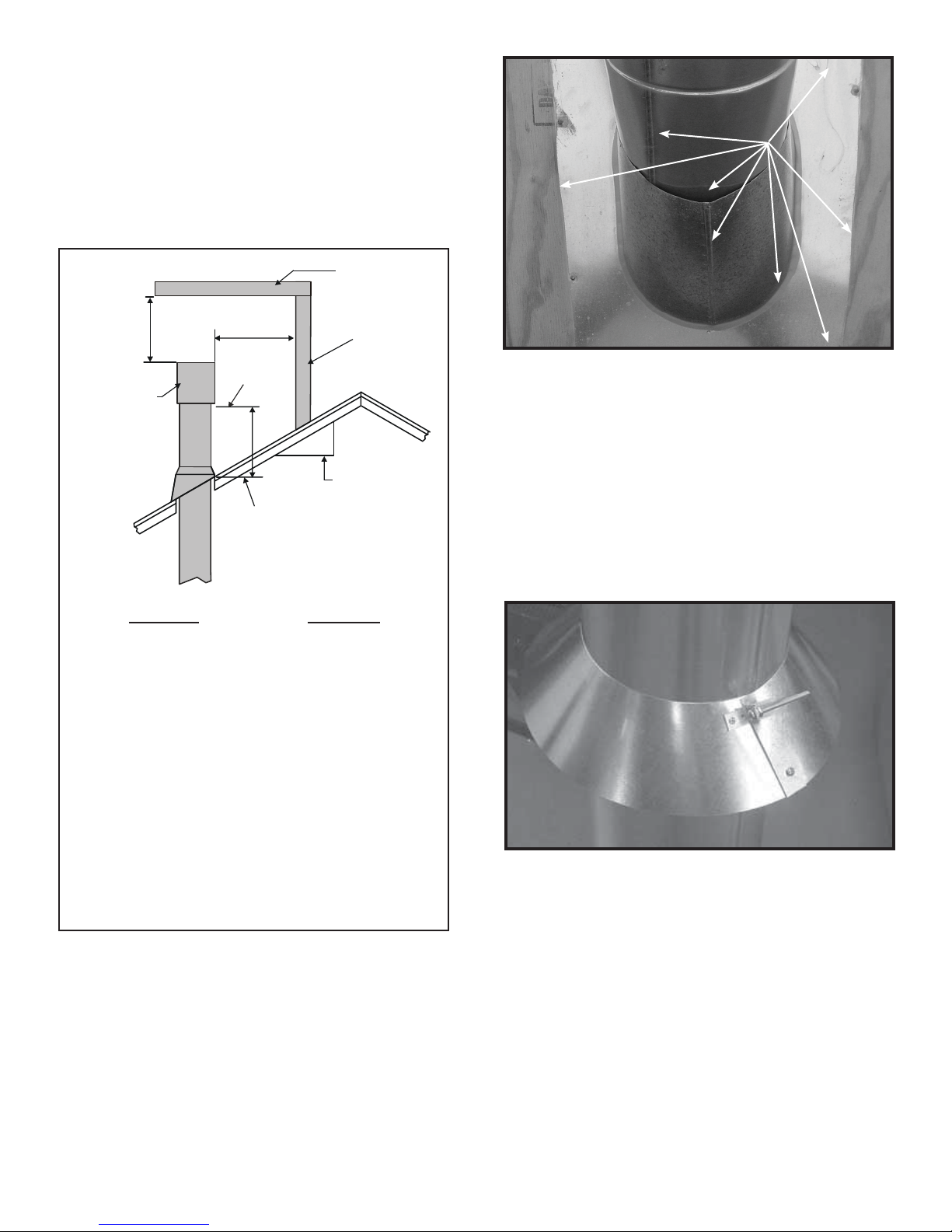

F. Vertical Termination Requirements
Figure 7.13
Figure 7.14 insert Bolt into Brackets
Install Metal Roof Flashing
• See minimum vent heights for various pitched roofs
(Figure 7.12) to determine the length of pipe to extend
through the roof.
• Slide the roof fl ashing over the pipe sections extending
through the roof as shown in Figure 7.13.
HORIZONTAL
OVERHANG
CAULK
2 FT.
MIN.
GAS DIRECT VENT
TERMINATION CAP
Roof Pitch H (Min.) Ft.
Flat to 6/12........................................1.0*
Over 6/12 to 7/12 ............................ 1.25*
Over 7/12 to 8/12 .............................. 1.5*
Over 8/12 to 9/12 .............................. 2.0*
Over 9/12 to 10/12 ............................ 2.5*
Over 10/12 to 11/12 ......................... 3.25
Over 11/12 to 12/12 ........................... 4.0
Over 12/12 to 14/12 ........................... 5.0
Over 14/12 to 16/12 ........................... 6.0
Over 16/12 to 18/12 ........................... 7.0
Over 18/12 to 20/12 ........................... 7.5
Over 20/12 to 21/12 ........................... 8.0
20 INCHES MIN.
LOWEST
DISCHARGE
OPENING
X
12
ROOF PITCH
H (MIN.) - MINIMUM HEIGHT FROM ROOF
TO LOWEST DISCHARGE OPENING
* 3 foot minimum in snow regions
VERTICAL
WALL
IS X/ 12
Figure 7.13
Assemble and Install Storm Collar
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during installation. Sheet metal edges are sharp.
• Slide the storm collar onto the exposed pipe section
and align brackets.
• Insert a bolt (provided) through the brackets and install
nut. Do not completely tighten.
Figure 7.14 insert Bolt into Brackets
Figure 7.12 Minimum Height From Roof To Lowest Discharge
Opening
NOTICE: Failure to properly caulk the roof fl ashing and
pipe seams could permit entry of water.
• Caulk the gap between the roof fl ashing and the outside
diameter of the pipe.
• Caulk the perimeter of the fl ashing where it contacts the
roof surface. See Figure 7.13.
• Caulk the overlap seam of any exposed pipe sections
that are located above the roof line.
36
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
• Slide the assembled storm collar down the pipe section
until it rests on the roof fl ashing (see Figure 7.14).
• Tighten nut and make sure the collar is tight against the
pipe section.
• Caulk around the top of the storm collar. See Figure 7.15.
Page 37
Install Vertical Termination Cap
Figure 7.15
• Attach the vertical termination cap by sliding the inner
collar of the cap into the inner fl ue of the pipe section
while placing the outer collar of the cap over the outer
fl ue of the pipe section.
• Secure the cap by driving three self-tapping screws
(supplied) through the pilot holes in the outer collar of
the cap into the outer fl ue of the pipe (see Figure 7.15).
Figure 7.15
G. Horizontal Termination Requirements
Heat Shield Requirements for Horizontal
Termination
WARNING! Risk of Fire! To prevent overheating and fi re,
heat shields must extend through the entire wall thickness.
• DO NOT remove the heat shields attached to the
wall shield fi restop and the horizontal termination cap
(shown in Figure 7.16).
• Heat shields must overlap 1-1/2 in. (38 mm) minimum.
There are two sections of the heat shield. One section
is factory-attached to the wall shield fi restop. The other
section is factory-attached to the cap. See Figure 7.16.
If the wall thickness does not allow the required 1-1/2 in.
(38 mm) heat shield overlap when installed, an extended
heat shield must be used.
• If the wall thickness is less than 4 in./102 mm (DVP)
or 4-3/8 in./ 111 mm (SLP), the heat shields on the cap
and wall shield fi restop must be trimmed. A minimum
1-1/2 in. (38 mm) overlap MUST be maintained.
• Use an extended heat shield if the fi nished wall thickness
is greater than 7-1/4 in. (184 mm).
• The extended heat shield may need to be cut to length
maintaining suffi cient length for a 1-1/2 in. (38 mm)
overlap between heat shields.
• Attach the extended heat shield to either of the existing
heat shields using the screws supplied with the extended
heat shield. Refer to vent components diagrams in the
back of this manual.
• Rest the small leg on the extended heat shield on top
of the pipe section to properly space it from the pipe
section.
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
Important Notice: Heat shields may not be fi eld constructed.
37
Page 38

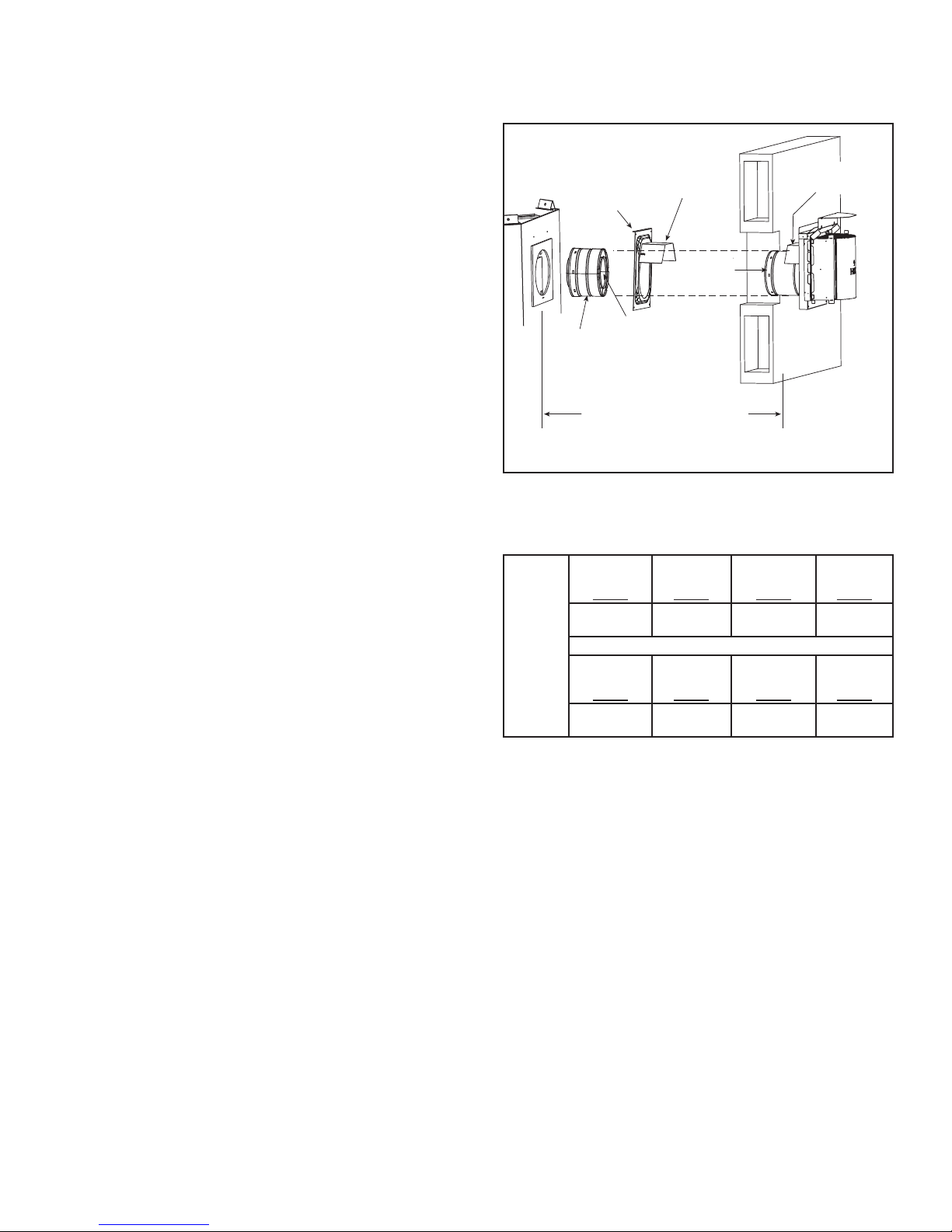

Install Horizontal Termination Cap (DVP and
SLP Pipe)
WARNING! Risk of Fire! The telescoping fl ue section of
the termination cap MUST be used when connecting vent.
• 1-1/2 (38 mm) minimum overlap of fl ue telescoping
section is required.
Failure to maintain overlap could cause overheating
and fi re.
• Vent termination must not be recessed in the wall. Siding
may be brought to the edge of the cap base.
• Flash and seal as appropriate for siding material at
outside edges of cap.
• When installing a horizontal termination cap, follow
the cap location guidelines as prescribed by current
ANSI Z223.1 and CAN/CGA-B149 installation codes
and refer to Section 6 of this manual.
CAUTION! Risk of Burns! Local codes may require installation of a cap shield to prevent anything or anyone
from touching the hot cap.
NOTICE: For certain exposures which require superior
resistance to wind-driven rain penetration, a fl ashing kit and
HRC caps are available. When penetrating a brick wall, a
brick extension kit is available for framing the brick.
Note: When using termination caps with factory-supplied
heat shield attached, no additional wall shield fi restop is
required on the exterior side of a combustible wall.
HEAT SHIELD OR
EXTENDED
WALL SHIELD
FIRESTOP
INNER VENT
OUTER VENT
VENT DEPTH FROM BACK OF APPLIANCE TO
OUTSIDE SURFACE OF EXTERIOR WALL
(SEE CHART BELOW)
Figure 7.16 Venting Through the Wall
HEAT SHIELD
SLIP SECTION
CAN BE EXTENDED
INTERIOR
Termination Cap Specifi cation Chart
(depth without using additional pipe sections)
DVP-TRAPK1
Top Vent
Depth
N/A
ECLIPSE
DVP-HPC1
Top Vent
Depth
N/A
DVP-TRAP1 can adjust 1-1/2 in. (3-1/8 to 4-5/8)
DVP-TRAP2 can adjust 4 in. (5-3/8 to 9-3/8)
DVP-HPC1 can adjust 2-1/8 in. (4-1/4 to 6-3/8)
DVP-HPC2 can adjust 4-1/8 in. (6-3/8 to 10-1/2)
DVP-TRAP1
Rear Vent
Depth
3-1/8 in. to
5 in.
DVP-HPC1
Rear Vent
Depth
3-1/8 in. to
5-1/4 in.
DVP-TRAPK2
Top Vent
Depth
N/A
DVP-HPC2
Top Vent
Depth
N/A
HEAT SHIELD
1-1/2 IN. (38 MM) MIN.
OVERLAP
SHEATHING
DVP-TRAP2
Rear Vent
Depth
5-1/2 in. to
9-1/2 in.
DVP-HPC2
Rear Vent
Depth
5-1/4 in. to
9-3/8 in.
EXTERIOR
38
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
Page 39

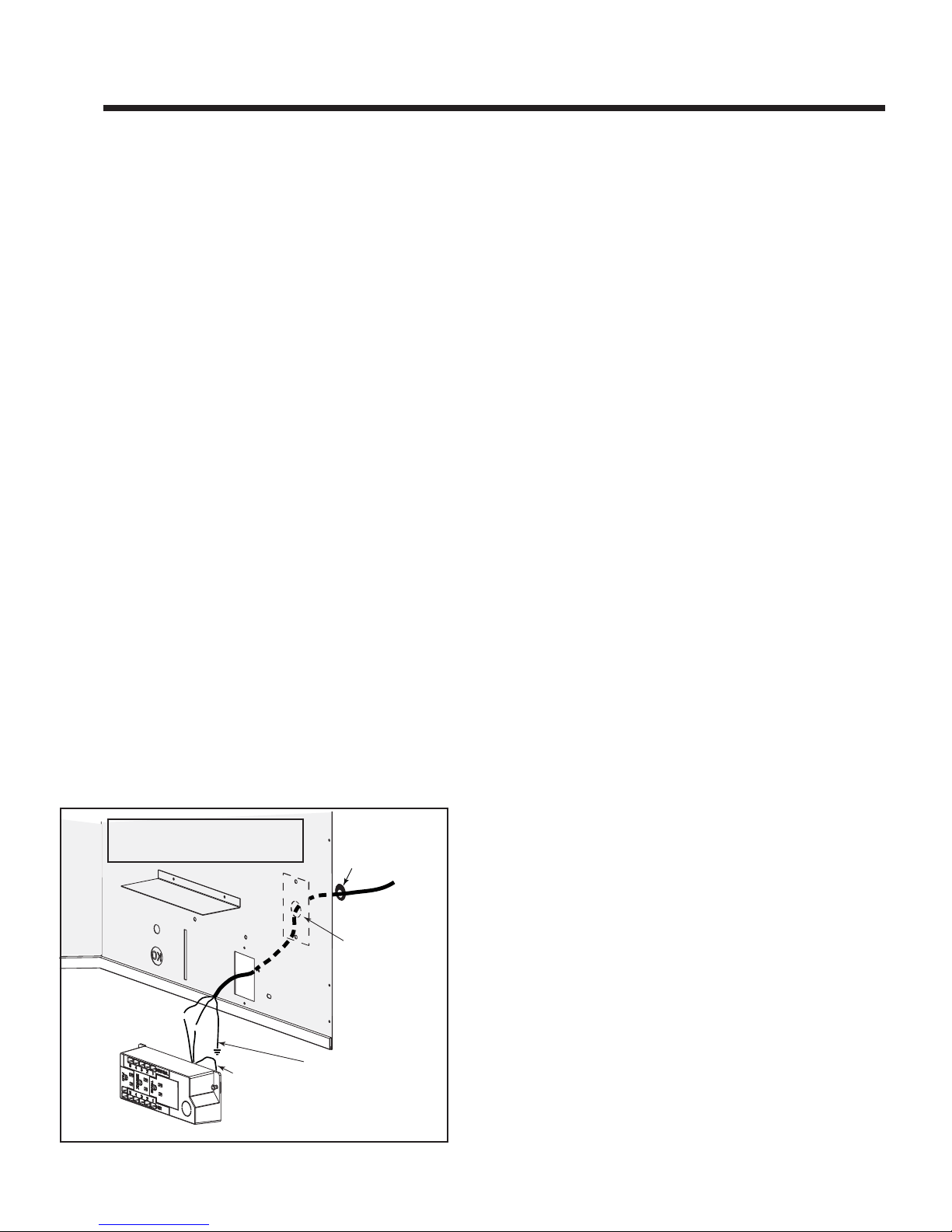

8
8
Electrical Information
A. General Information
WARNING! Risk of Shock or Explosion! DO NOT wire
110-120 VAC to the valve or to the appliance wall switch.
Incorrect wiring will damage controls.
NOTICE: This appliance must be electrically wired
and grounded in accordance with local codes or, in the
absence of local codes, with National Electric Code
ANSI/NFPA 70-latest edition or the Canadian Electric
Code CSA C22.1.
• Wire the appliance junction box to unswitched 110120 VAC. This is required for proper operation of the
appliance.
• A 110-120 VAC circuit for this product must be protected
with ground-fault circuit-interrupter protection, in
compliance with the applicable electrical codes, when
it is installed in locations such as in bathrooms or near
sinks.
• Low voltage and 110-120 VAC voltage cannot be shared
within the same wall box.
Junction Box Installation
If the box is being wired from the INSIDE of the appliance:
• Remove the screw attaching the junction box/receptacle
to the outer shell, rotate the junction box inward to disengage it from the outer shell. See Figure 8.1.
• Pull the electrical wires from outside the appliance through
the opening into the valve compartment and secure wires
with a Romex connector. See Figure 8.1.
• Make all necessary wire connections to the junction box/
receptacle and reattach the junction box/receptacle to
the outer shell.
Accessories Requirements
• This appliance may be used with a wall switch, wall
mounted thermostat and/or a remote control.
Wiring for optional Hearth & Home Technologies approved
accessories should be done now to avoid reconstruction.
Follow instructions that come with those accessories.
Electrical Service and Repair
WARNING! Risk of Shock! Label all wires prior to disconnection when servicing controls. Wiring errors could
cause improper and dangerous operation. Verify proper
operation after servicing.
WARNING! Risk of Shock! Replace damaged wire with
type 105º C rated wire. Wire must have high temperature
insulation.
B. Wiring Requirements
Intellifi re Ignition System Wiring
• Wire the appliance junction box to 110-120 VAC for
proper operation of the appliance.
WARNING! Risk of Shock or Explosion! DO NOT wire
IPI controlled appliance junction box to a switched circuit.
Incorrect wiring will override IPI safety lockout.
• Refer to Figure 8.2, Intellifi re Pilot Ignition (IPI) Wiring
Diagram.
• This appliance is equipped with an Intellifi re control valve
which operates on a 3 volt system.
• Plug the 3-volt AC transformer into the appliance junction
box to supply power to the unit OR install two D cell
batteries (not included) into the battery pack before use.
NOTICE: DO NOT wire
110-120 VAC to wall switch.
WHT
BLK
WHT
BLK
GRN wire
inside box
Figure 8.1 Junction Box Detail
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
Copper
ground attached
to GRN screw with
GRN wire
Romex
Connector
14/2WG
Cover Plate
outside firebox
NOTICE: Batteries should only be used as a power source
in the event of an emergency power outage. Batteries
should not be used as a primary long-term power source.
Battery polarity must be correct when installing batteries.
When using batteries as a power source, the 3-volt
transformer must be unplugged from the receptacle.
Do not store batteries in the battery pack when the
appliance is powered by the 3-volt transformer connected
to permanent electrical service
39
Page 40

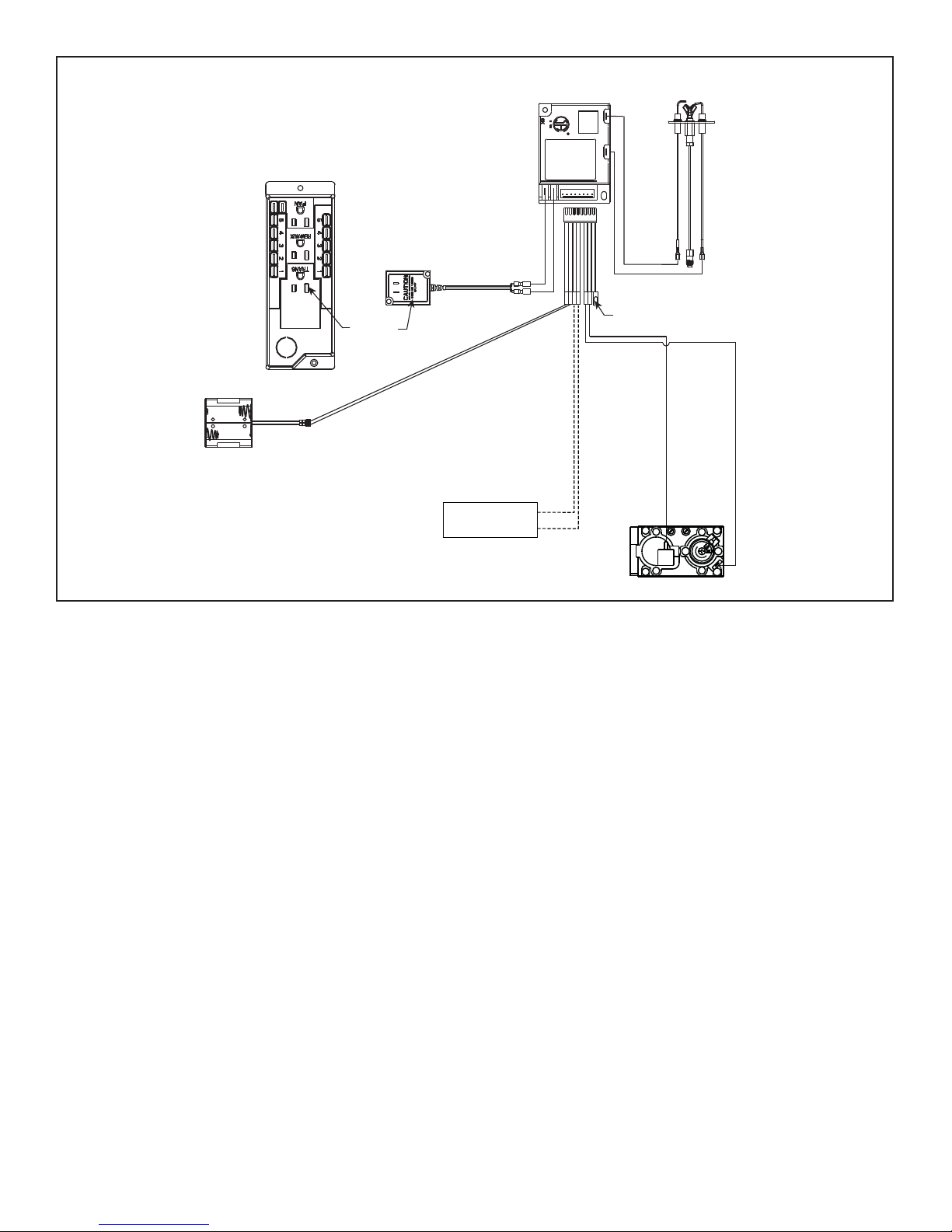

IGNITION
MODULE 3 VAC
I
S
INTERMITTENT
PILOT IGNITOR
TRANSFORMER
HOT
BATTERY PACK
NEUTRAL
PLUG IN
Figure 8.2 Intellifi re Pilot Ignition (IPI) Wiring Diagram
3 VAC
BLACK
RED
WALL SWITCH
TO BROWN
TO BROWN
ORANGE
WHITE
GROUND TO
FIREPLACE
CHASSIS
ORANGE
GREEN
40
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
Page 41
Wall Switch Installation for Fan (Optional)
If the box is being wired to a wall mounted switch for use
with a fan. See Figure 8.3.
• The power supply for the appliance must be brought into
a switch box.
• The power can then be supplied from the switch box to the
appliance using a minimum of 14-3 with ground wire.
• At the switch box connect the black (hot) wire and red
(switch leg) wire to the wall switch as shown.
• At the appliance connect the black (hot), white (neutral)
and green (ground) wires to the junction box as shown.
• Add a 1/4 in. insulated female connector to the red (switch
leg) wire, route it through the knockout in the face of the
junction box, and connect to the top fan switch connector
(1/4 in. male) as shown.
Temperature Sensor Wiring for Fan (Optional)
If the fan will not be installed for operation with a wall
switch, the temperature sensor will need to be installed.
See Figure 8.4 for location of the temperature sensor
and fan control.
• The power supply for the appliance must be brought into
the junction box.
• Install rheostat in location as seen in Figure 8.4.
• Connect temperature sensor switch wire and rheostat
switch wires to junction box as shown in Figure 8.5.
Minimum 14-3 AWG
with Ground
Junction Box
Red
Red
Black
White
Red
Green
Black
White
Green
Switch Box
Knockout
Figure 8.3 Junction Box Wired to Wall Switch or BC10
Black
White
Green
Switch
Power
Supply
Wires
RHEOSTAT
SWITCH
TEMPERATURE
Figure 8.4 Fan Wiring with Rheostat
RHEOSTAT
TEMPERATURE
SENSOR SWITCH
SWITCH
BLUE
JUNCTION BOX
Figure 8.5 Detail of Fan Wiring with Rheostat
SENSOR
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
41
Page 42
9
9
Gas Information
A. Fuel Conversion
• Make sure the appliance is compatible with available gas
types.
• Conversions must be made by a qualified service
technician using Hearth & Home Technologies specifi ed
and approved parts.
B. Gas Pressure
• Optimum appliance performance requires proper input
pressures.
• Gas line sizing requirements will be determined in ANSI
Z223.1 National Fuel Gas Code in the USA and CAN/
CGA B149 in Canada.
• Pressure requirements are:
Gas Pressure Natural Gas Propane
Minimum inlet pressure 5.0 in. w.c. 11.0 in. w.c.
Maximum inlet pressure 10.0 in. w.c. 13.0 in. w.c.
Manifold pressure 3.5 in. w.c. 10.0 in. w.c.
WARNING! Risk of Fire or Explosion! High pressure
will damage valve. Low pressure could cause explosion.
• Verify inlet pressures. Verify minimum pressures when
other household gas appliances are operating.
• Install regulator upstream of valve if line pressure is
greater than 1/2 psig.
WARNING
Fire Risk.
Explosion Hazard.
High pressure will damage valve.
• Disconnect gas supply piping BEFORE
pressure testing gas line at test pressures
above 1/2 psig.
• Close the manual shutoff valve BEFORE
pressure testing gas line at test pressures
equal to or less than 1/2 psig.
Note: Have the gas supply line installed in accordance with
local codes, if any. If not, follow ANSI 223.1. Installation
should be done by a qualifi ed installer approved and/or
licensed as required by the locality. (In the Commonwealth
of Massachusetts installation must be performed by a
licensed plumber or gas fi tter).
Note: A listed (and Commonwealth of Massachusetts approved) 1/2 in. (13 mm) T-handle manual shut-off valve
and fl exible gas connector are connected to the 1/2 in. (13
mm) control valve inlet.
• If substituting for these components, please consult
local codes for compliance.
42
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
C. Gas Connection
• Refer to Reference Section 3 for location of gas line
access in appliance.
• Gas line may be run through knockout(s) provided.
• The gap between supply piping and gas access hole
may be caulked with caulk with a minimum of 300ºF
continuous exposure rating or stuffed with noncombustible, unfaced insulation to prevent cold air
infi ltration.
• Ensure that gas line does not come in contact with outer
wrap of the appliance. Follow local codes.
• Pipe incoming gas line into valve compartment.
• Connect incoming gas line to the 1/2 in. (13 mm)
connection on manual shutoff valve.
WARNING! Risk of Fire or Explosion! Support control
when attaching pipe to prevent bending gas line.
• A small amount of air will be in the gas supply lines.
WARNING! Risk of Fire or Explosion! Gas build-up during line purge could ignite.
• Purge should be performed by qualified service
technician.
• Ensure adequate ventilation.
• Ensure there are no ignition sources such as sparks
or open fl ames.
Light the appliance. It will take a short time for air to purge
from lines. When purging is complete the appliance will
light and operate normally.
WARNING! Risk of Fire, Explosion or Asphyxiation!
Check all fi ttings and connections with a non-corrosive
commercially available leak-check solution. DO NOT use
open fl ame. Fittings and connections could have loos-
ened during shipping and handling.
WARNING! Risk of Fire! DO NOT change valve settings.
This valve has been preset at the factory.
D. High Altitude Installations
NOTICE: If the heating value of the gas has been reduced,
these rules do not apply. Check with your local gas utility
or authorities having jurisdiction.
When installing above 2000 feet elevation:
• In the USA: Reduce input rate 4% for each 1000 feet
above 2000 feet.
• In CANADA: Input ratings are certifi ed without a
reduction of input rate for elevations up to 4500 feet
(1370 m)above sea level. Please consult provincial and/
or local authorities having jurisdiction for installations at
elevations above 4500 feet (1370 m).
Check with your local gas utility to determine proper
orifi ce size.
Page 43

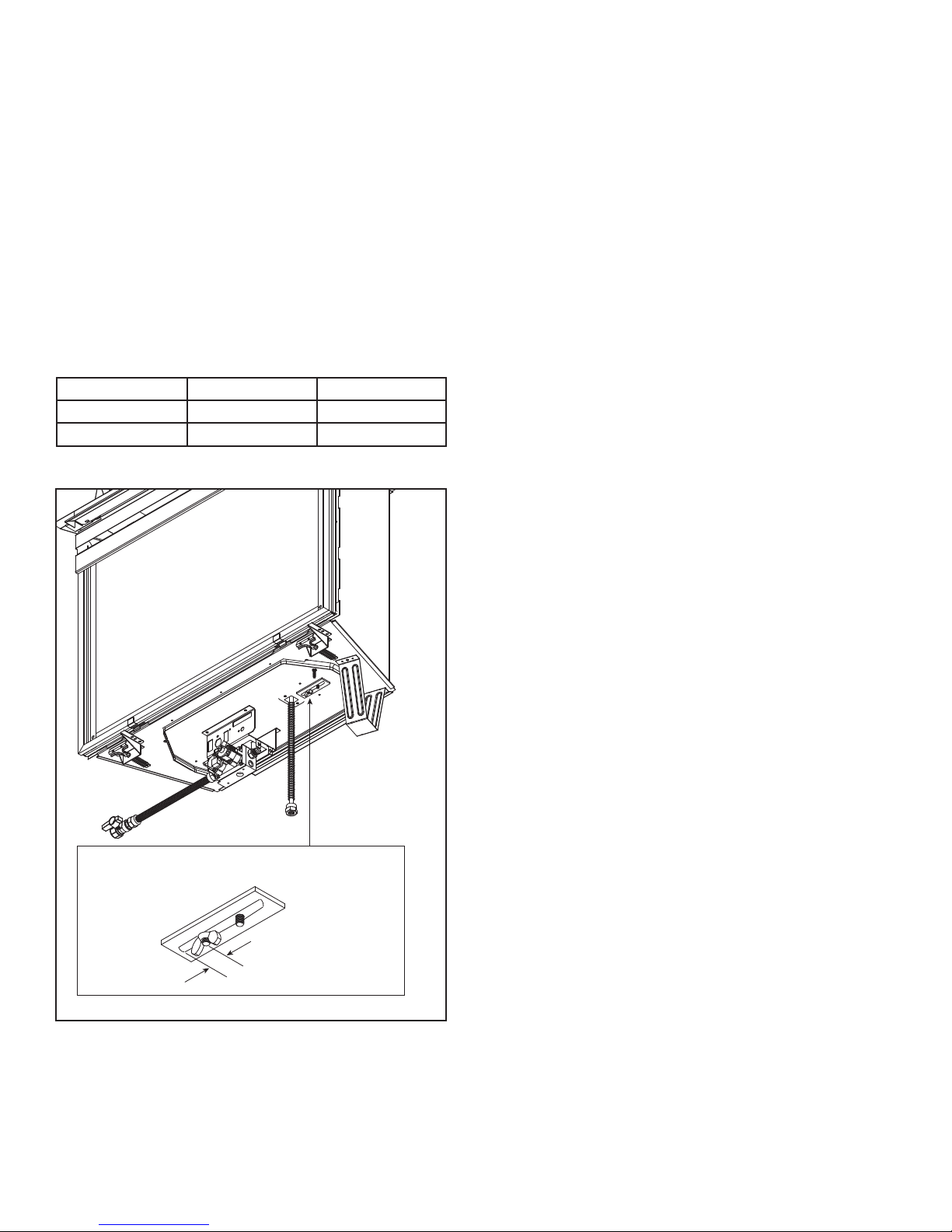

E. Air Shutter Setting
Air shutter settings should be adjusted by a qualifi ed
service technician at the time of installation. The air
shutter is set at the factory for minimum vertical vent run.
Adjust air shutter for longer vertical runs.
By sliding the air shutter to the right, you will be opening
the air shutter. To adjust loosen the wing nut. Care should
be taken when adjusting the air shutter so as not to cause
the appliance to soot. If sooting occurs the air shutter will
need to be opened by sliding the air shutter to the right.
When fi nished, tighten the wing nut. See Figure 9.1.
NOTICE: If sooting occurs, provide more air by opening
the air shutter.
Air Shutter Settings
Models NG LP
ECLIPSE-32
ECLIPSE-36
1/4 in. 1/2 in.
1/4 in. 1/2 in.
SHUTTER ADJUSTMENT
Measure from left edge of slot to center of first stud.
Figure 9.1 Air Shutter Adjustment
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
43
Page 44
10
10
Finishing
A. Facing and Finishing
• Metal front faces may be covered with non-combustible
materials only.
• Facing and/or fi nishing materials must not interfere with
air fl ow or access for service.
• Facing and/or fi nishing materials must never overhang
into the glass opening.
• Observe all clearances when applying combustible
materials.
• Seal joints between the fi nished wall and appliance top
and sides using a 300 ºF minimum sealant. Refer to
Figure 10.1.
WARNING! Risk of Fire! DO NOT apply combustible
materials beyond the minimum clearances. Comply with
all minimum clearances to combustibles as specifi ed in
this manual. Overlapping materials could ignite and will
interfere with proper operation of doors and louvers.
SHEETROCK/FINISH WALL MATERIAL UP TO 1/2 IN. THICK
MAY BE COMBUSTIBLE - TOP AND SIDES
Non-combustible facing up to 4 inches thick may be used.
Stop fi nishing material fl ush with fi replace surround open-
ing. See Figure 10.2.
WARNING! Risk of Overheating and Fire! Non-combustible material must not exceed 4 inches in thickness.
FINISH WALL MATERIAL MAY BE
COMBUSTIBLE - TOP AND SIDES
NON-COMBUSTIBLE FACING (SHADED AREA)
0 IN.
HIGH TEMPERATURE SEALANT (300° F/149° C MIN.)
TOP AND SIDE SEAL JOINT
Figure 10.1 Noncombustible Facing Diagram
0 IN.
0 IN.
NON-COMBUSTIBLE
FINISHING MATERIAL
4 IN. MAXIMUM THICKNESS
Stop fi nishing material fl ush with fi replace surround opening.
Figure 10.2 Clean Face Decorative Front Finishing Details
DOOR
NON-COMBUSTIBLE
FINISHING MATERIAL
4 IN. MAXIMUM THICKNESS
44
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
Page 45

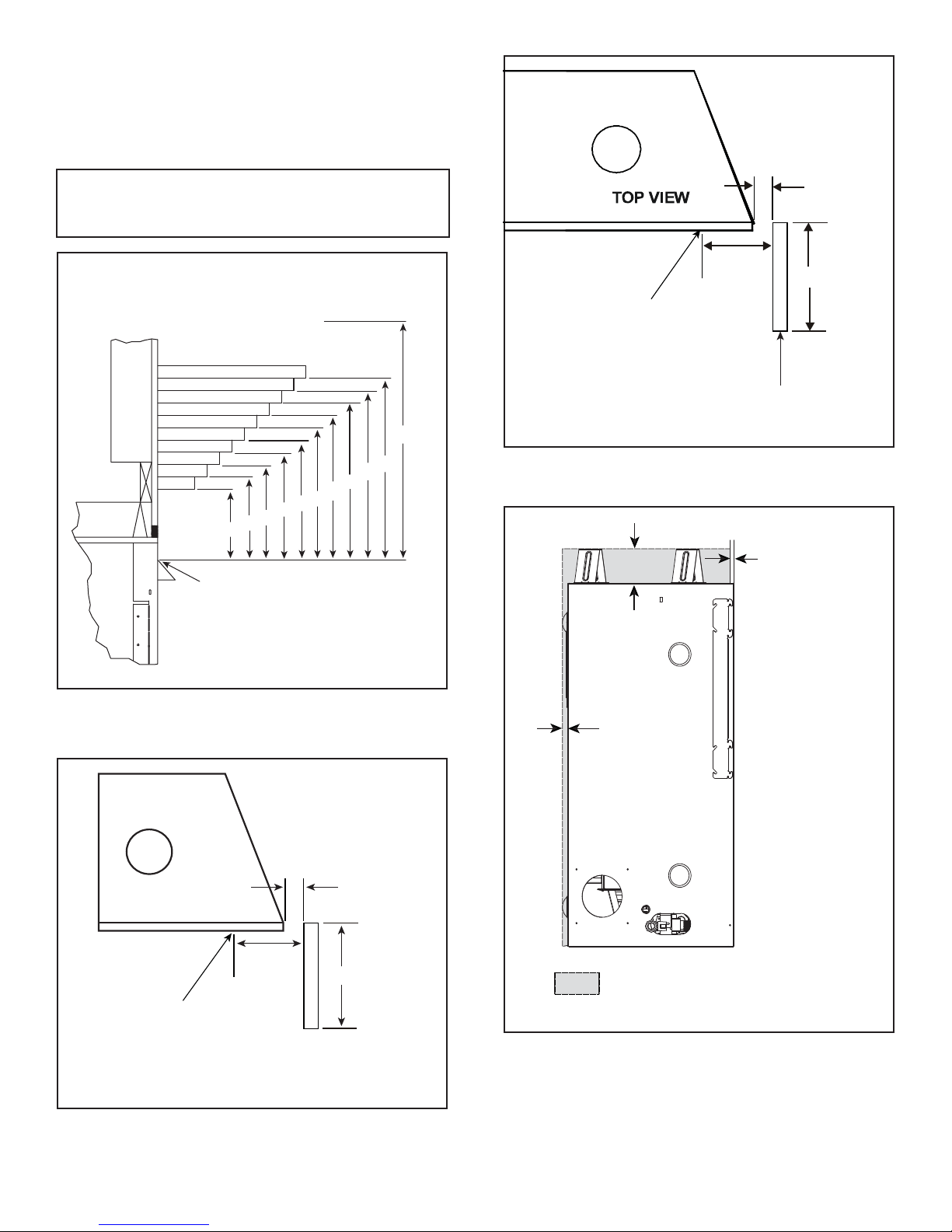

B. Mantel and Wall Projections
WARNING! Risk of Fire! Comply with all minimum clearances as specifi ed. Framing closer than the minimums listed
must be constructed entirely of non-combustible materials
(i.e., steel studs, concrete board, etc.).
Note: Measurement is taken from top of the
opening, NOT the top of the fi replace.
Note: All
measurements
in inches.
12
11
10
9
8
7
6
5
4
3
6
5
4
TOP OF HOOD OR FIREPLACE OPENING
MEASUREMENTS FROM
TOP EDGE OF THE OPENING
See Dimension V on Appli ance
Dimension Diagram (Figure 3.1).
9
8
7
10
11
CEILING
12
3 IN.
MINIMUM
5-3/8 IN.
MINIMUM
FIREPLACE OPENING
See Dimension B on Appliance
Dimension Diagram (Figure 3.1).
Note: Clearance from
opening to perpendicular wall.
MANTEL LEG OR WALL PROJECTIONS
32
13
Figure 10.5 Combustible Mantel Leg or Wall Projections
(Acceptable on both sides of opening)
3-1/2 in.
UNLIMITED
1/2 in. SHEETROCK
OR COMBUSTIBLE
MATERIAL
Figure 10.3 Clearances To Combustibles Mantels Or Other
Combustibles Above Appliance
1/2 IN.
TOP VIEW
MINIMUM
2-7/8 IN.
MINIMUM
FIREPLACE OPENING
See Dimension B on Appliance
Dimension Diagram (Figure 3.1).
Note: Clearance from
opening to perpendicular wall.
Figure 10.4 Non-Combustible Mantel Leg or Wall Projections
(Acceptable on both sides of opening)
3 FT. MAXIMUM
1/2 in.
NON-COMBUSTIBLE ZONE
Figure 10.6 Non-Combustible Zone
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
45
Page 46
11
11
(
Appliance Setup
A. Remove Fixed Glass Assembly
WARNING! Risk of Asphyxiation! Handle fi xed glass
assembly with care. Inspect the gasket to ensure it is
undamaged and inspect the glass for cracks, chips or
scratches.
• DO NOT strike, slam or scratch glass.
• DO NOT operate fi replace with glass removed, cracked,
broken or scratched.
• Replace as a complete assembly.
Removing Fixed Glass Assembly
• Pull the four glass assembly latches out of the groove
on the glass frame. Remove glass door from the appli-
ance. See Figure 11.1.
LATCHES
BOTH BOTTOM
AND TOP)
B. Remove the Shipping Materials
Remove shipping materials from inside or underneath
the fi rebox.
• The splatter guard is a piece of corrugated material
used to protect the appliance during the installation
process before fi nishing work on the whole hearth is
complete. Splatter guards may be factory installed
or accompany the door of the unit, depending on the
fi replace model. Splatter guards must be removed
before appliance is fi red.
WARNING! Risk of Fire! Close the ball valve before installing the splatter guard to prevent accidental lighting.
Remove the splatter guard before lighting the appliance.
C. Clean the Appliance
Clean/vacuum any sawdust that may have accumulated
inside the fi rebox or underneath in the control cavity.
GLASS
ASSEMBLY

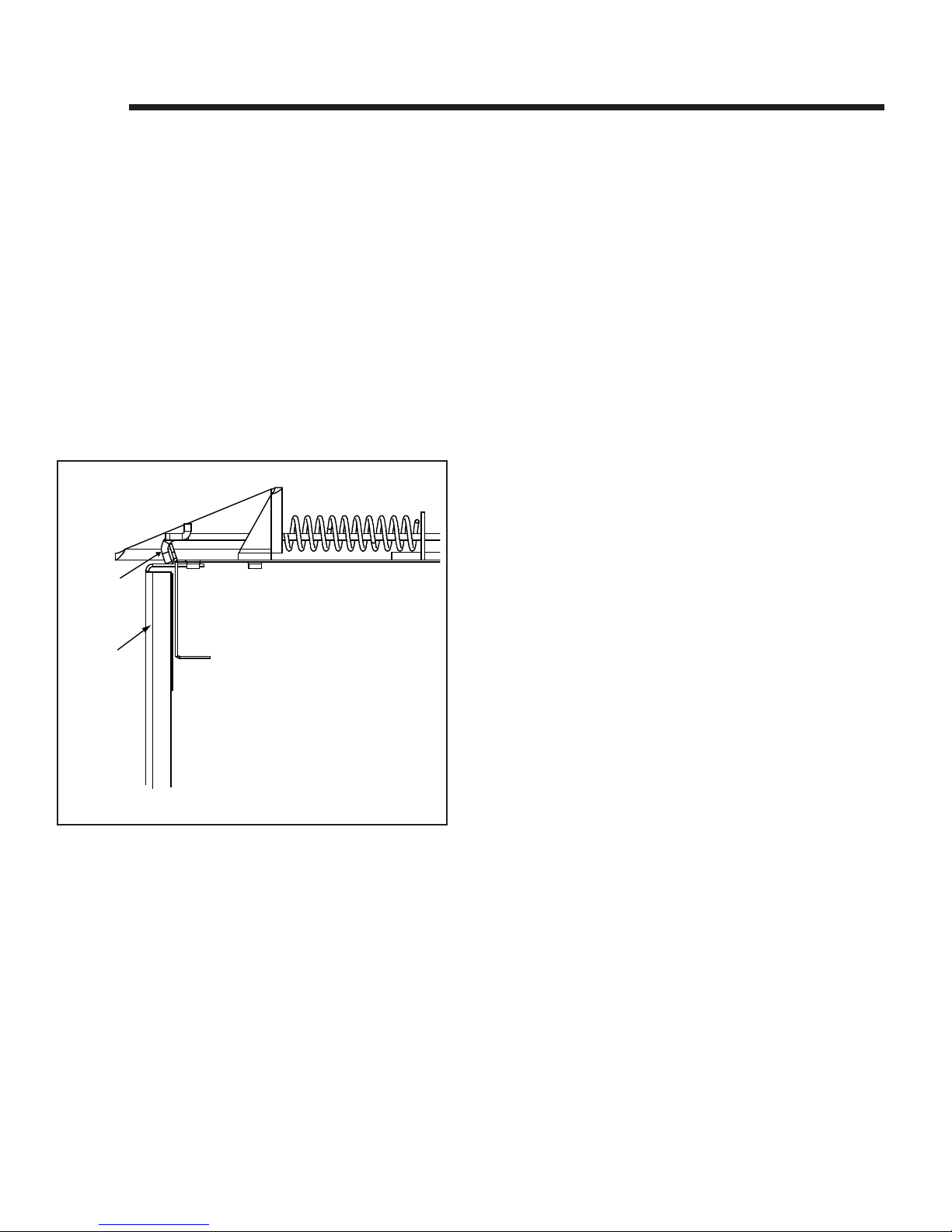

Figure 11.1 Fixed Glass Assembly
46
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
Page 47
D. Install the Stones and Lava Rock
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during installation.
3. Place stones on the base pan in a random manner as
shown in Figure 11.4. DO NOT place rocks on the rock
placement jig. You may have extra stones depending
on the look desired.
WARNING! Choking Hazard! Keep stones and lava
rock out of reach of children.
INSTALLATION:
1. Ensure rock placement jig is in place before beginning
placement of stones. Remove log locating pins if
installed. The number of pins will vary depending on
the model. Use a Phillips screwdriver. Figure 11.2
shows location of pins and jig.
LOG LOCATING PINS (CIRCLED)
ROCK PLACEMENT JIG
Figure 11.2. Location of Pins and Jig
2. Place a thin layer of lava rock on the base pan. Do
NOT place on burner top. See Figure 11.3.
WARNING! Risk of Explosion! DO NOT place lava rock
on burner top. Improperly placed lava rock interferes with
proper burner operation.
WARNING
FLANGE
RISK OF EXPLOSION!
• Place stones according to instructions.
• Do NOT place stones on burner top.
• Do NOT place stones in a position that they may fall into
area in front of pilot.
• Do NOT use more than 30 stones per fi replace.
• Do NOT stack stones. Place in single layer.
• Use ONLY Hearth & Home Technologies-approved
optional media with this appliance.
Improperly placed stones interfere with proper burner
operation.
Delayed ignition may occur.
Figure 11.4. Stones Placed on Base Pan.
Figure 11.3. Lava Rock Placed on Base Pan.
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
4. Remove rock placement jig. Ensure that the stones
are approximately 1/4 inch from the burner tube slot.
Figure 11.5. Stones in Place.
47
Page 48
E. Install Fixed Glass Assembly
WARNING! Risk of Asphyxiation! Handle fi xed glass
assembly with care. Inspect the gasket to ensure it is
undamaged and inspect the glass for cracks, chips or
scratches.
• DO NOT strike, slam or scratch glass.
• DO NOT operate fi replace with glass removed, cracked,
broken or scratched.
• Replace as a complete assembly.
• Replace the glass door on the appliance. Pull out and
latch the four glass assembly latches into the groove
on the glass frame. See Figure 11.1.
F. Install Decorative Front
WARNING! Risk of Fire! Install ONLY decorative fronts
approved by Hearth & Home Technologies. Unapproved
fronts could cause fi replace to overheat.
This fireplace has been supplied with an integral
barrier to prevent direct contact with the fi xed glass
panel. DO NOT operate the fi replace with the barrier
removed.
Contact your dealer or Hearth & Home Technologies if
the barrier is not present or help is needed to properly
install one.
For more information refer to the instructions supplied with
your decorative door or front.
48
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
Page 49
12
12
Reference Materials

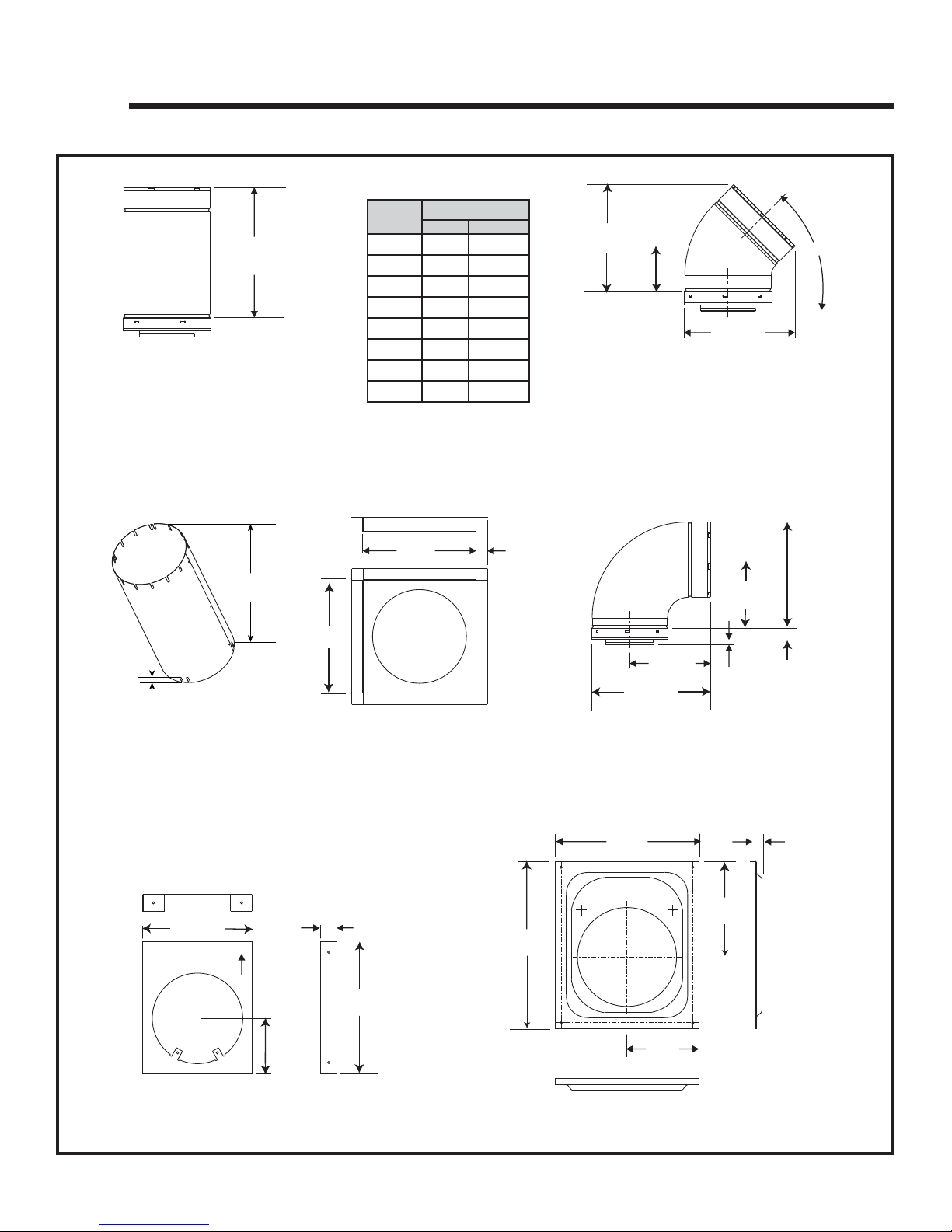

A. Vent Components Diagrams
Effective
Height/Length
DVP Pipe (see chart)
20-3/4 in.
(527 mm)
Tab=1 in.
(25.4 mm)
Finished Height: 19-3/4 in./502 mm
UNIV-AS2 (Attic Insulation Shield)
10 in.
(254 mm)
Pipe
DVP4 4 102
DVP6 6 152
DVP12 12 305
DVP24 24 610
DVP36 36 914
DVP48 48 1219
DVP6A 3 to 6 76 to 152
DVP12A 3 to 12 76 to 305
DVP-FS (Ceiling Firestop)
Effective Length
Inches Millimeters
10 in.
(254 mm)
1 in.
(25 mm)
10-1/2 in.
(267 mm)
4-7/8 in.
(124 mm)
DVP45 (45º Elbow)
9-1/4 in.
(235 mm)
13-1/4 in.
(337 mm)
DVP90ST (90° Elbow)
10-7/8 in.
(276 mm)
7-3/8 in.
(187 mm)
1/2 in.
(13 mm)
°
45
11-3/8 in.
(289 mm)
1-1/4 in. (32 mm)
TYP
10 in.
(254 mm)
UP
5 in.
(127 mm)
DVP-HVS (Vent Support)
Figure 12.1 DVP vent components
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
1- 1/2 in.
(38 mm)
12 in.
(305 mm)
14 in.
(356 mm)
12 in.
(305 mm)
6 in.
(152 mm)
DVP-WS (Wall Shield Firestop)
1 in.
(25 mm)
8 in.
(203 mm)
49
Page 50
A. Vent Components Diagrams (continued)
Note: Heat shields MUST overlap by a minimum of 1-1/2 in. (38 mm). The heat shield is designed to be
used on a wall 4 in. to 7-1/4 in. (102 mm to 184 mm) thick. If wall thickness is less than 4 in. (102 mm) the
existing heat shields must be field trimmed. If wall thickness is greater than 7-1/4 in. (184 mm) a DVP-HSM-B
will be required.
15-1/8 in.
(384 mm)
12 in.
(305 mm)
DVP-TRAP
Horizontal Termination Cap
8 in.
(203 mm)
Max
Effective
Length
Heat
Shield
Term Cap
Trap1
Trap2
Minimum
Effective Length
3-1/8 in. 4-5/8 in.
79 mm 117 mm
5-3/8 in. 9-3/8 in.
137 mm 238 mm
Effective Length
Maximum
DVP-TRAP1
DVP-TRAPK1
DVP-HPC1
DVP-TRAP2
DVP-TRAPK2
DVP-HPC2
Figure 12.2 DVP vent components
50
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
Page 51

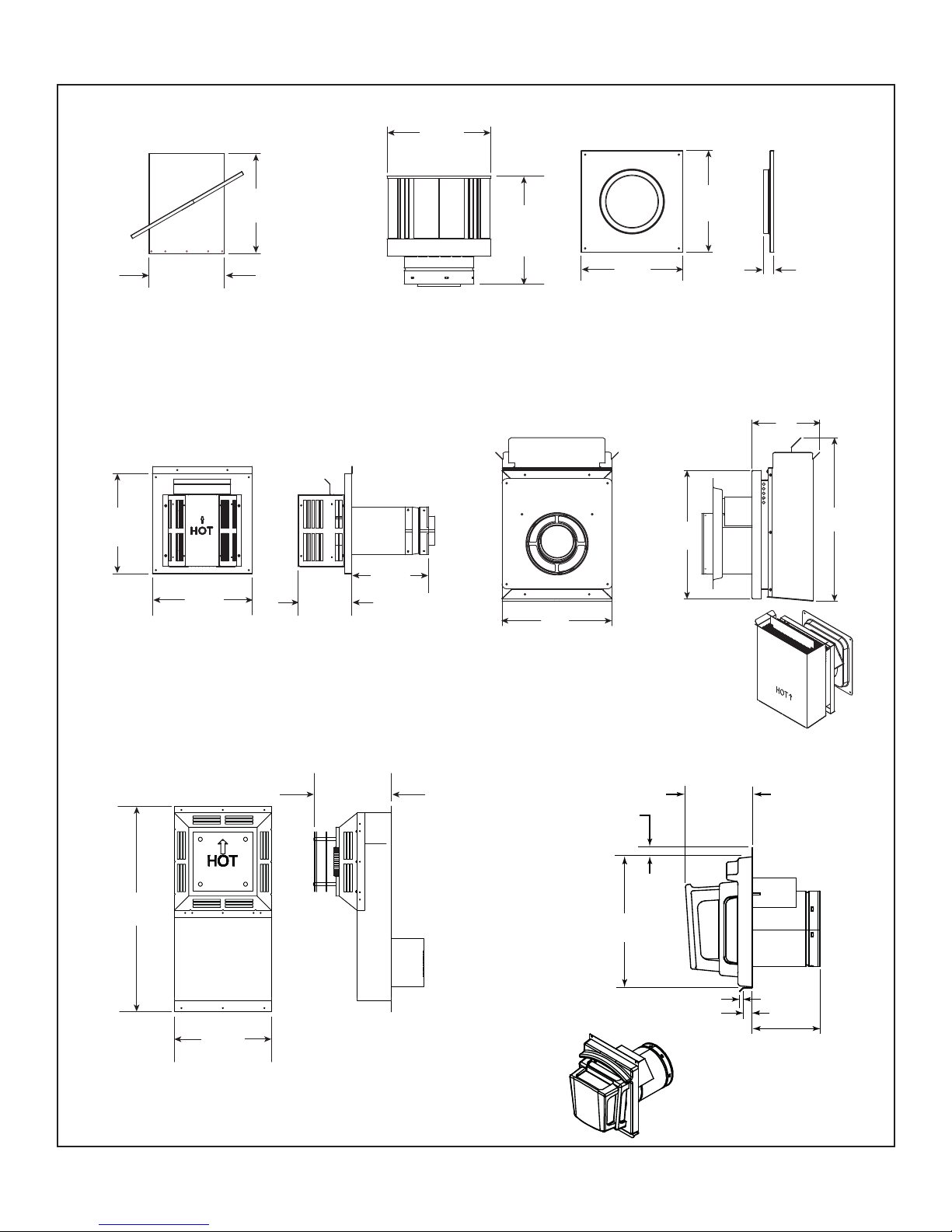

A. Vent Components Diagrams (continued)
13-1/4 in.
(337 mm)
31 in.
(787 mm)
24-5/8 in.
(625 mm)
24-5/8 in.
(625 mm)
RF6M
Roof Flashing Multi-pak
DVP-TRAPFL
Flashing
27-1/2 in.
(699 mm)
13-7/8 in.
(352 mm)
13-1/4 in.
(337 mm)
RF12M
Roof Flashing Multi-pak
11-7/8 in.
(302 mm)
DVP-BEK2
DVP-HPC Cap Brick Extension
5 in.
(127 mm)
7-1/8 in.
(181 mm)
26 in.
660 mm
DVP-HSM-B
Extended Heat Shield
Figure 12.3 DVP vent components
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
11-5/8 in.
(295 mm)
5-3/4 in.
(146 mm)
12-1/8 in.
(308 mm)
COOL-ADDM
Cap Shield
14 in.
(356 mm)
13-7/8 in.
(352 mm)
DRC-RADIUS
9-1/2 in.
(241 mm)
Cap Shield
51
Page 52

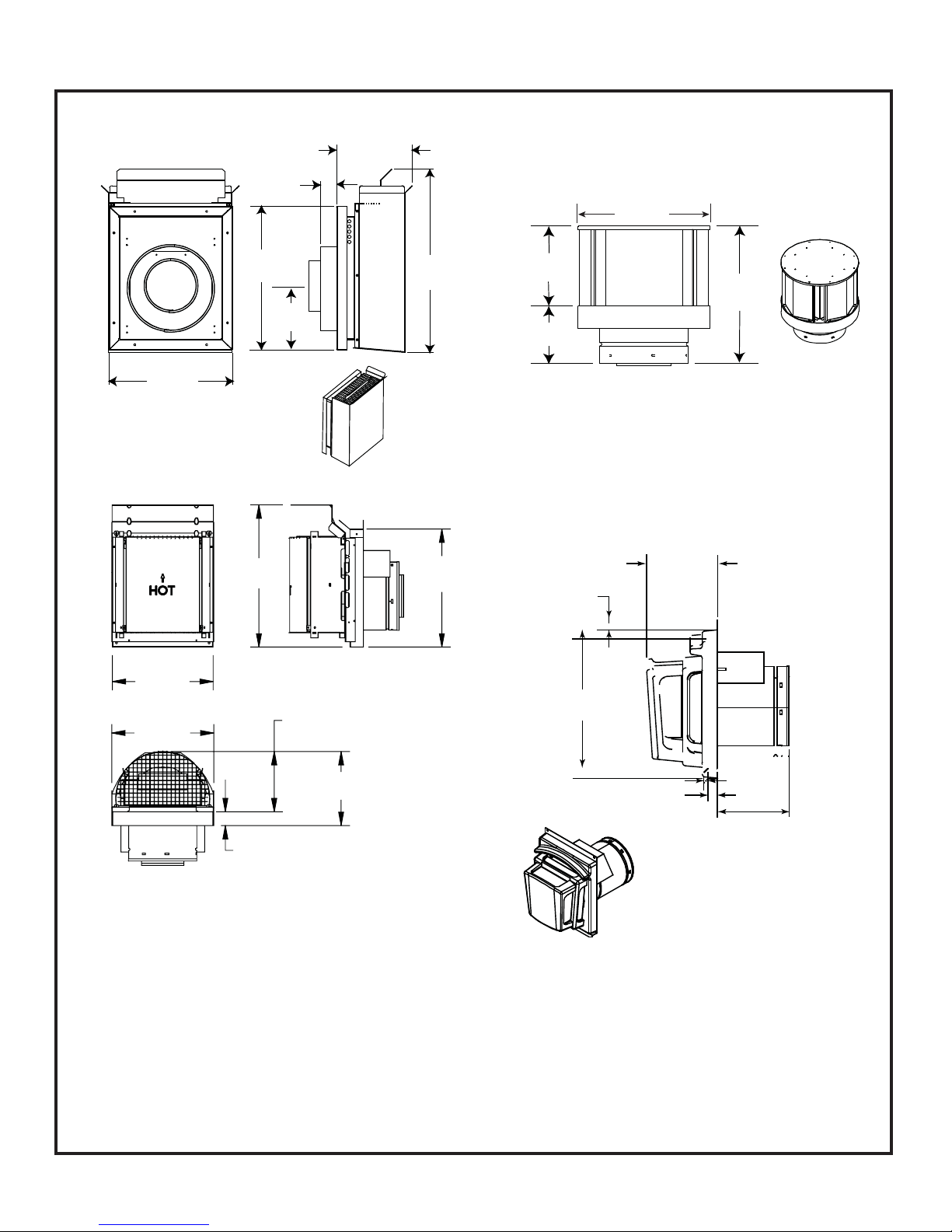

A. Vent Components Diagrams (continued)
7-3/8 in.
(187 mm)
1-1/2 in.
(38 mm)
12 in.
305 mm
12 in.
(305 mm)
DVP-TB1
Basement Vent Cap
12 in.
(305 mm)
12-1/8 in.
(314 mm)
14 in.
(356 mm)
152 mm
16-7/8 in.
(429 mm)
6 in.
7-1/8 in.
(181 mm)
17-3/4 in.
(451 mm)
14 in.
(356 mm)
7-1/4 in.
(184 mm)
5-1/4 in.
(133 mm)
VerticalTermination Cap (Highwind)
DVP-TVHW
7-1/4 in.
1 in.
(184 mm)
(25 mm)
14 in.
(356 mm)
12-1/2 in.
(318 mm)
(222 mm)
1-5/8 in.
(41 mm)
DVP-HPC
High Performance Cap
Figure 12.4 DVP Vent Components
52
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
8-3/4 in.
3/8 in. (10 mm)
1 in. (25 mm)
7-3/4 to 10-3/8 in.
(197 to 264 mm)
DVP-FBHT
FireBrickTermination Cap
Page 53

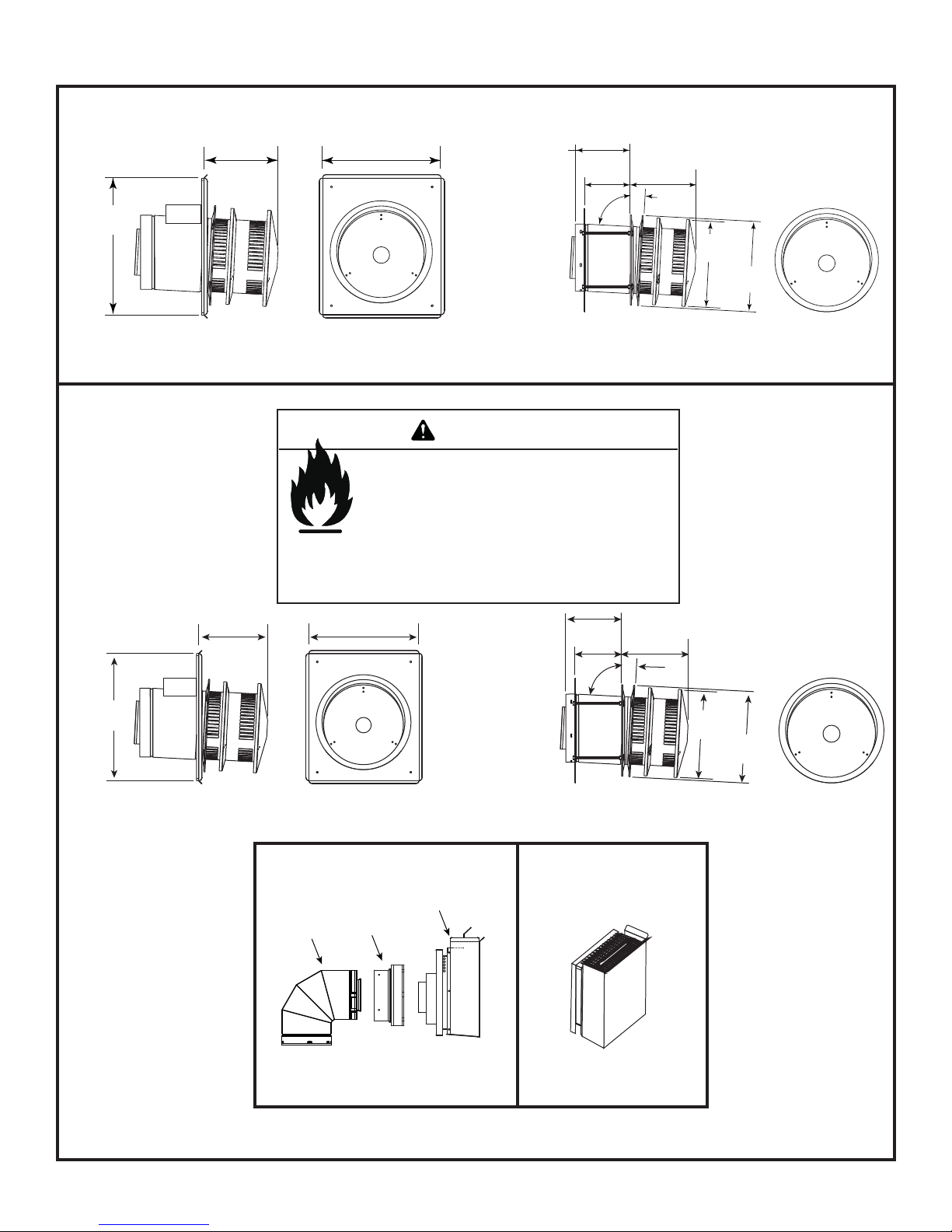

A. Vent Components Diagrams (continued)
15 in.
(381 mm)
8-1/8 in.
(206 mm)
13 in.
(330 mm)
DVP-HRC-SS NOT APPROVED FOR ALL UNITS.
Fire Risk.
• When using SLP-HRC-SS and SLP-HRC-ZCSS termination caps on top vented fi replaces,
a one foot minimum vertical vent section is
required before installing fi rst elbow.
• When using DVP-TB1 termination cap on top vented
fi replaces, a three foot minimum vertical vent section is
required before installing fi rst elbow.
Effective Length
5-3/4 to 8-3/8 in.
146 to 213 mm
DVP-HRC-ZC-SS NOT APPROVED FOR ALL UNITS.
WARNING
5-1/2 in.
140 mm
87°
8-3/8 in.
213 mm
3°
10-1/2 in.
267 mm
10-7/8 in.
276 mm
15 in.
(381 mm)
8-1/8 in.
(206 mm)
SLP90
13 in.
(330 mm)
Effective Length
5-3/4 to 8-3/8 in.
146 to 213 mm
SLP-HRC-SS
SLP-HRC-ZC-SS
HORIZONTAL TERMINATION CAP
DVP-TB1
SL-2DVP
5-1/2 in.
140 mm
87°
DVP-TB1
8-3/8 in.
213 mm
3°
10-1/2 in.
267 mm
10-7/8 in.
276 mm
Figure 12.5 Vent Components
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
ASSEMBLY
DVP-TB1
HORIZONTAL TERMINATION CAP
53
Page 54

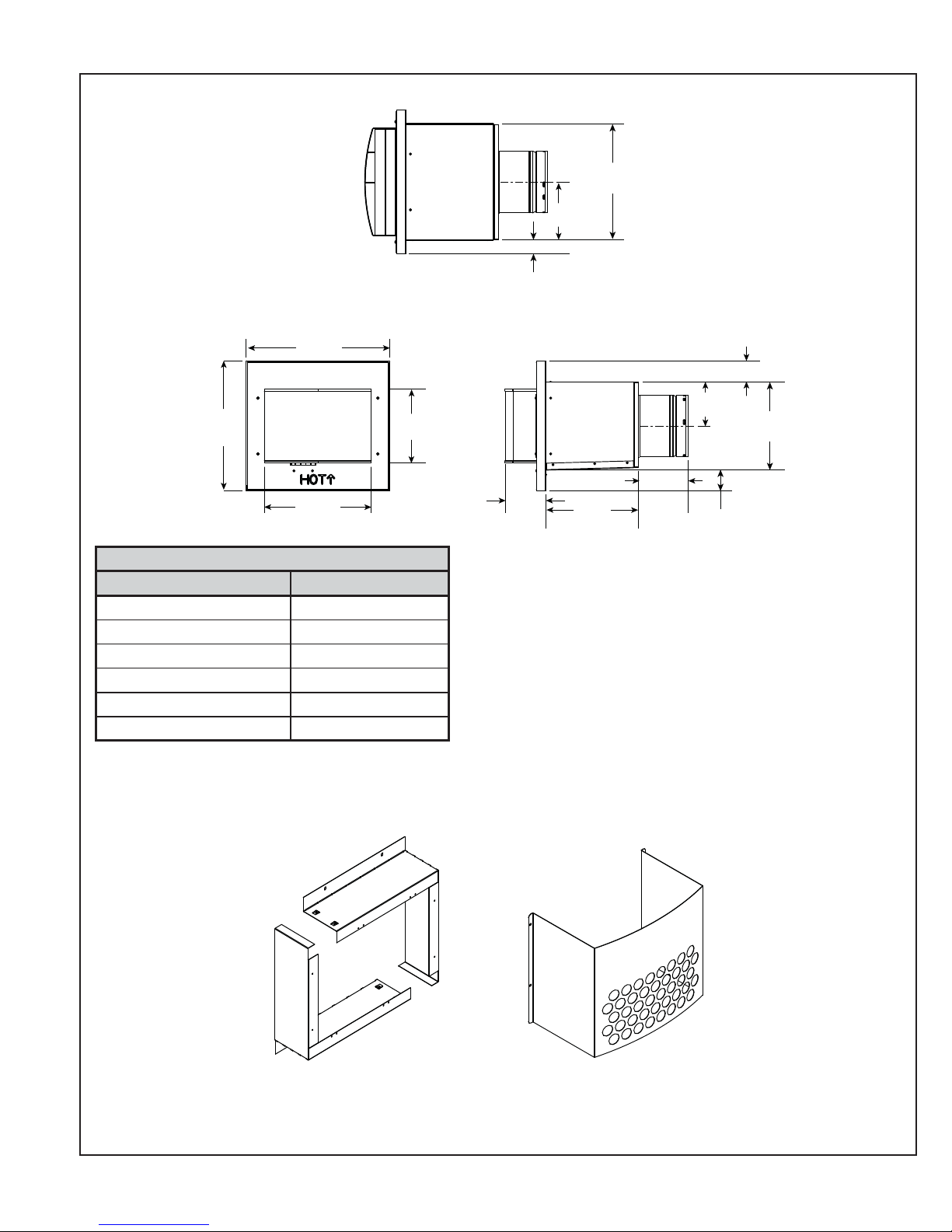

Top View
6-1/4 IN.
159 mm
1-1/2 IN.
38 mm
Front View
15-1/2 IN.
394 mm
14 IN.
356 mm
11-1/2 IN.
292 mm
Required Wire Harness
DESCRIPTION PART NUMBER
10 FT PV Wire Harness PVI-WH10
20 FT PV Wire Harness PVI-WH20
40 FT PV Wire Harness PVI-WH40
60 FT PV Wire Harness PVI-WH60
80 FT PV Wire Harness PVI-WH80
100 FT PV Wire Harness PVI-WH100
8 IN.
203 mm
4-3/8 IN.
112 mm
Side View
5-1/4 IN.
135 mm
10 IN.
254 mm
2-1/4 IN.
57 mm
4-3/4 IN.
121 mm
2-1/4 IN.
57 mm
9-1/2 IN.
241 mm
Note: Wire harnesses required to power the PVLP-SLP
connect to the appliance and are ordered separately from
PVLP-SLP. Contact your dealer to order.
Note: The PVLP-SLP requires a PVLP-CK be installed
on this appliance. The PVLP-CK is ordered separately
from the PVLP-SLP. Contact your dealer to order.
Note: A PVLP-HS heat shield is available and sold
separately. Use if the PVLP-SLP is installed in a high traffi c
area.
PVLP-BEK
Brick Kit
Figure 12.6 PVLP-SLP Vent Components
54
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
PVLP-HS
Heat Shield
Page 55
A. Vent Components Diagrams (continued)
6-1/2 in.
165 mm
8-3/4 in.
222 mm
6-5/8 in.
168 mm
SLP45
45° Elbow
Effective Height/Length
Pipe
SLP4 4 102
SLP6 6 152
SLP12 12 305
Effective
Height/
Length
SLP PIPE
SLP24 24 610
SLP36 36 914
SLP48 48 1219
SLP6A 2 - 6 51 - 152
SLP12A 2 - 12 51 - 305
SLP-FLEX-2 24 610
SLP-FLEX-3 36 914
SLP-FLEX-5 60 1524
SLP-FLEX-10 120 3048
6 in.
152 mm
inches mm
6-1/2 in.
165 mm
6-5/8 in.
168 mm
9-7/8 in.
251 mm
SLP90
90° Elbow
8-7/8 in.
225 mm
SLP-HVS
Horizontal Pipe
Support
6-1/2 in.
165 mm
10-7/8 in.
276 mm
9-1/4 in.
235 mm
1-1/2 in.
38 mm
8-11/16 in.
220 mm
8-11/16 in.
220 mm
SLP-FS
Ceiling Firestop
Figure 12.7 SLP Series Vent Components
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
1-1/2 in.
38 mm
12 in.
305 mm
SLP-WS
Wall Shield Firestop
12 in.
305 mm
5-1/2 in.
146 mm
55
Page 56
A. Vent Components Diagrams (continued)
Note: Heat shields MUST overlap by a minimum of 1-1/2 in. (38 mm). The heat shield is designed to be
used on a wall 4 in. to 7-1/4 in. (102 mm to 184 mm) thick. If wall thickness is less than 4 in. (102 mm)
the existing heat shields must be field trimmed. If wall thickness is greater than 7-1/4 in. (184 mm) a
DVP-HSM-B will be required.
8 in.
(203 mm)
15-1/8 in.
(384 mm)
Heat
Shield
3-15/16 in.
(101 mm)
12 in.
(305 mm)
6-11/16 in.
(169 mm)
8 in.
(203 mm)
SLP-TRAP
Horizontal Termination Cap
3-13/16 in.
(97 mm)
SL-2DVP
Adapter
Max
Effective
Length
3-15/16 in.
(101 mm)
5-1/16 in.
(128 mm)
4 in.
102 mm
Term Cap
Trap1
Trap2
Minimum
Effective Length
3-1/8 in. 4-3/4 in.
79 mm 121 mm
5-1/4 in. 9-1/4 in.
133 mm 235 mm
6-3/8 in.
163 mm
8-1/8 in.
206 mm
Maximum
Effective Length
4-3/16 in.
106 mm
4-5/8 in.
117 mm
5-1/16 in.
128 mm
DVP-2SL
Adapter
26 in.
660 mm
DVP-HSM-B
Extended Heat Shield
Figure 12.8 SLP Series Vent Components
56
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
14-7/16 in.
367 mm
14-7/16 in.
367 mm
2-5/16 in.
59 mm
SLP-WT-BK
Wall Thimble-Black
Page 57
A. Vent Components Diagrams (continued)
12 in.
305 mm
10-9/16 in.
SLP-CCS-BK
Cathedral Ceiling
Support Box-Black
14-1/16 in.
357 mm
269 mm
14 in.
356 mm
SLP-FLEX-TRAP
Termination Kit
14 in.
356 mm
Horizontal
7-1/2 in.
192 mm
SLP-TVHW
Vertical
Termination Cap
10-3/4 in.
273 mm
12-1/2 in.
318 mm
305 mm
12 IN.
13 in.
330 mm
13 in.
330 mm
SLP-DCF-BK
Ceiling Firestop
Black
14 IN.
356 mm
SLP-TB1
Basement Vent Cap
1-5/16 in.
7-3/8 IN.
187 mm
34 mm
17-7/8 IN.
454 mm
10-11/16 in.
28-1/2 in.
724 mm
13-1/2 in.
343 mm
SLK-SNKD
Snorkel
Termination Cap
Figure 12.9 SLP Series Vent Components
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
271mm
1 in.
(25 mm)
14 in.
(356 mm)
7-1/4 in.
(184 mm)
3/8 in. (10 mm)
1 in. (25 mm)
7-3/4 to 10-3/8 in.
(197 to 264 mm)
DVP-FBHT
Horizontal
Termination Cap
57
Page 58

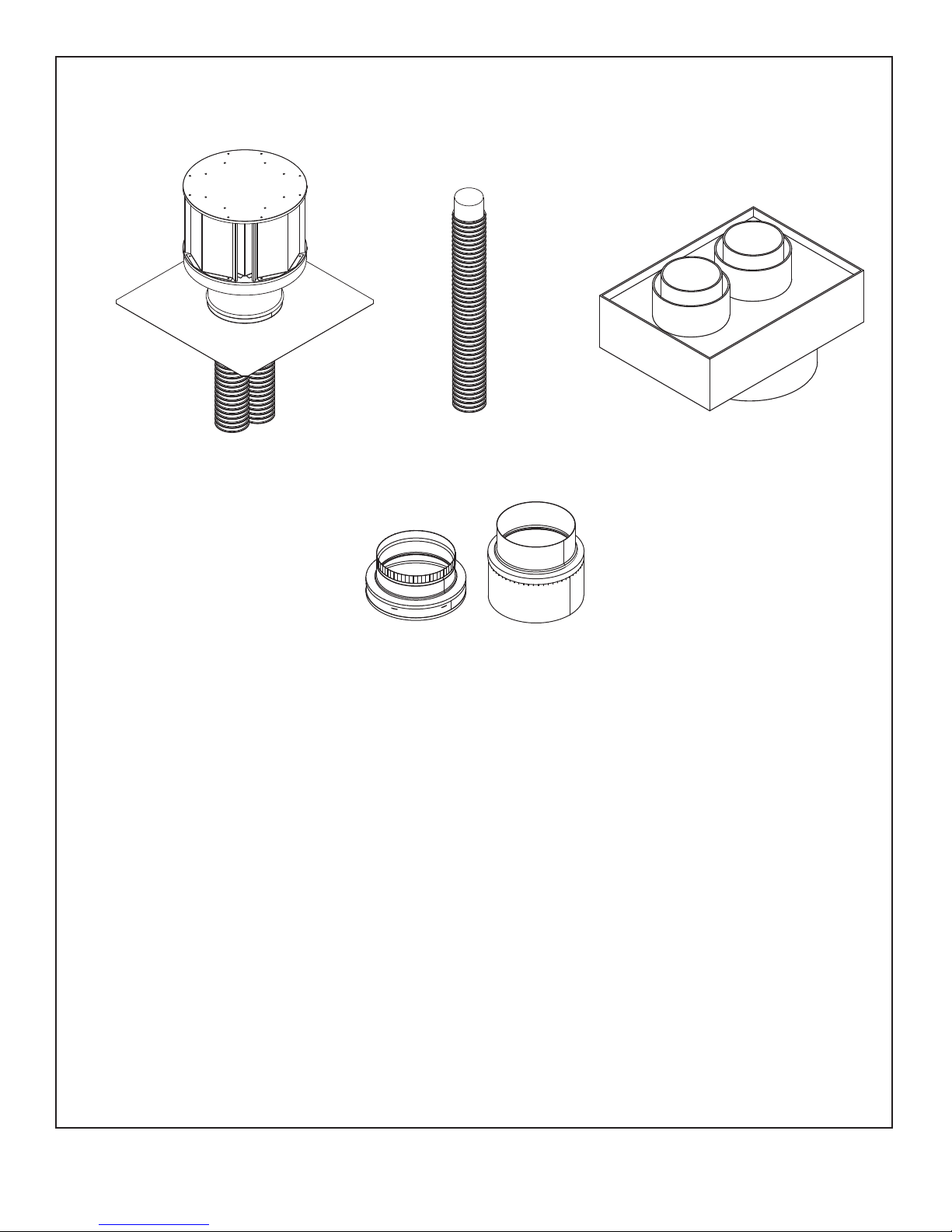

COAXIAL to COLINEAR VENTING
LINK-DV30B
Flex Liner Kit
768-380A
Stainless Steel Flex Pipe
DVP-2SL
Adapter
DV-46DVA-GCL
Coaxial/Colinear Appliance Connector
Figure 12.10 Coaxial to Colinear Vent Components
58
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
Page 59
B. Accessories
Install approved accessories per instructions included
with accessories. Contact your dealer for a list of approved accessories.
WARNING! Risk of Fire and Electric Shock! Use ONLY
Hearth & Home Technologies-approved optional accessories with this appliance. Using non-listed accessories
could result in a safety hazard and will void the warranty.
Optional Fan
The optional fan may be installed by a qualifi ed service
technician. Refer to installation information in Section 8.
Follow the instructions supplied with the fan kit to operate
your fan. See your dealer if you have questions.
Wall Switches
Follow the instructions supplied with the control installed
to operate your fi replace:
For safety:
• Install a switch lock or a wall control with child protection
lockout feature.
• Keep controls out of reach of children.
See your dealer if you have questions.
Heatliator, a brand of Hearth & Home Technologies
Please contact your Heatilator dealer with any questions or concerns.
For the location of your nearest Heatilator dealer,
Heatilator • ECLIPSE-32, ECLIPSE-36 Installation Manual • 2297-984 Rev. B • 6/15
7571 215th Street West, Lakeville, MN 55044
www.heatilator.com
please visit www.heatilator.com.
Printed in U.S.A. - Copyright 2015
59
Loading...
