Heath Zenith SL-9526 User Manual

Motion Sensor Light Control

As an ENERGY STAR® Partner, Heath®/Zenith has determined that this product meets the ENERGY STAR® guidelines for energy efficiency. This product is ENERGY STAR compliant when used with 120 Watt bulbs.

Model SL-9526

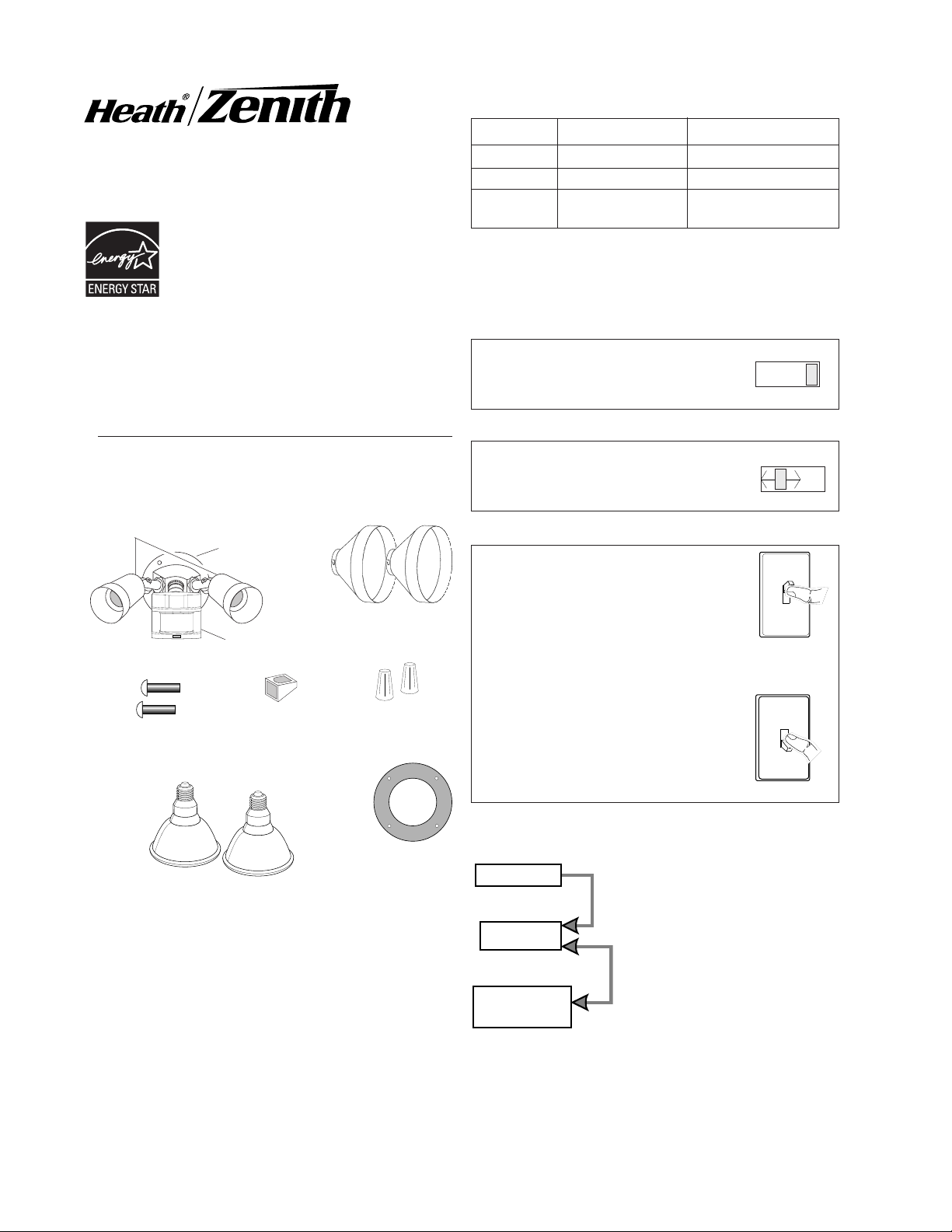

Features

• Turns on lighting when motion is detected.

• Automatically turns lighting off.

• Photocell keeps the lighting off during daylight hours.

• LED indicates motion was sensed (day or night).

This package includes:

Lamp Holders

Cover

Plate

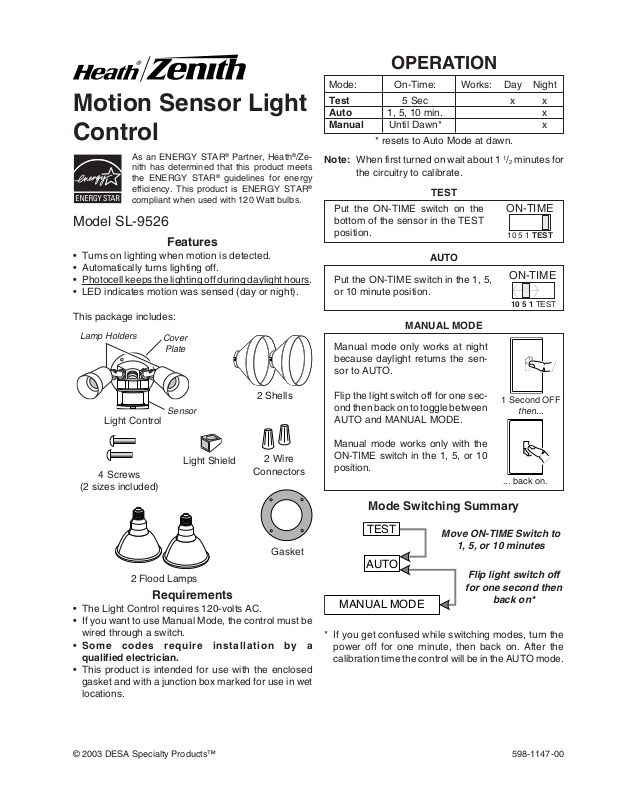

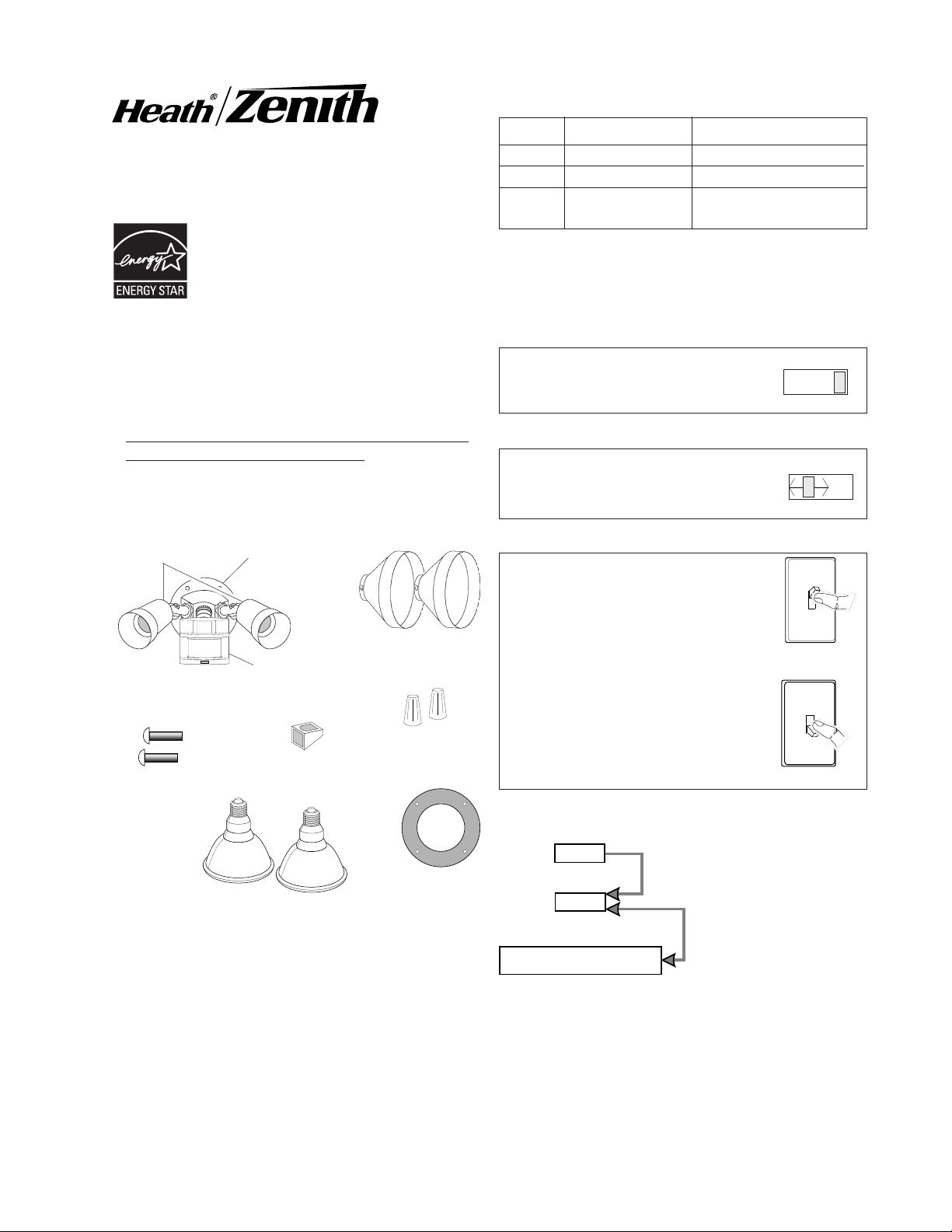

OPERATION

Mode: On-Time: Works: Day Night

Test 5 Sec x x Auto 1, 5, 10 min. x Manual Until Dawn* x

* resets to Auto Mode at dawn.

Note: When first turned on wait about 1

the circuitry to calibrate.

Put the ON-TIME switch on the bottom of the sensor in the TEST position.

Put the ON-TIME switch in the 1, 5, or 10 minute position.

Manual mode only works at night because daylight returns the sensor to AUTO.

TEST

AUTO

MANUAL MODE

/2 minutes for

ON-TIME

10 5 1 TEST

ON-TIME

10 5 1 TEST

2 Shells

Sensor

Light Control

Light Shield

4 Screws

(2 sizes included)

2 Flood Lamps

2 Wire

Connectors

Gasket

Requirements

• The Light Control requires 120-volts AC.

• If you want to use Manual Mode, the control must be wired through a switch.

• Some codes require installation by a

qualified electrician.

• This product is intended for use with the enclosed gasket and with a junction box marked for use in wet locations.

Flip the light switch off for one second then back on to toggle between AUTO and MANUAL MODE.

Manual mode works only with the ON-TIME switch in the 1, 5, or 10 position.

1 Second OFF

then...

... back on.

Mode Switching Summary

TEST

Move ON-TIME Switch to

1, 5, or 10 minutes

AUTO

Flip light switch off

for one second then

MANUAL MODE

* If you get confused while switching modes, turn the

power off for one minute, then back on. After the calibration time the control will be in the AUTO mode.

back on*

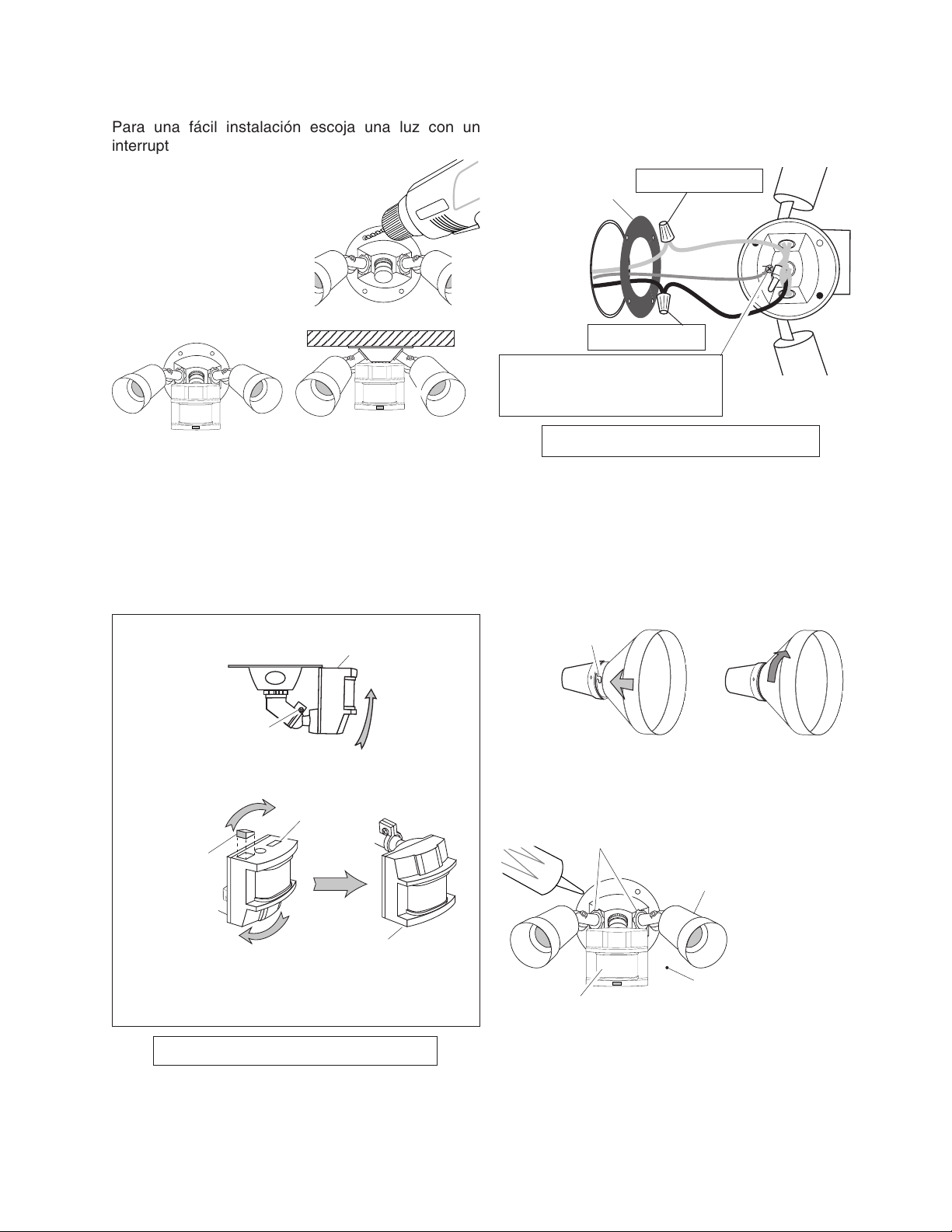

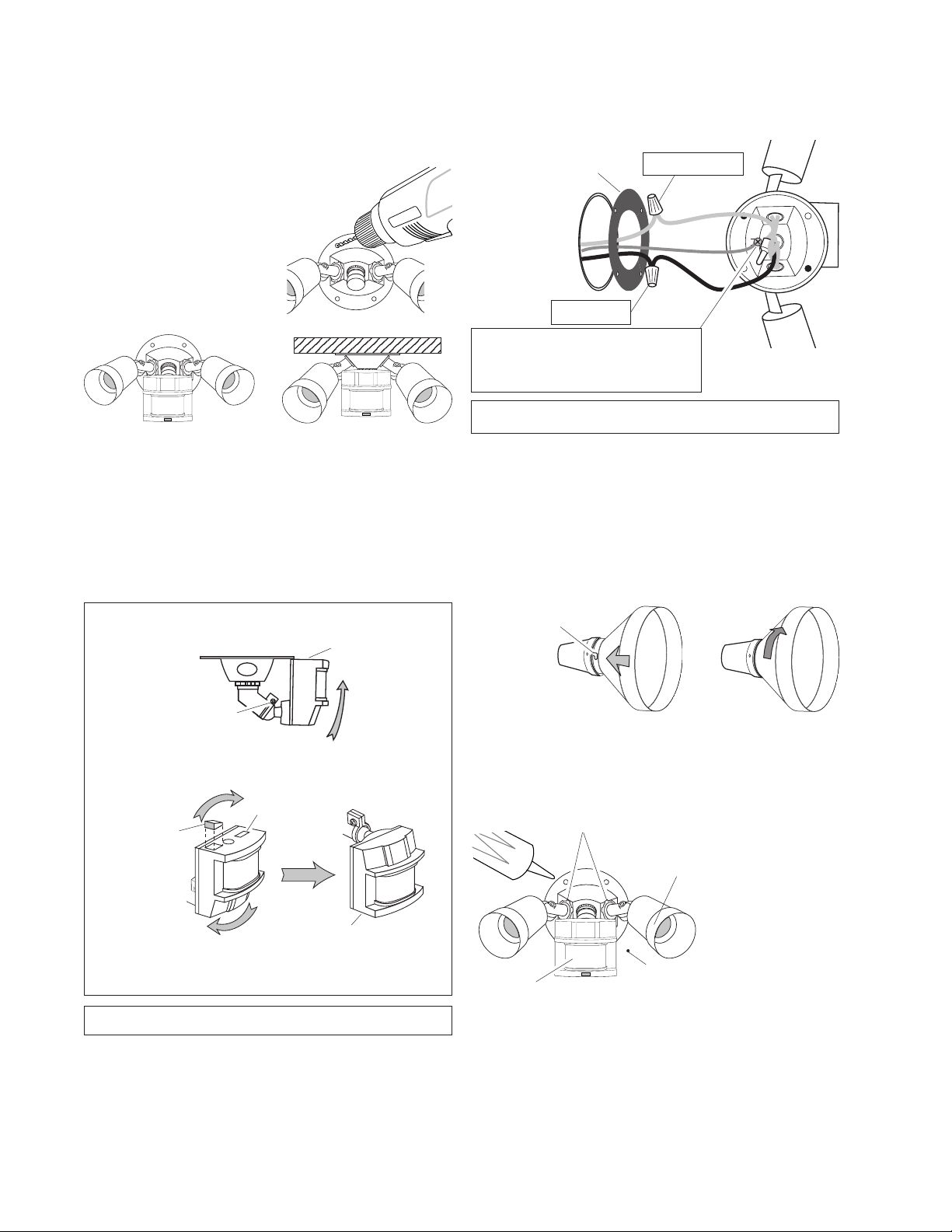

INSTALLATION

123456789012345678

For easy installation, select an existing light with a wall switch for replacement.

❒ Drill out the holes if

needed to mount the backplate to the junction box.

❒ Twist the junction box wires and fixture wires together

as shown. Secure with wire connectors.

White to

Gasket

White

2345678901234567

Wall Mount Eave Mount

For under eave installation, the sensor head must be rotated as shown in the next two steps for proper opera- tion and to avoid the risk of electrical shock. Also for proper under eave operation, remove the protective

backing from the Light Shield and stick on as shown below.

For eave mount only:

❒ Swing the sensor head towards the clamp screw

joint.

Clamp Screw

❒ Then rotate the sensor head clockwise 180° so

the controls face down.

Controls

Light Shield

Opening

Controls

Black to Black

Junction box ground wire to green ground screw on fixture.

MOUNT THE LIGHT CONTROL.

❒ Align the Light Control cover plate and cover plate

gasket. Secure with the screws provided.

❒ Align the three slots in the decorative shell with the

lamp holder pins. Push the shell in and then twist clockwise to lock. Repeat for other shell.

Shell Slot

❒ If a wet location junction box was not used, caulk the

wall plate mounting surface with silicone weather sealant.

To avoid water damage and

Lock Nut

electrical shock, keep lamp holders 30° below horizontal.

If the sensor pops out of the ball joint, loosen the clamp screw and push the sensor back into the ball joint. Tighten the clamp screw when done.

❒ Turn power off at the fuse or circuit breaker. ❒ Remove the existing light fixture. ❒ Route the Light Control’s wires through the large

gasket hole.

Controls

WIRE THE LIGHT CONTROL.

Keep lamps at least 1" (2.5 cm) from the sensor. Do not allow

Lens

the lamps to block the lens.

❒ Adjust the lamp holders by loosening the lock nuts

but do not rotate the lamp holders more than 180° from the factory setting. When screwing in the floodlamps, do not overtighten.

598-1147-00

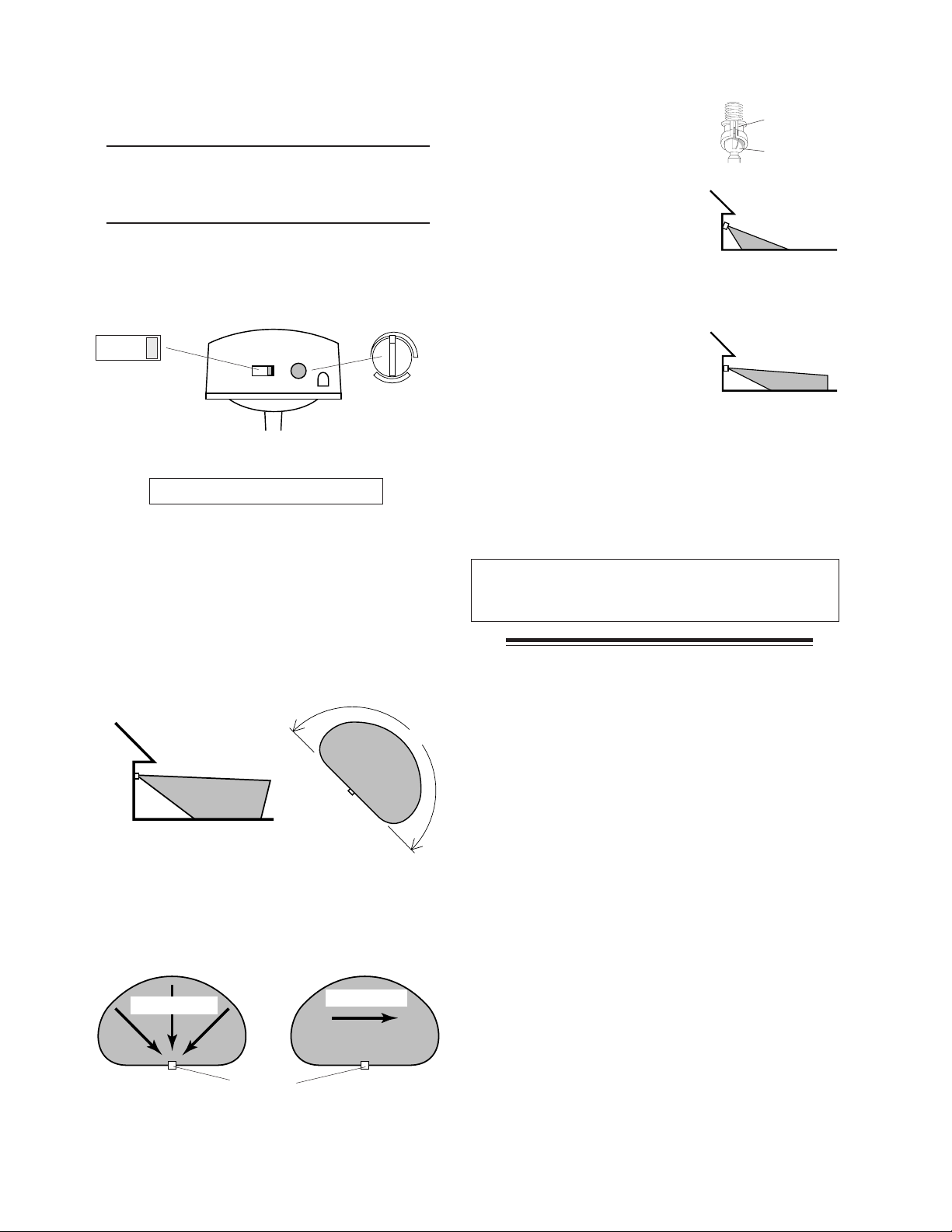

TEST AND ADJUSTMENT

❒ Turn on the circuit breaker and light switch.

NOTE: Sensor has about 1 1/

period before it will detect motion. When first turned on, wait about 1 1/

❒ Turn the RANGE control to the mid position and the

ON-TIME control to the TEST position.

ON-TIME

10 5 1 TEST

Bottom of Sensor

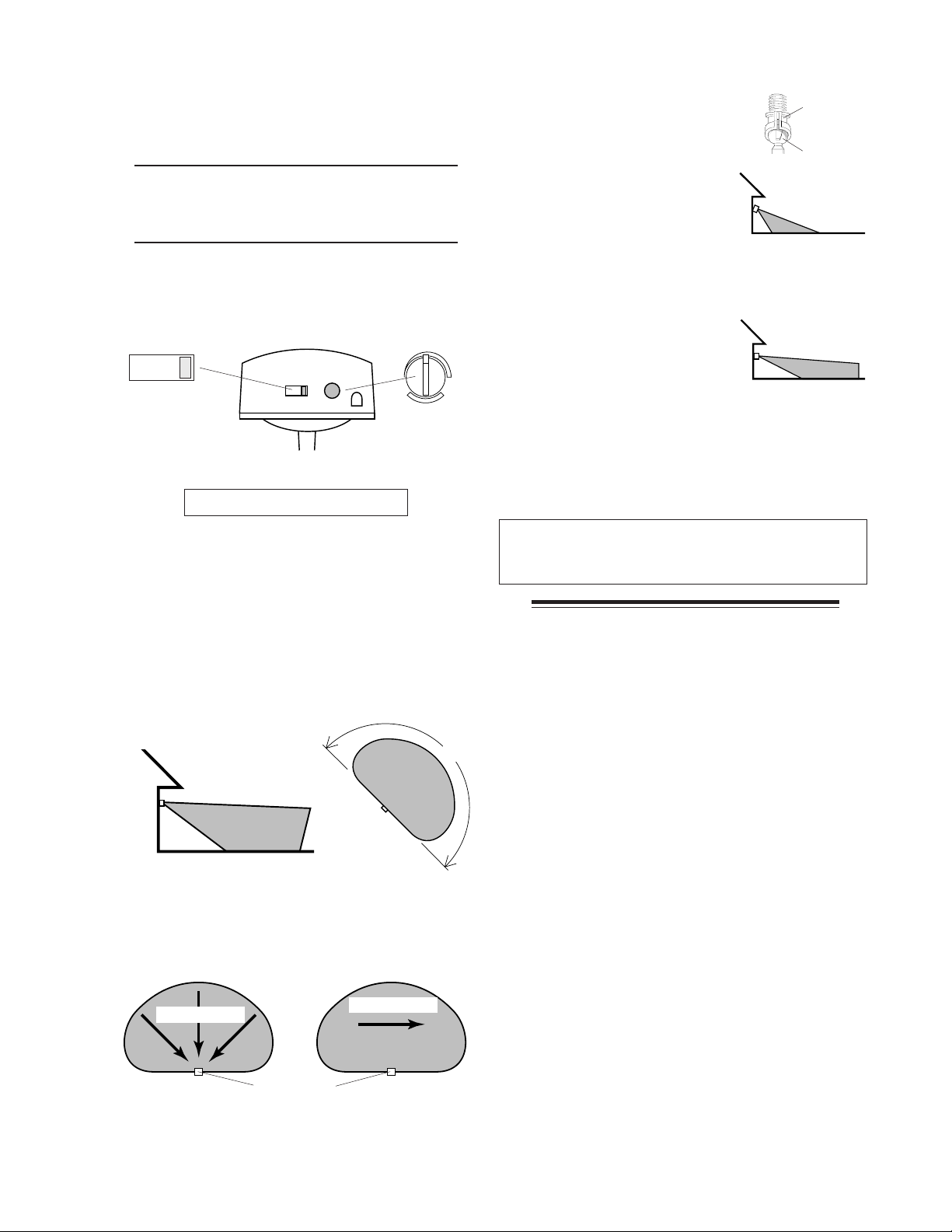

Avoid aiming the control at:

• Objects that change temperature rapidly, such as heating vents and air conditioners. These heat sources could cause false triggering.

• Areas where pets or traffic may trigger the control.

• Nearby large, light-colored objects reflecting light may trigger the shut-off feature. Do not point other lights at the sensor.

8 ft.

(2.4 m)

70 ft.

(21 m)

Maximum Range Maximum

minutes warm up

minutes.

RANGE

MIN MAX

180°

Coverage Angle

❒ Loosen the clamp screw in the

sensor ball joint and gently rotate the sensor.

❒ Walk through the coverage area

noting where you are when the lights turn on (also, the LED will flash several times when motion is detected). Move the sensor head up, down, or sideways to change the coverage area.

Keep the sensor at least 1" (2.5 cm) away from the lamps.

❒ Adjust the RANGE as needed.

RANGE set too high may increase false triggering.

❒ Secure the sensor head by

tightening the clamp screw.

Do not overtighten the screw.

❒ Set the amount of TIME you want the lights to stay

on after motion is detected (1, 5 or 10 minutes).

Warning - Risk of fire. Do not aim the lamps at a combustible surface within 3 ft. (1 m).

Aim Sensor

Down for Short

Aim Sensor

Higher for Long

Clamp Screw

Ball Joint

Coverage

SPECIFICATIONS

Range . . . . . . . . . . . . . . Up to 70 ft. (21 m) [varies with

surrounding temperature].

Sensing Angle . . . . . . . . Up to 180°

Electrical Load. . . . . . . . Up to 300 Watt Maximum In-

candescent [Up to 150 Watt

maximum each lamp holder.] Power Requirements. . . 120 VAC, 60 Hz

Operating Modes. . . . . . TEST, AUTO and MANUAL

MODE

Time Delay . . . . . . . . . . 1 , 5, 10 minutes

DESA Specialty Products™ reserves the right to discontinue products and to change specifications at any time without incurring any obligation to incorporate new features in products previously sold.

The detector is most sensitive to motion across its field of view.

Motion

Sensor

Motion

Least Sensitive Most Sensitive

598-1147-00

TROUBLESHOOTING GUIDE

SYMPTOM

Lights will not come on.

Lights come on in daylight.

Lights come on for no apparent reason.

POSSIBLE CAUSE

1. Light switch is turned off.

2. Flood light is loose or burned out.

3. Fuse is blown or circuit breaker is turned off.

4. Daylight turn-off is in effect

check after dark)

5. Incorrect circuit wiring, if this is a new installation.

6. Re-aim the sensor to cover desired area.

1. Light Control may be installed in a relatively dark location.

2. Light Control is in Test.

(Set control switch to an ON-TIME position)

1. Light Control may be sensing small animals or automobile traffic

(re-aim sensor)

2. Range is set too high.

(Reduce Range)

(re-

SYMPTOM

Lights stay on continuously.

Lights flash on and off.

POSSIBLE CAUSE

1. A flood lamp is positioned too close to the sensor or pointed at nearby objects that cause heat to trigger the sensor.

from the sensor or nearby objects)

2. Light Control is pointed toward a heat source like an air vent, dryer vent, or brightly-painted heat-reflective surface.

3. Light Control is in Manual Mode.

(Switch to Auto.)

1. Heat or light from the lamps may be turning the Light Control on and off.

(Reposition the lamps away from the sensor)

2. Heat being reflected from other objects may be affecting the sensor.

(Reposition sensor)

3. Light Control is in the Test mode and warming up.

der these conditions)

4. Light may be leaking through the floodlamp reflectors.

with new high quality PAR 38 lamps)

(Reposition the lamp away

(Reposition sensor)

(Flashing is normal un-

(Replace the lamps

TECHNICAL SERVICE

(Do Not Send Products)

If you experience a problem, follow this guide. You may also want to visit our Web site at: www.desatech.com. If the problem persists, call* for assistance at 1-800-858-8501, 7:30 AM to 4:30 PM CST (M-F). You may also write* to: DESA Specialty Products™ P.O. Box 90004, Bowling Green, KY 42102-9004 ATTN: Technical Service Specialty Products

* If contacting Technical Service, please have the following information available: Model Number, Date of Purchase, and Place of Purchase.

No Service Parts Available for this Product.

To obtain a refund or replacement, return the Product to the place of purchase.

598-1147-00

ADT/DESA Specialty Products™ 10 Year Product Limited Warranty (“Limited Warranty”)

ADT Security Services, Inc. and DESA Specialty Products™ (the “Parties”) warrant to the original retail purchaser only (the “Purchaser”) that this item (the “Product”) is free from manufacturing defects in material and workmanship, provided the Product is used in normal conditions and is installed and used in strict accordance with the instructions contained in the Product’s Owner’s Manual.

This 10 year Limited Warranty (the “Limited Warranty Period”), shall commence on the date the Purchaser buys the Product at retail in an unused condition.

The Parties’ obligations under this Limited Warranty shall be limited to the repair or replacement of any warranted parts found by the Parties to be defective in the Product or, in the Parties’ sole discretion, the replacement of the Product found by the Parties to be defective.

Limited Warranty Exclusions and Limitations

This Limited Warranty does not apply to:

a. Light Bulbs and other expendable items supplied with or forming part of the Product. b. Defects or damages arising by use of the Product in other than normal (including normal atmospheric, moisture and humidity conditions) or by

installation or use of the Product other than in strict accordance with the instructions contained in the Product’s Owner’s Manual.

c. Defects in or damages to the Product caused by (i) negligent use of the Product, (ii) misuse or abuse of the Product, (iii) electrical short circuits or

transients, (iv) Purchaser adjustments that are not covered in the Owner’s Manual, (v) use of replacement parts not supplied by the Parties (vi) improper Product maintenance, or (vii) accident, fire, flood or other Acts of God.

This Limited Warranty is invalidated if other than the Parties’ accessories are or have been used in or in connection with the Product or if any modification or repair is made to the Product by other than a service depot authorized by the Parties.

The Parties reserve the right to make changes in design or to make additions to or improvements in the Products without incurring any obligation to modify any Product which has already been manufactured.

The Parties neither assume nor authorize any person to assume for them any other obligation or liability in connection with the sale or service of the Product or to act on their behalf in the modification, variation or extension of this Limited Warranty. Any and all claims or statements, whether written or verbal, by salespeople, retailers, dealers or distributors contrary to this Limited Warranty are not authorized by the Parties, and do not affect the provisions of this Limited Warranty.

This Limited Warranty covers only ADT/DESA Specialty Products™ assembled products and is not extended to other equipment and components that a Purchaser uses in conjunction with the Product.

THIS LIMITED WARRANTY IS EXCLUSIVE, THE SOLE REMEDY OF THE PURCHASER AND EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, OBLIGATIONS, OR LIABILITIES, WHETHER WRITTEN, ORAL, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY, REPRESENTATION OR CONDITION OF MERCHANTABILITY OR THAT THE PRODUCTS ARE FIT FOR ANY PARTICULAR PURPOSE OR USE, OR OTHERWISE. IN NO EVENT SHALL THE PARTIES BE LIABLE TO PURCHASER OR ANY THIRD PARTY FOR, AND THIS LIMITED WARRANTY SHALL SPECIFICALLY BE IN LIEU OF, ALL SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES ARISING IN ANY MANNER FROM THE USE, MISUSE, FUNCTIONING, NON-FUNCTIONING, OR MALFUNCTIONING OF THE PRODUCT, OR FROM ANY BREACH OF OR DELAY IN THE PERFORMANCE OF THIS LIMITED WARRANTY, INCLUDING BUT NOT LIMITED TO ANY LOSS OF BUSINESS OR PROFITS, WHETHER OR NOT FORESEEABLE. REPAIR OR REPLACEMENT SHALL BE THE SOLE REMEDY OF THE PURCHASER.

THE PARTIES DO NOT MAKE ANY CLAIMS OR WARRANTIES OF ANY KIND WHATSOEVER REGARDING THE PRODUCT’S POTENTIAL, ABILITY OR EFFECTIVENESS TO DETECT, MINIMIZE, OR IN ANYWAY PREVENT DEATH, PERSONAL INJURY, PROPERTY DAMAGE OR LOSS OF ANY KIND WHATSOEVER. THE PARTIES ARE NOT RESPONSIBLE FOR ANY DEATH, PERSONAL INJURY, DAMAGE OR LOSS OR THEFT RELATED TO THE PRODUCT OR ITS USE OR FOR ANY HARM, WHETHER PHYSICAL OR MENTAL RELATED THERETO. THE PARTIES DO NOT REPRESENT THAT THE PRODUCT MAY NOT BE COMPROMISED AND OR CIRCUMVENTED, OR THAT THE PRODUCT WILL PREVENT DEATH, PERSONAL INJURY AND /OR BODILY INJURY, AND/OR DAMAGE TO PROPERTY OF PURCHASER OR OTHERS RESULTING FROM BURGLARY, ROBBERY, FIRE OR OTHERWISE, OR THAT THE PRODUCT WILL IN ALL CASES PROVIDE ADEQUATE WARNING OR PROTECTION. PURCHASER UNDERSTANDS THAT A PROPERLY INSTALLED AND MAINTAINED PRODUCT MAY ONLY REDUCE THE RISK OF EVENTS SUCH AS BURGLARY, ROBBERY, FIRE OR SIMILAR EVENTS WITHOUT WARNING, BUT IT IS NOT INSURANCE OR A GUARANTEE THAT SUCH EVENTS WILL NOT OCCUR OR THAT THERE WILL BE NO DEATH, PERSONAL INJURY AND/ OR PROPERTY DAMAGE AS A RESULT. THE PARTIES SHALL NOT BE LIABLE FOR ANY DEATH, PERSONAL INJURY, PROPERTY DAMAGE OR LOSS OF ANY KIND WHATSOEVER TO PURCHASER OR OTHERS, WHETHER DIRECTLY, INDIRECTLY, INCIDENTALLY, CONSEQUENTIALLY OR OTHERWISE, CAUSED BY THE OPERATION, NONOPERATION, FUNCTIONING, MALFUNCTIONING OR MISUSE OF THE PRODUCT ALONE OR IN CONNECTION WITH PRODUCTS, ACCESSORIES, OR ATTACHMENTS OF OTHERS, USED IN CONJUNCTION WITH THE PRODUCT, OR ARISING OUT OF THE PARTIES’ NEGLIGENCE, GROSS NEGLIGENCE, STRICT LIABILTY, FAILURE TO COMPLY WITH ANY LAW OR OTHER FAULT. HOWEVER, IF THE PARTIES ARE HELD LIABLE, WHETHER DIRECTLY OR INDIRECTLY FOR ANY SUCH DEATH, PERSONAL INJURY, PROPERTY DAMGE OR LOSS OF ANY KIND WHATSOEVER ARISING UNDER THIS LIMITED WARRANTY OR OTHERWISE, REGARDLESS OF THE CAUSE OR ORIGIN, THE PURCHASER AGREES THAT THE PARTIES’ MAXIMUM LIABILITY SHALL NOT IN ANY CASE EXCEED THE PURCHASE PRICE OF THE PRODUCT, WHICH SHALL BE FIXED AS LIQUIDATED DAMAGES AND NOT AS A PENALTY, AND SHALL BE THE COMPLETE AND EXCLUSIVE REMEDY OF THE PURCHASER AGAINST THE PARTIES.

THIS LIMITED WARRANTY APPLIES TO THE PRODUCT ONLY, GIVES THE PURCHASER SPECIFIC RIGHTS AND SHALL NOT BE MODIFIED, VARIED OR EXTENDED. SOMES STATES DO NOT ALLOW LIMITATION OF SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE EXCLUSION OF SAME MAY NOT APPLY TO PURCHASER. THE PURCHASER MAY HAVE OTHER RIGHTS UNDER STATE, PROVINCIAL, OR FEDERAL LAWS AND WHERE THE WHOLE OR ANY PART OF ANY ITEM OF THIS LIMITED WARRANTY IS PROHIBITED BY SUCH LAWS, IT SHALL BE DEEMED NULL AND VOID, BUT THE REMAINDER OF THE LIMITED WARRANTY SHALL REMAIN IN EFFECT.

Warnings:

The Purchaser should follow the installation and operation instructions contained in the Owner’s Manual and among other things test the Product and the whole system at least once a week. For various reasons, including, but not limited to, changes in environmental conditions, electric or electronic disruptions and tampering, the Product may not perform as expected. The Purchaser is advised to take all necessary precautions for his /her safety and the protection of his/her property.

Always use discretion when installing the Product especially when there is perceived privacy. Inquire regarding federal, state and/or local regulations applicable to the lawful installation and use of the Product.

Product manufactured by DESA Specialty Products™ for sale by Home Depot, U.S.A., Inc.. ADT and the ADT logo are registered trademarks of ADT Services, AG and are used by Home Depot, U.S.A. Inc. under license from ADT Security Services, Inc. and its affiliate.

598-1147-00
